A/C wiring schematic/diagrams needed

Hi,

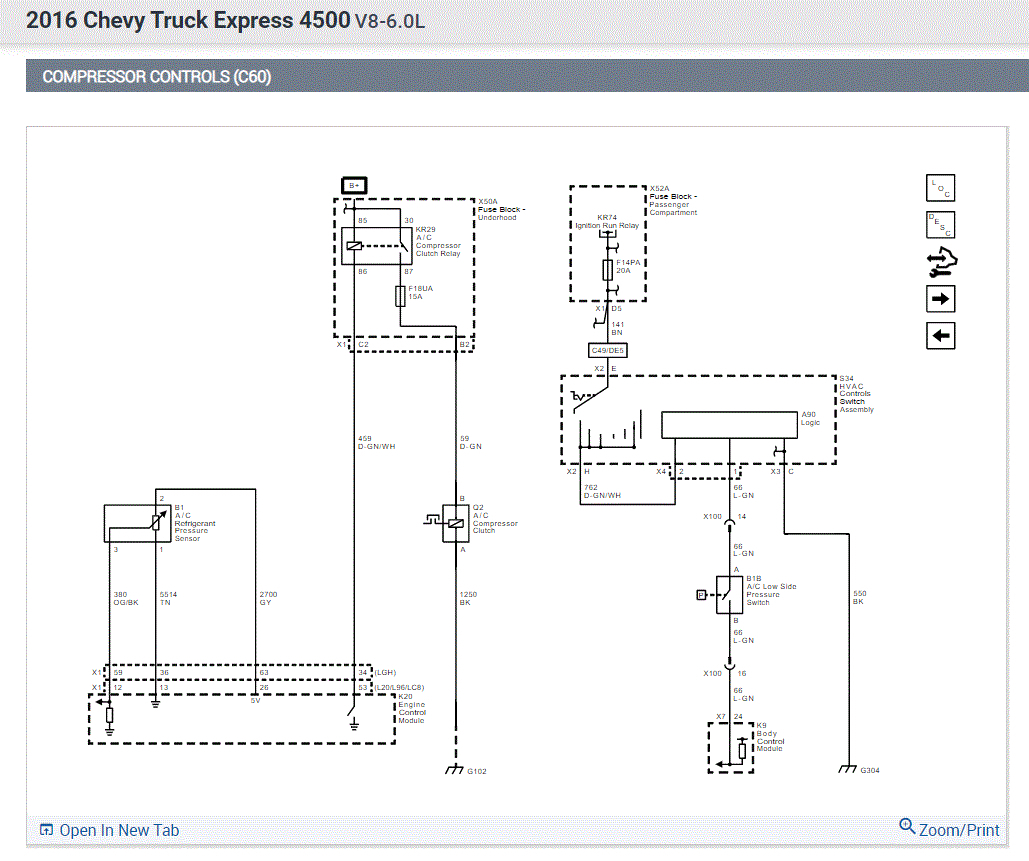

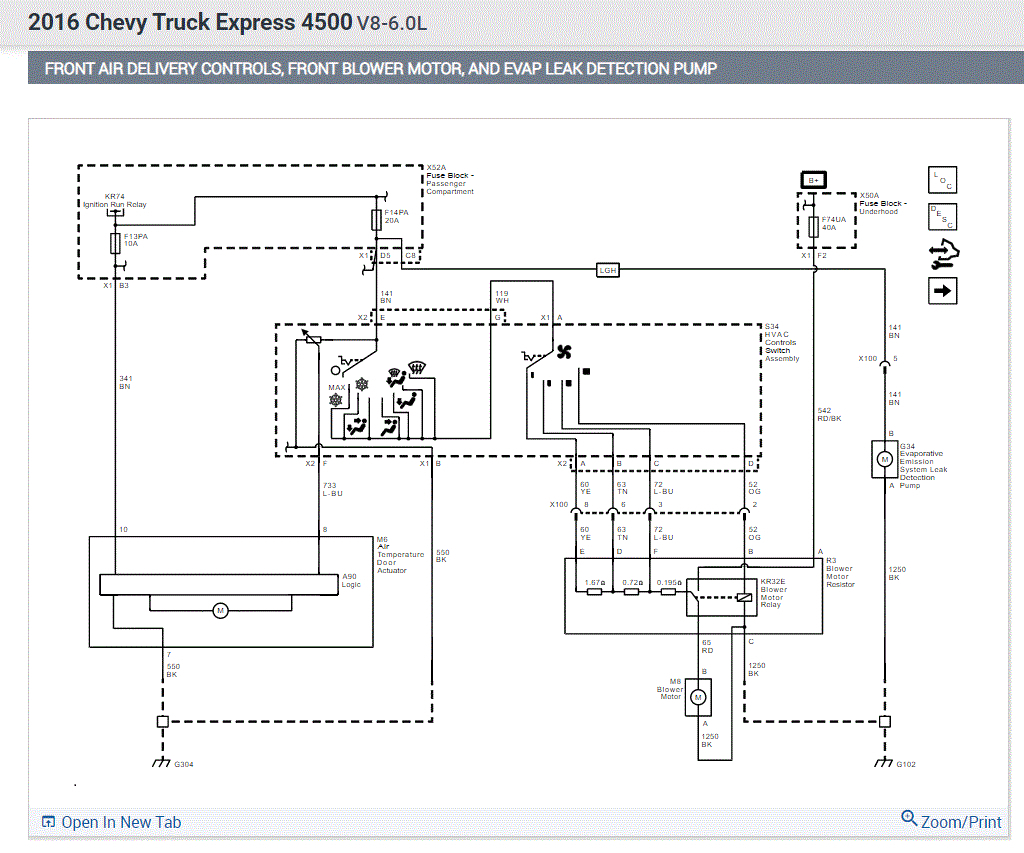

I was able to find wiring from the manufacturer for this vehicle. There are additional schematics for the rear, but since it's a cutaway, I don't believe you need that. LOL

Here are two links you may find helpful.

https://www.2carpros.com/articles/how-to-check-wiring

https://www.2carpros.com/articles/car-air-conditioner-not-working-or-is-weak

Let me know if this helps or if you have other questions.

Take care,

Joe

See pics below.

Joe, thank you for finding and sharing the information. I appreciate your quick response!

Hi,

You are very welcome. Let me know how things turn out for you or if there is something I can do to help.

Take care,

Joe
