A/C evaporator core, where is it located?

2004 TOYOTA AVALON
255,000 MILES • 3.0L • V6 • 2WD • AUTOMATIC
Avatar
JJONES72
  • MEMBER
  • 4 POSTS
I was told I have a leak in my A/C coil and an estimate of $1,600. I have researched and everything I found says no repair. So, I wanted to know where it's located and if I could do a DIY. I have a problem with the actuator on the driver side that I have already taken off and manually temporarily fixed until I get new one.
May 21, 2023 at 6:57 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

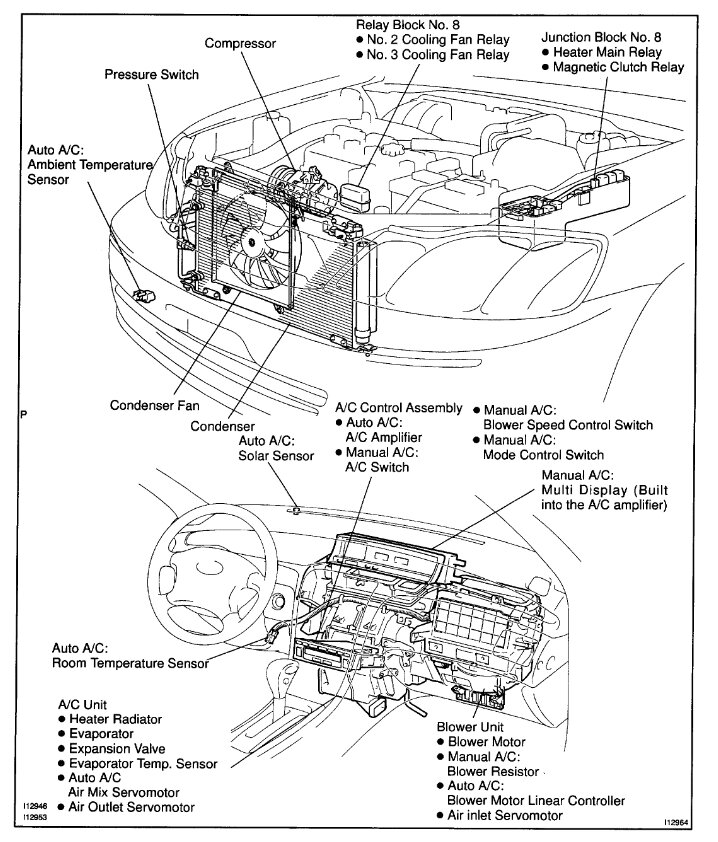

When you say A/C coil do you mean the evaporator or the condenser? Please check out the images below for clarification.
Image (Click to enlarge)
Attached Media
May 22, 2023 at 10:25 AM
Avatar
JJONES72
  • MEMBER
  • 4 POSTS
Firestone just said I had a pin hole in the ac coil. That's all I know about it. I thought about getting a can of sealant with dye in it to see if I could see anything come out. That wouldn't fix the leak though.
May 22, 2023 at 2:24 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Is the part in the front of the car or inside the passenger compartment?
May 23, 2023 at 10:35 AM
Avatar
JJONES72
  • MEMBER
  • 4 POSTS
They said inside. Said the whole dash would have to come out to replace it. I didn't know whether they were just trying make me think it was a big job because they quoted me $1,600.00.
May 23, 2023 at 1:41 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Yes, it is a big job, you will need to drain the engine coolant and vacuum down the AC system.

This video can help:

https://youtu.be/4EqdrBVb0sY

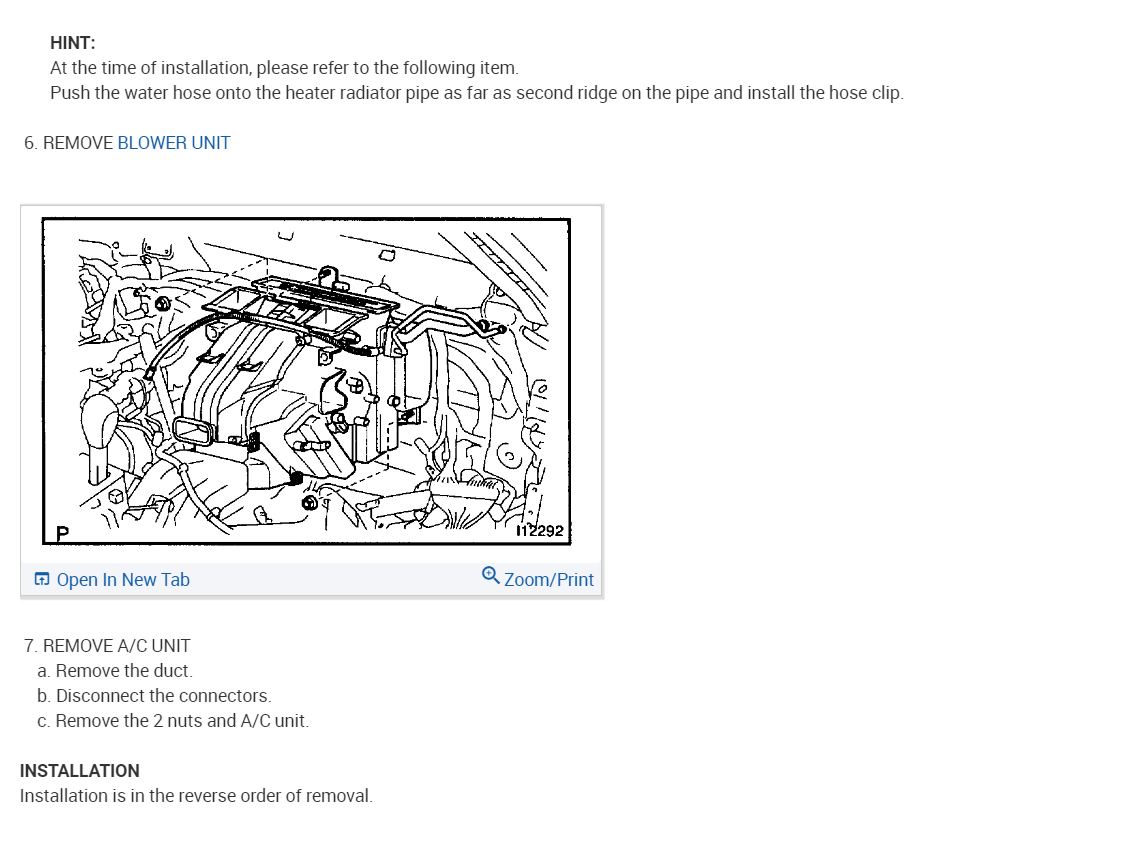

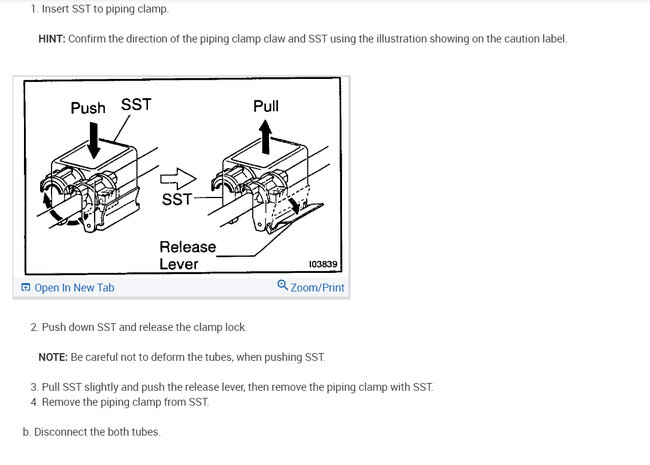

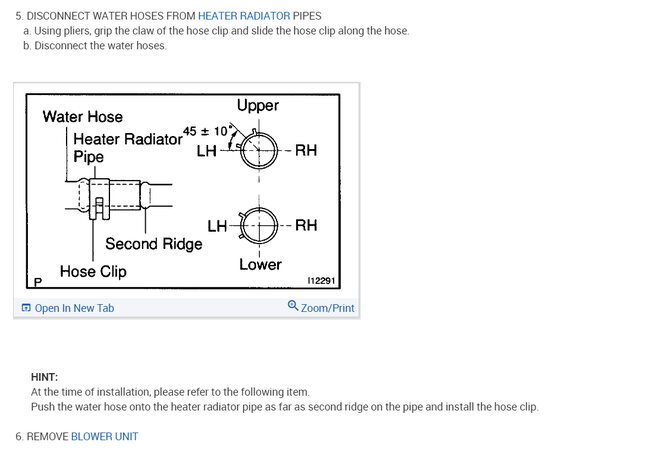

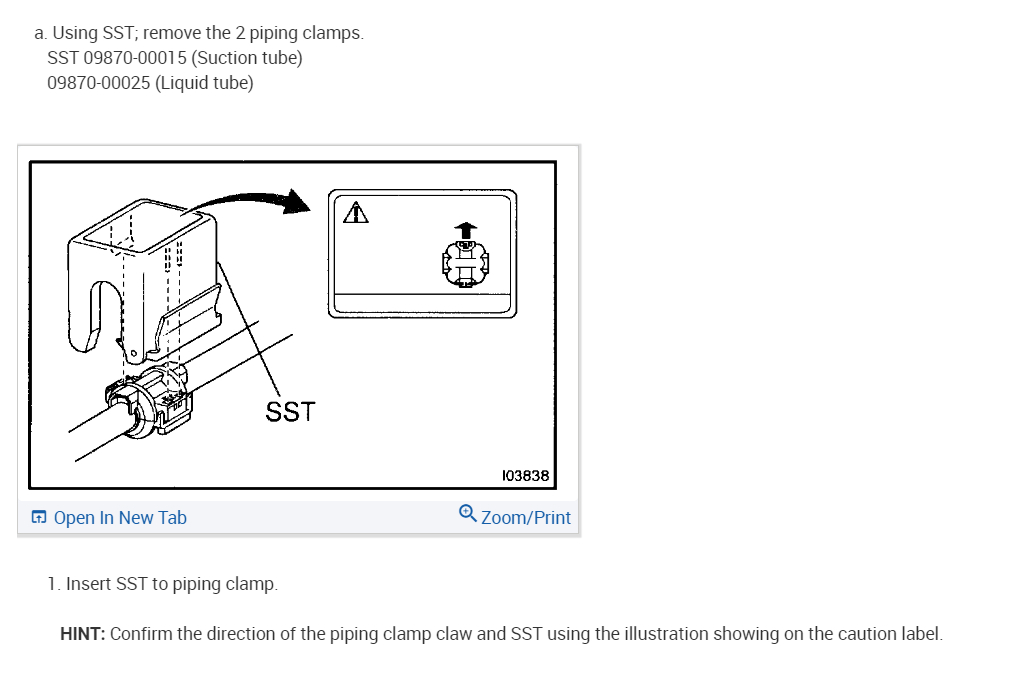

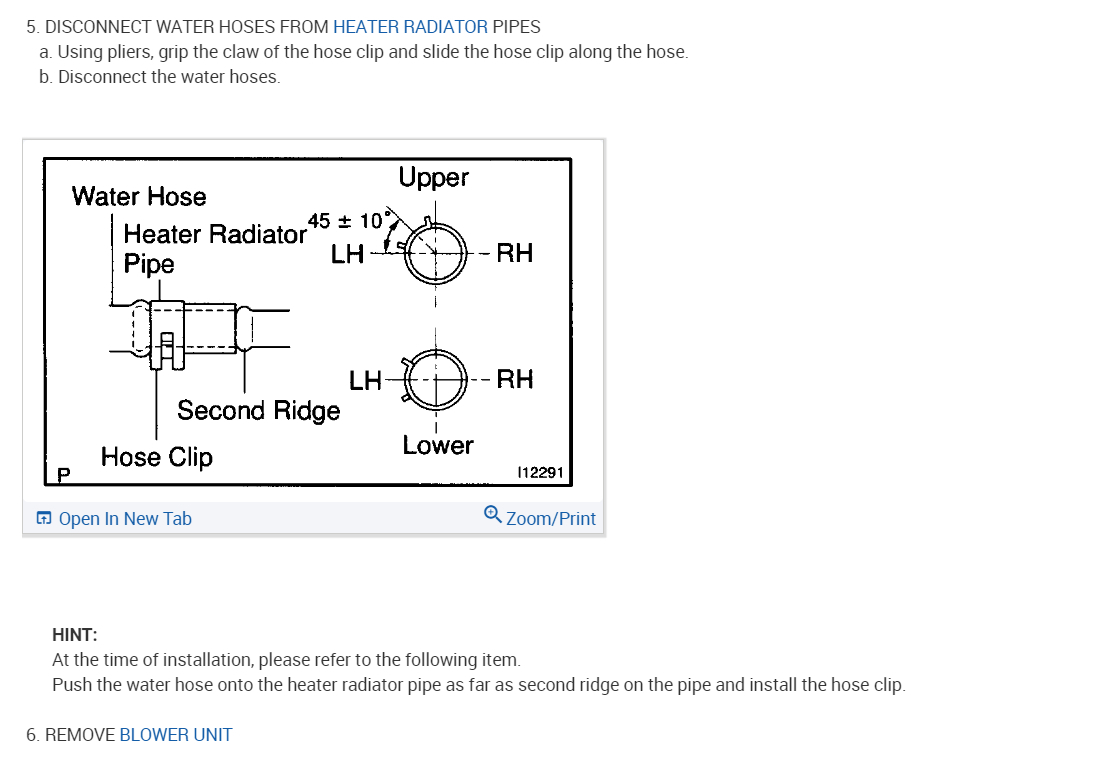

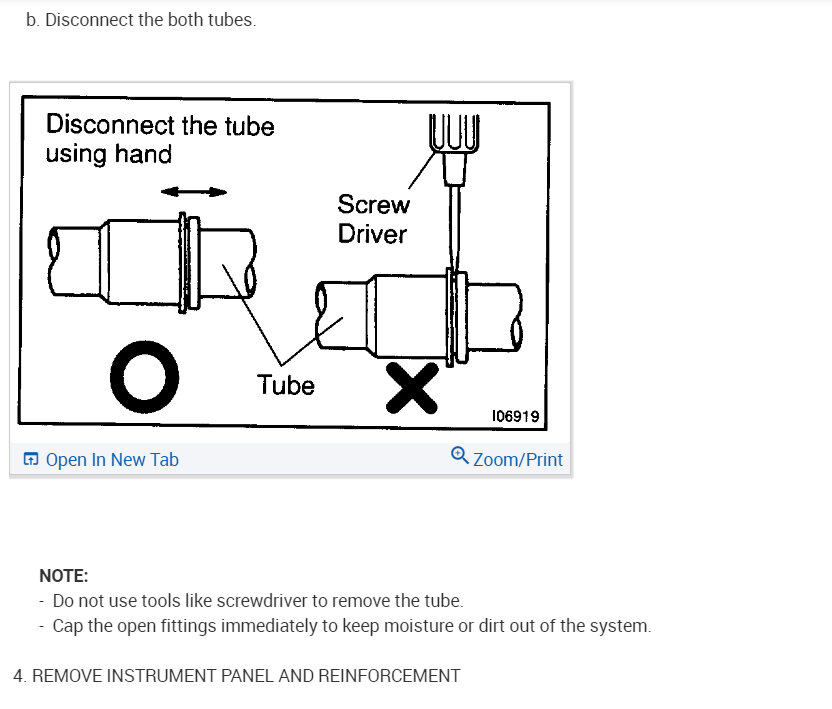

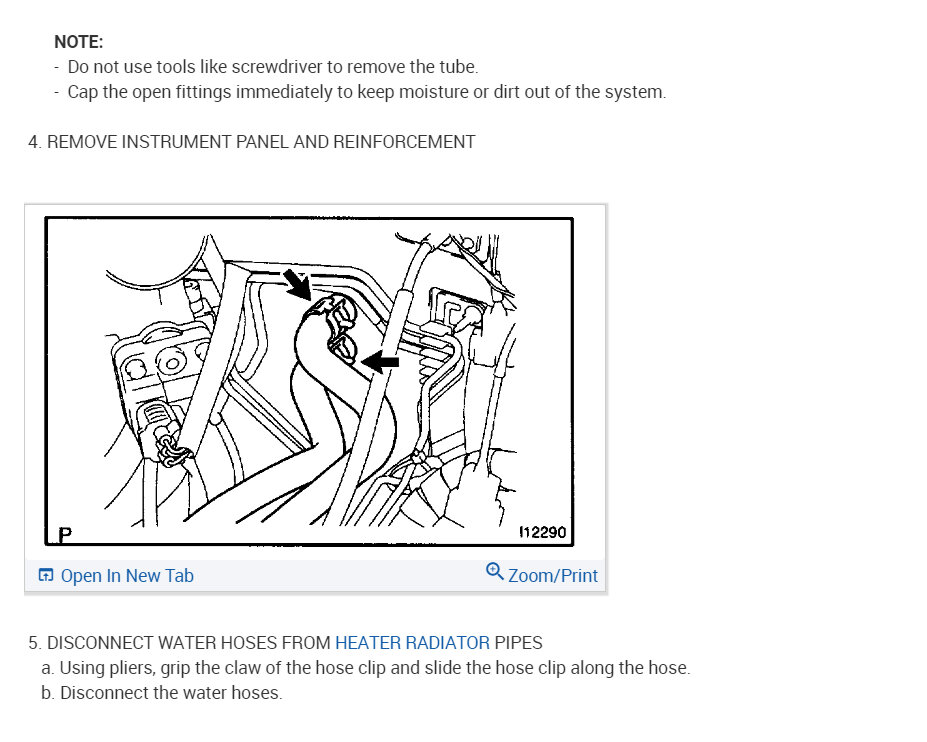

and guide can help as well, and I have included how to do the job on your car in the images below

https://www.2carpros.com/articles/step-by-step-guide-to-replacing-a-car-ac-evaporator

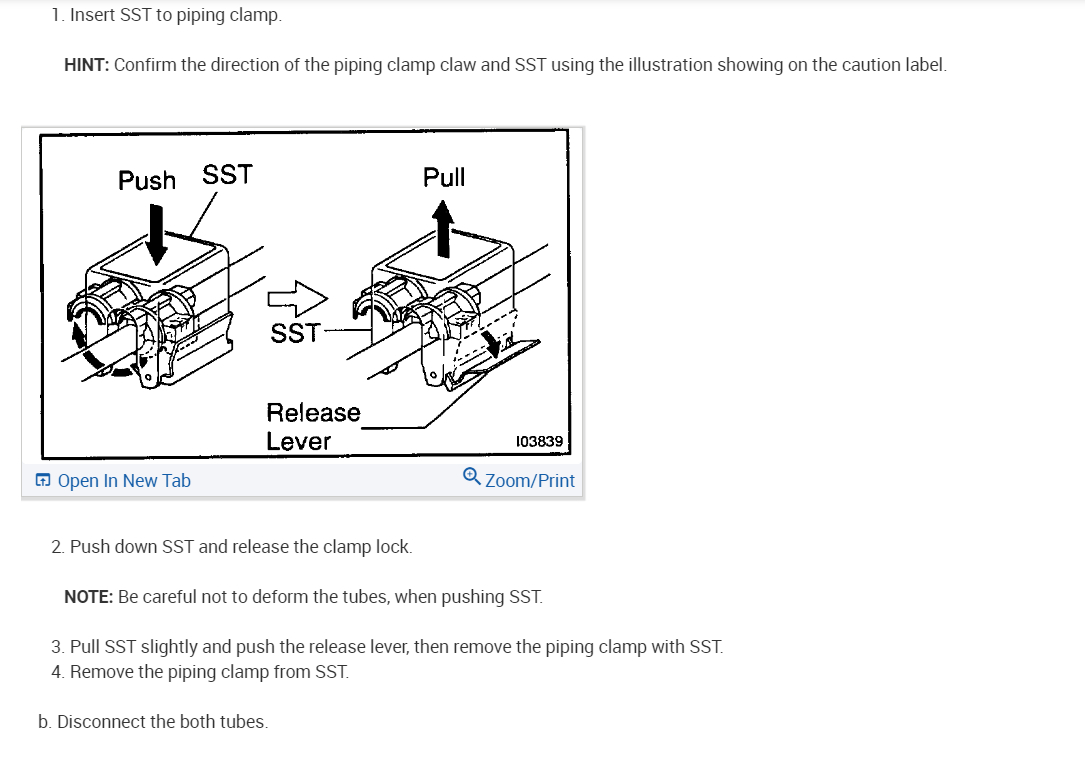

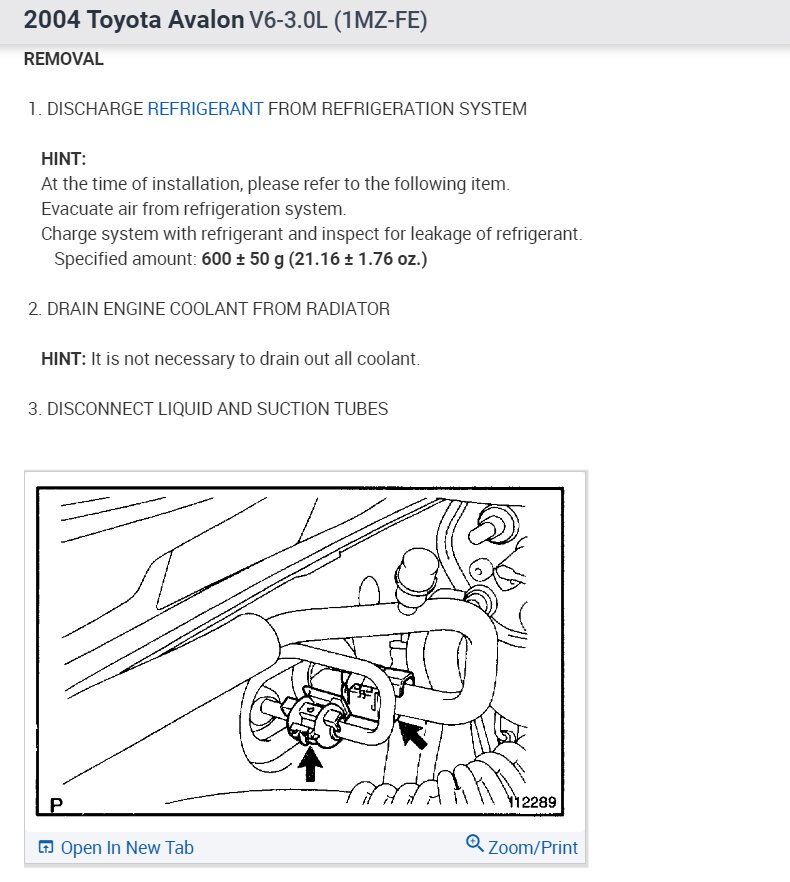

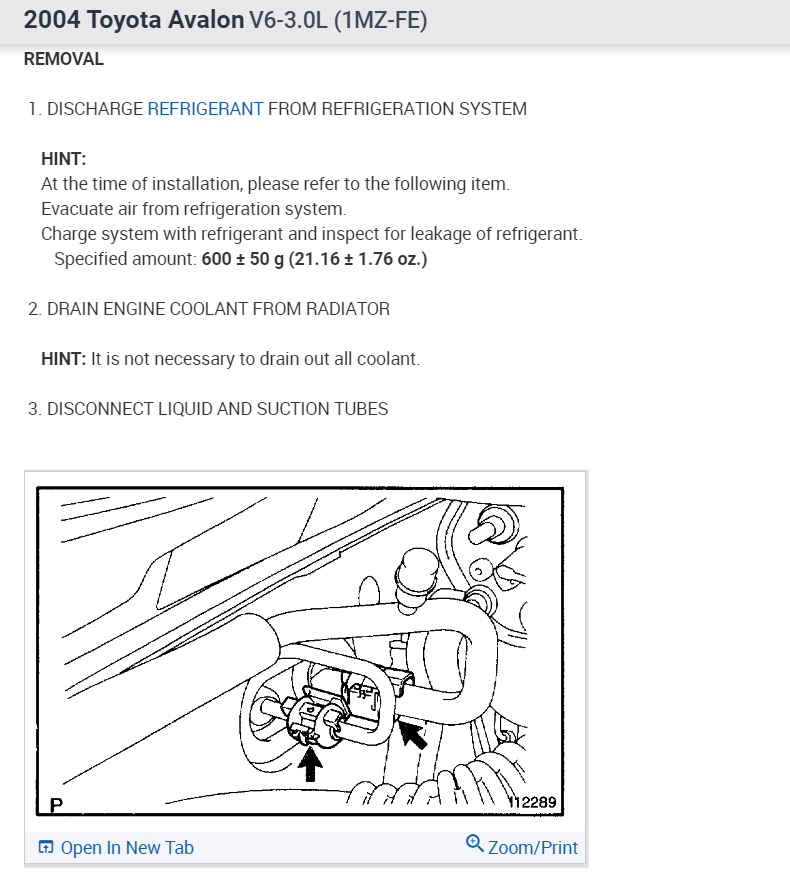

Check out the images (below). Let us know what happens and please upload pictures or videos of the problem so we can see what's going on.

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
May 25, 2023 at 11:14 AM
