A/C blend doors motor location needed

Good morning,

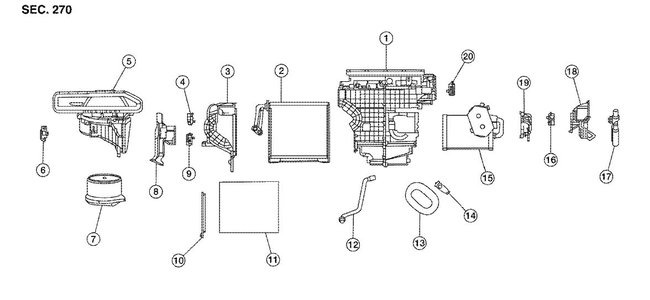

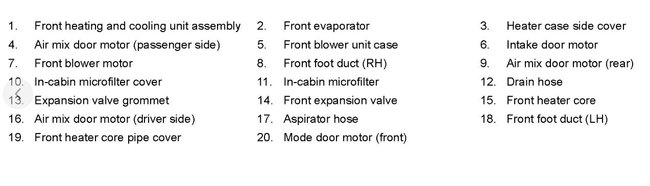

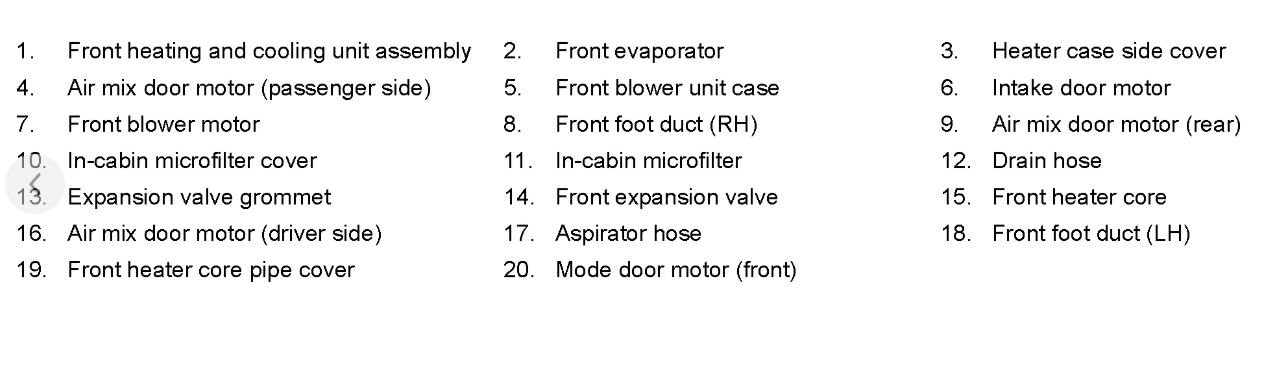

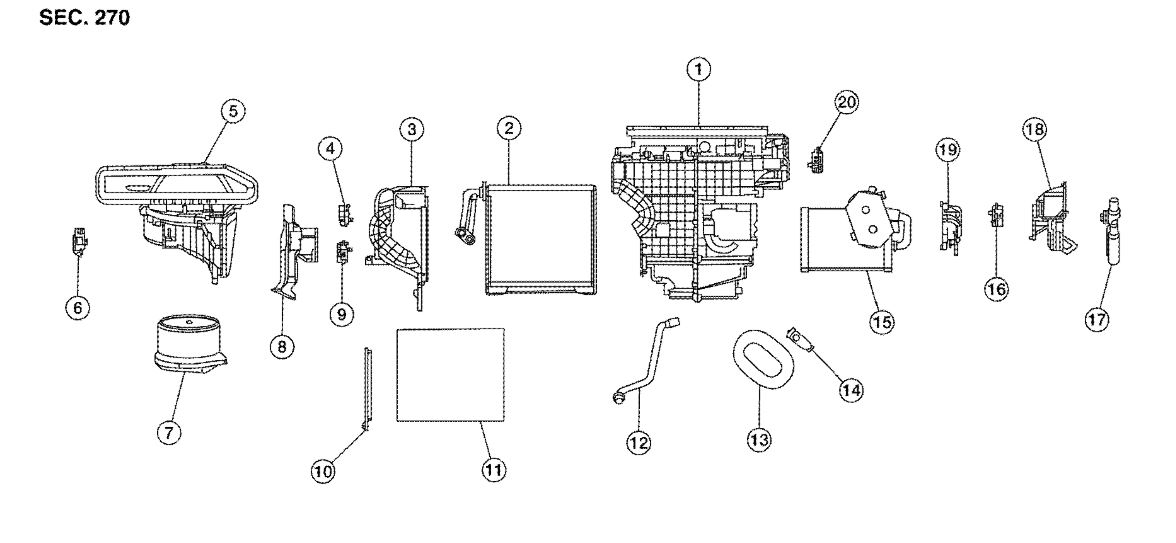

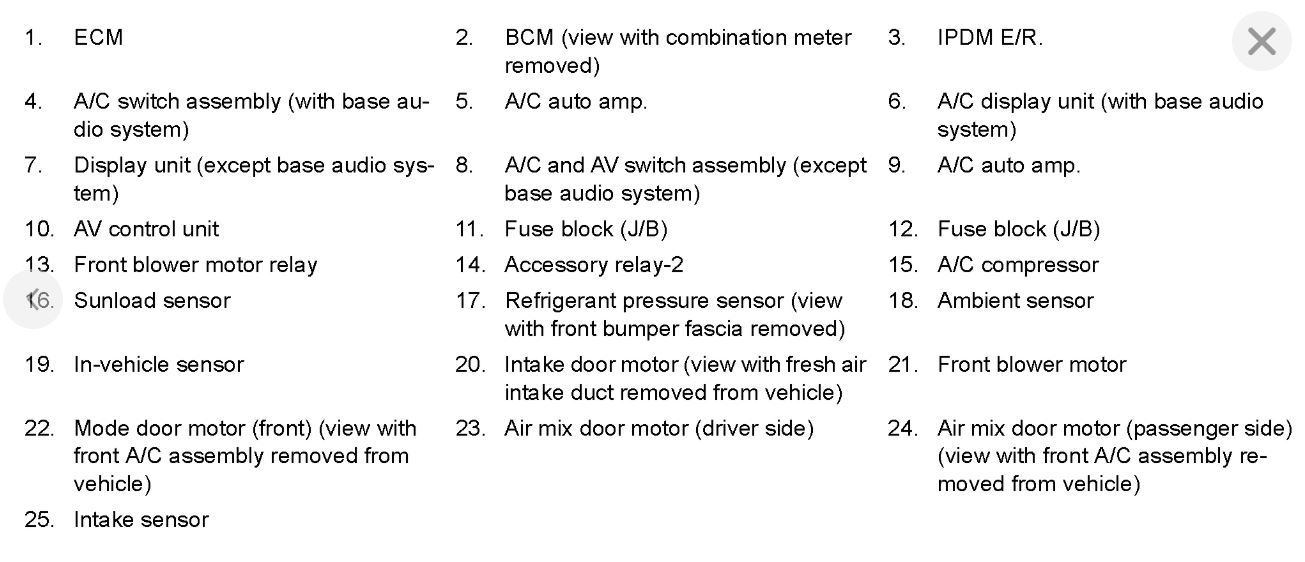

I attached the procedures and pictures for you of the blend door actuators. They are all in the same area.

Let us know if you have any other questions.

Roy

Drivers side

DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation - Air Mix Door Motor (Driver Side)


REMOVAL

1.Remove the center console side finisher (LH). Refer to "Exploded View" See: Console > Removal and Replacement > Exploded View.
2.Remove the front foot duct (LH). Refer to "HEATING AND COOLING UNIT ASSEMBLY : Exploded View Front Heating and Cooling Unit Assembly" See: Housing Assembly HVAC > Removal and Replacement > Exploded View.
3.Remove the air mix door motor (driver side) screws.
4.Disconnect the harness connector from the air mix door motor (driver side) and remove.

INSTALLATION

Installation is in the reverse order of removal.

Passenger side

DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation - Air Mix Door Motor (Passenger Side)


REMOVAL

1.Remove the front foot duct (RH). Refer to "HEATING AND COOLING UNIT ASSEMBLY : Exploded View Front Heating and Cooling Unit Assembly" See: Housing Assembly HVAC > Removal and Replacement > Exploded View.
2.Remove the air mix door motor (passenger side) screws.
3.Disconnect the harness connector from the air mix door motor (passenger side) and remove.

INSTALLATION

Installation is in the reverse order of removal.

Rear

DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation - Air Mix Door Motor (Rear)


REMOVAL

1.Remove the glove box assembly. Refer to "Removal and Installation" See: Glove Compartment > Removal and Replacement > Removal and Installation.
2.Remove the front foot duct (RH). Refer to "HEATING AND COOLING UNIT ASSEMBLY : Exploded View Front Heating and Cooling Unit Assembly" See: Housing Assembly HVAC > Removal and Replacement > Exploded View.
3.Remove the air mix door motor (rear) screws.
4.Disconnect the harness connector from the air mix door motor (rear) and remove.

INSTALLATION

Installation is in the reverse order of removal.

This is a little vague. Do you happen to have any better pictures? And more precise instructions.

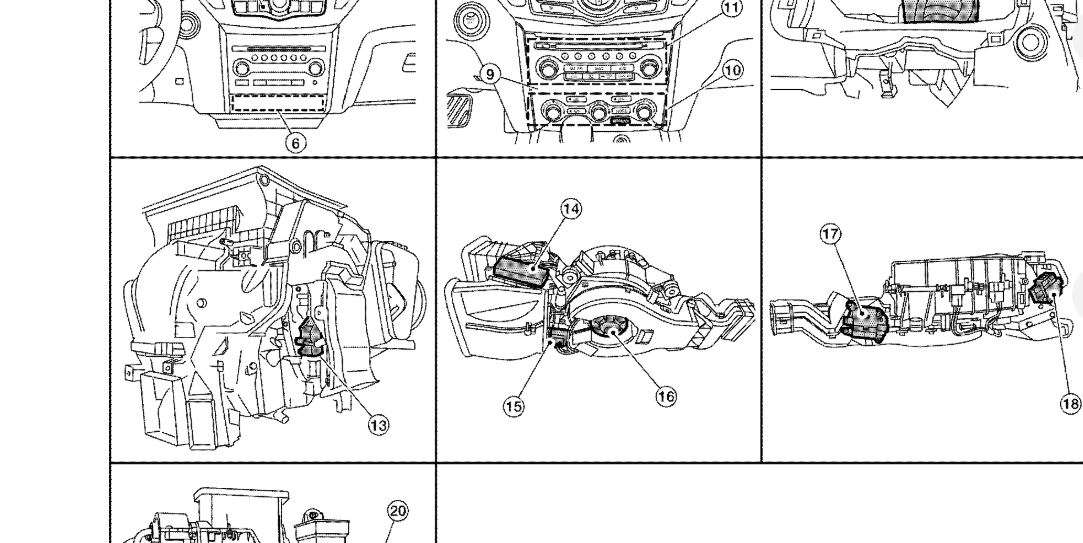

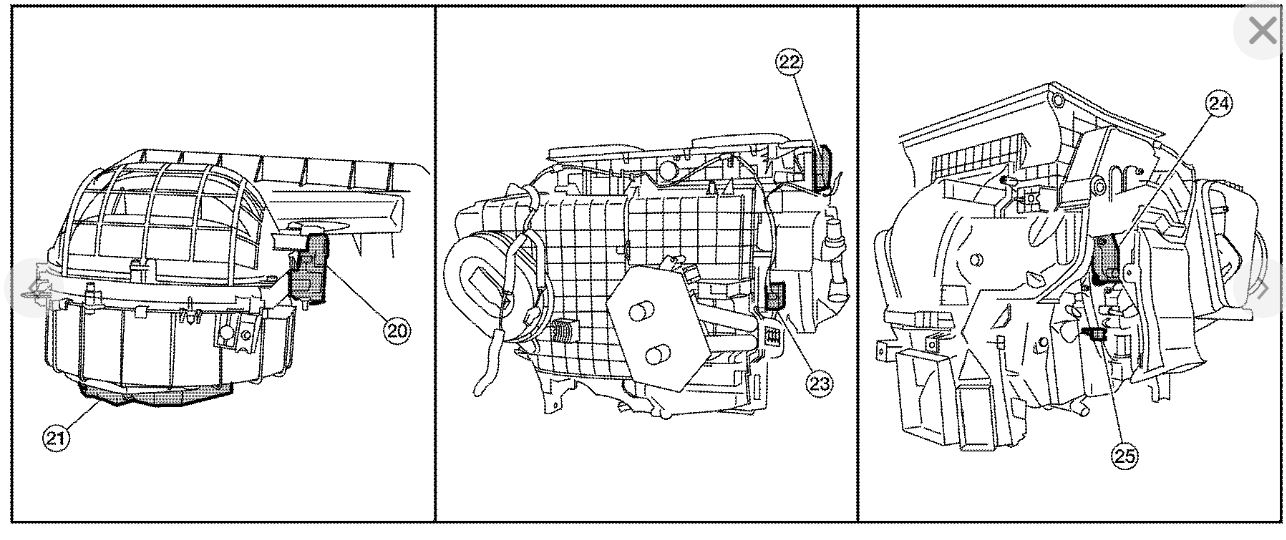

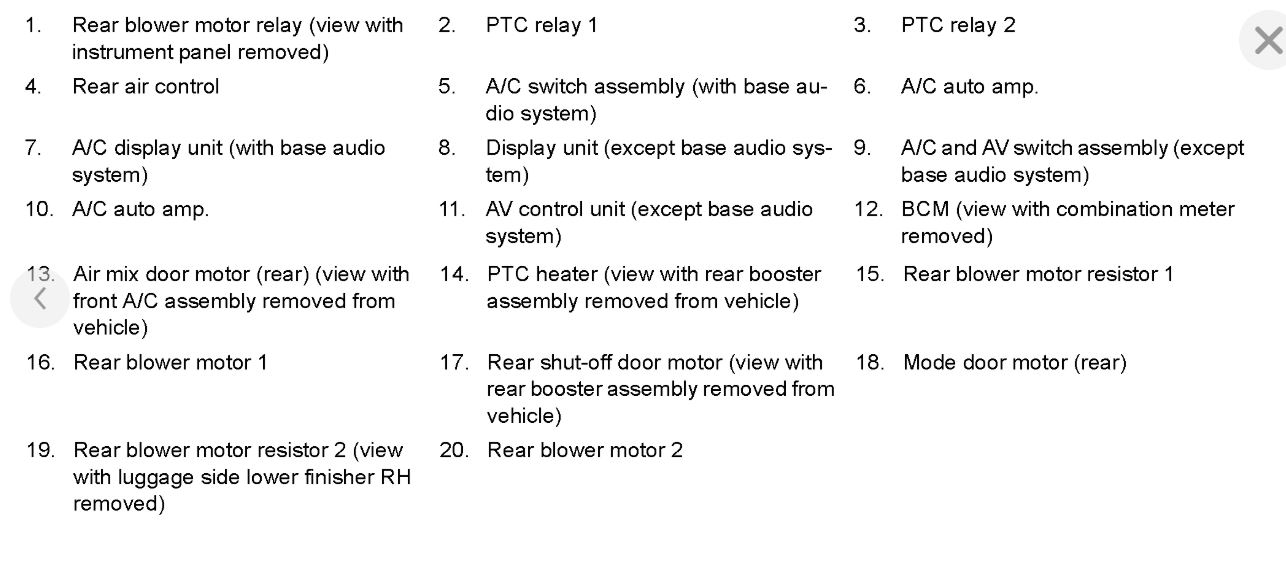

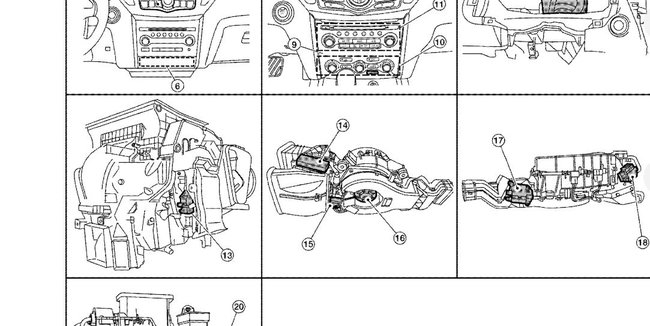

That is all there is for the information. The actuators are on the HVAC unit in the locations marked with the diagrams.

I will look for any other pictures for you.

Roy

Thanks.

You are welcome.

Always glad to help.

Roy
