Air conditioner blowing hot air

1998 NISSAN MAXIMA
35,000 MILES
Avatar
SKINDOO
  • MEMBER
  • 1 POST
My air conditioner is blowing hot air. They said the compressor was working. I was also told that I need a blend door actuator. How many do I need if that is the problem? I brought one and I see it behind the radio is that the one I need? The compressor had it checked, they said I need it too, is that true? Thanks it is hot in Texas. I am trying to save money, other than that the car runs good. Thanks :)
May 15, 2016 at 5:36 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

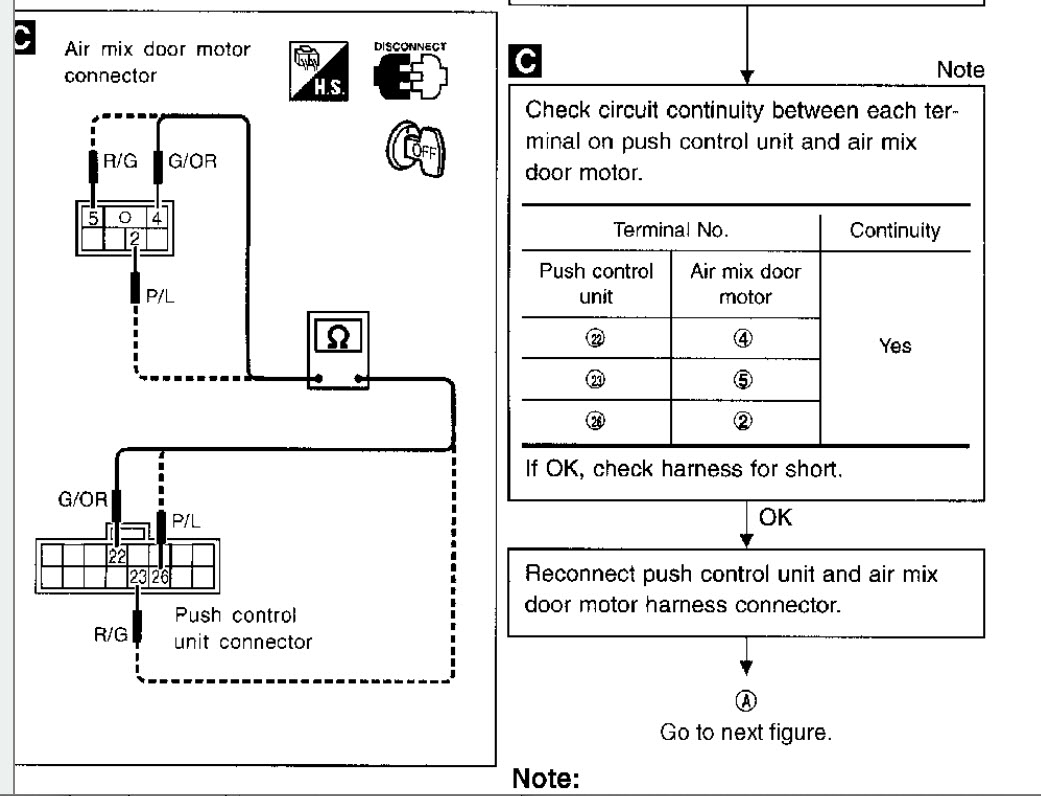

Sorry, we have no pictures of location of air mix. You contradict yourself by one person saying compressor other says air mix. Here is how to test if air mix gets power. See image.
Image (Click to enlarge)
Attached Media
May 16, 2016 at 6:55 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hey Skindoo,

The three actuators are located on the heater plenum. Here is a guide on checking if the compressor is working or not:

https://www.2carpros.com/articles/car-air-conditioner-not-working-or-is-weak

if it is a compressor that needs sot be replaced look at this to see what you are in for

https://www.2carpros.com/articles/replace-air-conditioner-compressor

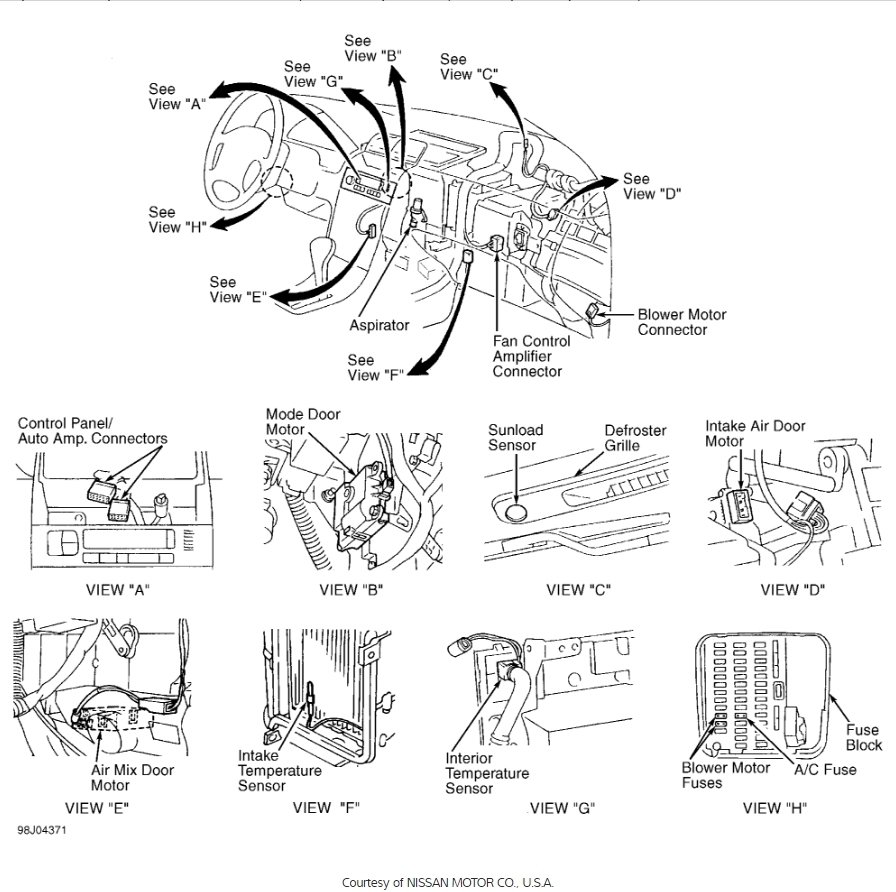

Here is a picture of the blend door locations.

Let us know what you find.

Best, Ken






Image (Click to enlarge)
Attached Media
May 17, 2016 at 6:25 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hey Skindoo,

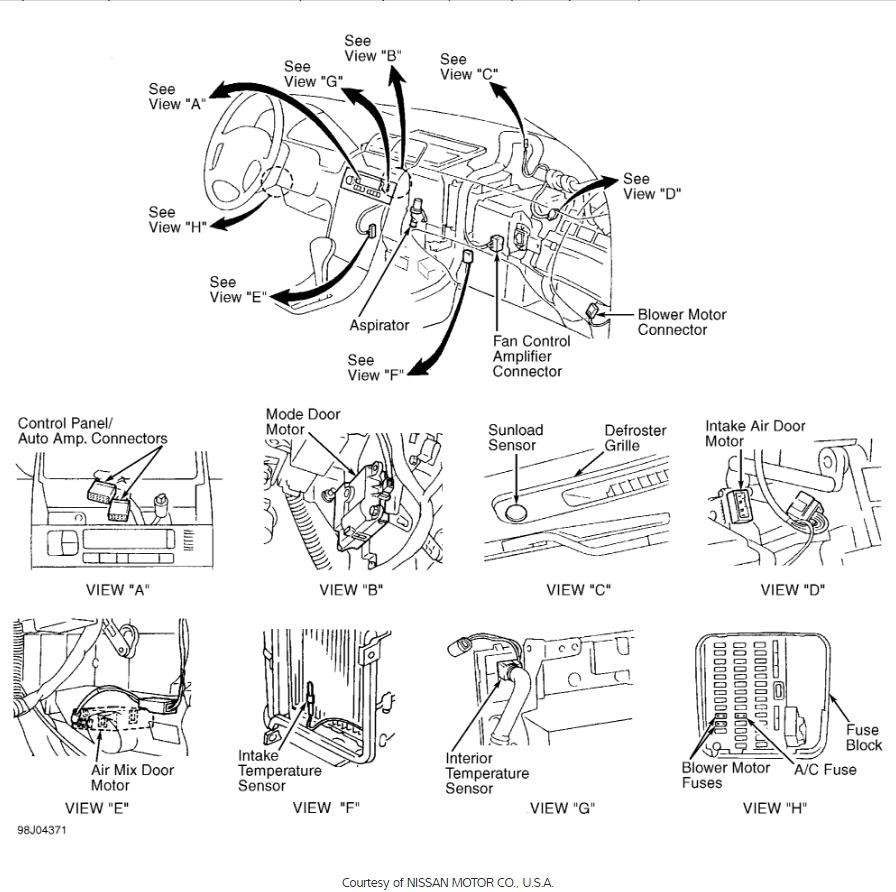

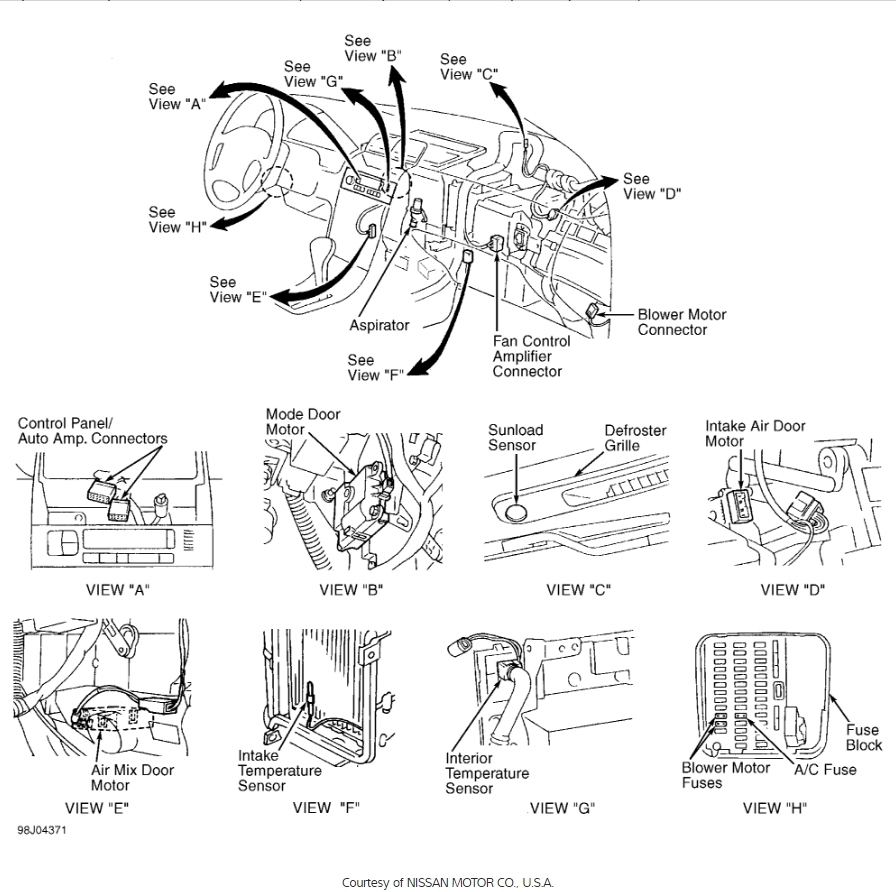

The three actuators are located on the heater plenum. Let me know if you need anything else we are here to help.

Best, Ken
Image (Click to enlarge)
Attached Media
Aug 26, 2018 at 6:25 PM (Merged)
