A/C blowing warm air on passenger side vent

Good morning,

II attached the procedures for you for the replacement.

It is a straight forward replacement.

https://www.2carpros.com/articles/replace-blend-door-motor

Roy

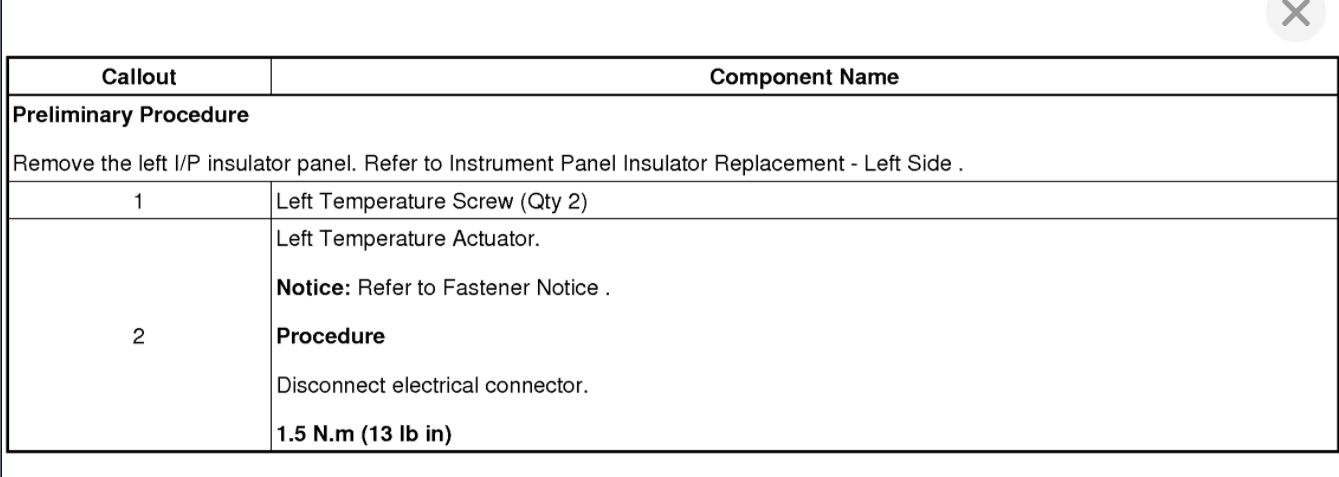

Air Temperature Actuator Replacement - Right Side

Removal Procedure

1. Remove the blower motor control module. Refer to Blower Motor Control Module Replacement (See: Control Module HVAC > Removal and Replacement > Blower Motor Control Module Replacement) .


imageOpen In New TabZoom/Print

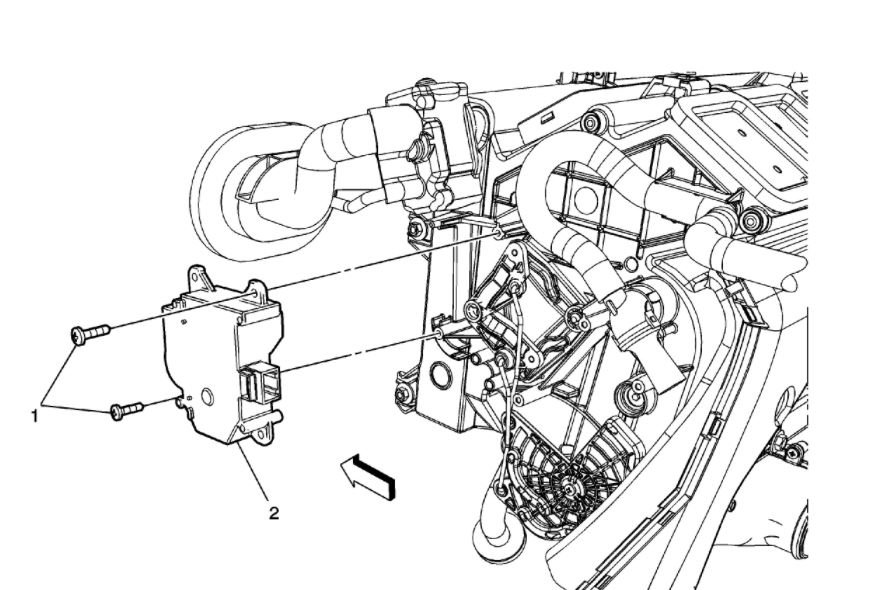

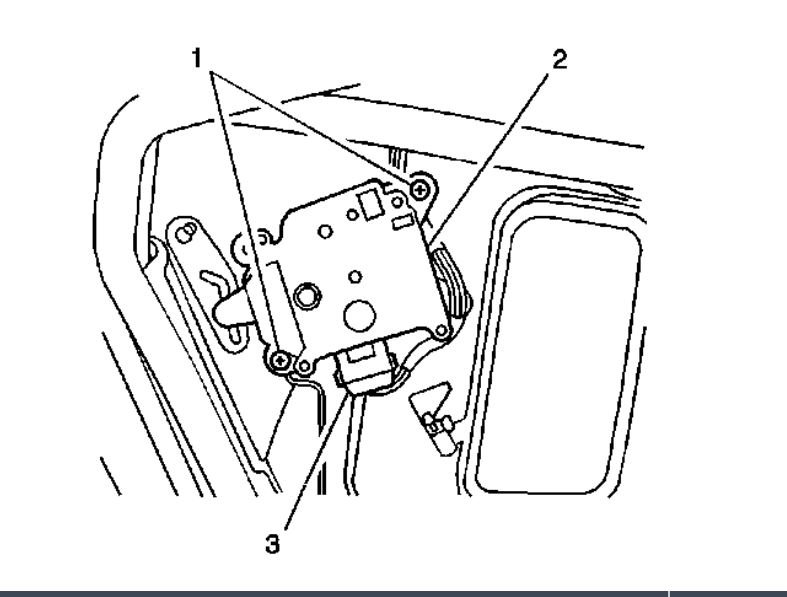

2. Remove the right air temperature actuator screws (1).


imageOpen In New TabZoom/Print

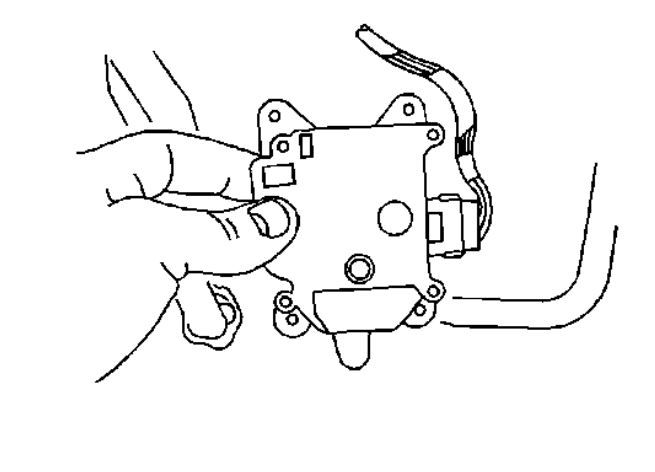

3. Remove the right air temperature actuator.
4. Disconnect the right air temperature actuator electrical connector.



Installation Procedure

1. Connect the right air temperature actuator electrical connector.


imageOpen In New TabZoom/Print

2. Install the right air temperature actuator.

Notice: Refer to Fastener Notice (See: Vehicle > Vehicle Damage Warnings > Fastener Notice) .

3. Install the right air temperature actuator screws (1).

Tighten the screws to 1 N.m (9 lb in).



imageOpen In New TabZoom/Print

4. Install the blower motor control module. Refer to Blower Motor Control Module Replacement (See: Control Module HVAC > Removal and Replacement > Blower Motor Control Module Replacement) .
