Good morning,
Does the shifter feel normal? This sounds like the shifter cable from the shifter to the transmission is not working.
Roy
REMOVAL PROCEDURE
CAUTION: The automatic transaxle range selector cable is made out of two cable sections. After initial connection never separate the two metal couplings from one another Integrity of the connection of the two metal couplings will be lost if separation of the two metal couplings occurs. When servicing the transaxle remove the cable at the automatic transaxle range selector lever and at the automatic transaxle range selector cable bracket. If either section of the cable needs to be replaced, replace both of the cable sections. Loss of connection integrity of the two metal couplings can cause loss of transaxle shift control which could result in personal injury.
imageOpen In New TabZoom/Print

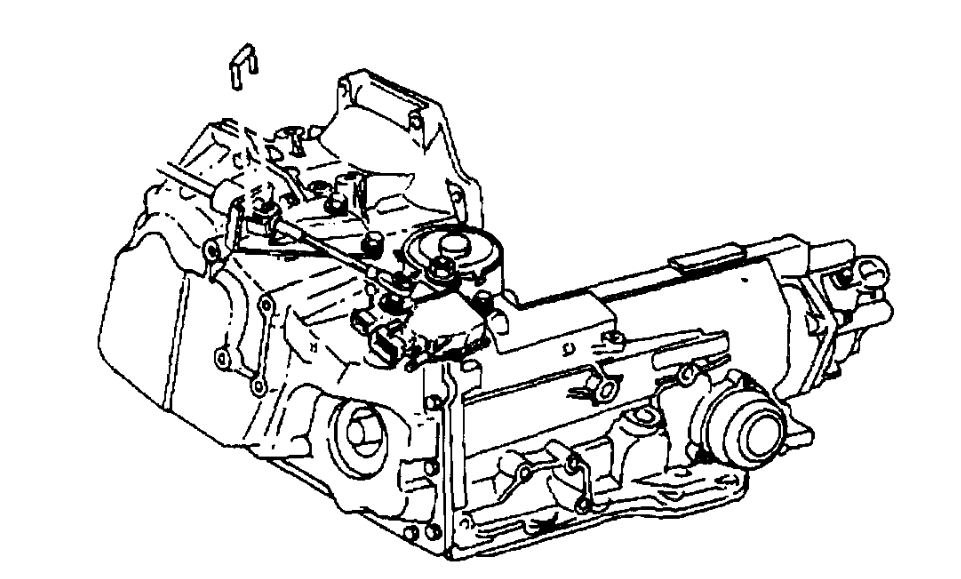

1. Remove the throttle body air inlet duct. Refer to Powertrain Management.
2. Remove the automatic transaxle range selector cable from the wiring harness clip or strap.
3. Remove the automatic transaxle range selector cable from the automatic transaxle range selector lever.
imageOpen In New TabZoom/Print

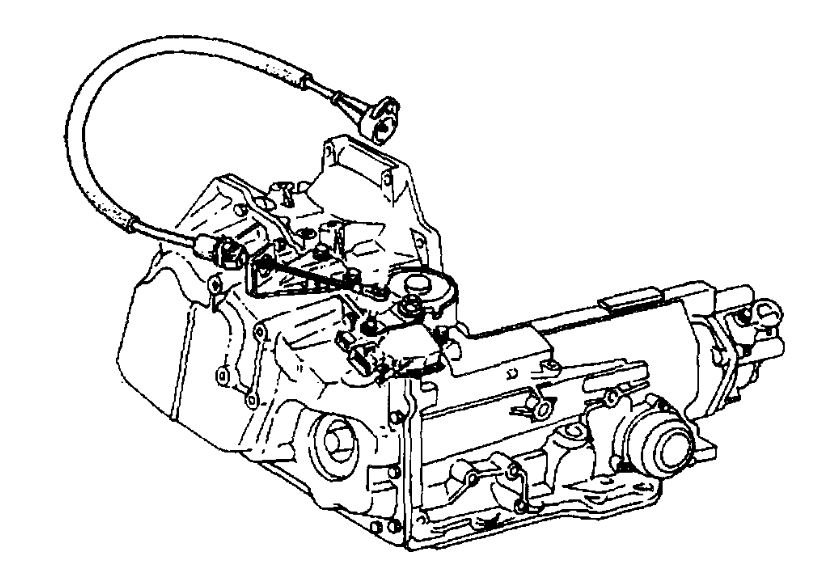

4. Remove the automatic transaxle range selector cable from the automatic transaxle range selector cable bracket.
5. Remove the automatic transaxle range selector cable from the console shift control or the column shift control. Refer to AT Range Selector Cable Replacement (At Console Shift Control) or AT Range Selector Cable Replacement (At Column Shift Control).
6. Pull the automatic transaxle range selector cable through the dash from the engine compartment side.
Images (Click to enlarge)
Dec 19, 2019 at 8:34 AM
