Fuse box color code diagram needed?

1998 DODGE DAKOTA

198,000 MILES • 3.9L • V6 • 2WD • AUTOMATIC

SCORESM@N923

MEMBER
2 POSTS
FOLLOW

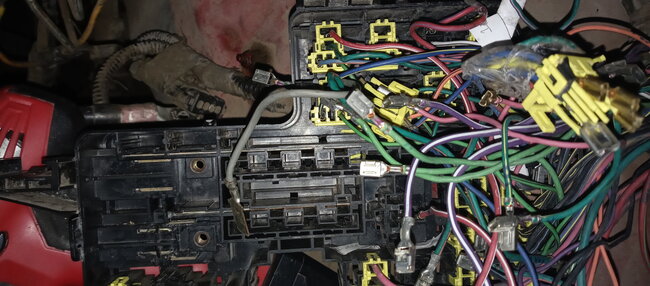

I have the vehicle listed above sport ext. I'm looking for a color code wiring diagram for the fuse box under the hood. I replaced the old fuse box but got the wiring mixed up and can't figure out which wire goes where.

Image (Click to enlarge)

Jun 9, 2023 at 7:52 PM

CARADIODOC

CERTIFIED EXPERT
34,306 POSTS

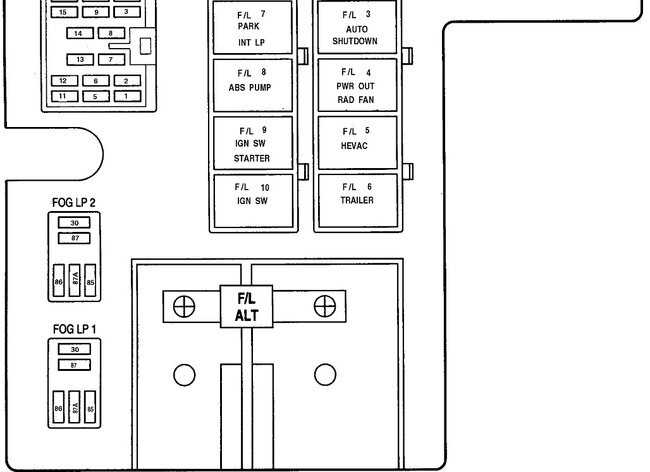

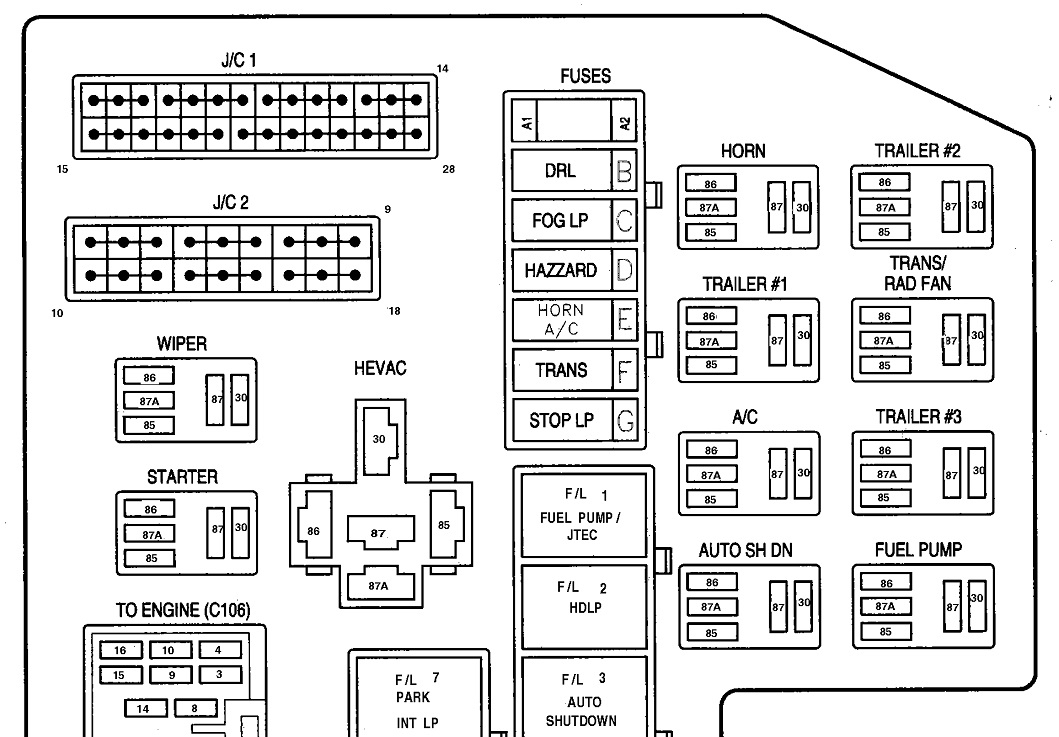

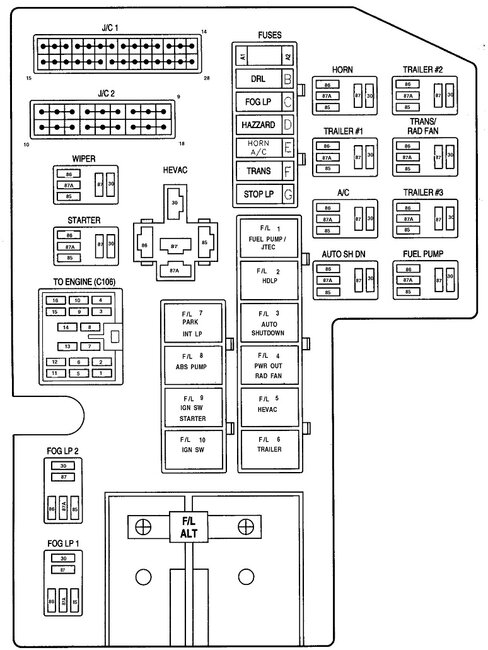

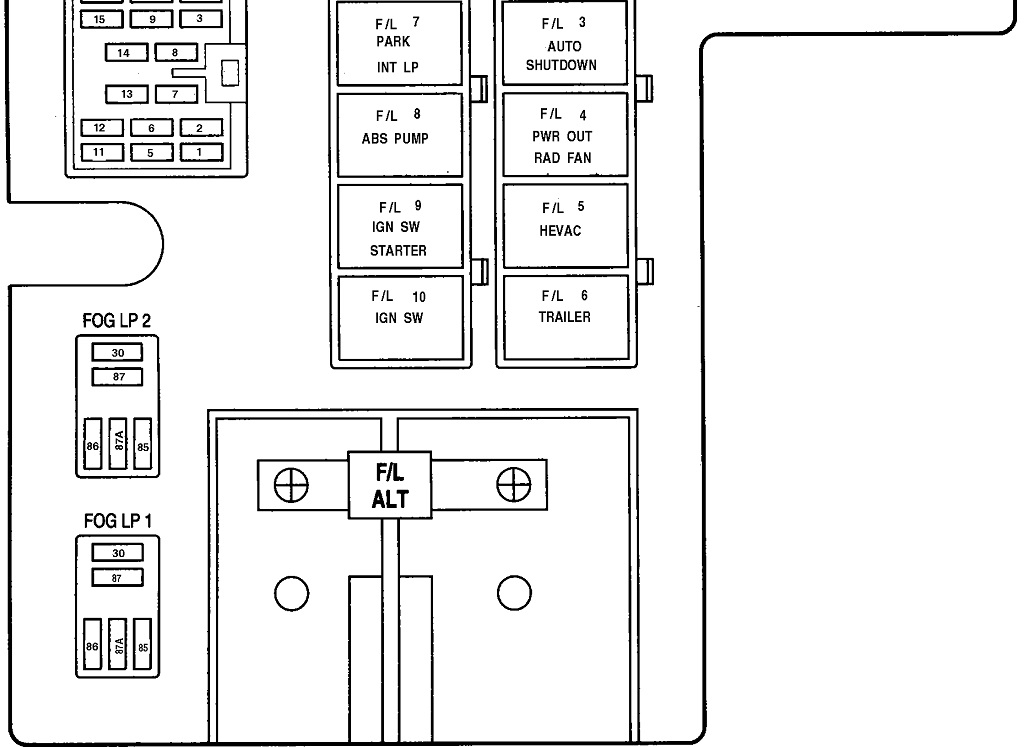

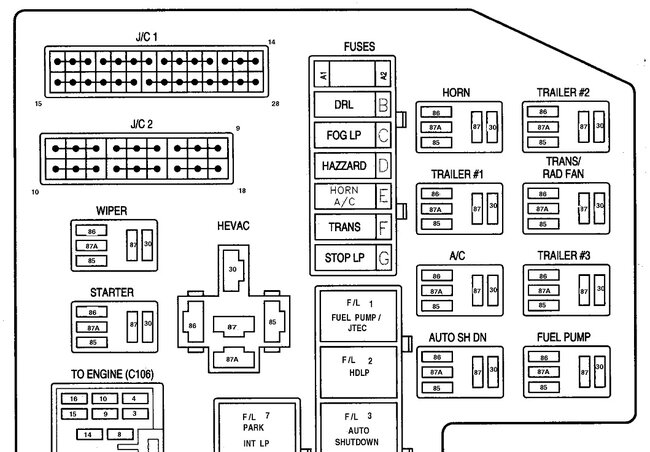

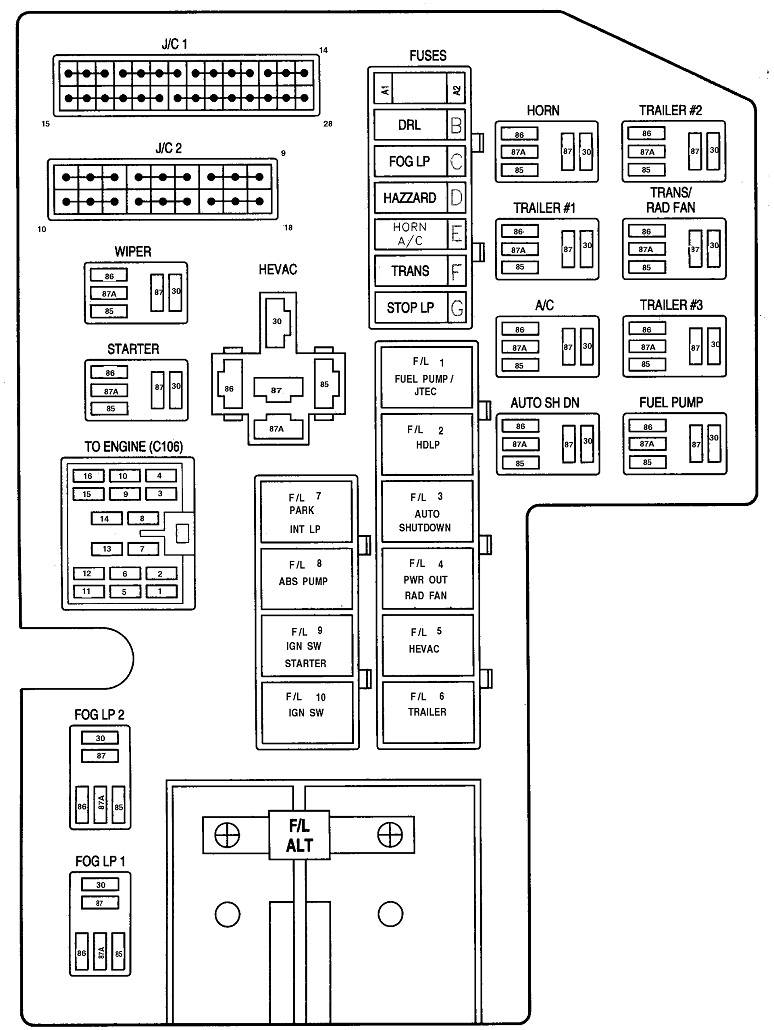

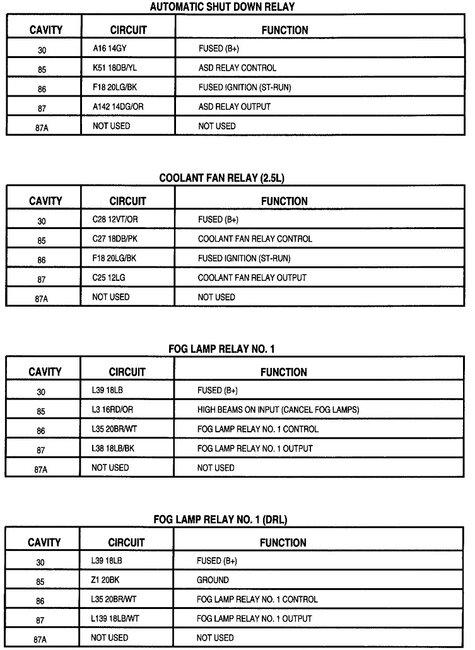

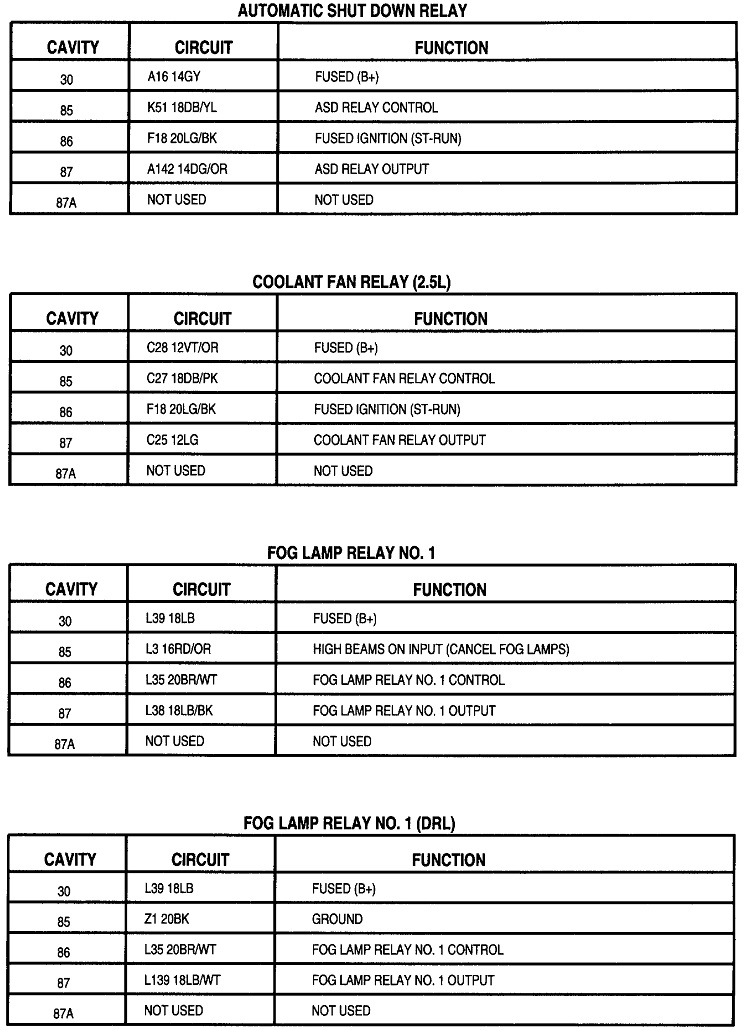

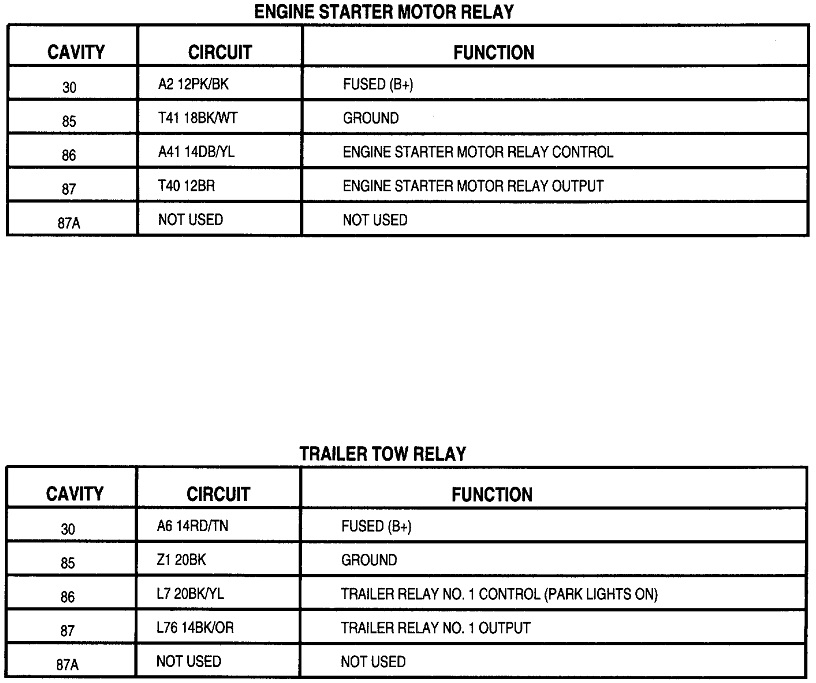

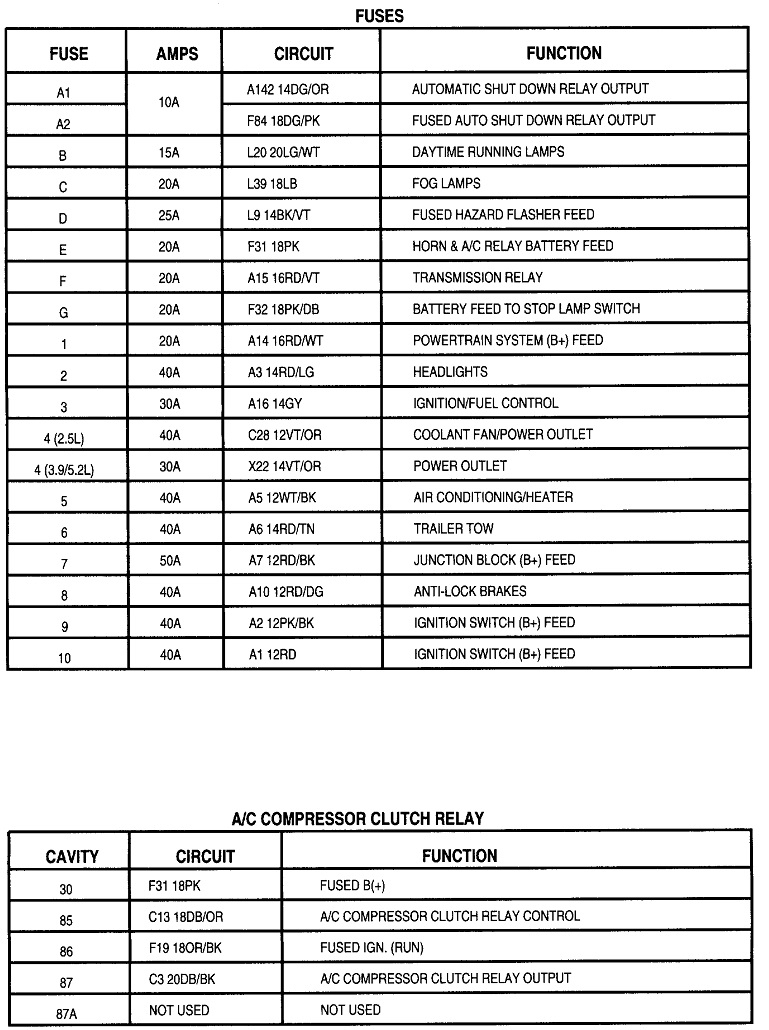

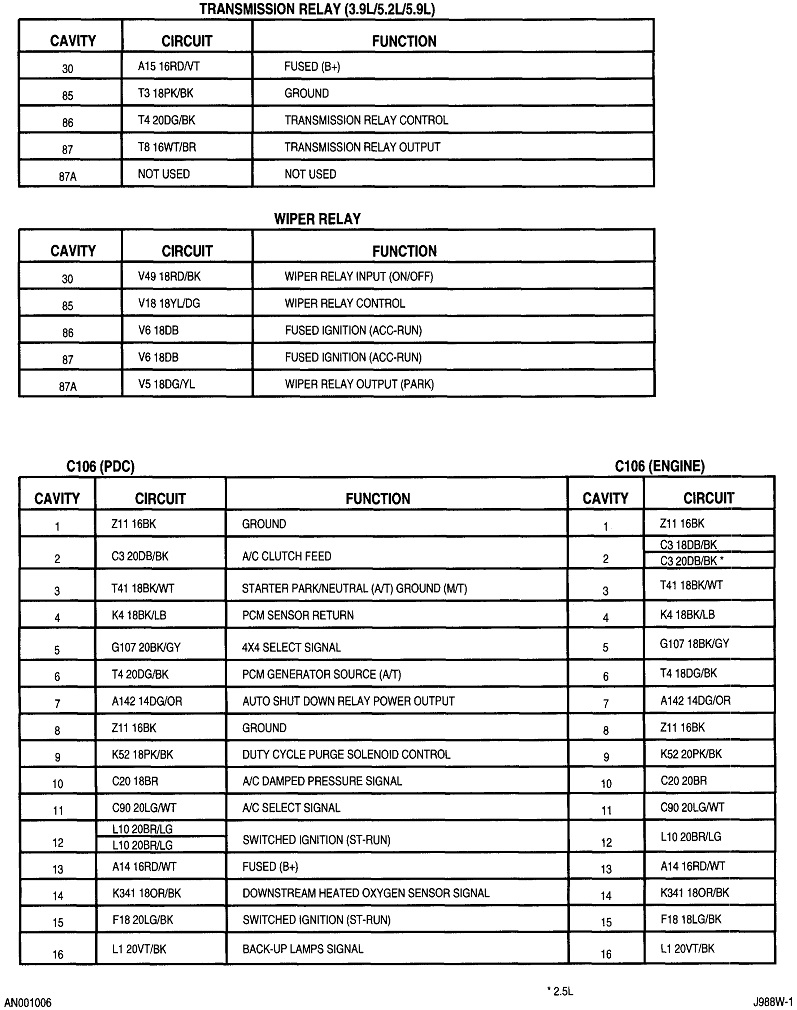

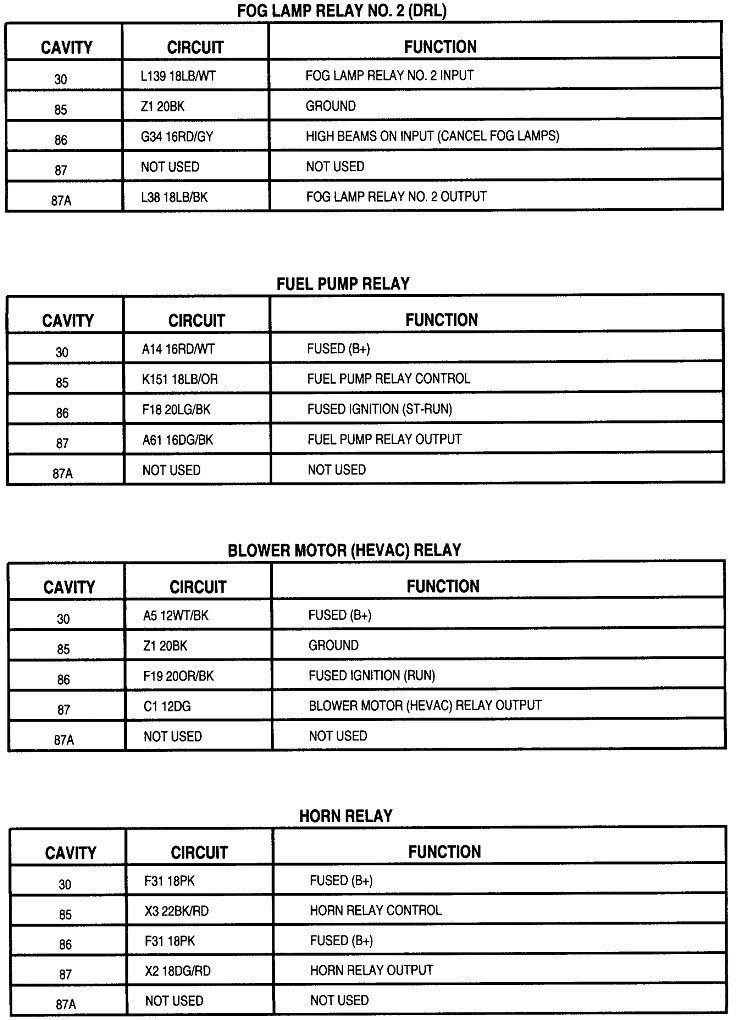

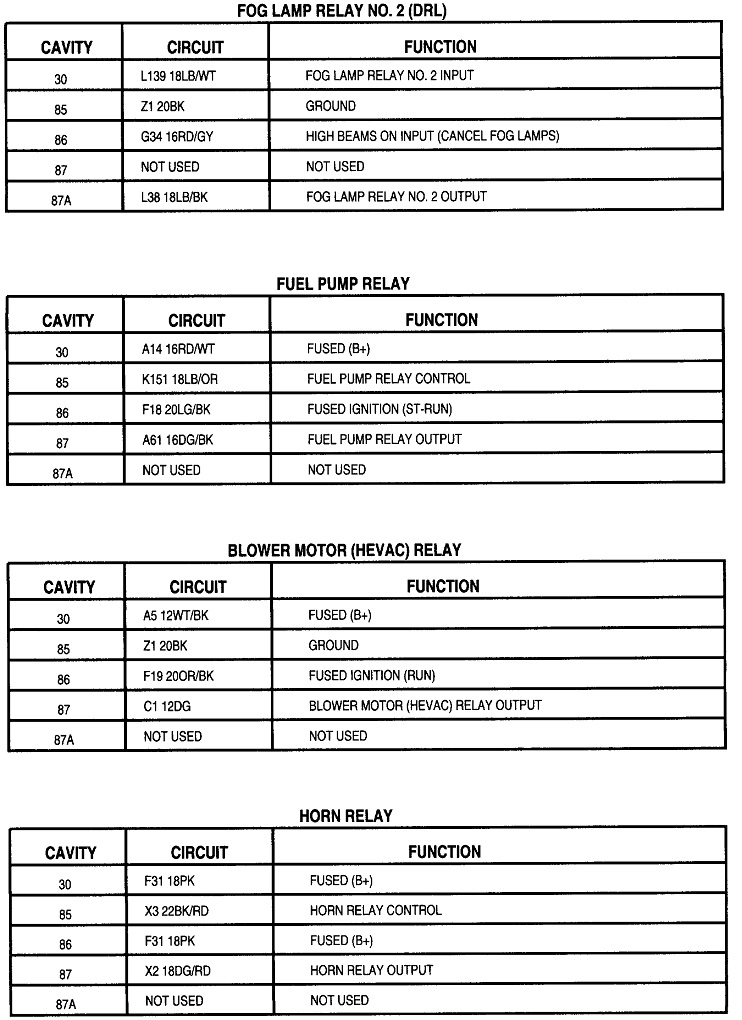

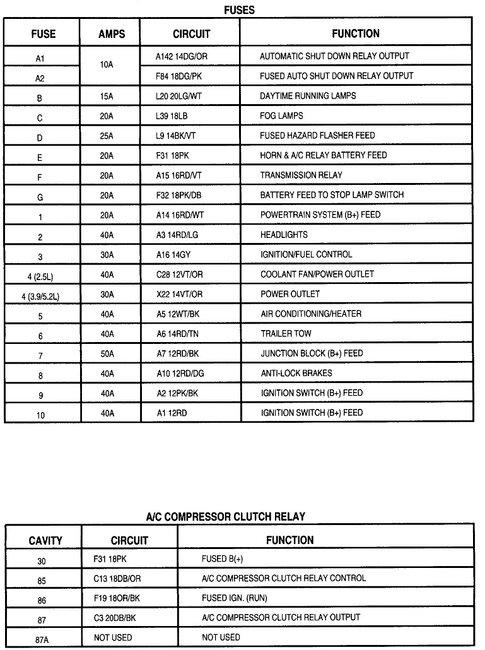

This first drawing is for the Power Distribution Center, (under-hood fuse box). The next two are the same thing but cut in half and expanded for easier reading. If the following lists are too small to read, first try to copy and paste them into a typing program such as MS Word where they can be expanded. If that doesn't work, I can work on expanding those too.
