Real poor performance

This sounds like a possible ignition or fuel issue that could be caused by a sensor or a mechanical issue. As you can imagine, this is pretty broad and so we need to start limiting it down to see where we have some issues.

First and foremost we need to look at a fuel issue. Let's start checking fuel pressure and make sure it is correct. Let's hook up a gauge and tell me what the pressure is or just get a video of it when this is happening.

Once we check fuel pressure off we can move on but this sounds like a fuel issue so I would like to start there.

https://www.2carpros.com/articles/how-to-check-fuel-system-pressure-and-regulator

let me know if you have questions. Thanks

Finally checked the fuel pressure. Steady at 52psi. barely drops 1-2psi during hard acceleration. Still stalls out when clutch depressed and no power above 3,000 rpm's.

I am ready for the next step.

The next likely cause would be lack of air. I understand that you put the MAP sensor and and throttle sensor but it acts like it is just not getting enough air. Can you remove the intake and drive the vehicle and see if that makes a difference?

Next, do you have a scan tool that can monitor live data? If so, can you drive it and monitor the MAP, temperature sensors, and o2 data? Let's see if this is running lean and go from there. Thanks

I removed the intake tube. No difference. I made a few runs up the street from standing start, full acceleration through first and second gear and then clutch in to stop and idle. Here is the graphed data:

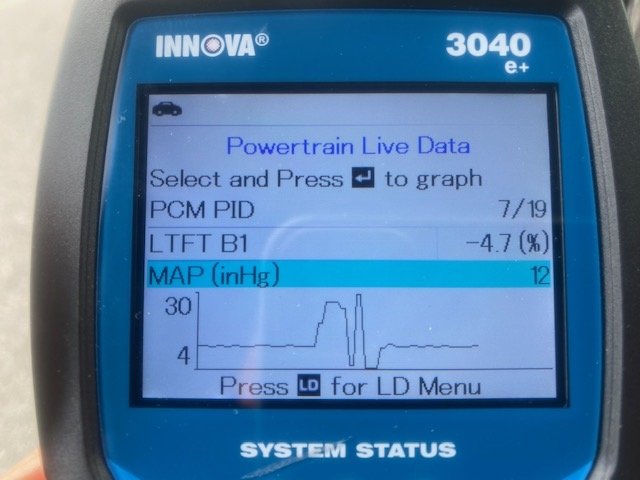

MAP during run

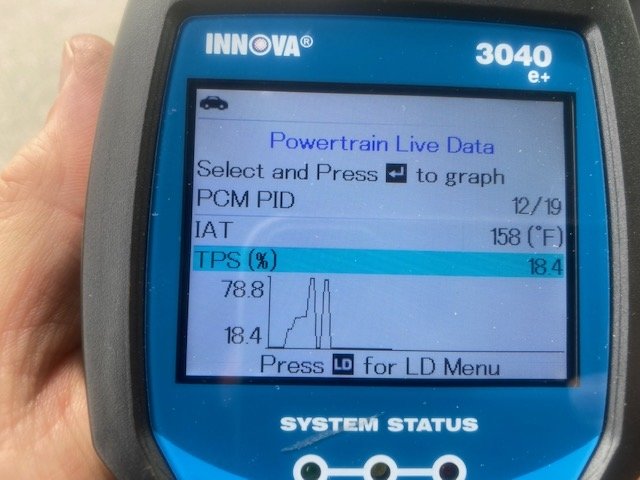

TPS during run

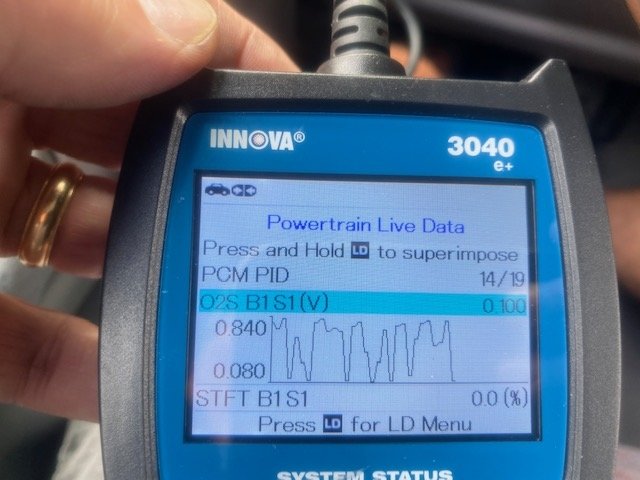

O2S B1S1(V) during idle

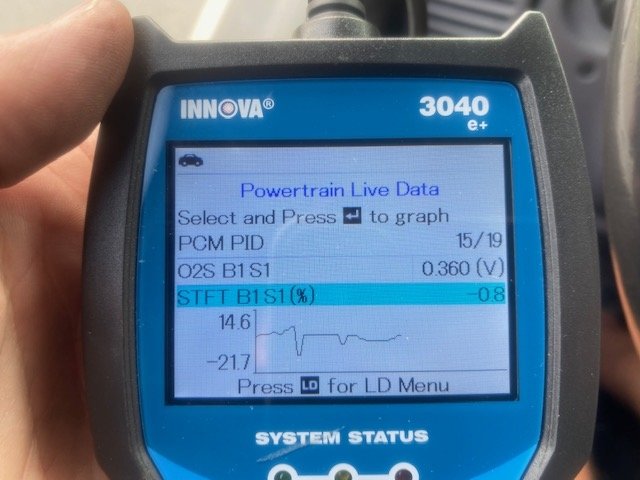

O2S B1S1(%) during run

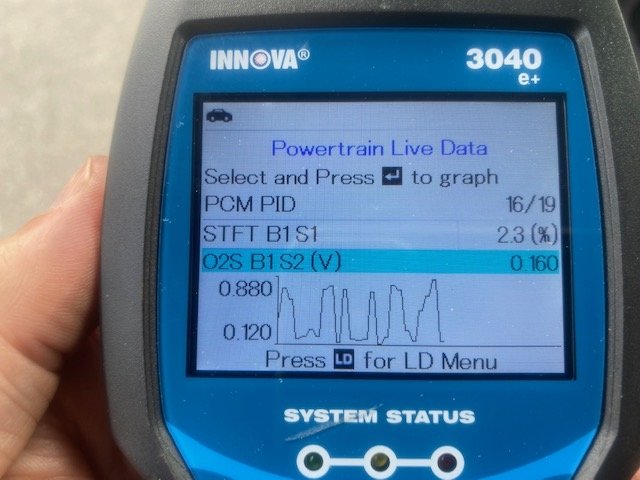

O2S B1S2(V) during idle

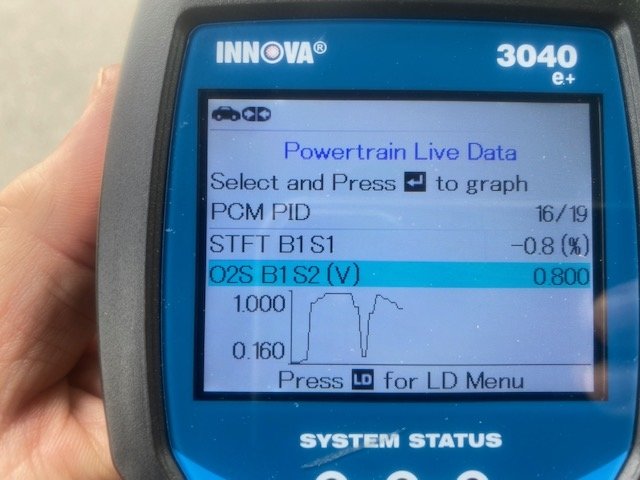

O2S B1S2(V) during run

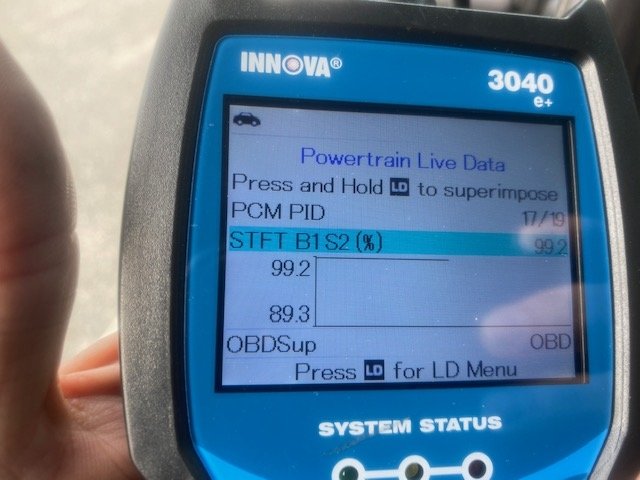

O2S B1S2(%) during run
Any thoughts?

Unless I am seeing that wrong, it looks like sensor 1 was lean (.360 v) on run up and sensor 2 was rich(.800 v)?

If that is the case, have you swapped out the o2 sensors?

Well, sensor 1 (pre cat) was just changed out a few months ago. Sensor 2 (post cat) in probably three or four years old.

Okay. Good to know however, if it were me, I would switch them both out. Unfortunately new parts are not always good parts. I have been burned enough times to not trust new parts. Especially when you have an issue that was not there before.

The other option is to change them one at a time then you know which one it was but if it were me, I would just change them both out.
