Four-wheel drive not working?

1987 GMC TRUCK
86,000 MILES
Avatar
CARTERBRENTHARRIS
  • MEMBER
  • 1 POST
My 4x4 isn’t working. It stopped working a few months ago. I found out the wires that go to the stick on the floor were unplugged under the dash. I plugged them in, and it started working again. A few weeks ago, it came unplugged again and when I plug them in again it didn’t work this time. I’ve checked the fuse it’s fine, the light on the floor turns on. I’ve checked the linkage seems fine.
Thank you for any help!
Jan 29, 2023 at 2:45 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

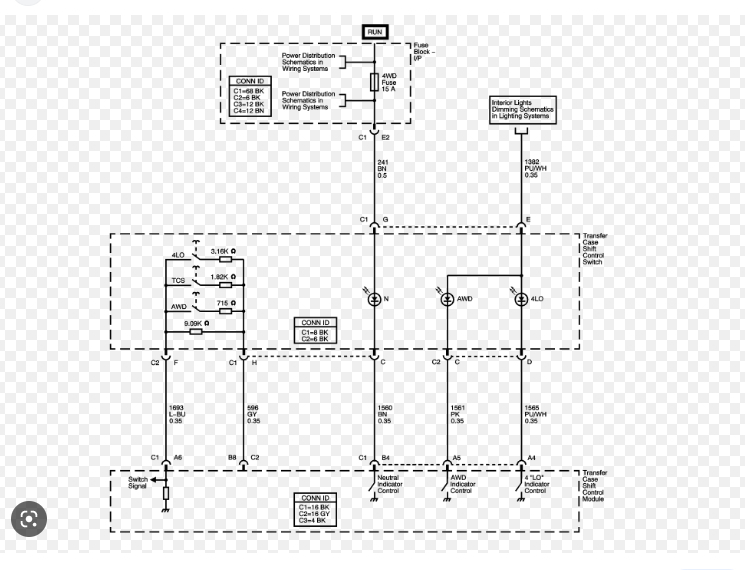

I would check the wiring at the connector because it sounds like one of the terminals inside the connector has pulled out. Also use this guide to check for power and ground for the system. Here are the transfer case wiring diagrams so you can see how the system works and which wires to test.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

Check out the images (below). Please let us know what you find
Image (Click to enlarge)
Attached Media
Jan 30, 2023 at 10:01 AM
