Transfer case is stuck in 4 high?

2004 DODGE DURANGO
202,000 MILES • 5.7L • V8 • 4WD • AUTOMATIC
Avatar
ROOSTER325
  • MEMBER
  • 4 POSTS
This is the second time it has happened. The first time I took out the transfer case and put it back in awd manually. Now it is stuck again in 4 high, and I can’t get it to go back into awd.
May 16, 2023 at 11:45 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

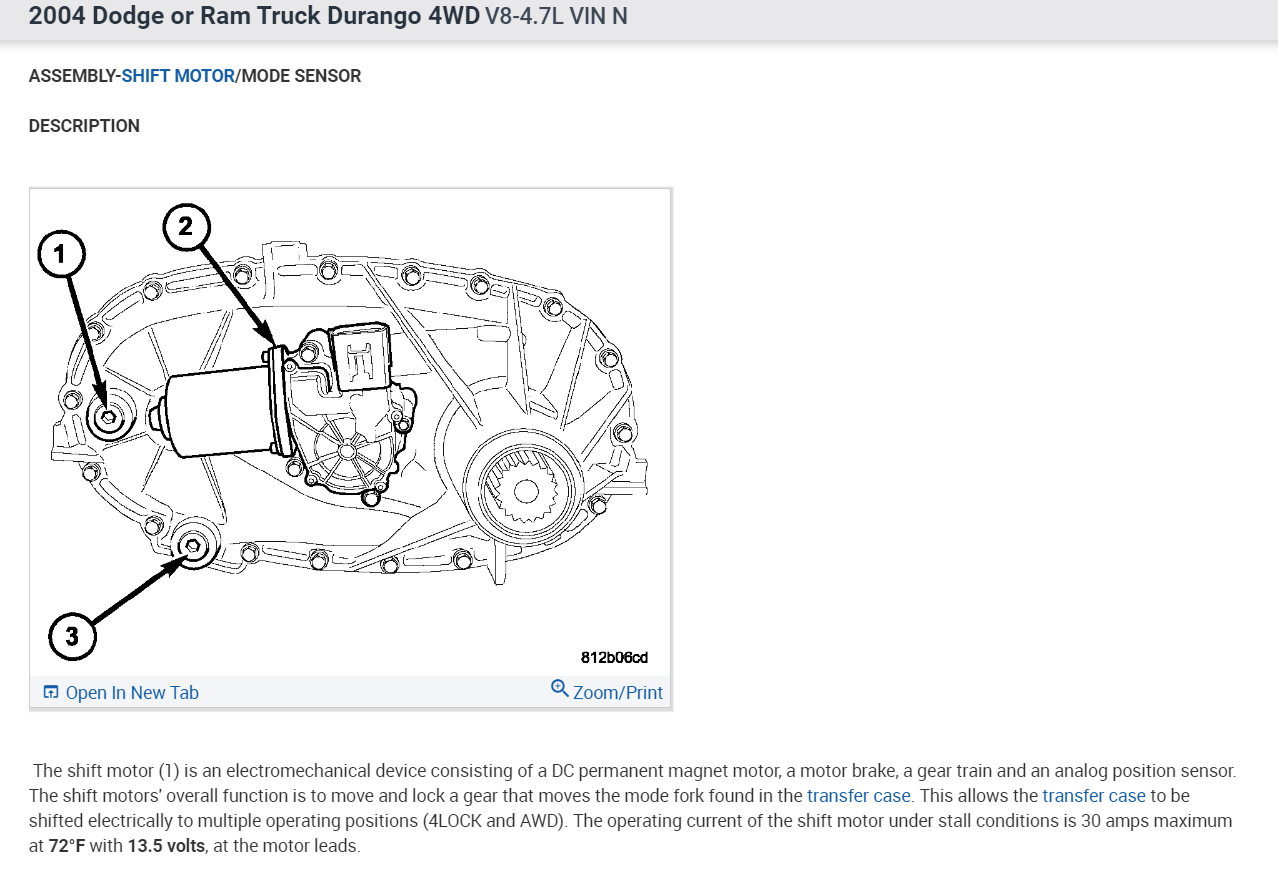

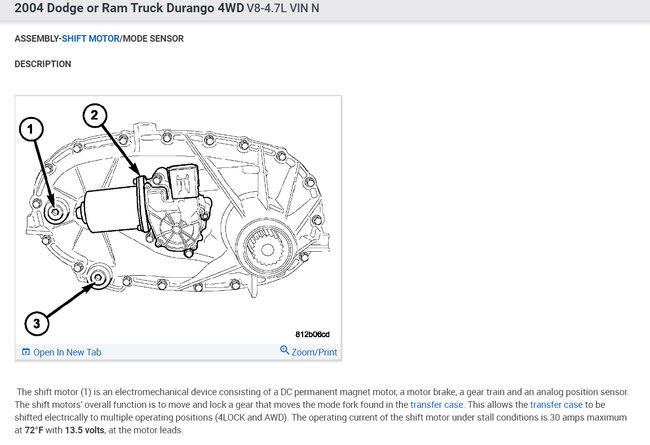

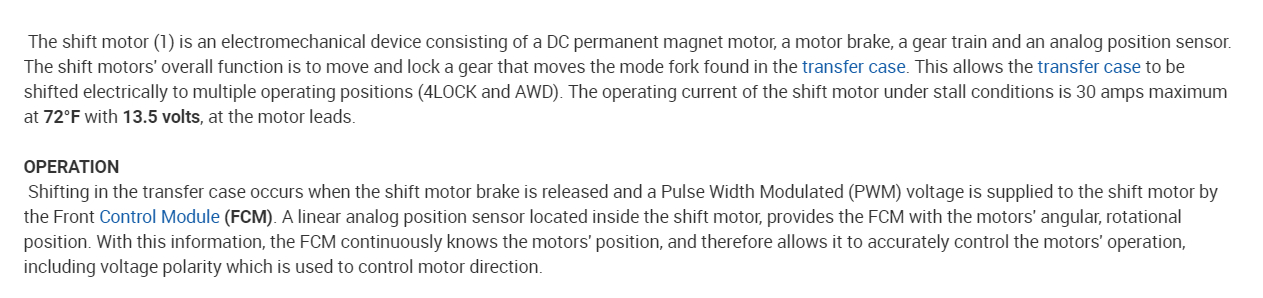

This happens when the transfer case actuator motor gets weak and can disengage. Here is how to change the motor out in the images below. Check out the images (below). Please let us know what happens.

Images (Click to enlarge)
Attached Media
Attached Media
May 17, 2023 at 12:22 PM
Avatar
ROOSTER325
  • MEMBER
  • 4 POSTS
That part is gone I removed it the first time it happened. Then put it in awd manually.
May 17, 2023 at 1:14 PM
Advertisement
Avatar
ROOSTER325
  • MEMBER
  • 4 POSTS
Somehow it got back into 4high. I can change it to 4 low and back. But not into awd Manually.
May 17, 2023 at 1:16 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
You might have a problem internally with the transfer case. There is a shift fork that can wear and cause the actuator not to work. Can you try rocking the vehicle back and forth while trying to shift it?
May 18, 2023 at 12:05 PM
Avatar
ROOSTER325
  • MEMBER
  • 4 POSTS
I’m going to try changing the transfer case and see it that works.
May 18, 2023 at 9:16 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Yep, it sounds like it is worn out. Please let me know how it goes.
May 19, 2023 at 12:14 PM
