4x4 indicator green light always on

2014 NISSAN ROGUE
46,789 MILES • 2.5L • 4 CYL • 4WD • AUTOMATIC
Avatar
MALLYBOY
  • MEMBER
  • 327 POSTS
I looked at the dashboard and saw 4x4 indicator green light on, I diagnosed the entire modules, but I didn't see any fault code. At this point I am confused, is that light normal or is it a fault and how do I turn it off?
Jun 16, 2022 at 10:38 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

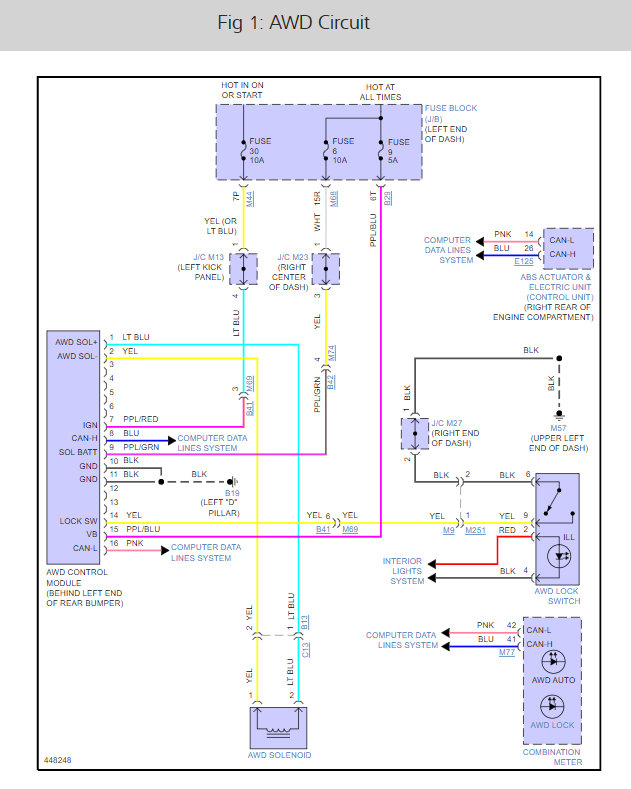

This can happen when the transfer case module goes out. Have you recently had the vehicle in 4x4 mode? Here are the 4x4 wiring diagrams so you can see how the system works. When you scanned the car did you do a full CAN scan? This guide can help you see what I am talking about:

https://www.2carpros.com/articles/can-scan-controller-area-network-easy


Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
Image (Click to enlarge)
Attached Media
Jun 17, 2022 at 10:28 AM
