4x4 fuse keeps blowing

2007 CHEVROLET SILVERADO
140,000 MILES • 4.8L • V8 • 4WD • AUTOMATIC
Avatar
TIREGUY79
  • MEMBER
  • 35 POSTS
I have the truck listed above 1500 classic. the issue I’m having is one day I needed to use 4x4 it is a manual shift system and it wouldn’t work. I checked the fuse and it was blown. so I put new one in it and it worked then while driving it while it was locked in it blew again. I was still able to stay in 4x4 and shift back to 2wd it just wasn’t lighting up on dash but I was skeptical about it not disengaging. so I put new fuse back in to shift it back to 2wd drive no big deal, but today I got stuck so I tried to put new fuse in and it would blow it soon as I tried to put it in. I’ve tried new actuators new shift sensor, looked for broken wires, cleaned up the body ground. I’m lost need help. I know little bit but suck with electrical. it just decided one day not to work and start doing this.
Dec 8, 2019 at 3:07 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good evening,

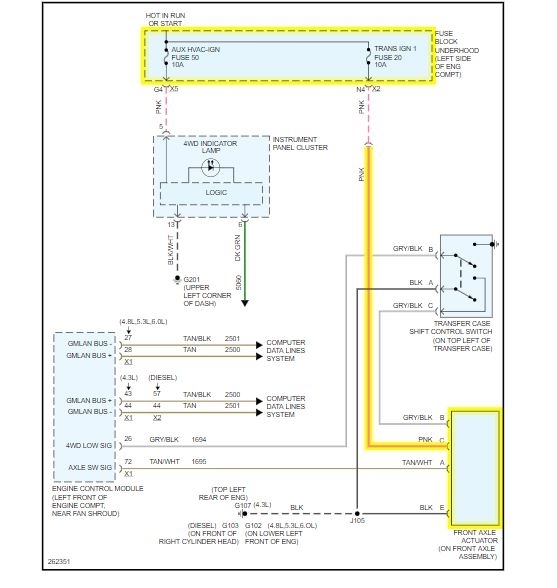

I attached a wiring diagram for you.

Tell me which fuse fails. You will need a test light or voltmeter to do some checks.

Roy
Dec 8, 2019 at 3:23 PM
Avatar
TIREGUY79
  • MEMBER
  • 35 POSTS
It is the fuse labeled 4x4.
Dec 8, 2019 at 3:28 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
What is the fuse number?
Dec 8, 2019 at 3:33 PM
Avatar
TIREGUY79
  • MEMBER
  • 35 POSTS
No number just says 4x4.
Dec 8, 2019 at 3:38 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Can you post a picture of the fuse box and the related fuse?

Roy
Dec 8, 2019 at 3:42 PM
Avatar
TIREGUY79
  • MEMBER
  • 35 POSTS

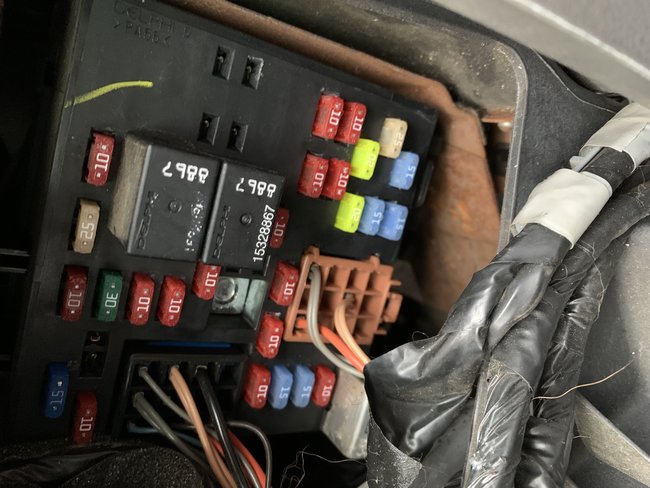

It looks just like picture. I sent I’ll send a picture of fuse box.
Dec 8, 2019 at 3:44 PM
Avatar
TIREGUY79
  • MEMBER
  • 35 POSTS

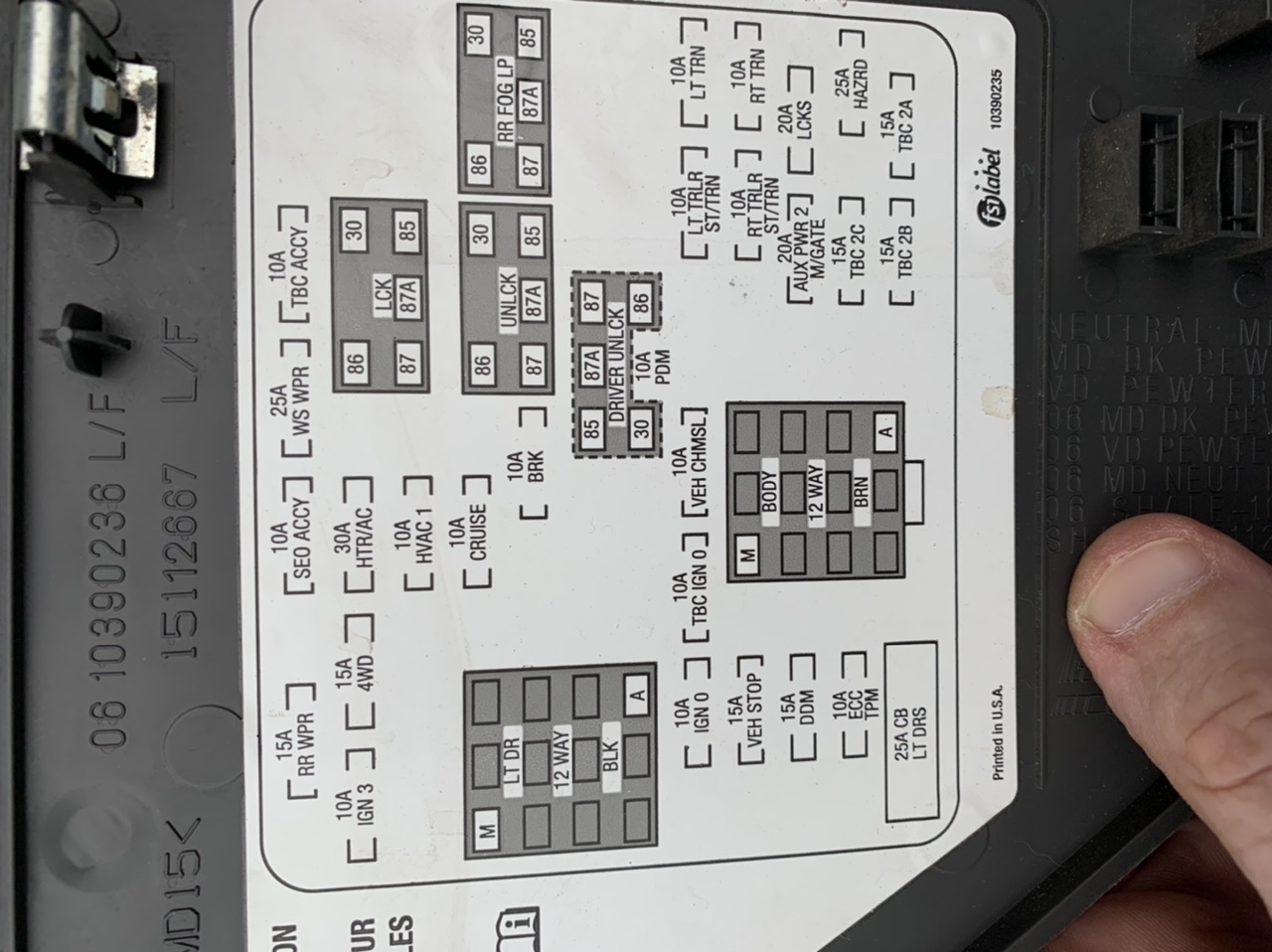

The fuse is missing in picture that is labeled 4x4.
Dec 8, 2019 at 3:46 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Okay, can you disconnect the actuator and install a fuse and see if it still fails?

Roy
Dec 8, 2019 at 3:55 PM
Avatar
TIREGUY79
  • MEMBER
  • 35 POSTS
I will tomorrow for sure. I will keep you posted. it’s getting dark so I’ll have to wait.
Dec 8, 2019 at 3:58 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Sounds good. Keep me updated.

Roy
Dec 8, 2019 at 4:04 PM
