Four wheel drive not engaging

2008 CHEVROLET SUBURBAN
257,000 MILES • 5.3L • V8 • 4WD • AUTOMATIC
Avatar
MOUNTAINMAMA
  • MEMBER
  • 1 POST
For two months my SUV was stuck in 4wd with a service 4wd error message. Then it stopped working altogether. No indicator lights. Fuses replaced, actuator replaced, transfer case computer module replaced. Still no indicator lights, still an error message, still no 4wd. What can possibly still need to be replaced?
Feb 6, 2021 at 7:46 PM
Advertisement
Avatar
SEVAG P
  • CERTIFIED EXPERT
  • 405 POSTS
hello,

It could be from the switch that actuates the 4 wheel or the harness of the actuator, to make sure read the fault codes and send to us.

check our link below how to read fault codes.

https://www.2carpros.com/articles/checking-a-service-engine-soon-or-check-engine-light-on-or-flashing

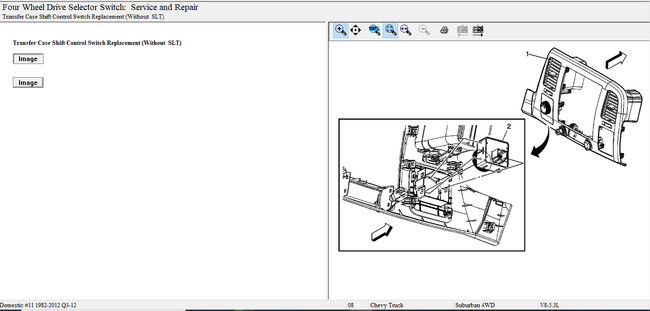

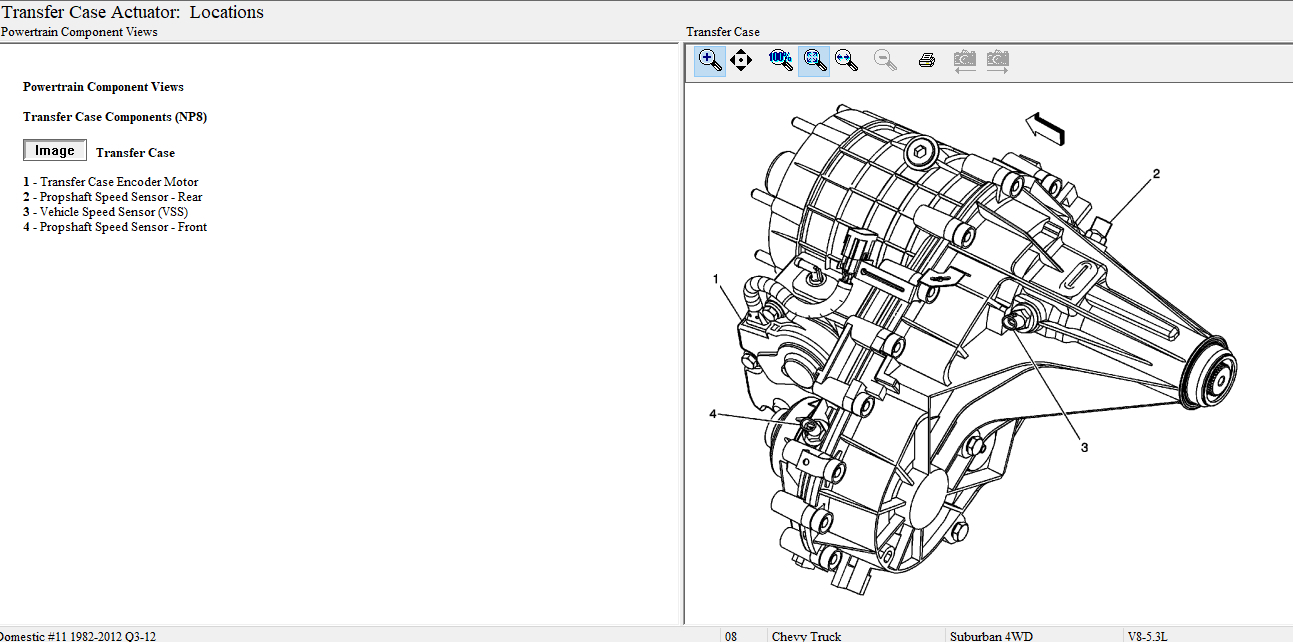

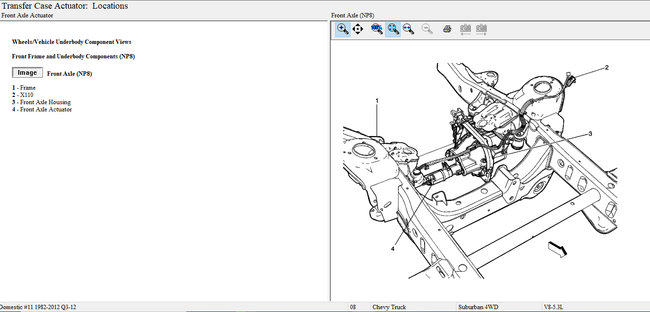

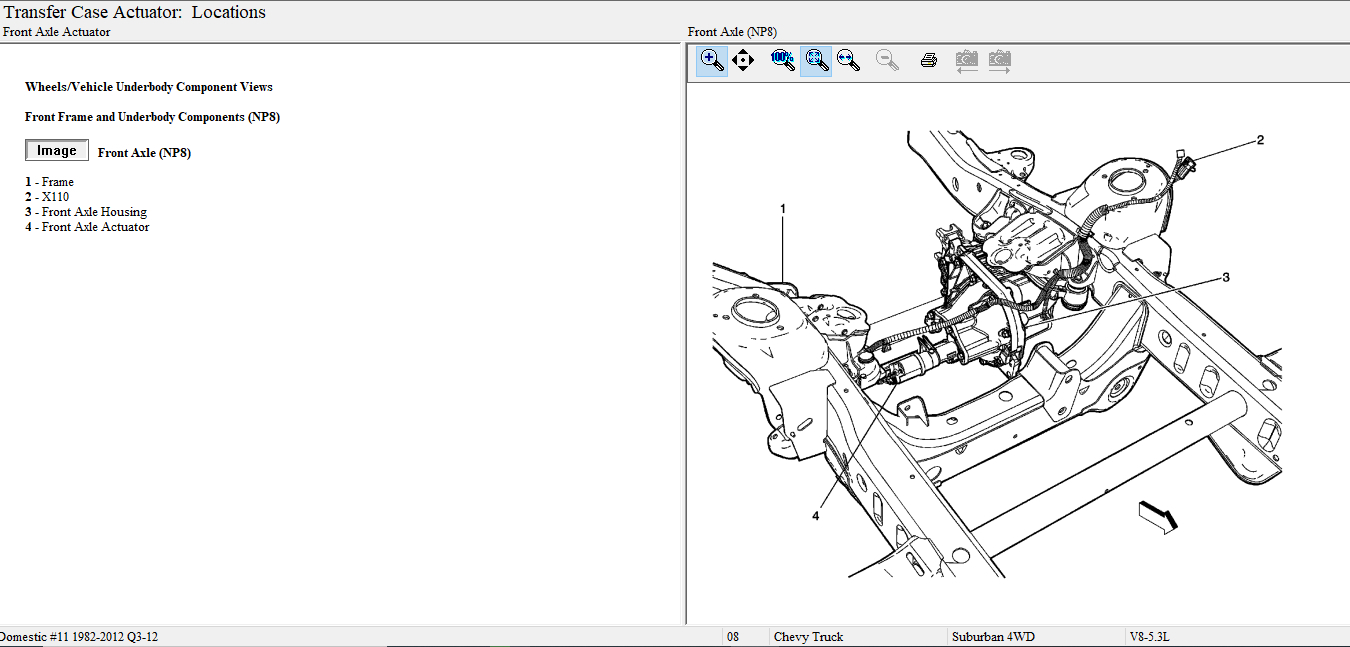

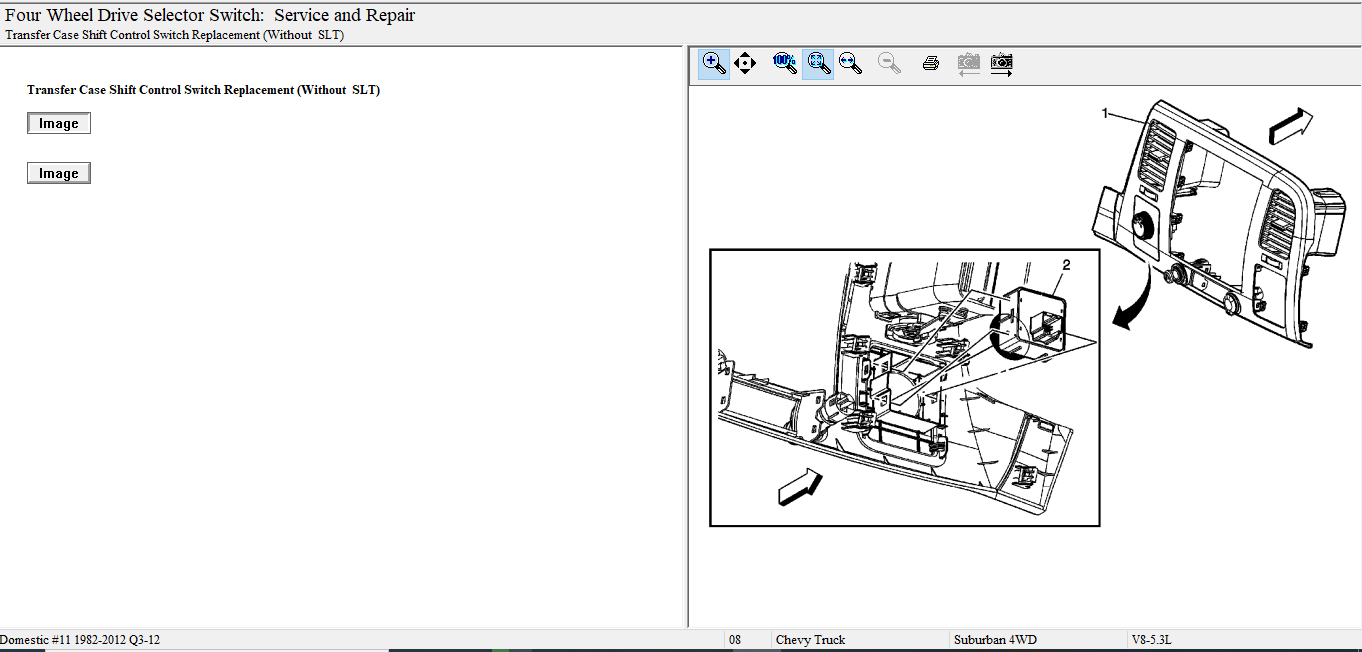

Check visually connectors of the 4 wheel switch, transfer gear actuator switch for proper installation and if they are clean, check the diagrams below.

let us know what happens with you.

thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Feb 7, 2021 at 7:10 AM
