4runner does not reach negative signal on the injectors

1986 TOYOTA 4RUNNER
180,000 MILES
Avatar
SNABELIT
  • MEMBER
  • 8 POSTS
hi, I'm a technician toyota in Italy, TMI can not help me about a 4 runner SR5, I ask you a favor how can I solve the problem of a dtc code 11 that seeing around the internet and the engine ECU, missing a power supply, I tried to see the connectors, relays, fuses and everything is ok, what else can I do before I order the engine control unit?
Jun 24, 2013 at 2:36 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

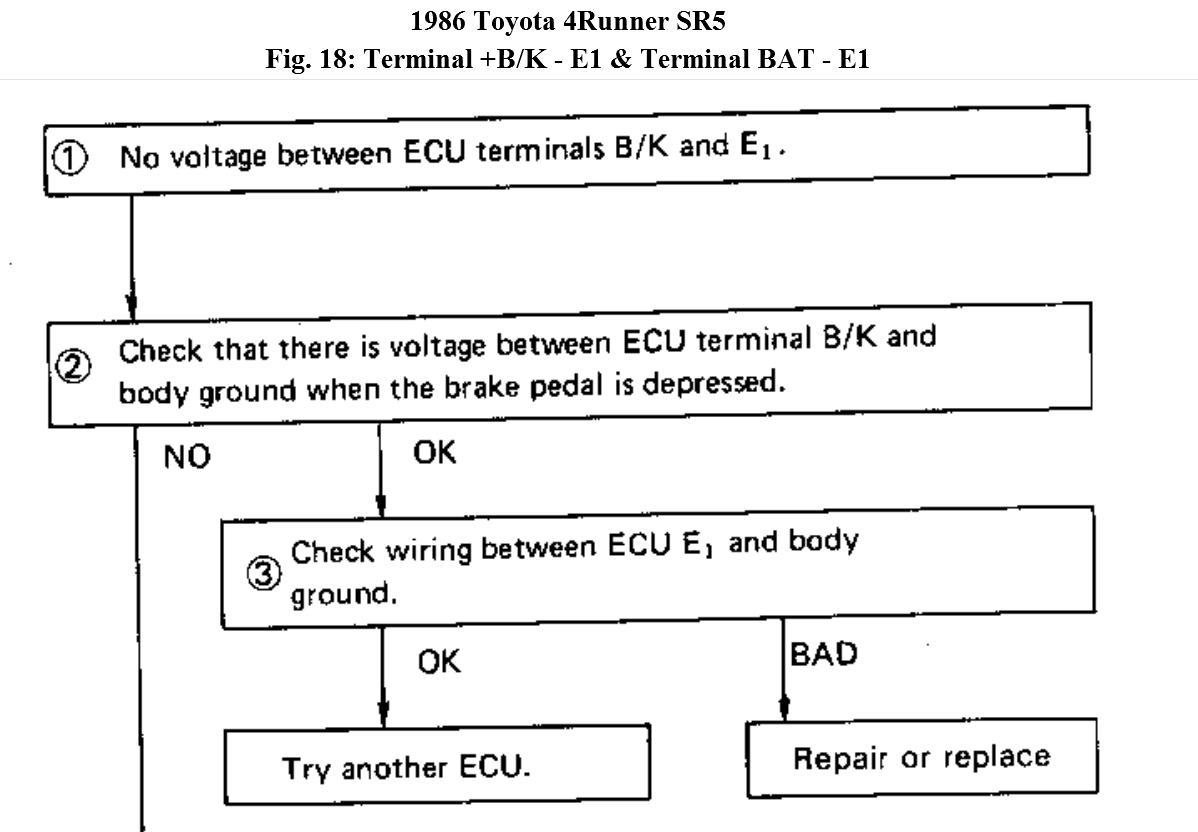

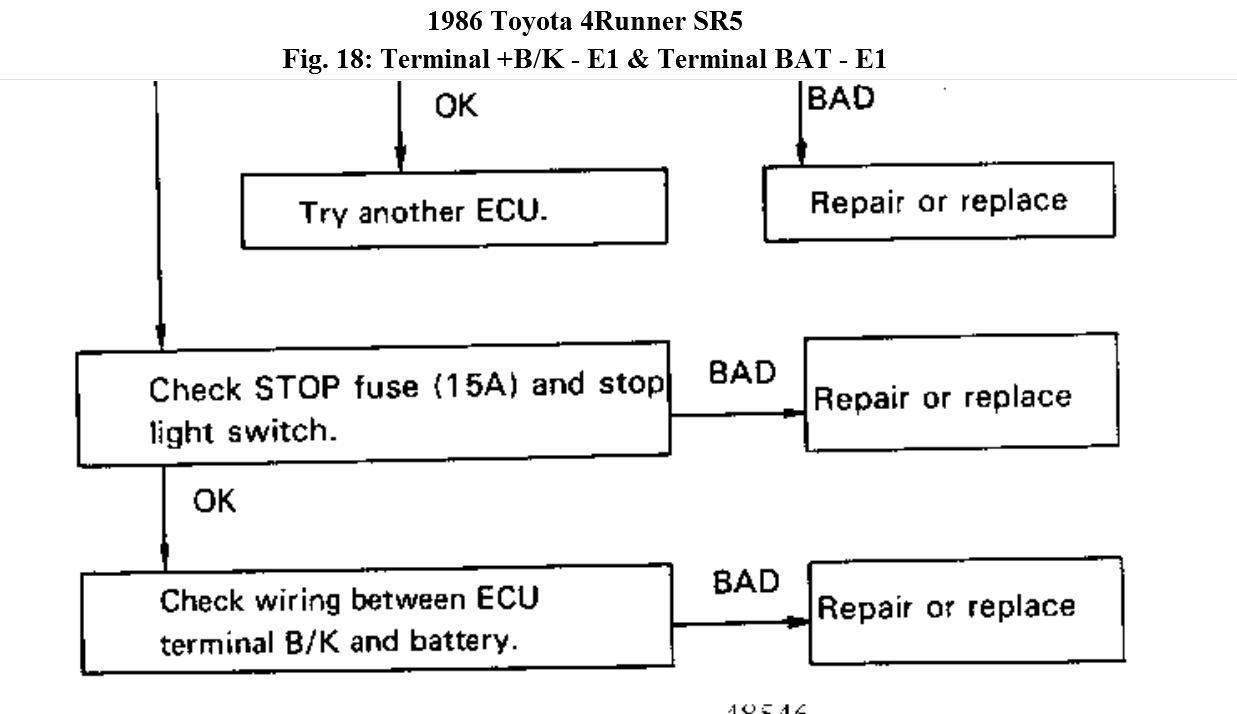

Refer to flow chart for diagnostic procedures.
Images (Click to enlarge)
Attached Media
Attached Media
Jun 24, 2013 at 10:04 AM
Avatar
SNABELIT
  • MEMBER
  • 8 POSTS
Thanks for information ,I will let you know the trials and
Jun 24, 2013 at 11:31 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You're welcome.

Good luck.
Jun 25, 2013 at 10:51 AM
Avatar
SNABELIT
  • MEMBER
  • 8 POSTS
thanks for the welcome, today I did the tests that you have provided me as a manual and I have to replace the engine ECU, but there are other tests to do? on this engine does not reach the negative signal on the injectors, so the car will not start. then a other information as I can find the engine ECU because TMI does not provide it? thanks for everything
Jun 25, 2013 at 11:13 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
There aare no procedures available for testing ECU. The manual suggests using a known good ECU to substitute.

If the test procedures indicates everything is good, the ECU should be the cause. If you can't get the replacement, try looking around to see if anybody can have it repaired.

ECU of the olden eras are usually faulty due to bad capacitors. Replacing some of them usually works.
Jun 25, 2013 at 11:28 AM
Avatar
SNABELIT
  • MEMBER
  • 8 POSTS
Traduzione
thanks so much for your in hand, now I try to repair it and see what happens. I will keep you updated
Jun 25, 2013 at 12:09 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Any good news to share?
Jun 30, 2013 at 3:25 AM
Avatar
SNABELIT
  • MEMBER
  • 8 POSTS
hi, I have done all the tests and with the conclusion that it is the engine control unit. I took it also has repair, we also replaced three condensers and integrated that they were short but the unit does not work. can anyone help me to find it in america with reasonable costs. thanks in advance
Jul 20, 2013 at 2:37 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Sorry I am not able to assist on this and hope someone else is able to.

Good luck.
Jul 20, 2013 at 6:10 AM
