Four wheel drive not engaging

2002 FORD F-250
225,000 MILES • 7.3L • V8 • TURBO • 4WD • AUTOMATIC
Avatar
COLBERT42
  • MEMBER
  • 1 POST
When I put my truck in four wheel drive and lock the hubs the front wheels do not turn and the back tires just spin. I have changed the fuses and replaced the motor to the switch but it still isn't lighting up or engaging.
Jan 2, 2019 at 3:02 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

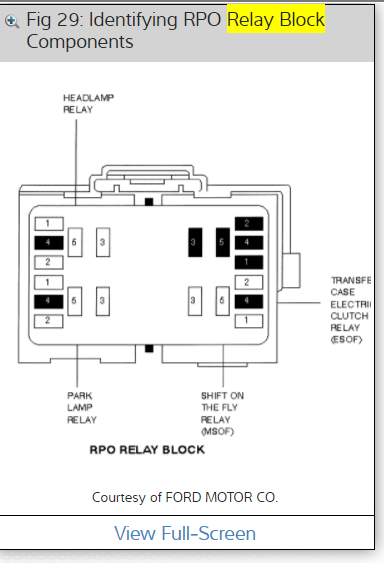

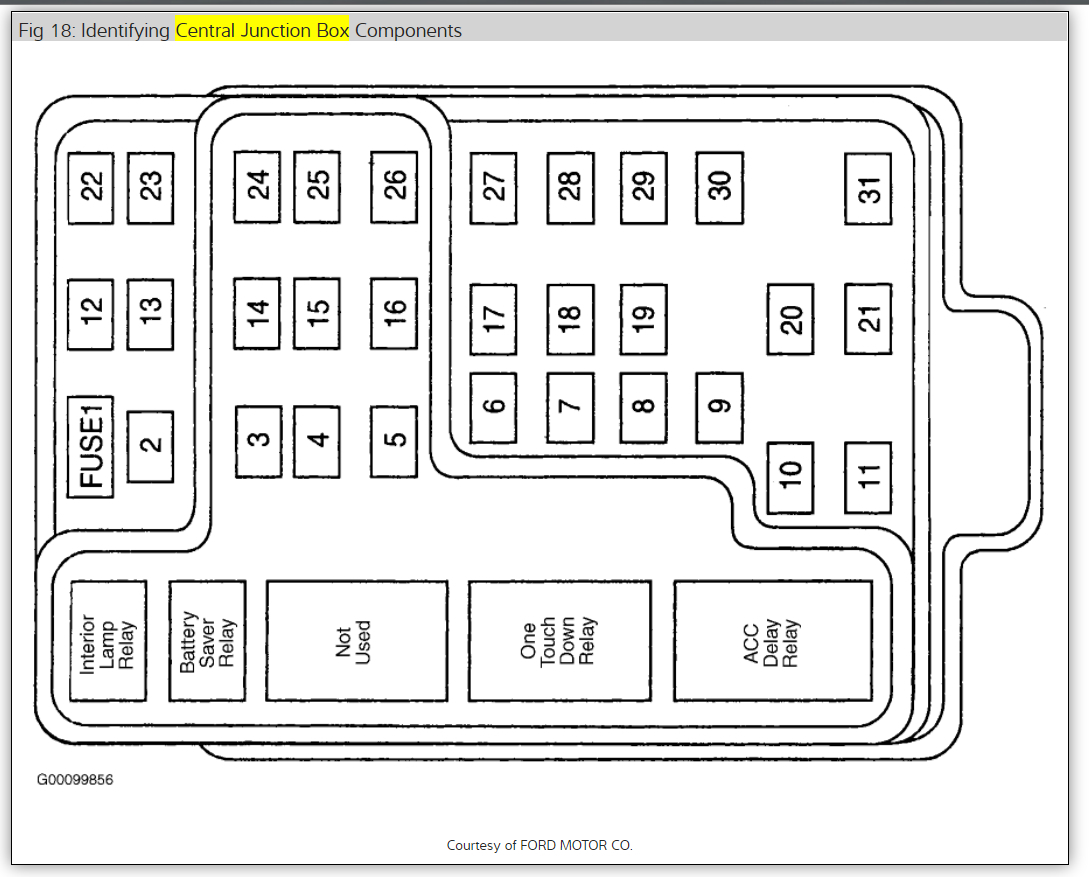

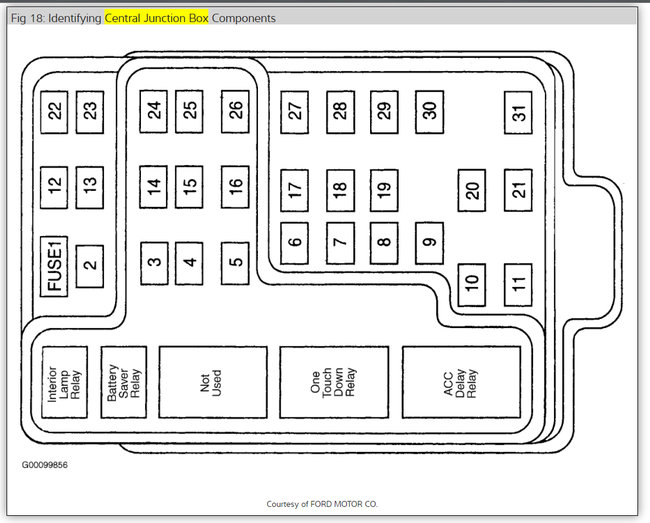

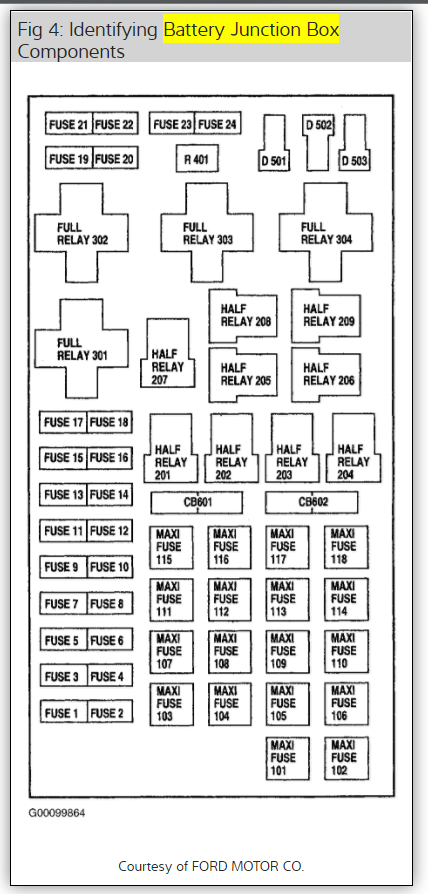

There are six fuses that need to be checked for power. here is a guide to help us get started with the wiring diagrams so you can see which fuses to test and how the transfer case works. There are also two relays to be tested us well.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

and

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

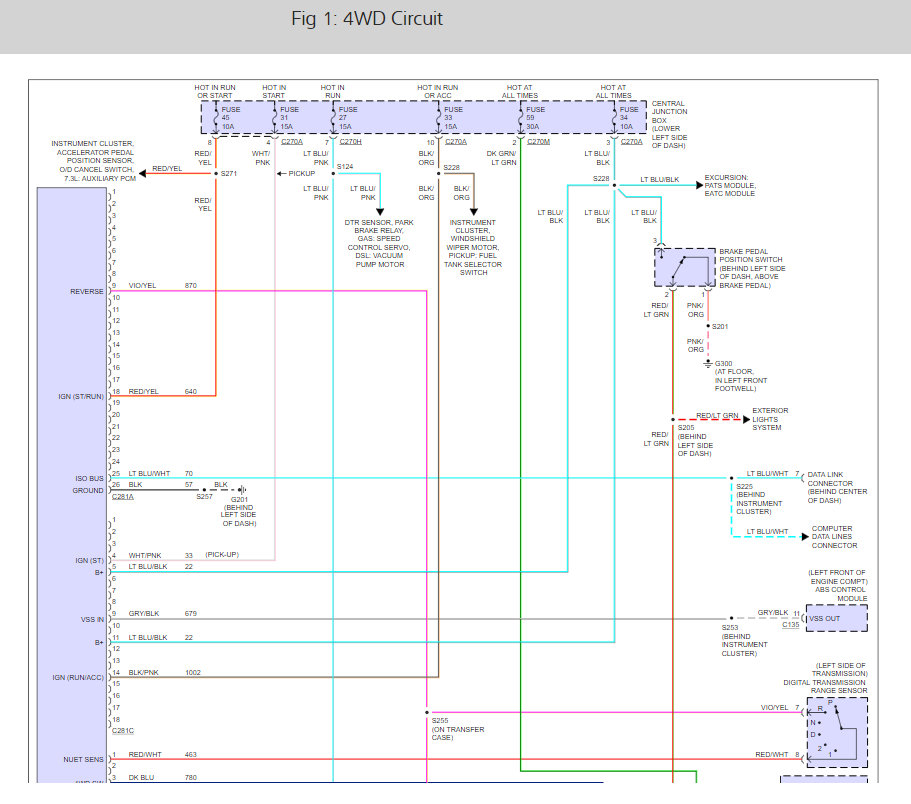

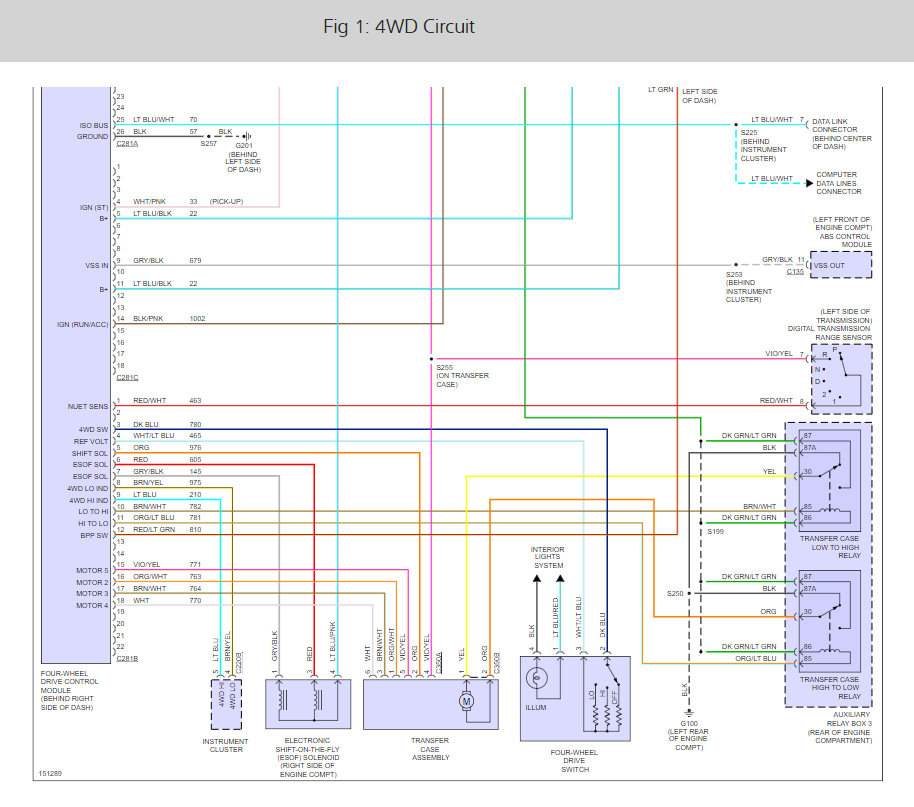

Check out the diagrams (below). Please let us know what you find. We are interested to see what it is.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jan 3, 2019 at 10:48 AM
