3rd row seats wiring diagram?

2016 CHEVROLET TAHOE
151,000 MILES • 5.3L • V8 • 4WD • AUTOMATIC
Avatar
SHAWNWOLFE
  • MEMBER
  • 2 POSTS
I need a wiring diagram for the 3rd row power seats so I can install the power seats.
Nov 10, 2025 at 6:50 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

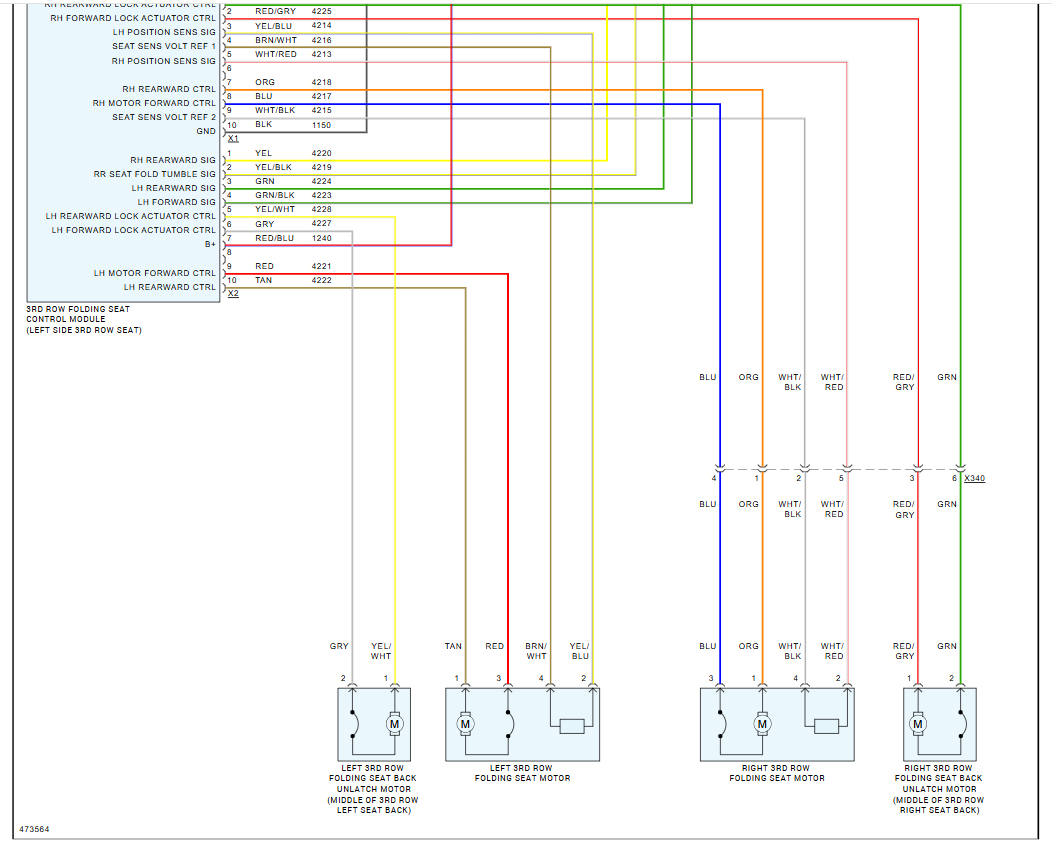

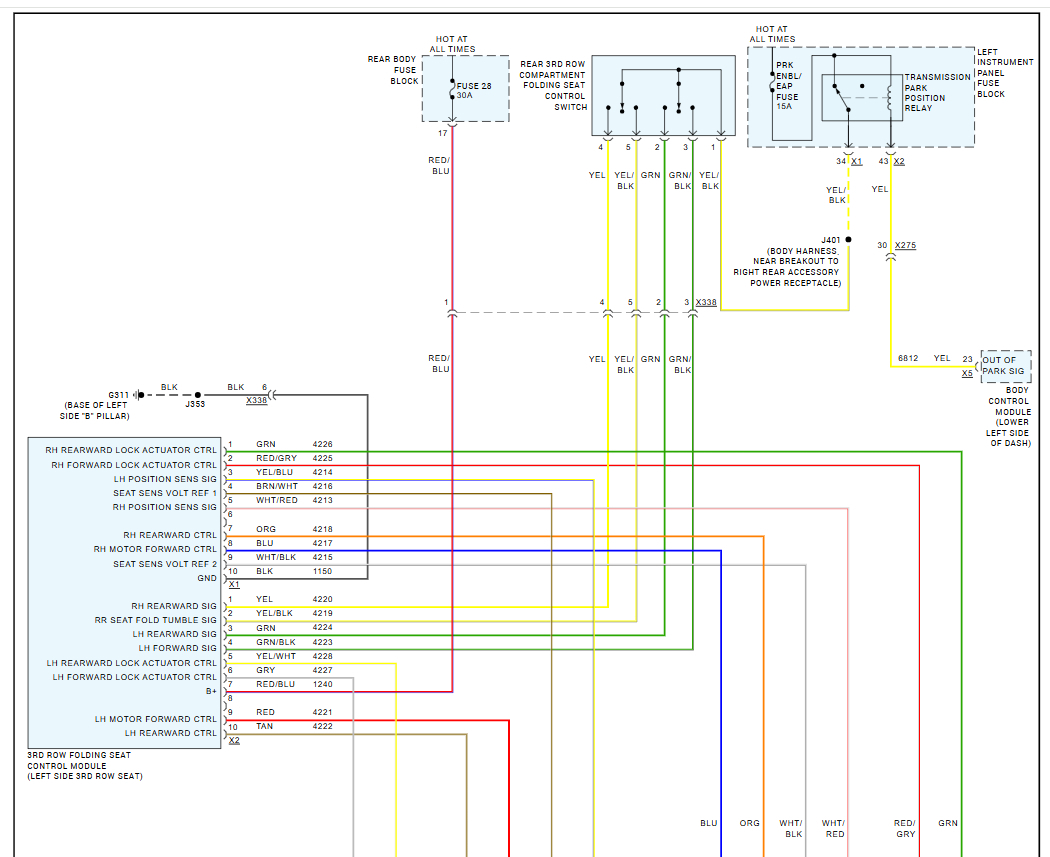

Sure here are the wiring diagrams for the seats so you can streamline the installation. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Nov 11, 2025 at 10:48 AM
Avatar
SHAWNWOLFE
  • MEMBER
  • 2 POSTS
Won't load?
Nov 11, 2025 at 11:13 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
hmm,, I see that, I will reach out the site owner to see what the problem is? I will email you the diagrams so you can have them. Look for ken@2capros in your inbox.
Nov 12, 2025 at 11:24 AM
