2nz-FE Manual Transmission Torque Specs needed?

2014 TOYOTA VIOS
130,000 MILES • 1.3L • 4 CYL • 2WD • MANUAL
Avatar
SHANE EAST
  • MEMBER
  • 5 POSTS
Hello, can anybody provide the torque specs of the manual transmission components of the Toyota 2nz-FE engine? Specifically, the Bellhousing to Engine Torque Specs, Flywheel to Engine torque specs, and the clutch plate to flywheel torque specs. Thank you.
Nov 7, 2024 at 9:26 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
The transmission bellhousing to engine is Torque:
33 Nm (336 kgf-cm, 24 ft-lbf)

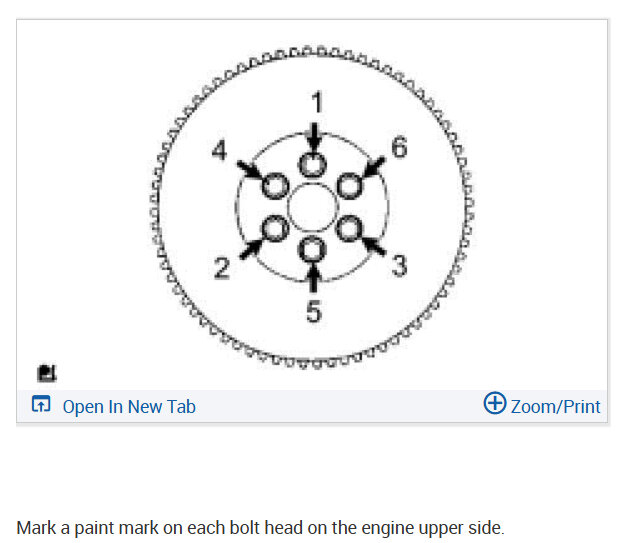

Install the flywheel with the 6 bolts in the order shown in the illustration.

Torque .................... 49 Nm (500 kgf-cm, 38 ft-lbf)

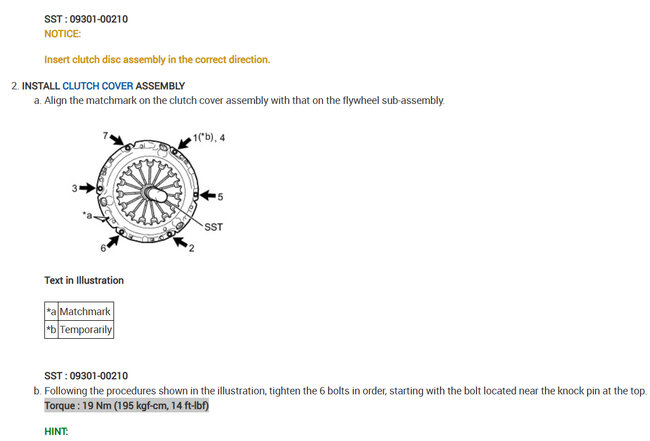

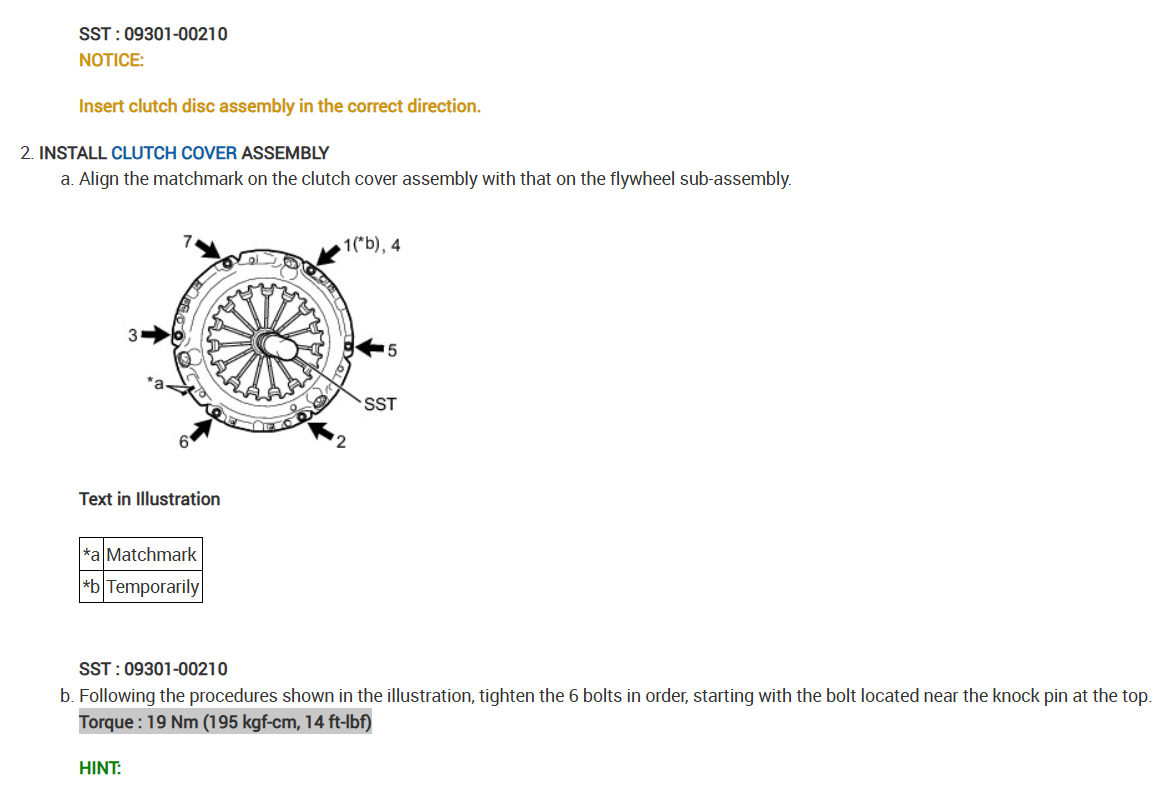

The clutch cover or pressure plate is:

Torque : 19 Nm (195 kgf-cm, 14 ft-lbf)

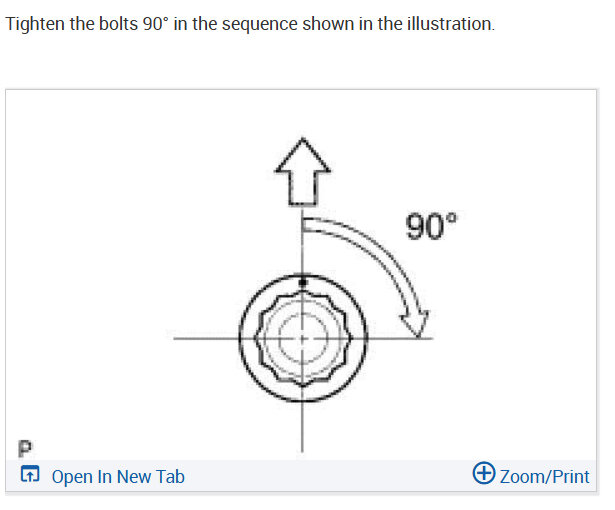

Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Feb 19, 2025 at 5:35 PM
Avatar
SHANE EAST
  • MEMBER
  • 5 POSTS
Thank you. I’ll be replacing my clutch assembly soon. This would greatly help.
Feb 27, 2025 at 6:25 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
You are welcome, please use 2CarPros anytime we are here to help.
Feb 28, 2025 at 5:34 PM
Avatar
SHANE EAST
  • MEMBER
  • 5 POSTS
Hello, I would like to add a follow up question on this thread. Since I’ll be removing some components before reaching into the transmission assembly (clutch lining replacement for the manual toyota 2nz-fe), may I know the torque specs of all related components? (Axle nut, camber bolts, caliper bolts & pin, transmission mount bolts) Thank you.
Apr 16, 2025 at 2:17 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Sorry, we only handle one problem per thread, please post your new question here, you must be logged in.

https://www.2carpros.com/questions/new

Cheers, Ken
Apr 17, 2025 at 9:35 AM
Avatar
SHANE EAST
  • MEMBER
  • 5 POSTS
Copy thanks.
