Loose passenger side rear view mirror

2019 ACURA RDX
20,000 MILES • 4WD • AUTOMATIC
Avatar
SHUBHENDU PATHAK
  • MEMBER
  • 2 POSTS
The mirror is intact within the casing. The casing itself is not damaged and the mirror moves well within the casing using the controls by the side of the driver seat. The place where the plastic casing that holds the mirror is connected to the plastic extension from the car is loose. I tried to move it around to see if it snaps back in place, but it doesn't, and I don't know how to open it up to see what is wrong. Is there any easy fix to repair this?
Jun 24, 2022 at 4:40 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

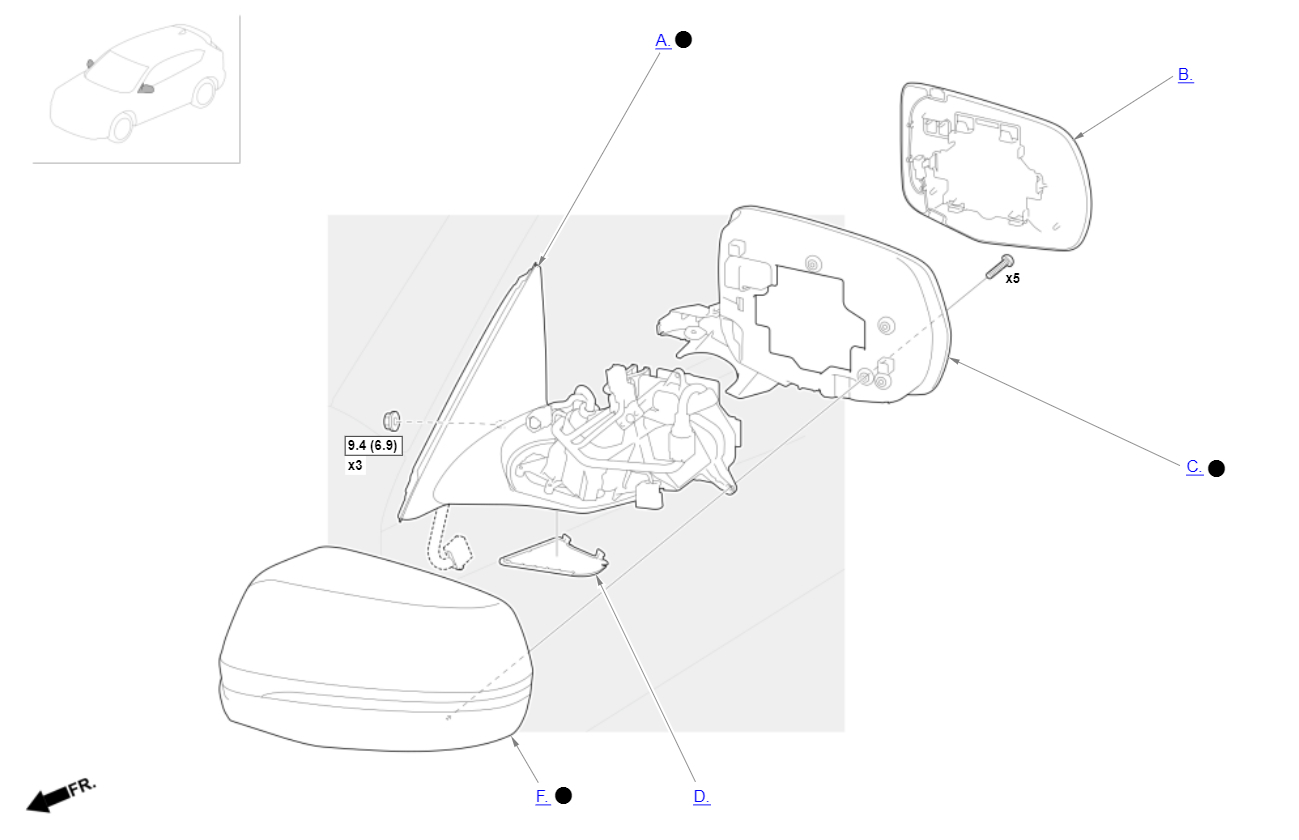

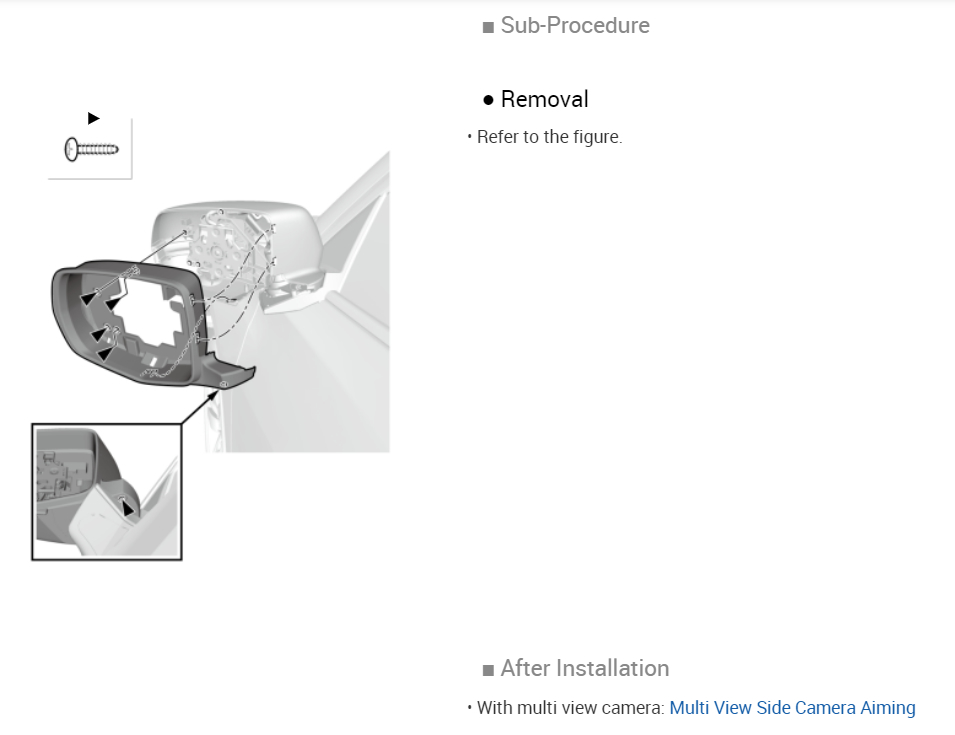

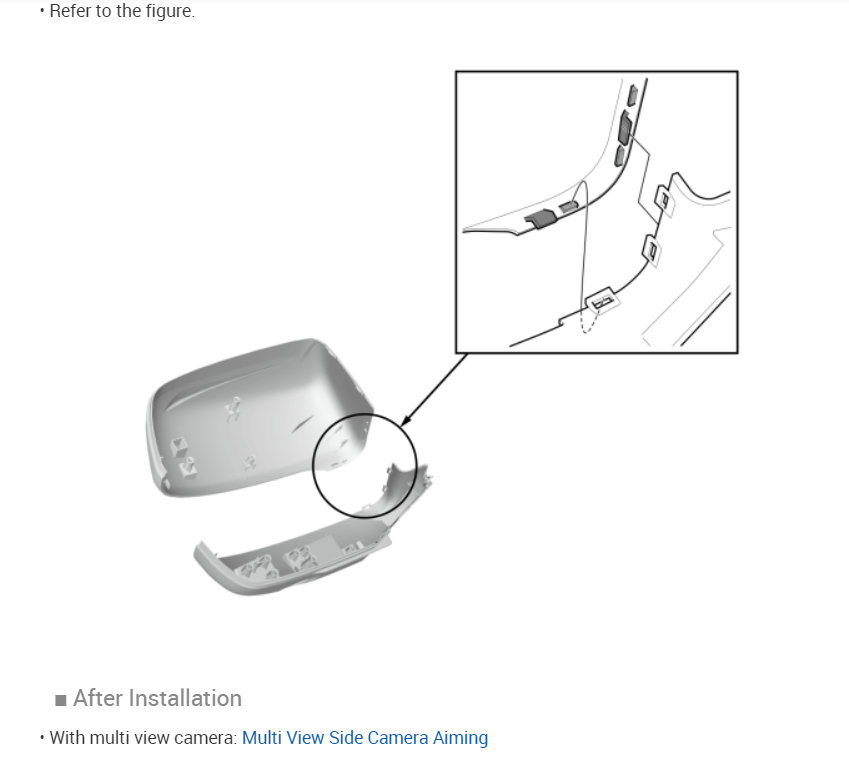

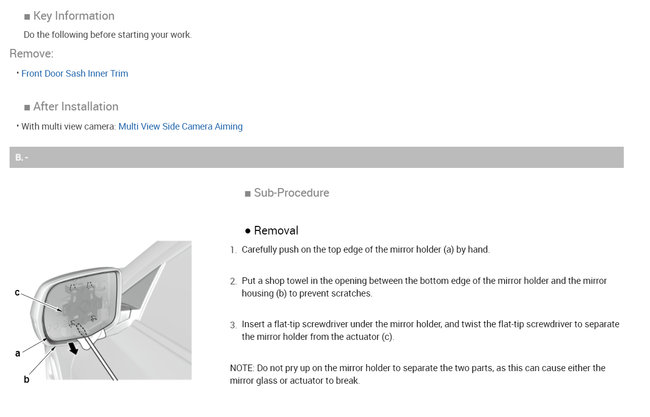

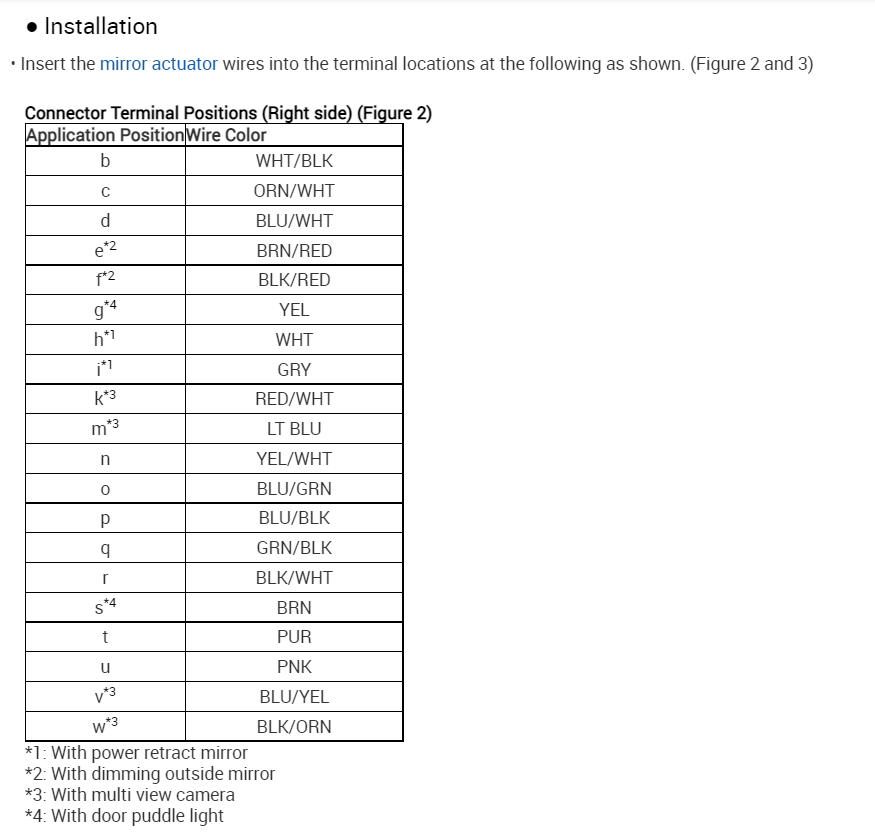

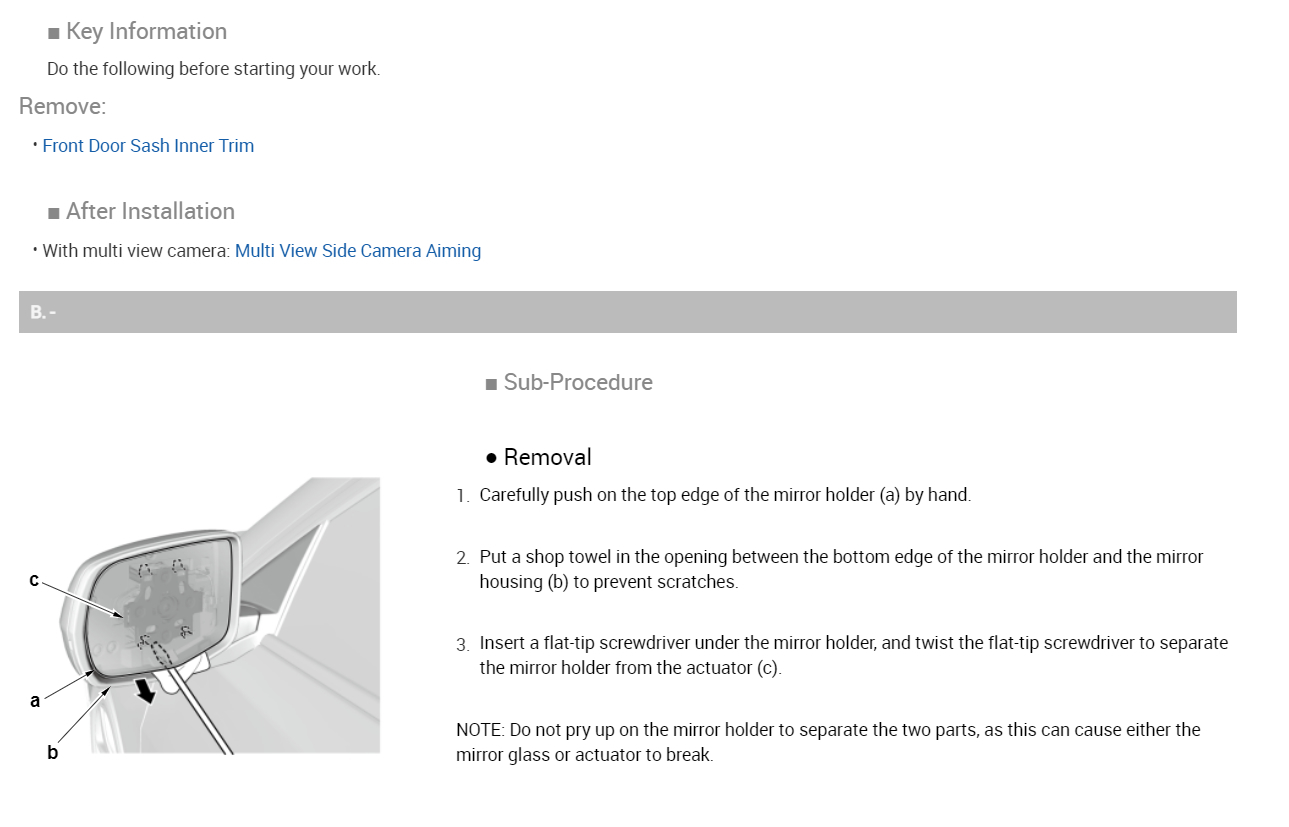

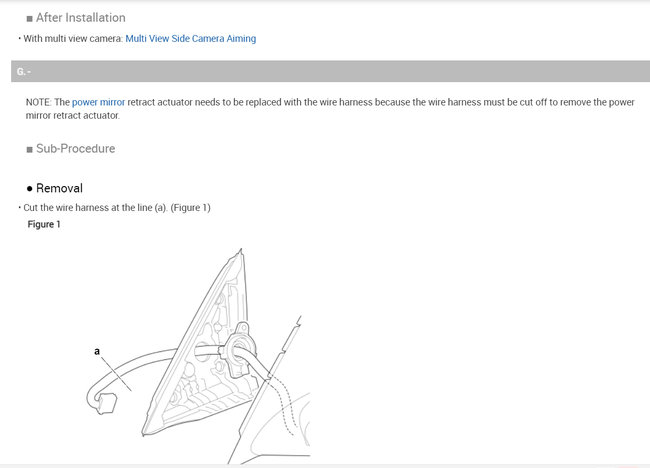

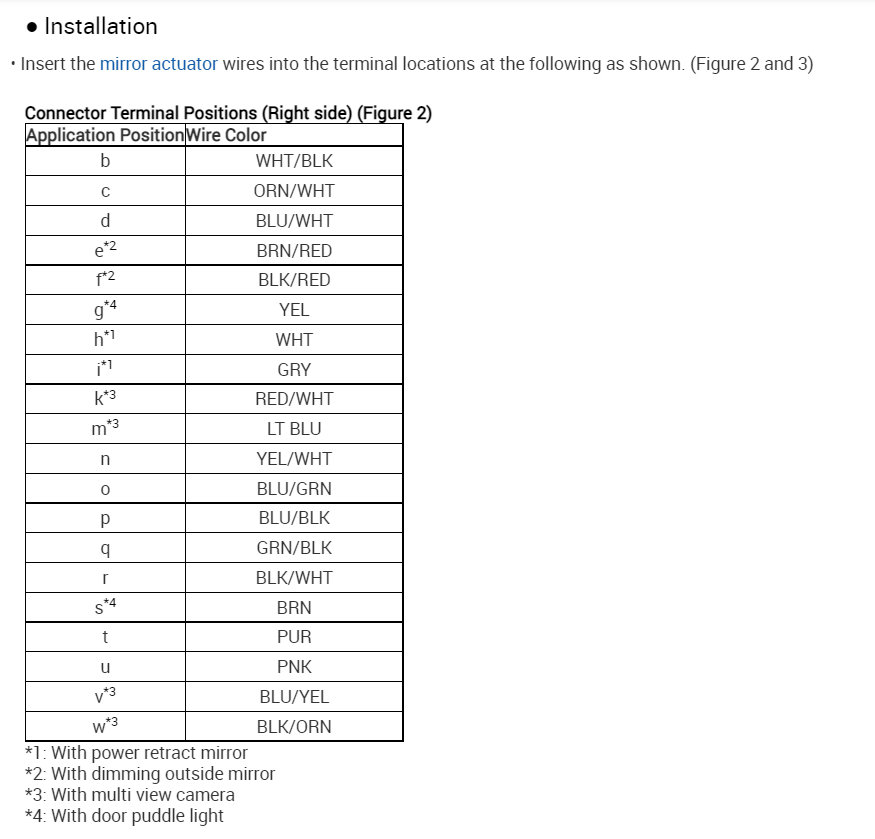

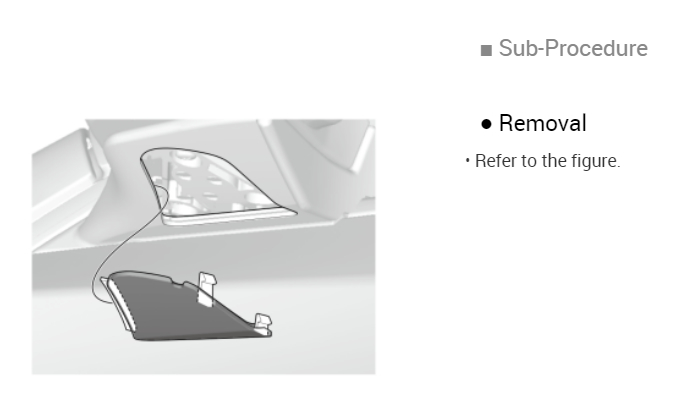

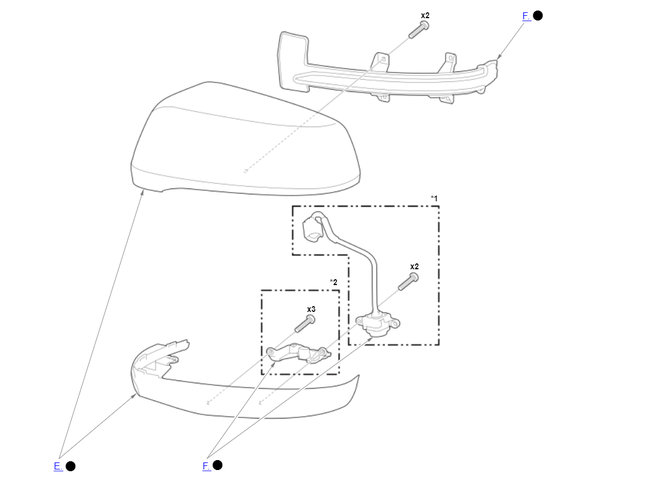

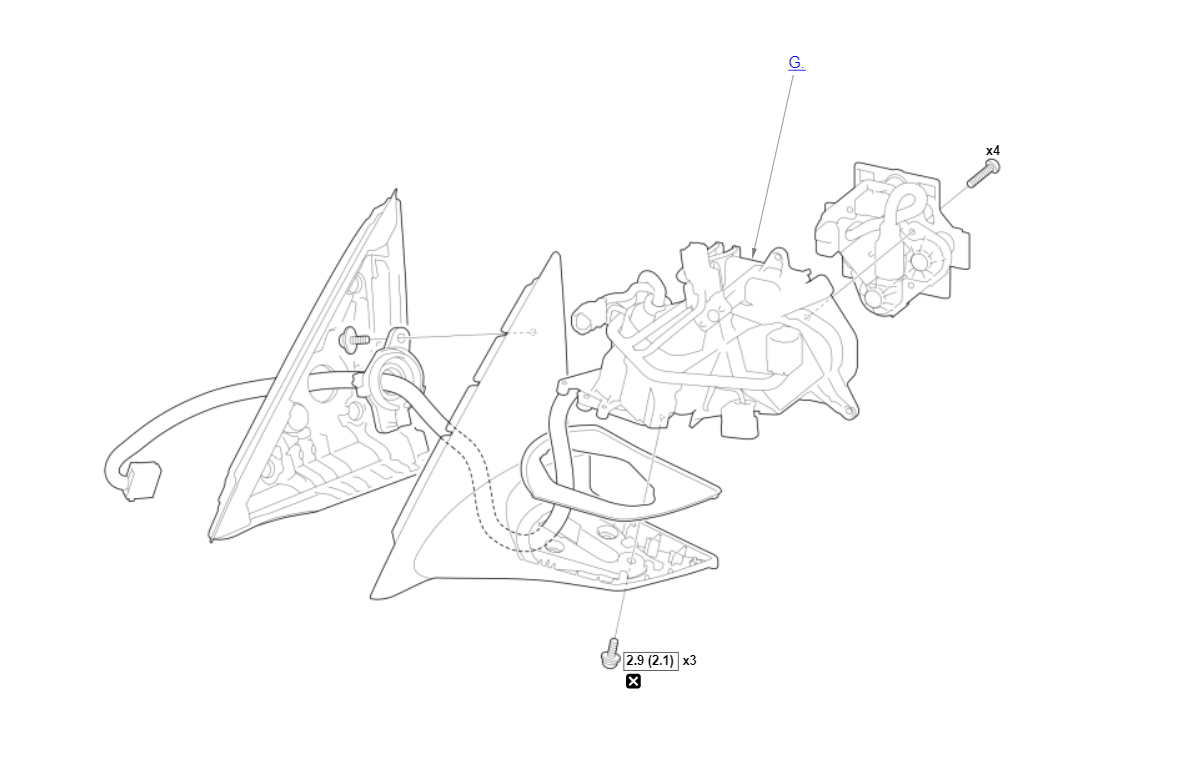

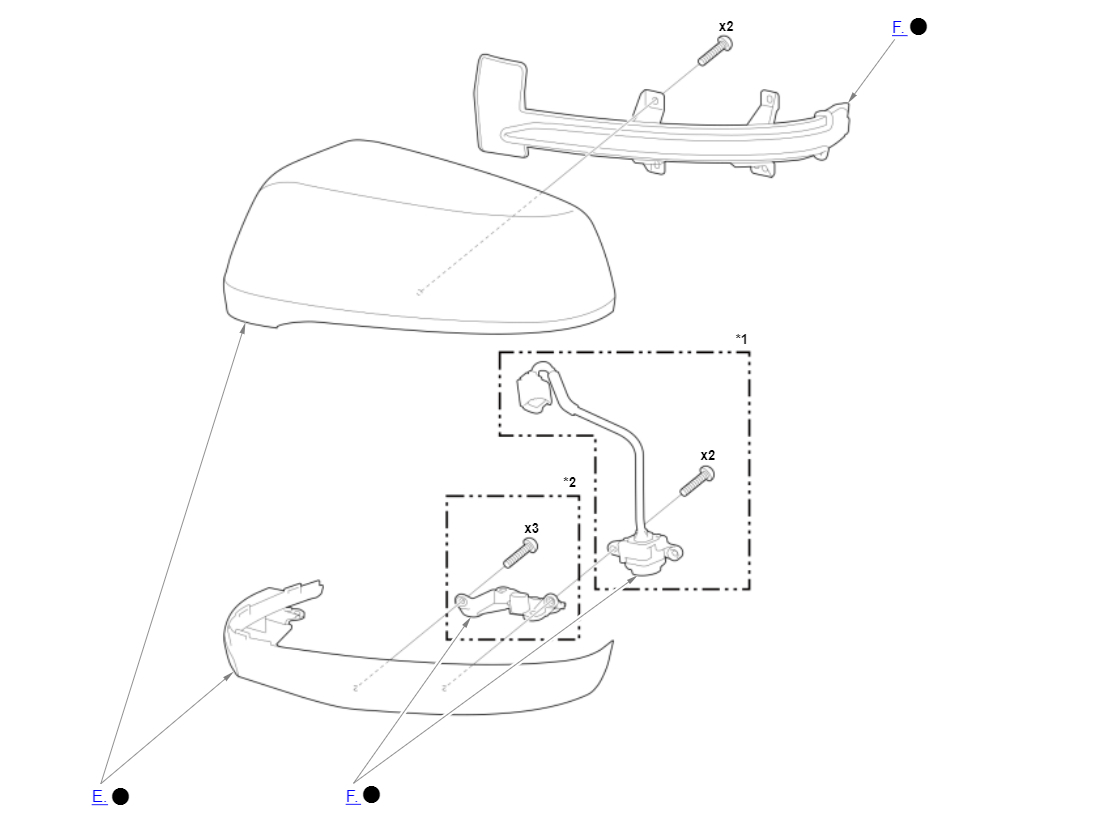

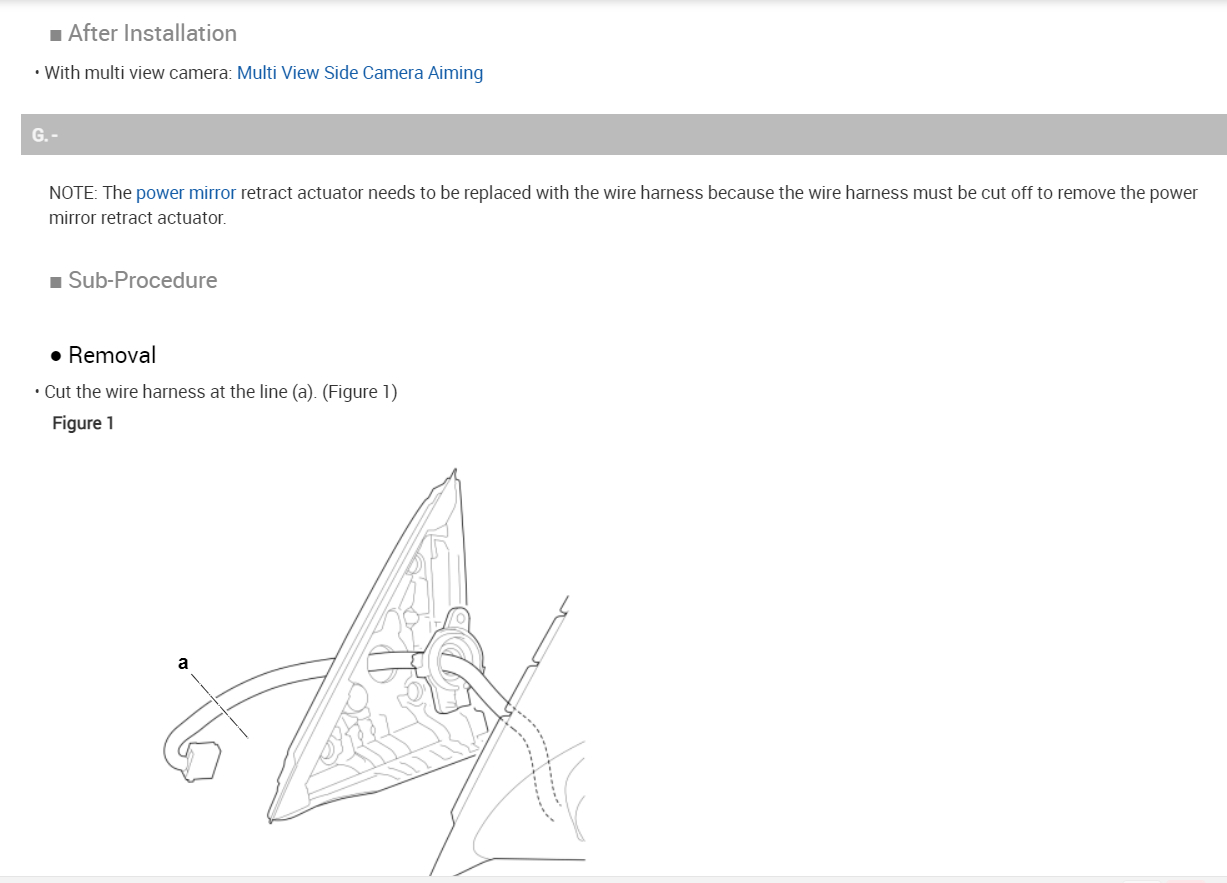

It sounds like the mounting bolts are loose to the sub structure. I have included instructions in the diagrams below to help you see how the mirror works and how to disassemble it for the repair needed. Watch for broken parts because it is plastic and can become brittle. In which case the mirror will need replacement. Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jun 25, 2022 at 11:47 AM
Avatar
SHUBHENDU PATHAK
  • MEMBER
  • 2 POSTS
Hi Ken,

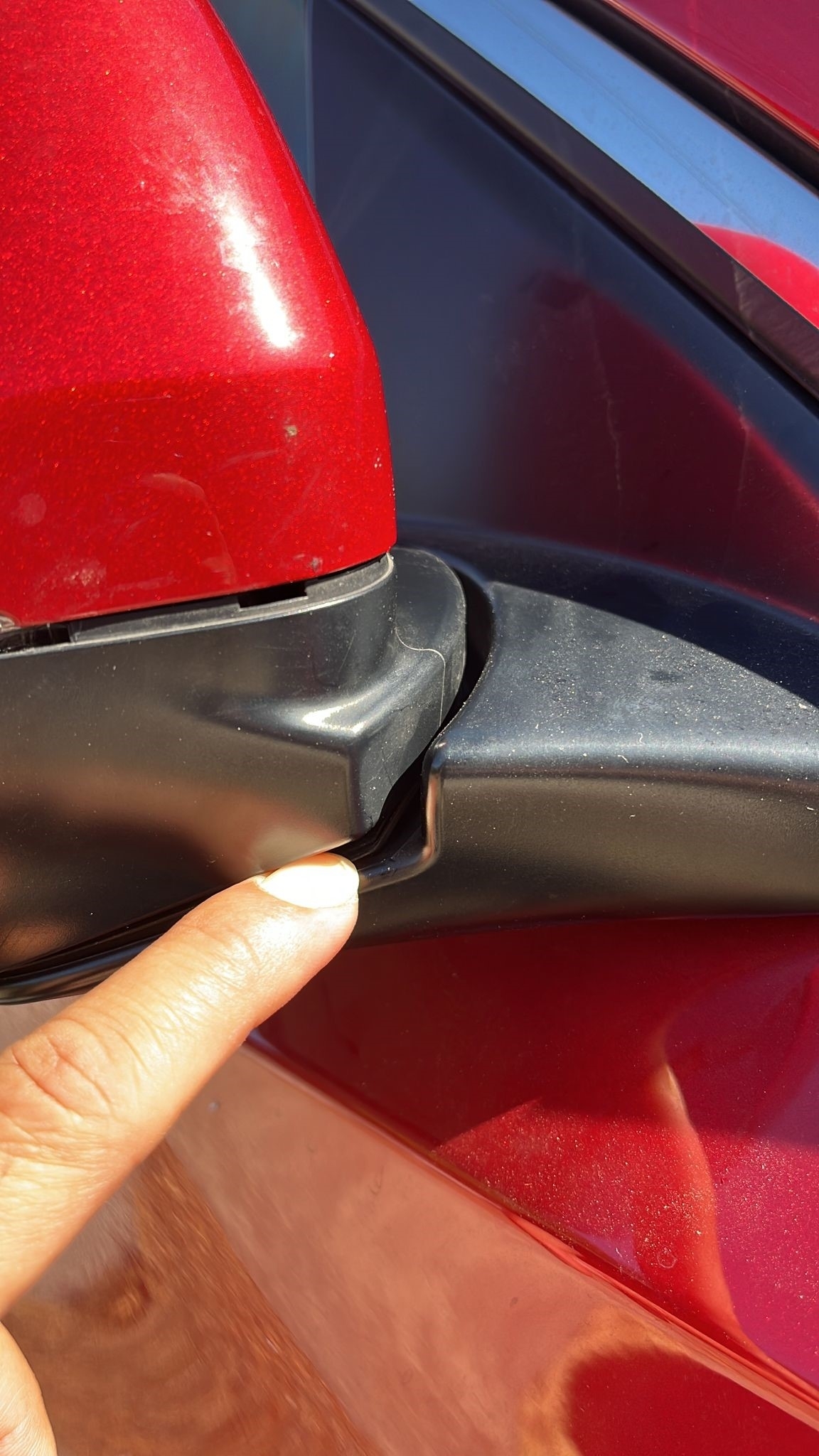

Thank you for sharing the diagrams. I have uploaded a picture of the mirror and where it is loose. How do I start opening the mirror? Is there a video or step-by-step instructions that can help? I find YouTube videos very helpful but could not find one that shows how to fix this issue.
Image (Click to enlarge)
Attached Media
Jun 30, 2022 at 10:06 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Thanks for the image, the best we have are the instructions I left in my first post, sorry. Please let us know what you find.
Jun 30, 2022 at 8:46 PM
