What are the speakers color codes for this vehicle?
2018 KIA OPTIMA
105,009 MILES • 2.4L • AUTOMATIC
SDAVIS286
MEMBER
1 POST
FOLLOW
It has the uvo system but not the Harmon Kardon speakers. I have an LCi1 I’m trying to install. Any help would be greatly appreciated! Thanks
Feb 1, 2025 at 7:05 AM
Advertisement
STRAILER
CERTIFIED EXPERT
53,854 POSTS

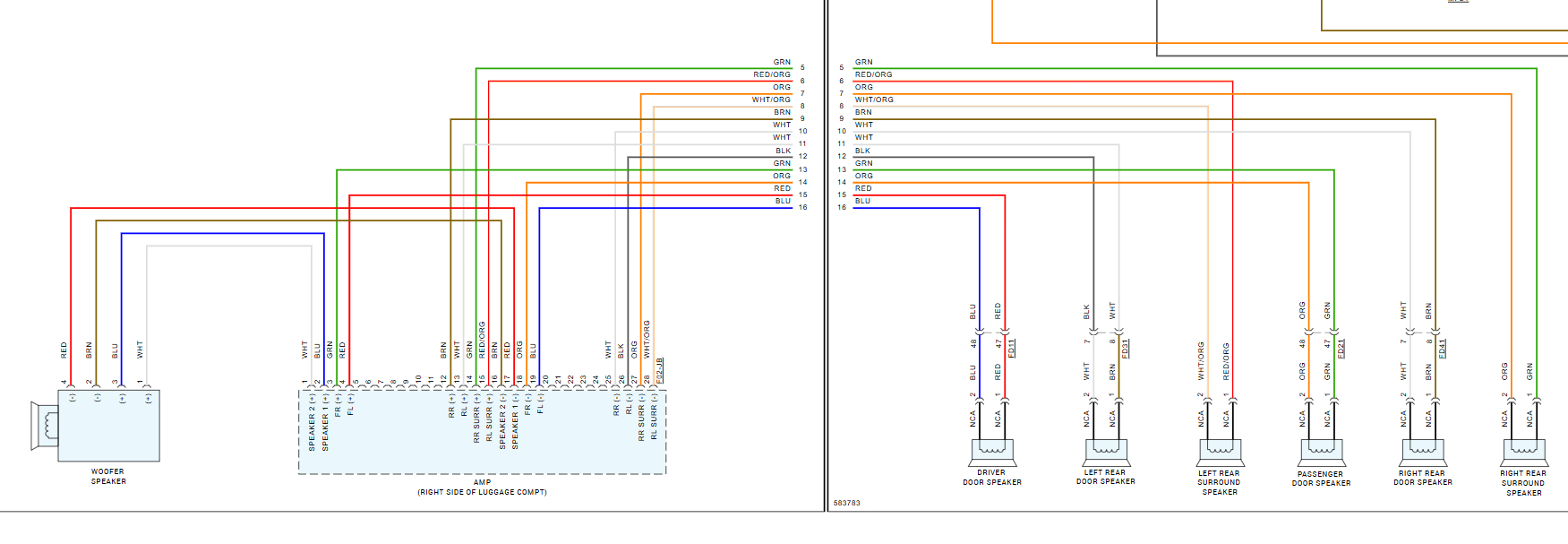

Sure, here are the speaker wiring diagrams as they come out of the amplifier. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Feb 2, 2025 at 10:12 AM
