Serpentine belt diagram needed?

2018 HYUNDAI TUCSON
81,000 MILES • 2.0L • 4 CYL • 2WD • AUTOMATIC
Avatar
JAY1020
  • MEMBER
  • 1 POST
I'm looking for a serpentine belt diagram on the vehicle listed above 2.0l engine without a idler pulley every diagram i find is the engine with an idler pulley.
Apr 28, 2025 at 11:39 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

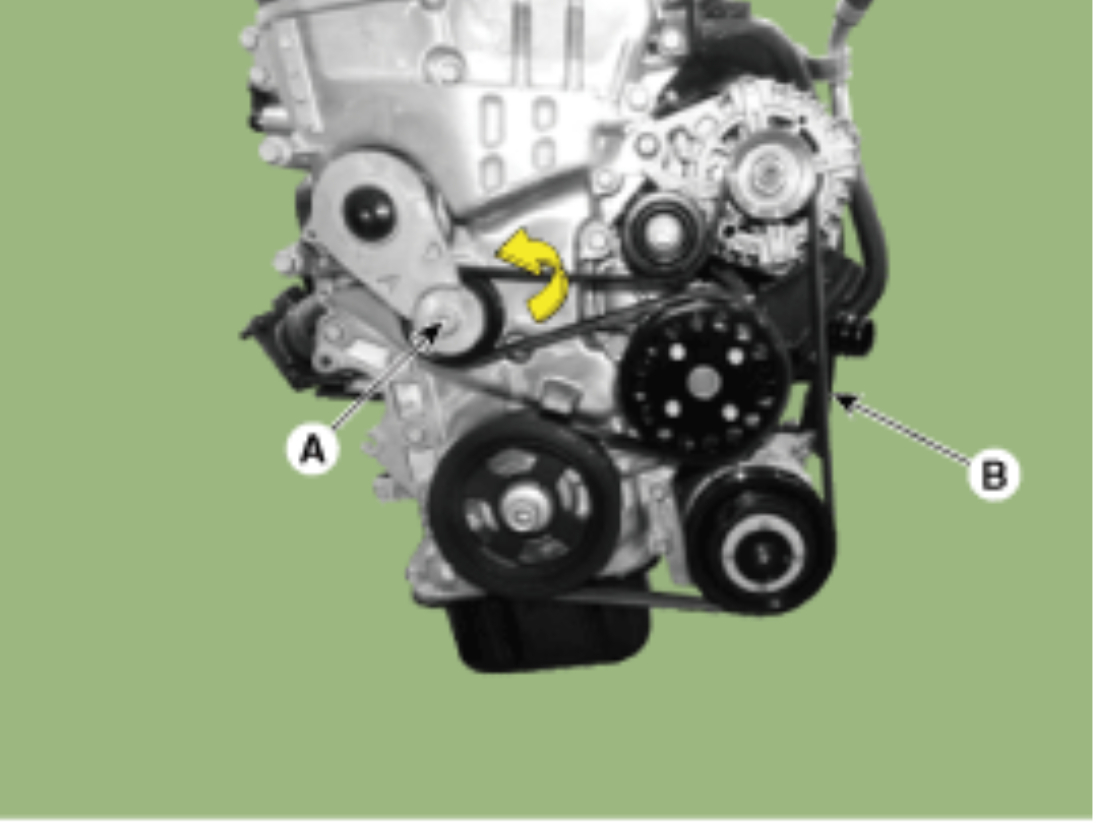

It looks like the engine has an idler pulley and a belt tensioner, it looks like the routing will be the same either way. can you upload an image of your set up so I can see it? Check out the images (below). Please upload pictures or videos in your response.
