Where is the output speed sensor located?

2017 CHEVROLET MALIBU HYBRID
76,000 MILES • 1.8L • 4 CYL • 2WD • AUTOMATIC
Avatar
DUNKLEFLIP
  • MEMBER
  • 2 POSTS
I'm looking for confirmation as to where exactly my car listed above output speed sensor is located. Through my own looking underneath, I believe it's probably internal but would love an official word.
Aug 3, 2023 at 12:55 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

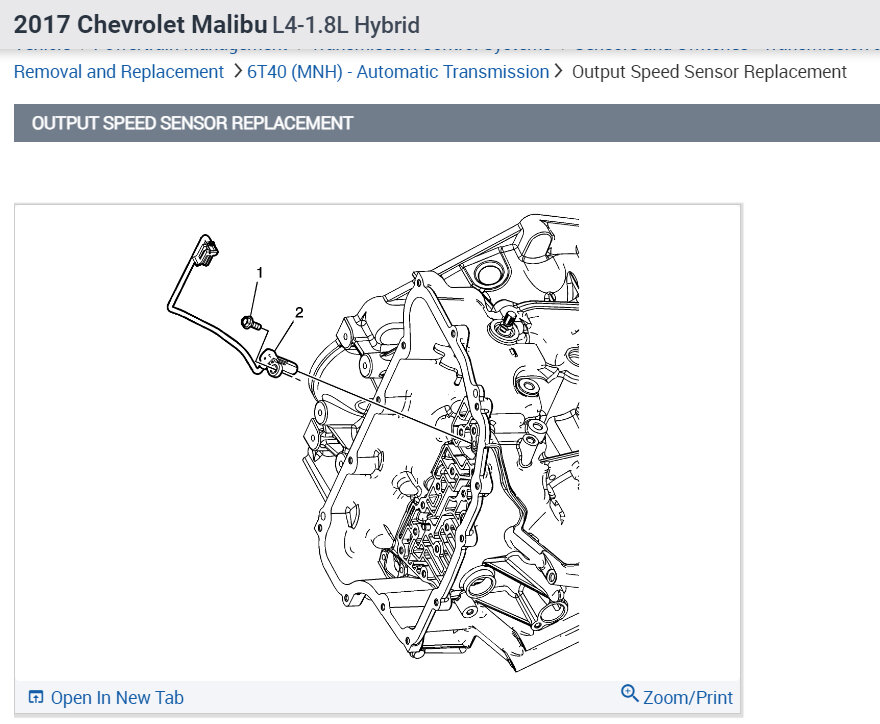

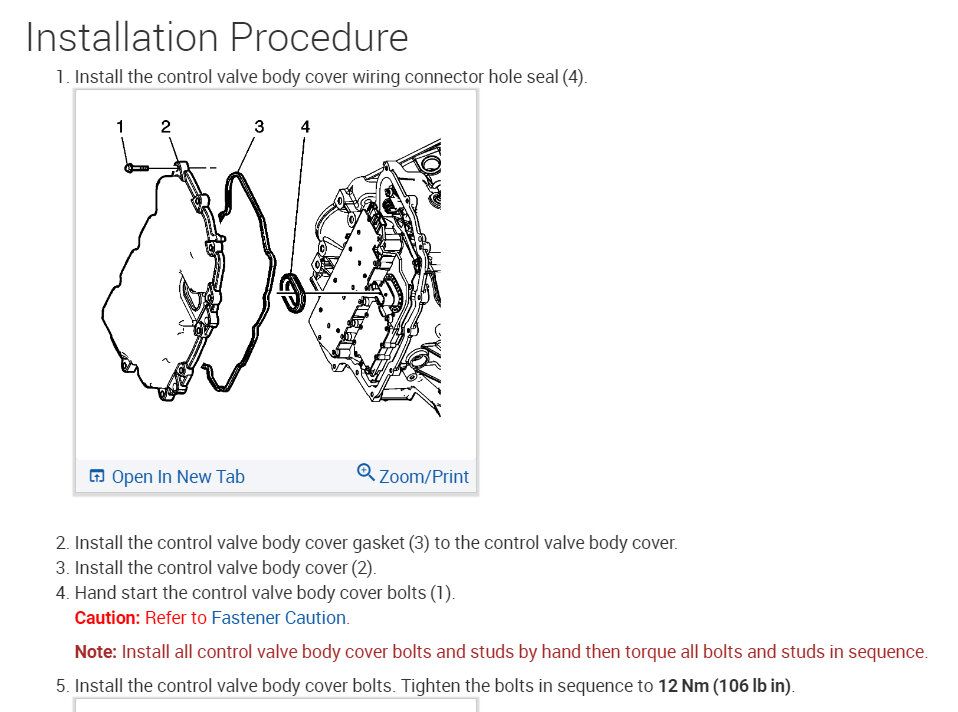

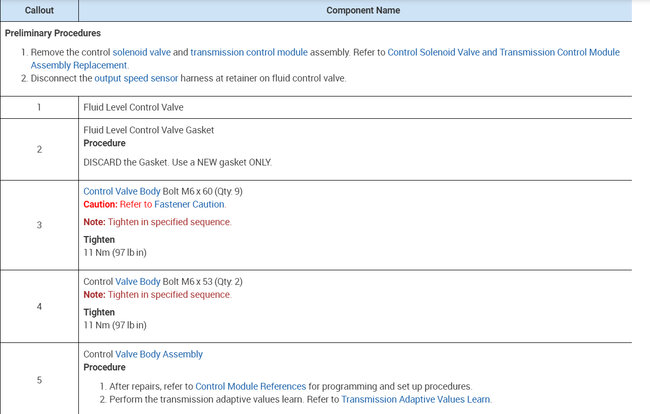

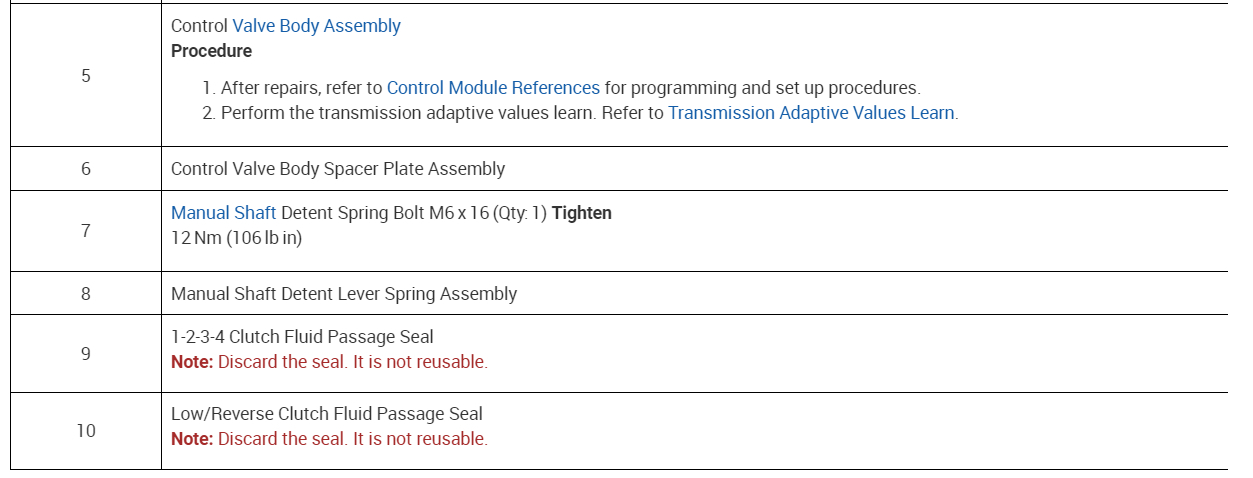

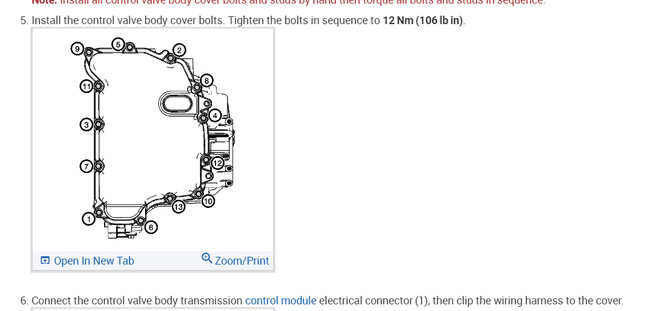

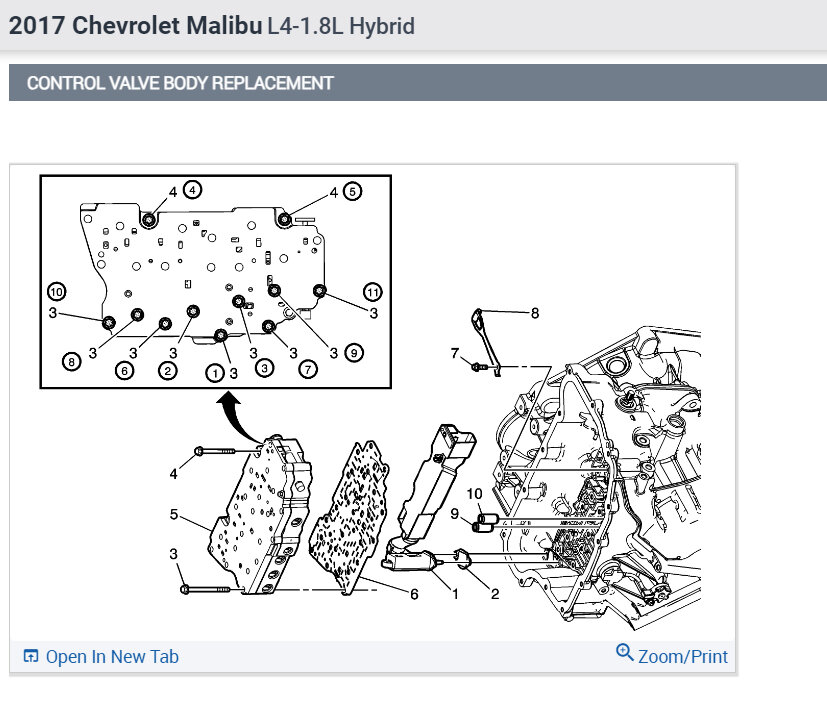

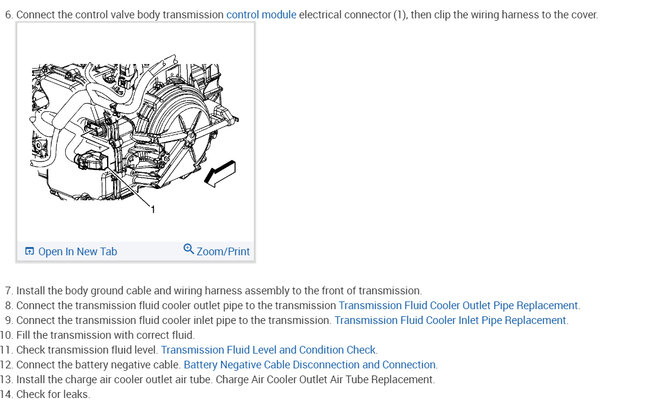

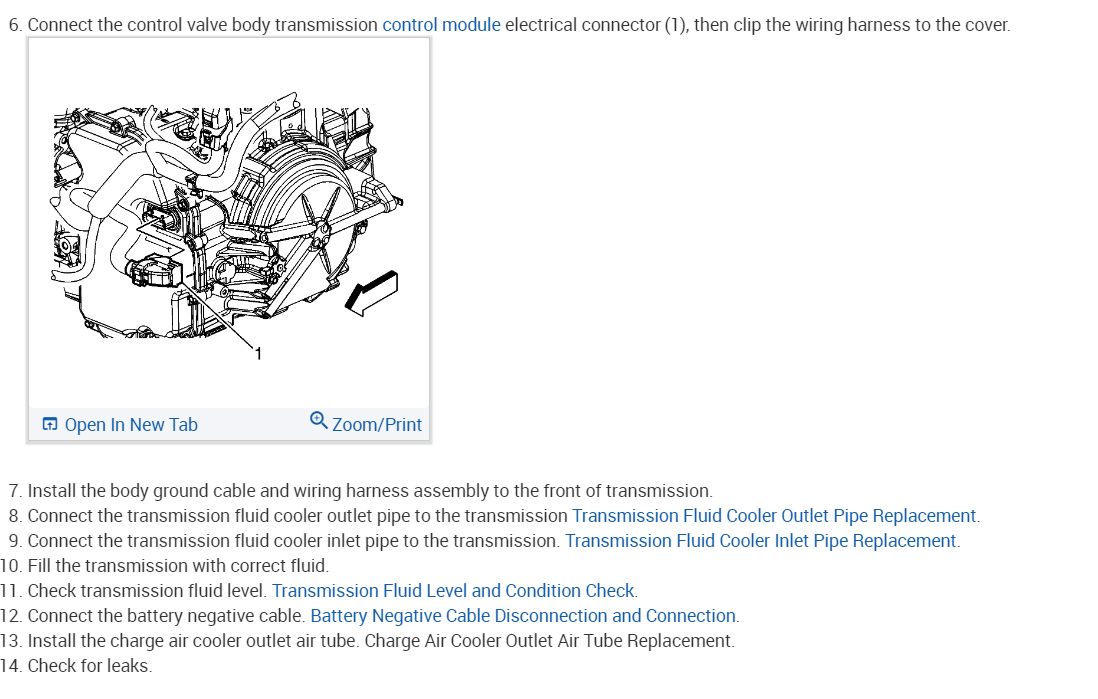

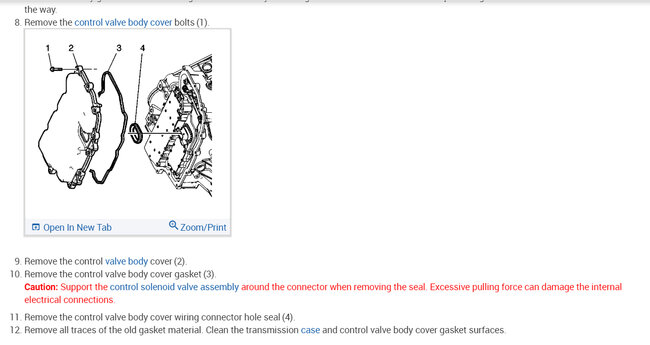

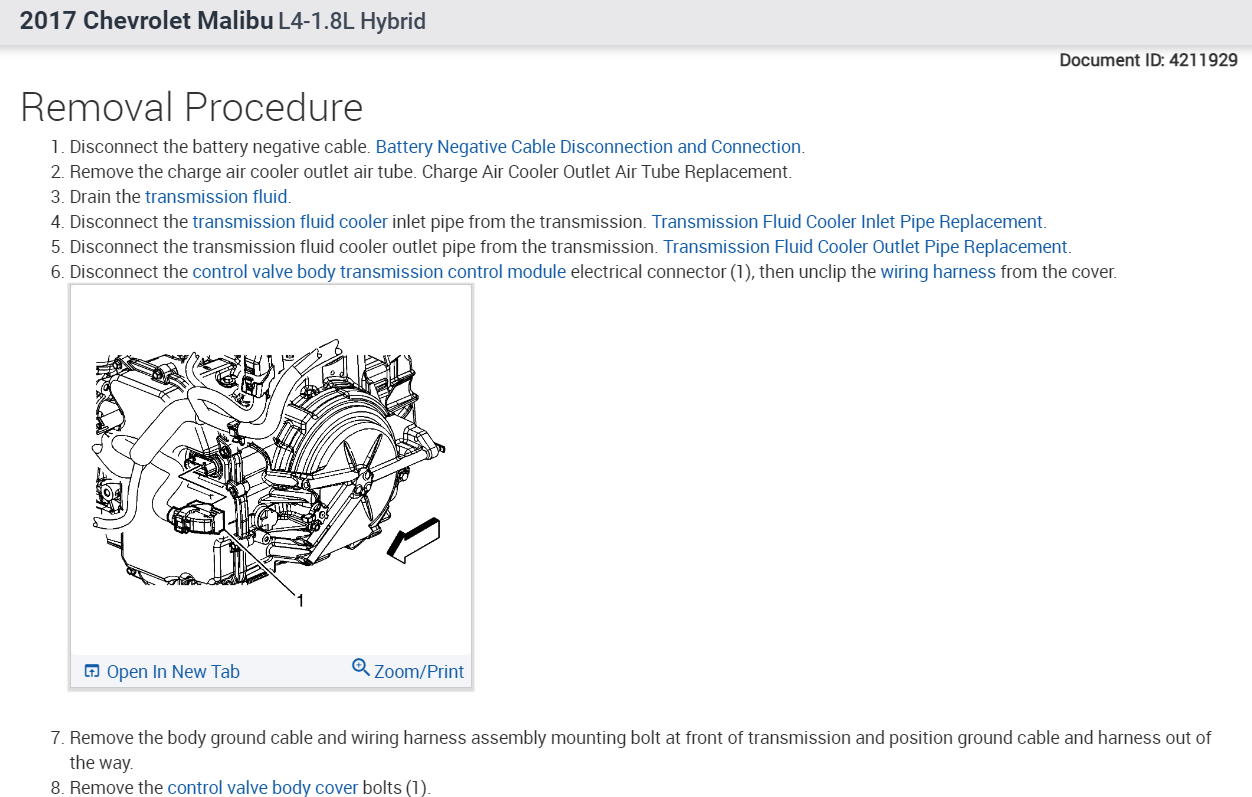

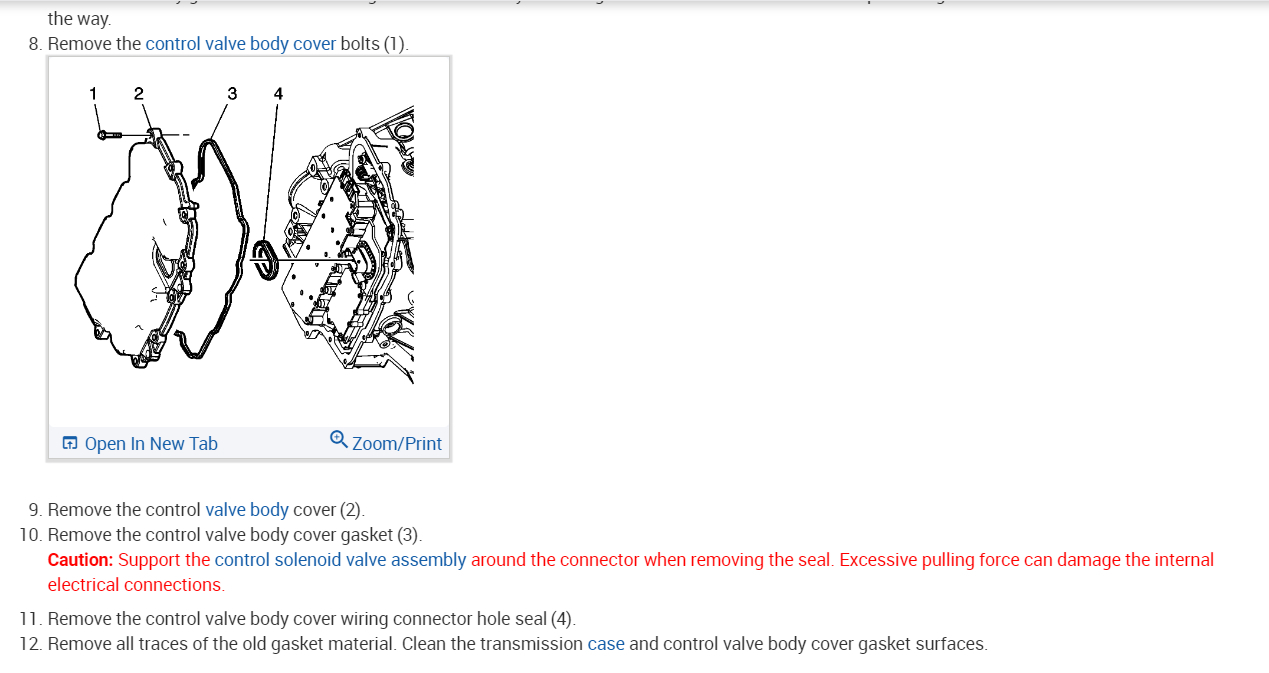

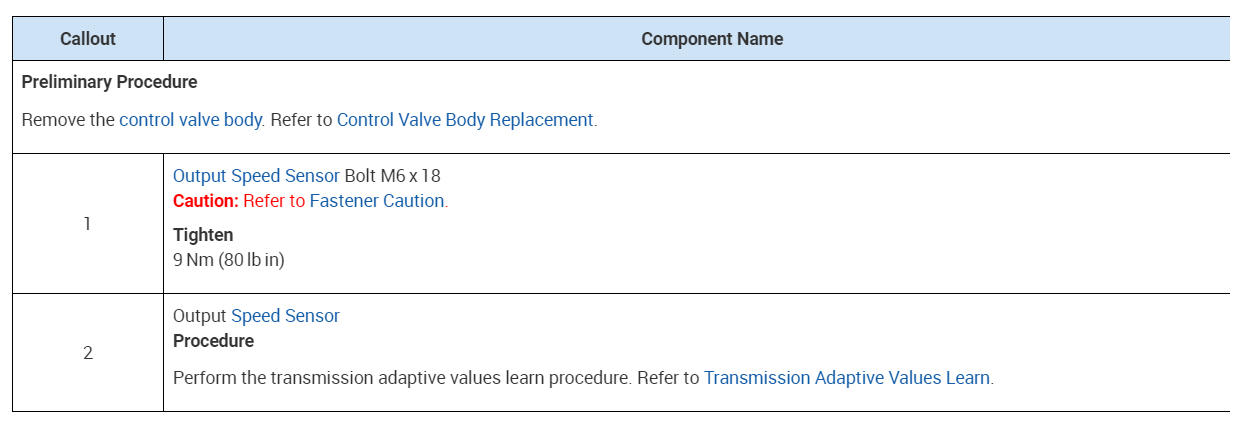

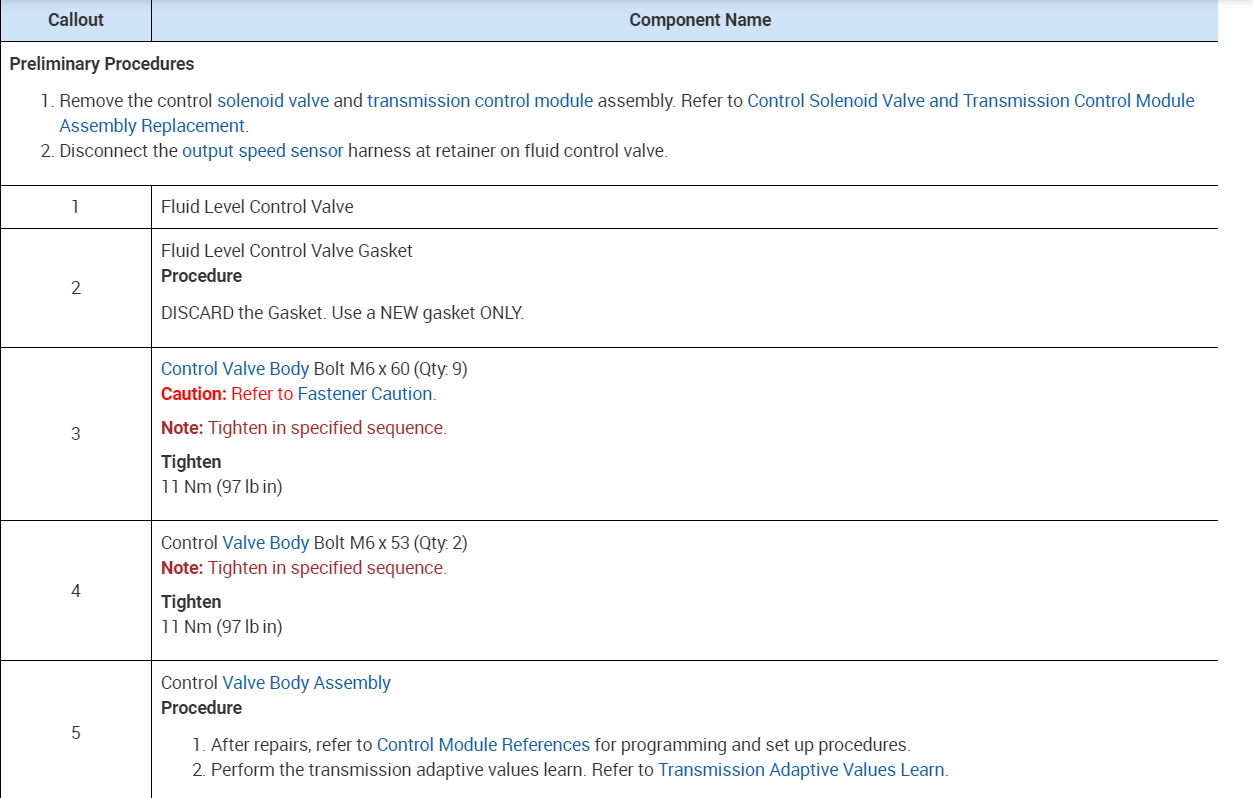

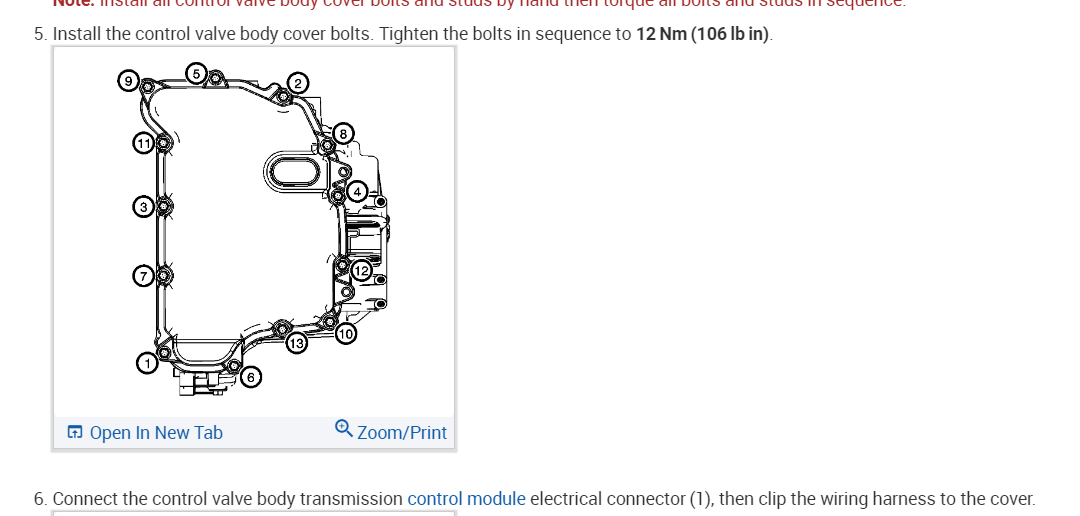

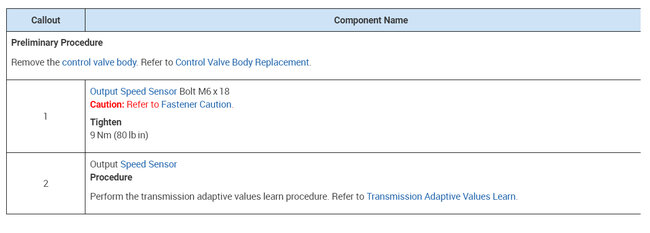

The output shaft speed sensor is inside the transmission under the valve body, (great idea huh?) Here are the instructions and location of the sensor so you can change it out. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Aug 3, 2023 at 4:46 PM
Avatar
DUNKLEFLIP
  • MEMBER
  • 2 POSTS
Ken, I can't thank you enough! What a great service you all provide by answering our questions. It's so hard to find good sources, let alone pros. I searched for a couple weeks for this answer before asking you. I feared they would put it in there but hey, knowing is half the battle. Thank you again.
Aug 4, 2023 at 1:03 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
That is good to hear, we try our best to help people. Please let us know what happens.
Aug 5, 2023 at 9:53 AM
