Belt diagram needed?

2017 KIA OPTIMA
100,000 MILES • 1.6L • TURBO • 2WD • AUTOMATIC
Avatar
ASHLEY1052
  • MEMBER
  • 1 POST
We are looking everywhere for the belt diagram for this specific car if anyone knows anything.
May 20, 2023 at 7:31 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

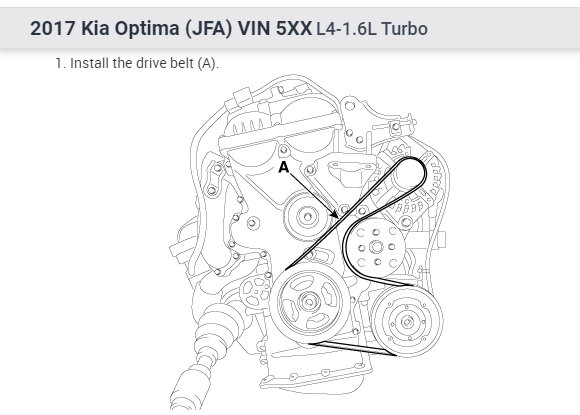

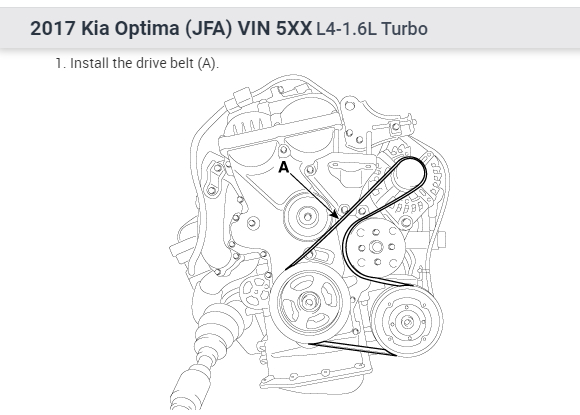

I was able to find one pic in my manual for the 1.6L. I attached it below. Take a look at it and let me know if it helps.

Take care,

Joe

See pic below.
Image (Click to enlarge)
Attached Media
May 20, 2023 at 10:04 PM
