replace front and back bumpers?

2015 HOLDEN BARINA

168,800,000 MILES • 1.6L • 4 CYL • 4WD • AUTOMATIC

MICHAEL MCCOLL

MEMBER
17 POSTS
FOLLOW

Hello,

I am in need of workshop panel diagram/s to be able to replace front and back bumpers?

Thanks

Feb 9, 2025 at 2:30 AM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

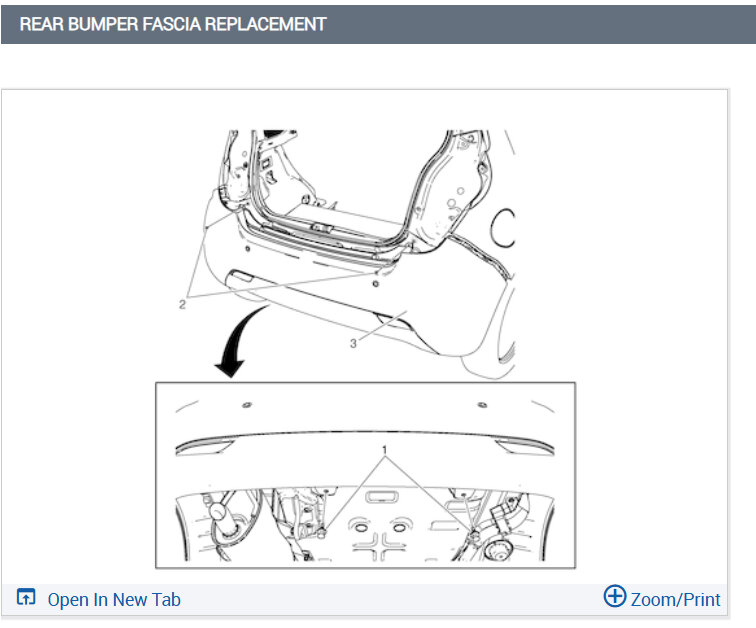

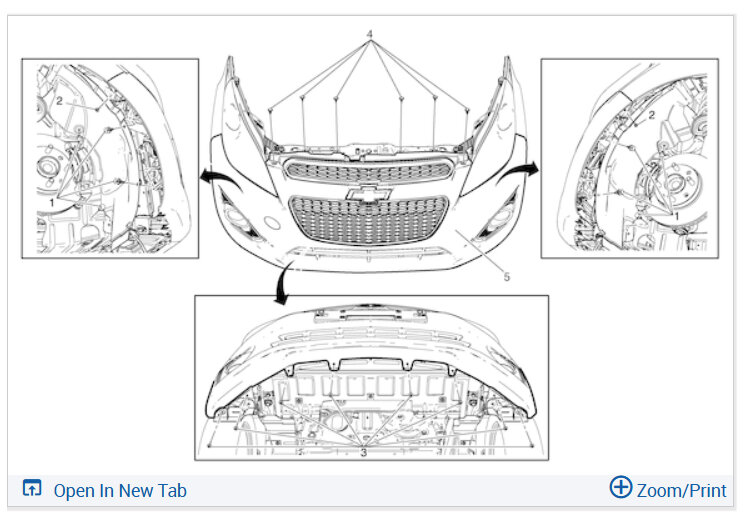

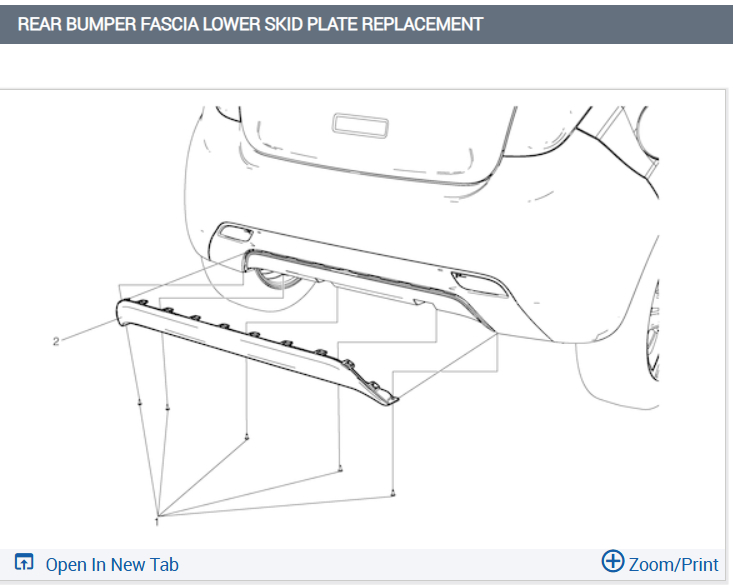

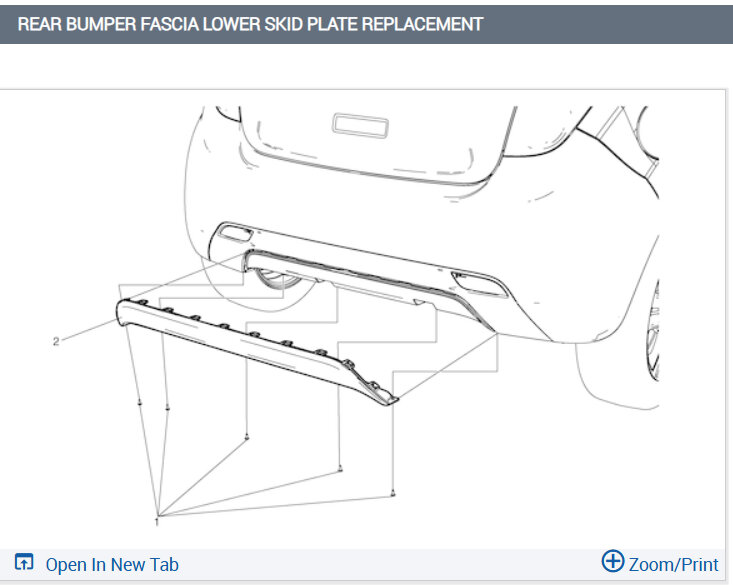

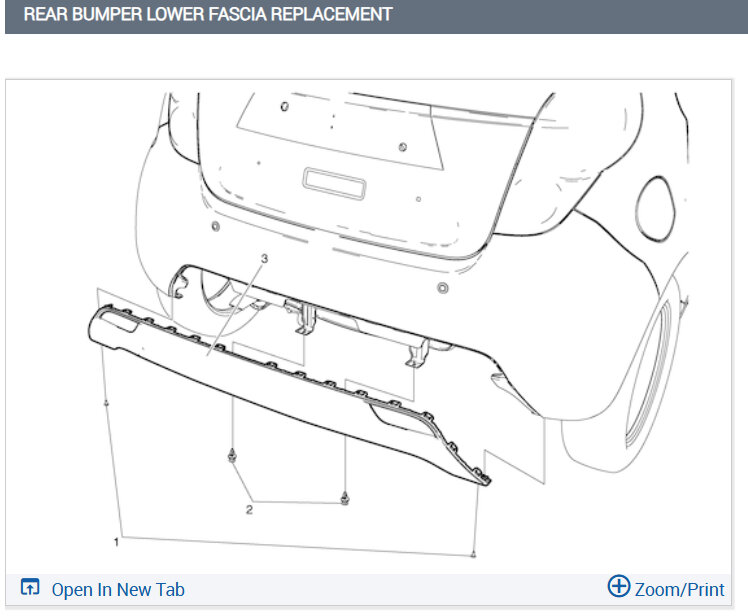

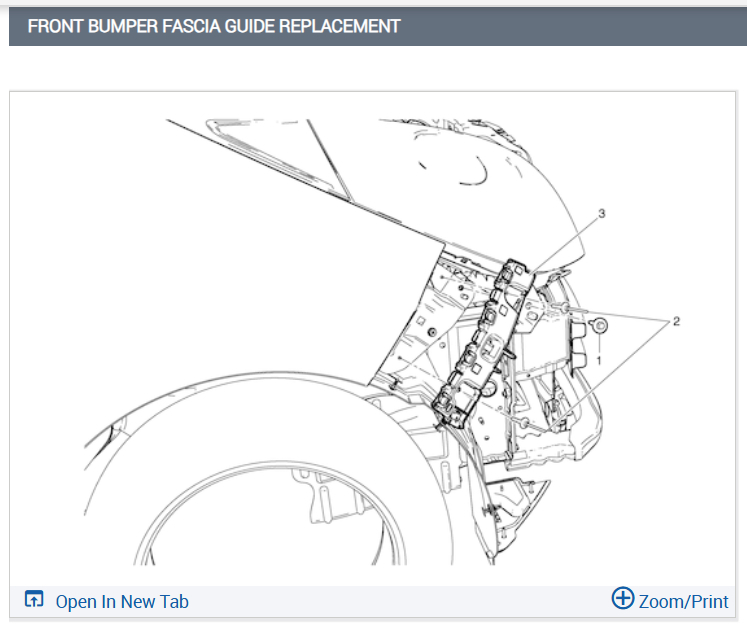

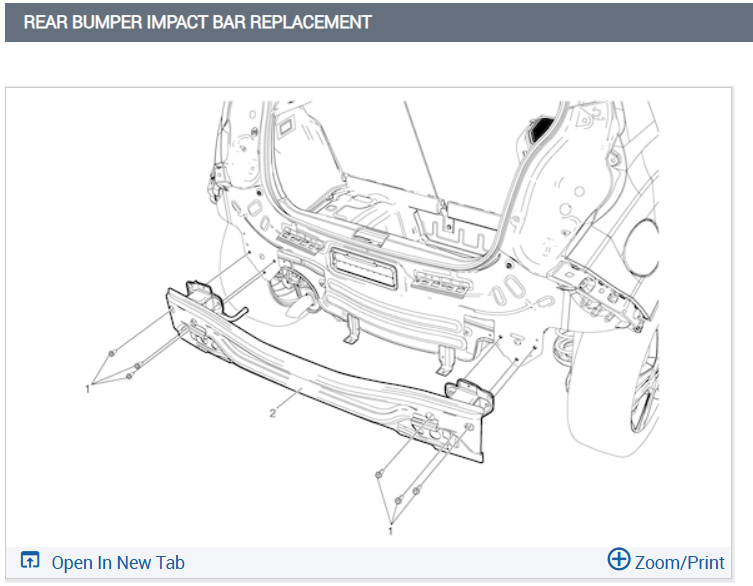

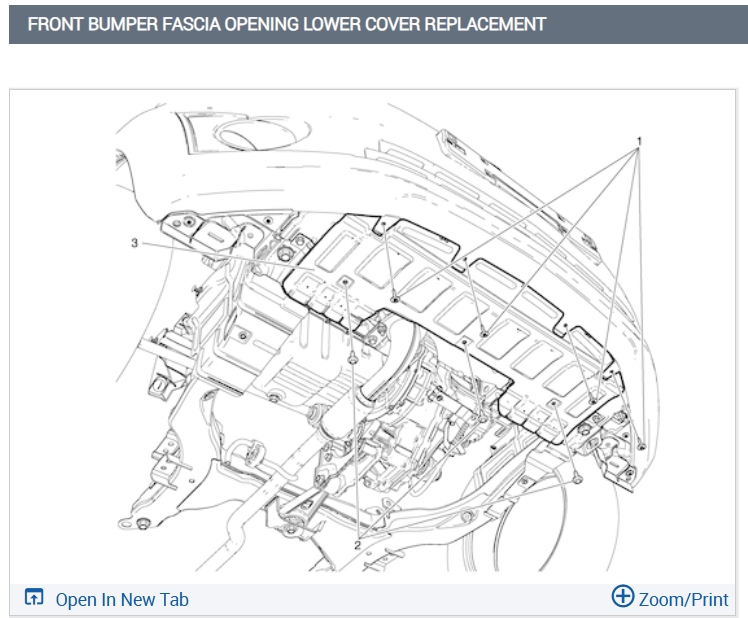

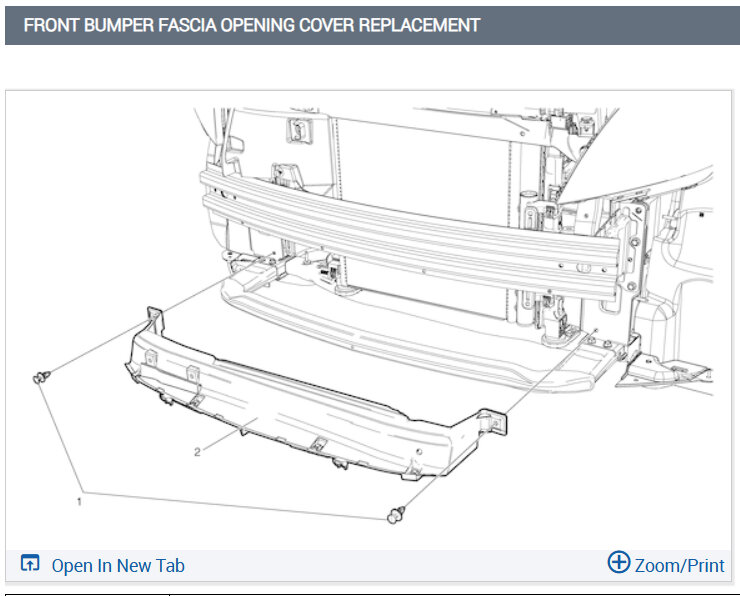

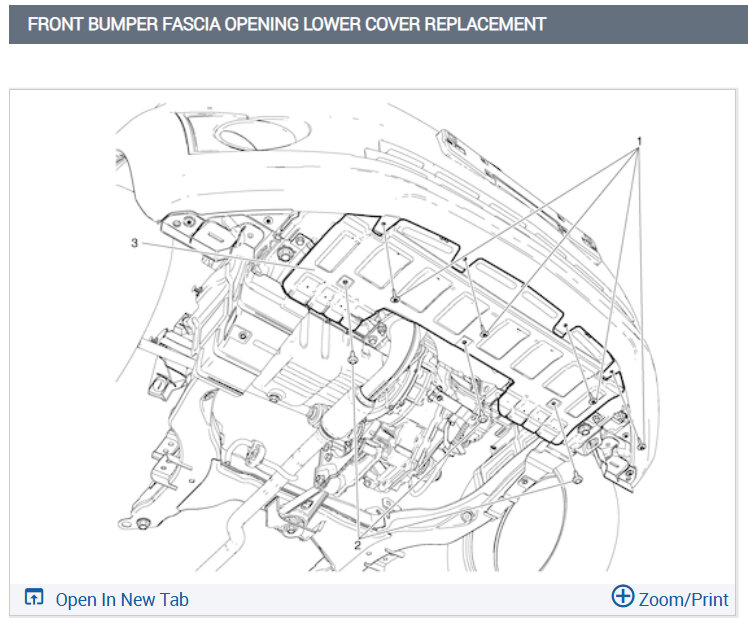

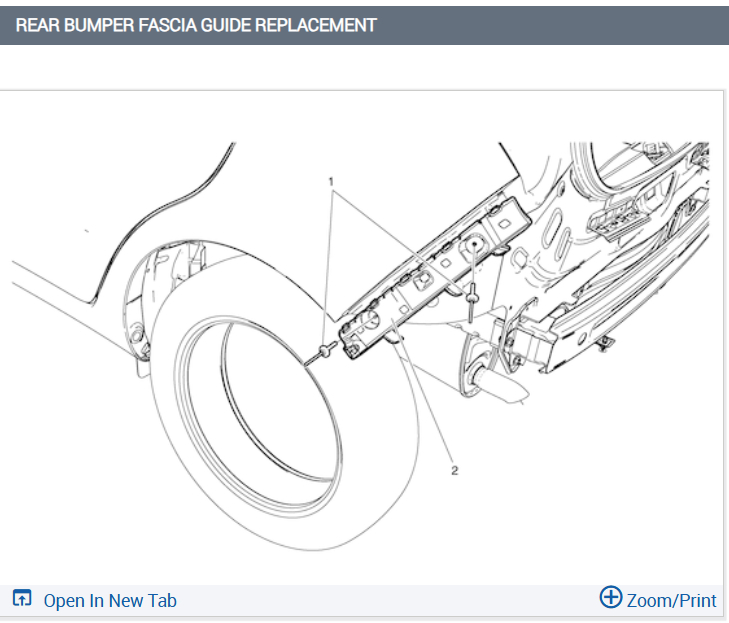

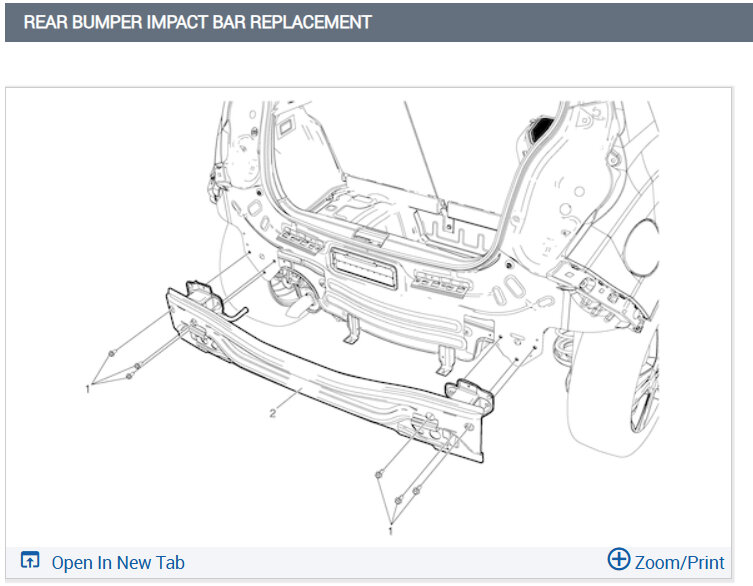

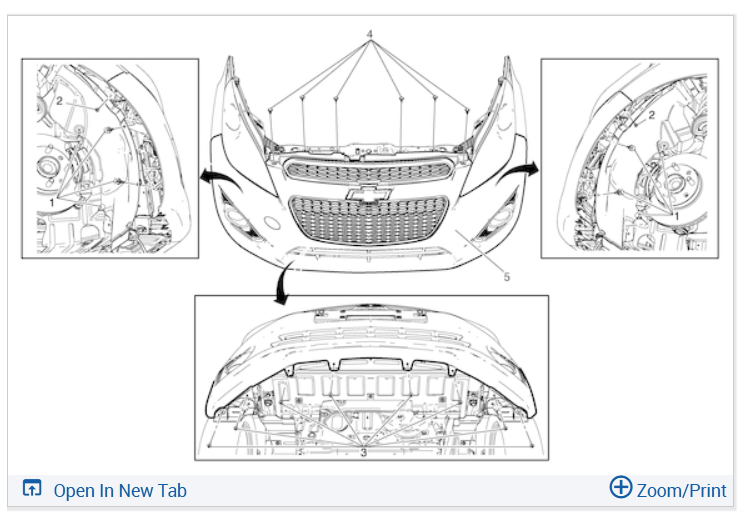

Sure, here are the front and rea bumper replacement diagrams so you can see what's needs to be done to do the job. Check out the images (below). Let us know if you need anything else.

Images (Click to enlarge)

Feb 9, 2025 at 1:17 PM

MICHAEL MCCOLL

MEMBER
17 POSTS

Much appreciated.

Feb 10, 2025 at 12:57 AM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

Use 2CarPros anytime, we are here to help. Please tell a friend.

Feb 10, 2025 at 10:29 AM
