turn signals not working - brake lights not working

Hello,

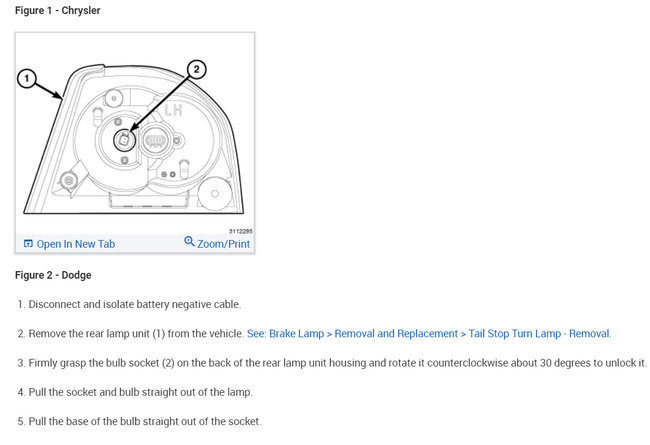

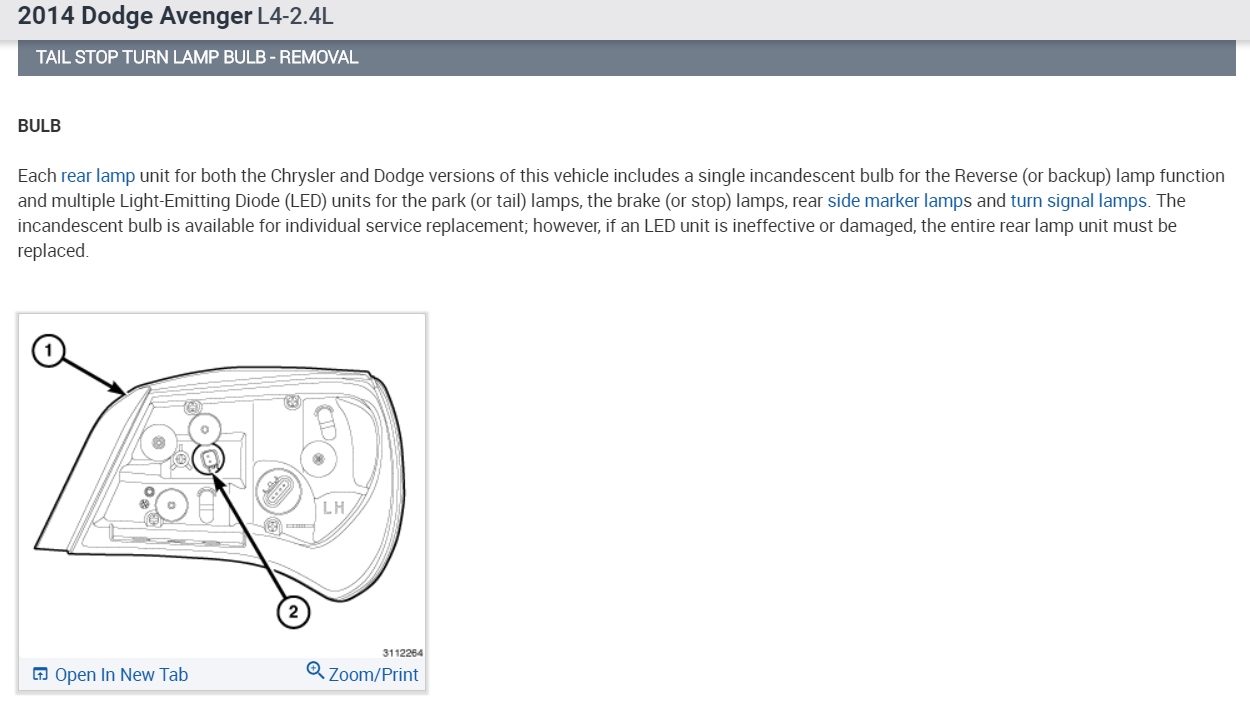

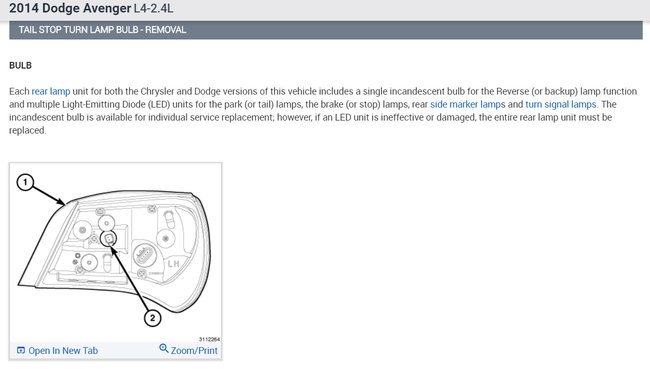

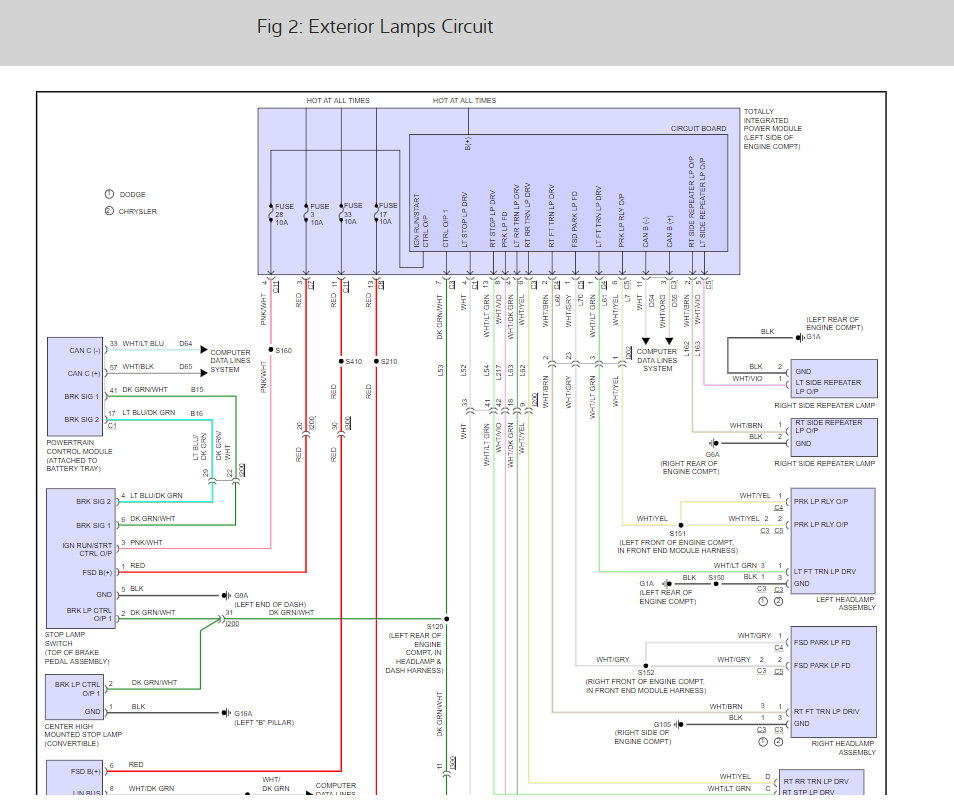

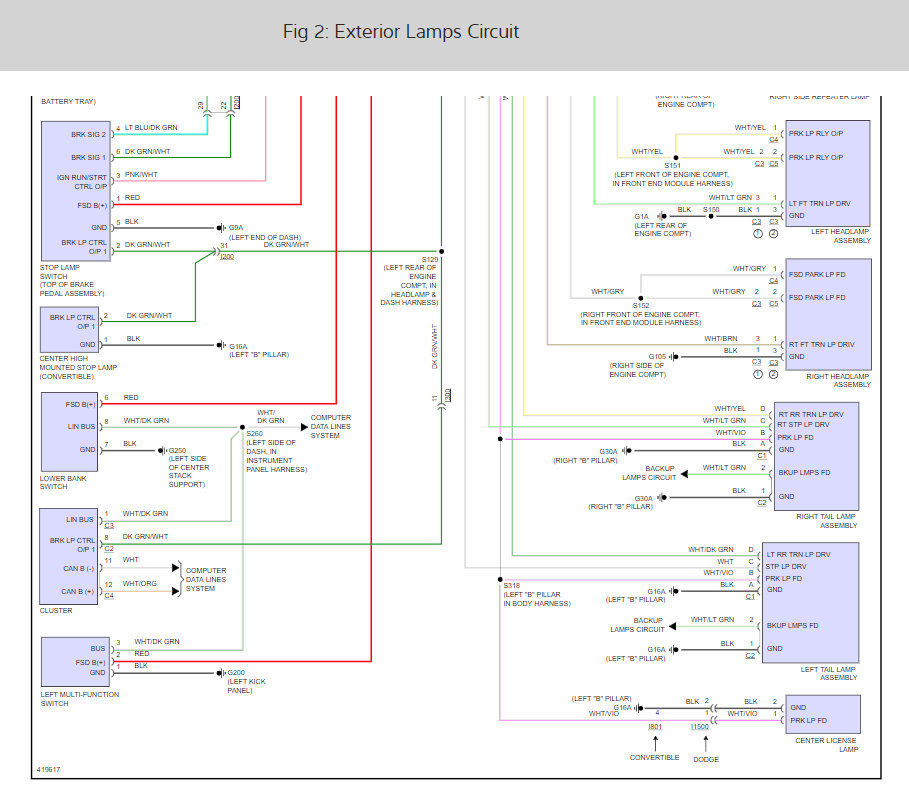

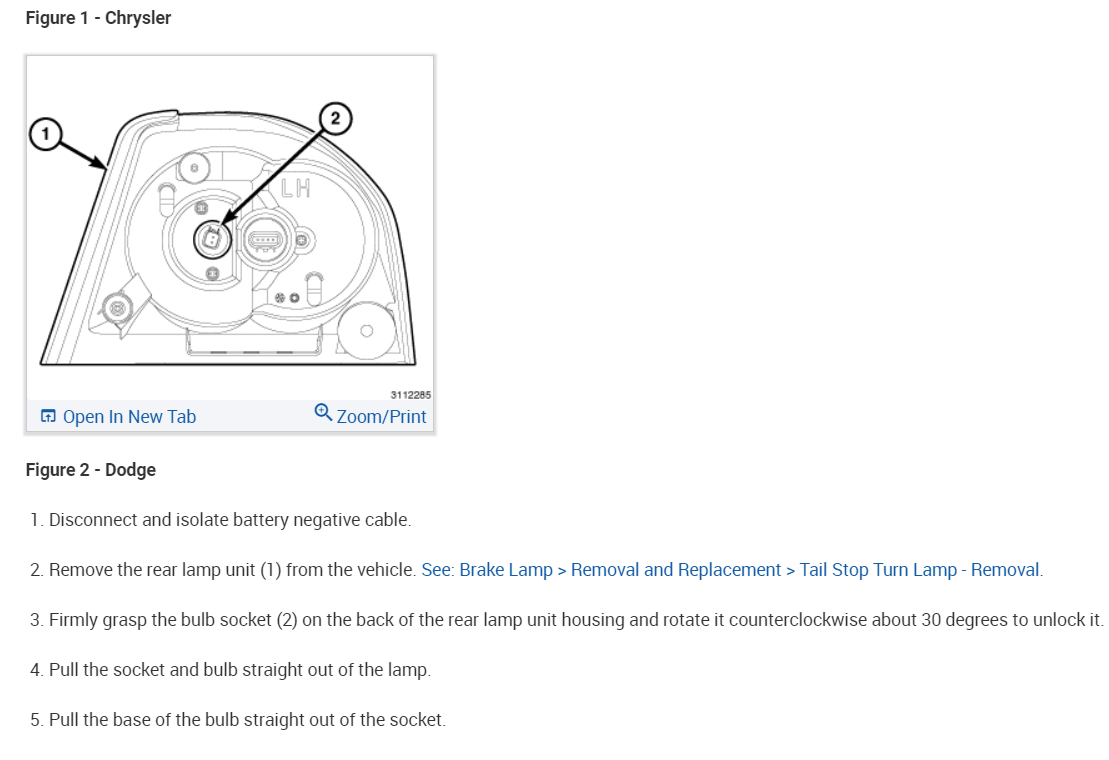

It could be the TIPM but to be sure it could be a bad connection at the bulb or a bad fuse # 28, 3, 17 and 33. Here is a guide to help you test the connection and the wiring diagrams so you can see how the system works below.

https://www.2carpros.com/articles/turn-signals-not-working-blinker

and

https://www.2carpros.com/articles/how-to-check-wiring

and

https://www.2carpros.com/articles/how-to-check-a-car-fuse

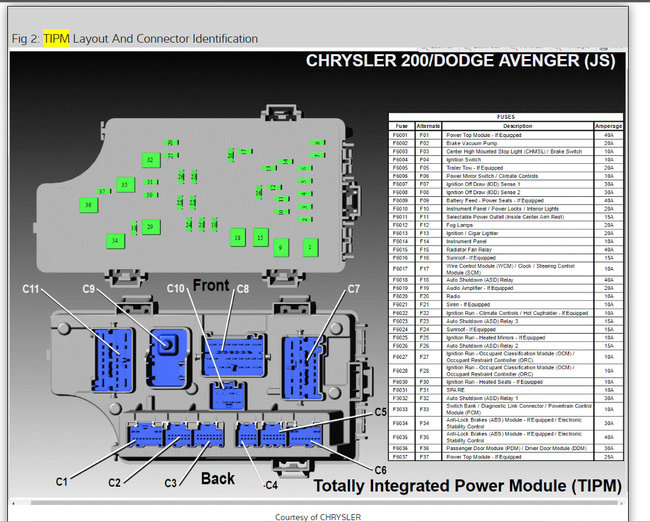

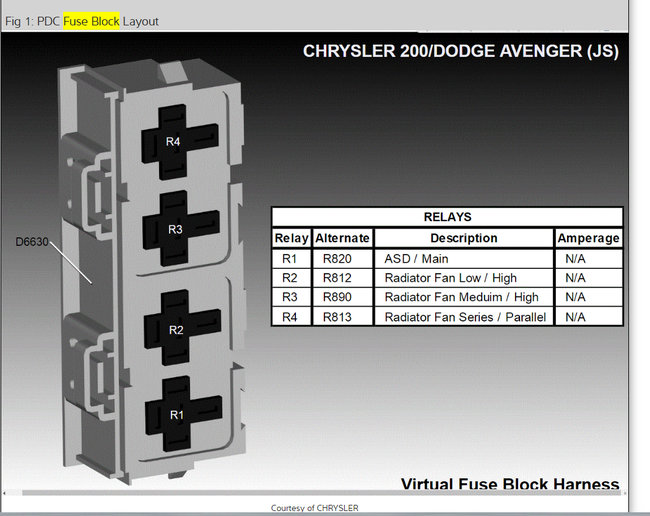

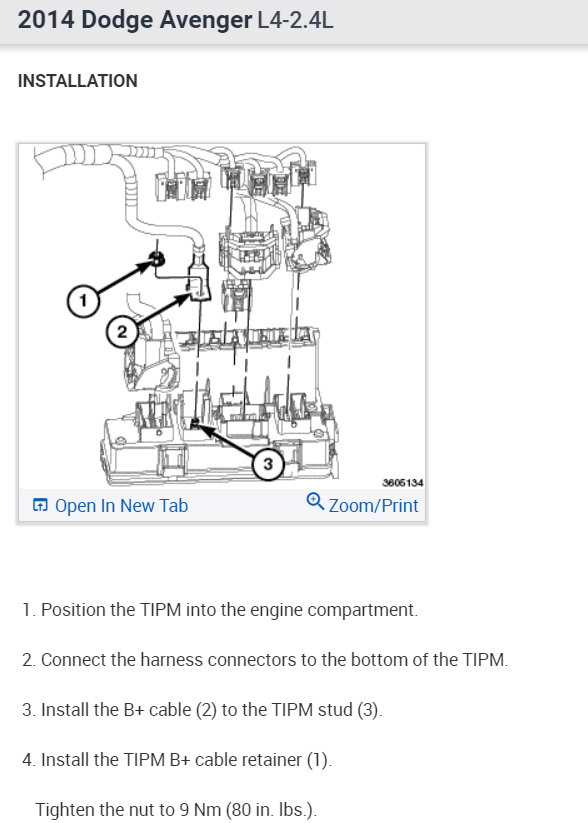

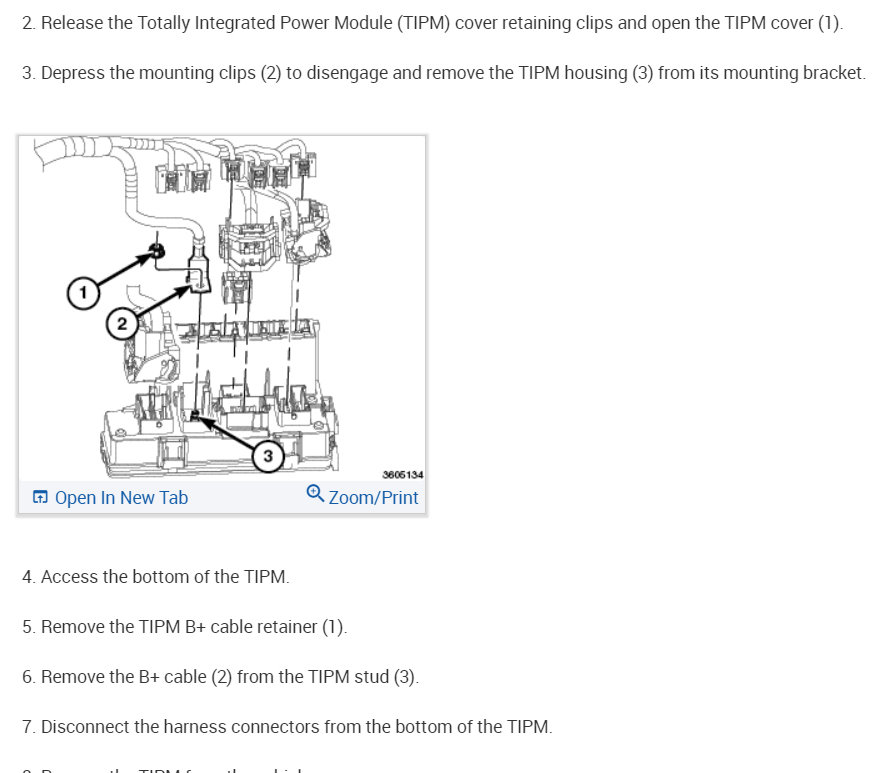

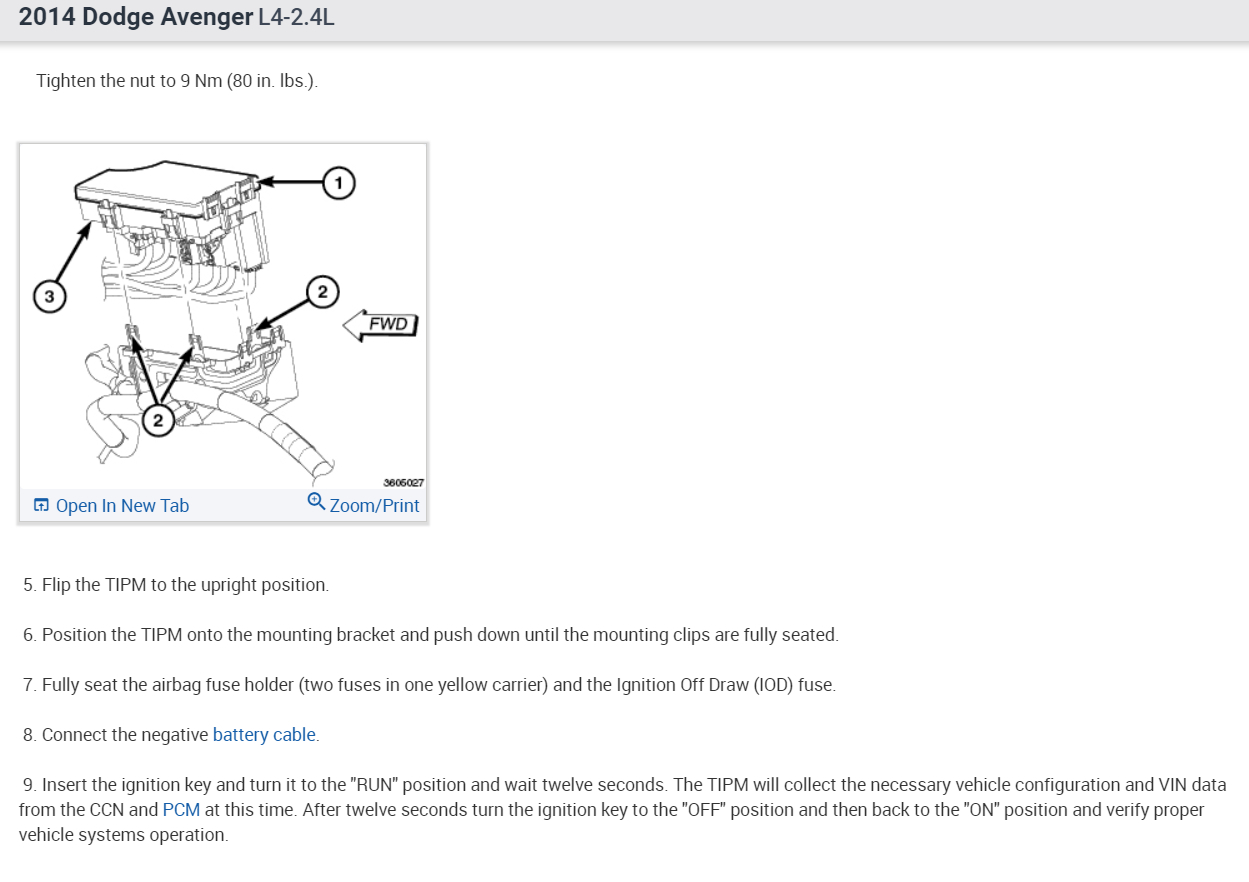

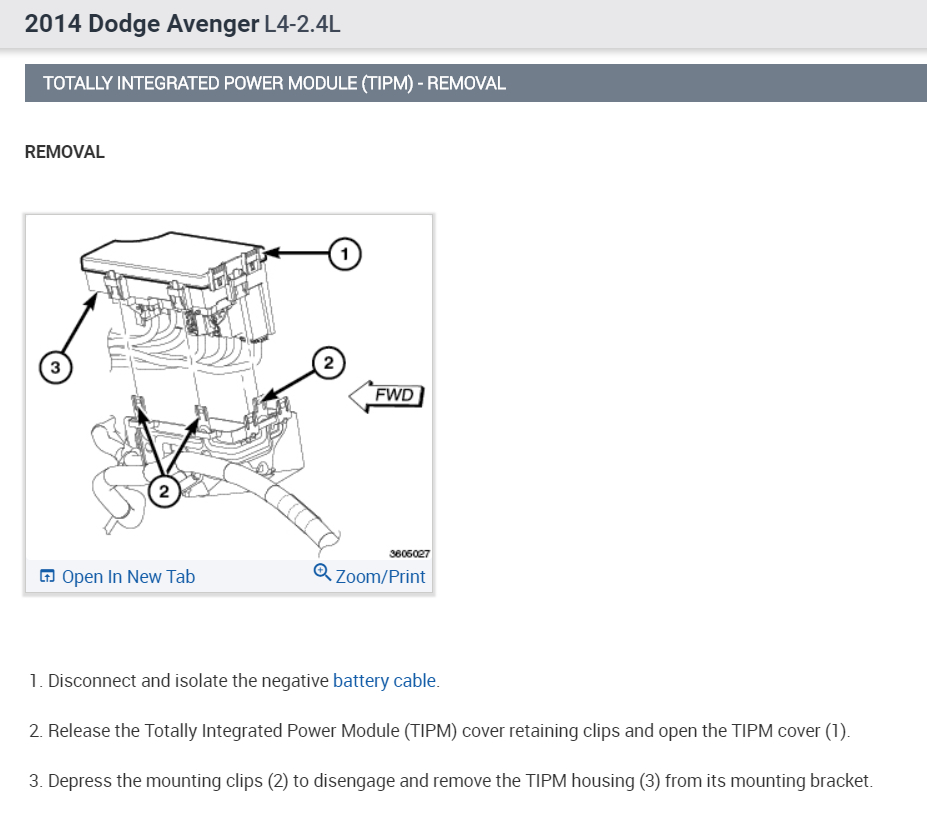

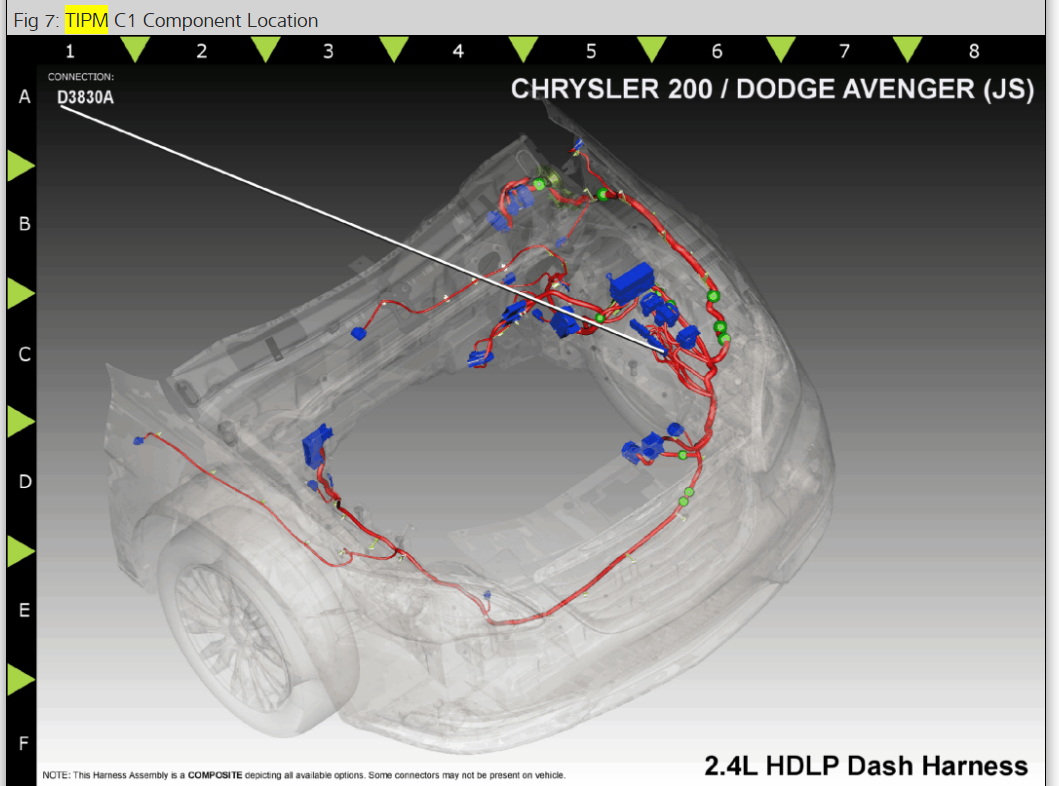

If the TIPM is bad here is the replacement instructions which is easy because the TIPM is plug and play. Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.

Wow thanks for this post, I had this problem and the TIPM was bad, I replaced it myself took 45 mines and cost me $355.00 all fixed! I love this site.
