transmission service How many quarts of atf is required? what kind of fluid?

2013 TOYOTA COROLLA
60,000 MILES • 1.8L • 4 CYL • 2WD • AUTOMATIC
Avatar
SEUNGSUB SHIM
  • MEMBER
  • 1 POST
when i change 2013 corolla transmission fluid. how many qt of atf ws is required? i will change filter too. someone say i need 12qt and other say i need 6 qt. thank you,
Aug 25, 2016 at 7:38 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
This video shows the job being done on a similar car but the process is the same with diagrams below for your car.

https://youtu.be/NUOBl4bqtss

Here is a guide to help you step by step with instructions in the diagrams below to show you how on your car.

https://www.2carpros.com/articles/how-to-service-an-automatic-transmission

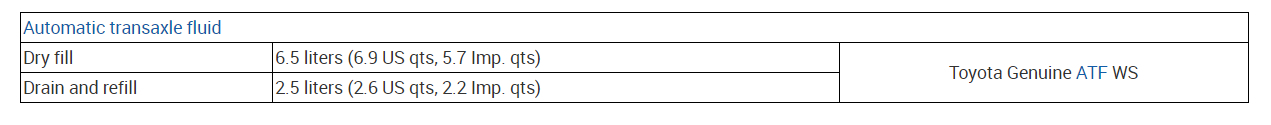

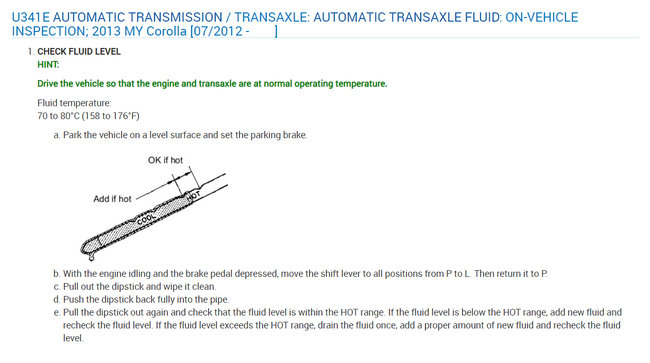

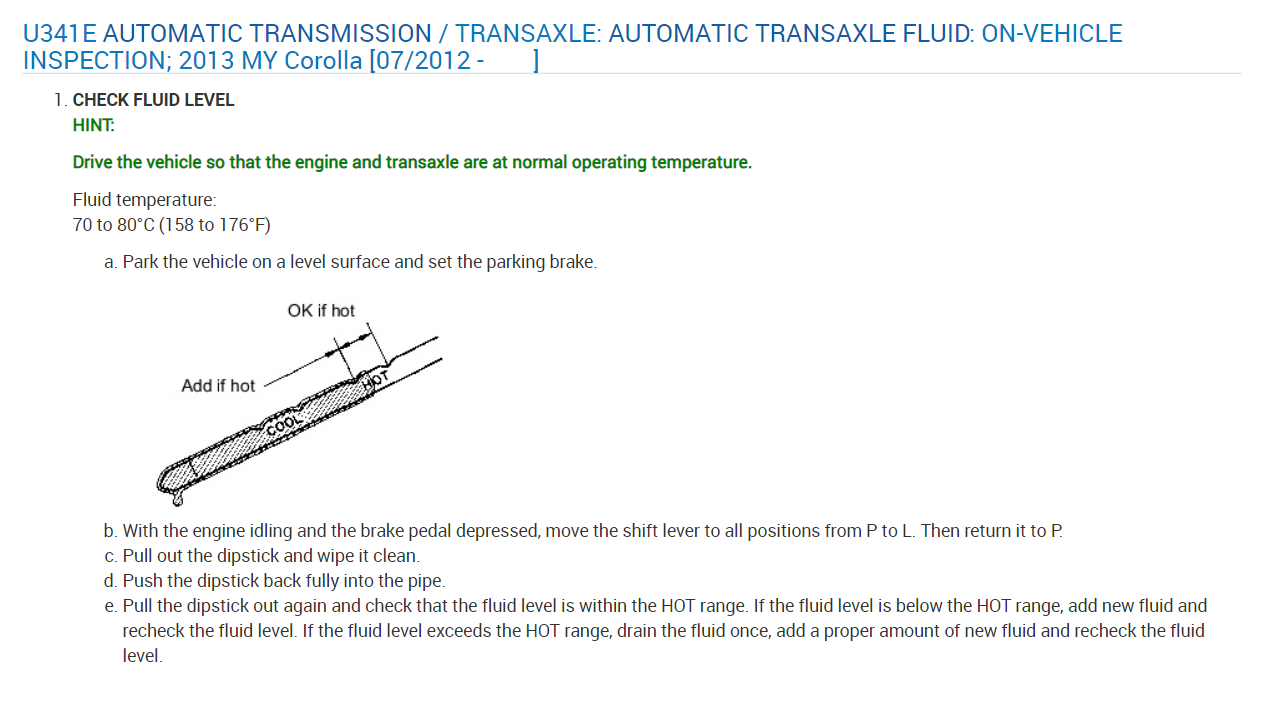

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 25, 2016 at 10:28 PM
