A/C blowing hot air, where is the passenger side blend door motor located?

2012 FORD FOCUS
85,000 MILES • 2.0L • 4 CYL • 2WD • AUTOMATIC
Avatar
EMBEDDEDGUY
  • MEMBER
  • 1 POST
My passenger side only blows hot air, and this has dual climate controls. I cannot find where this motor is located.
Jun 11, 2023 at 1:45 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

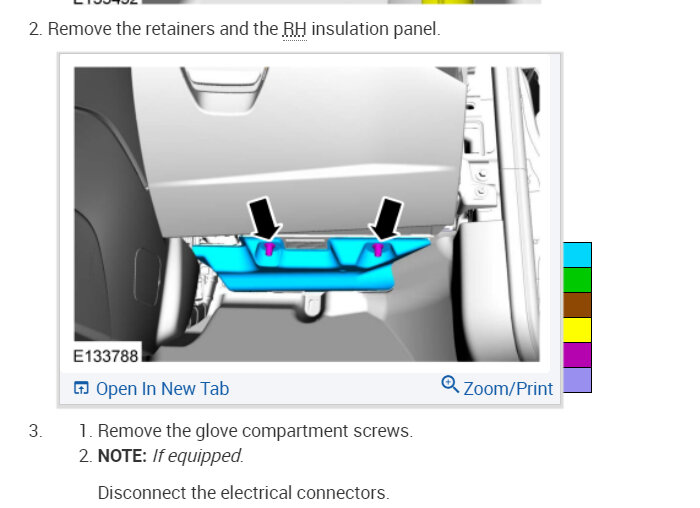

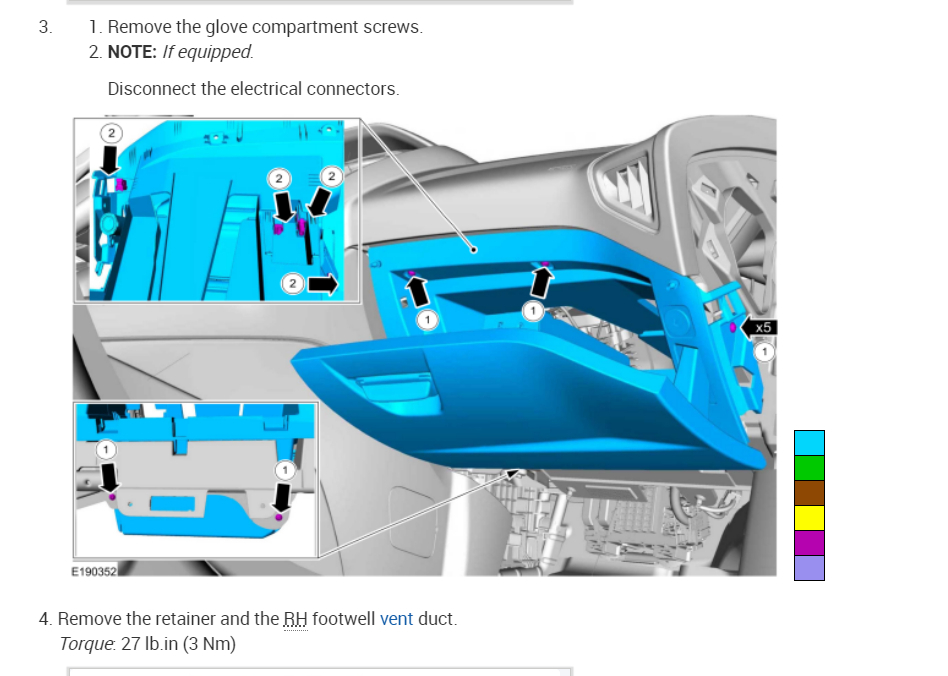

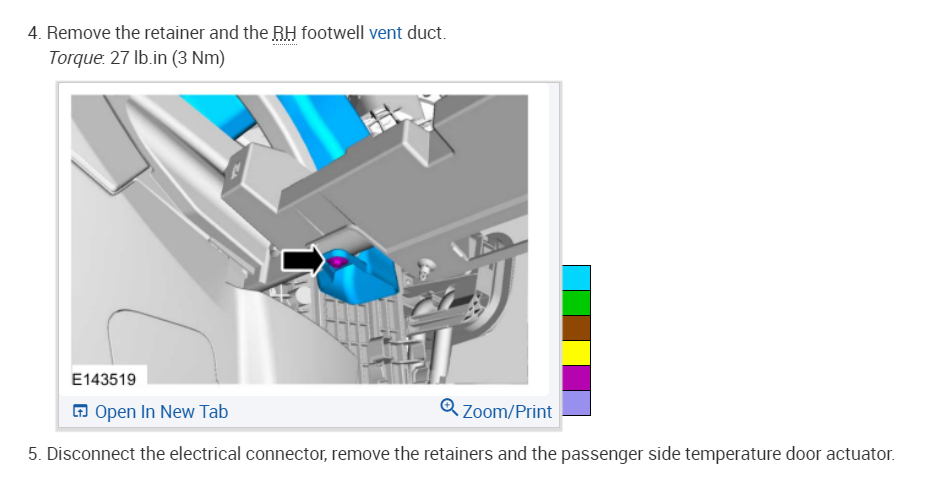

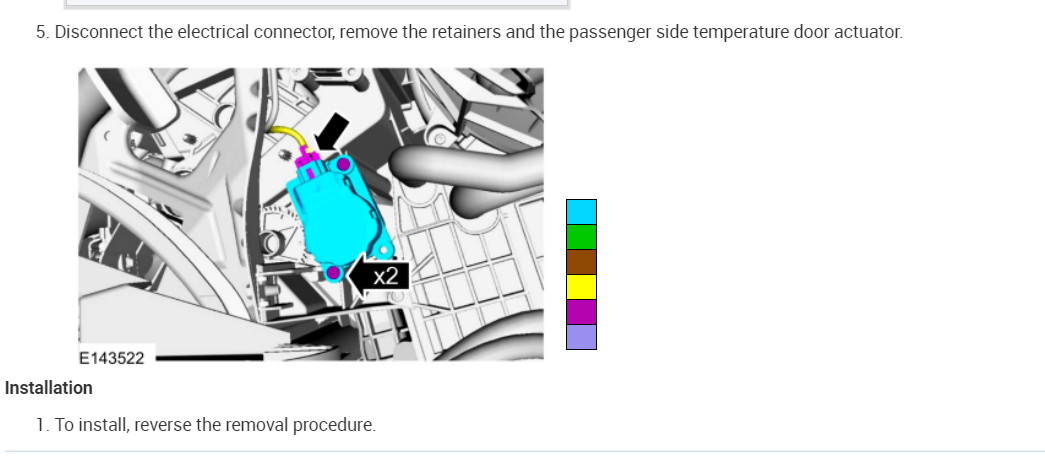

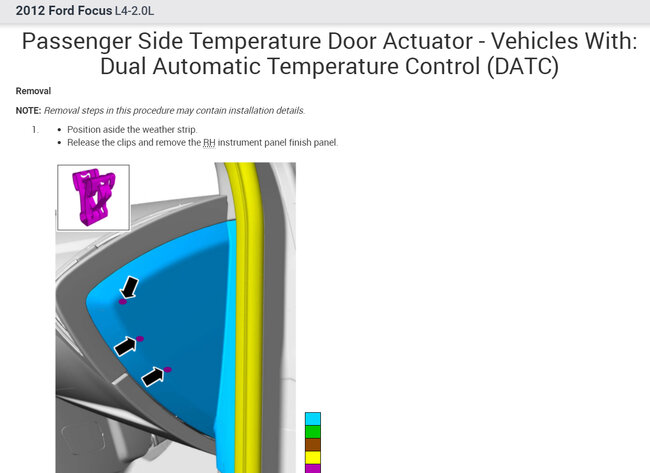

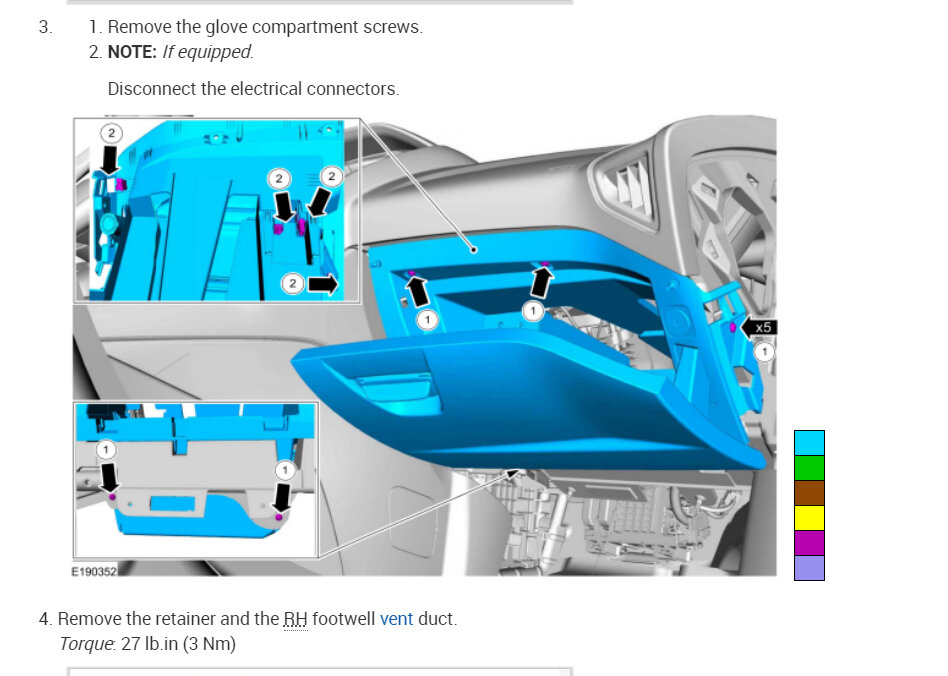

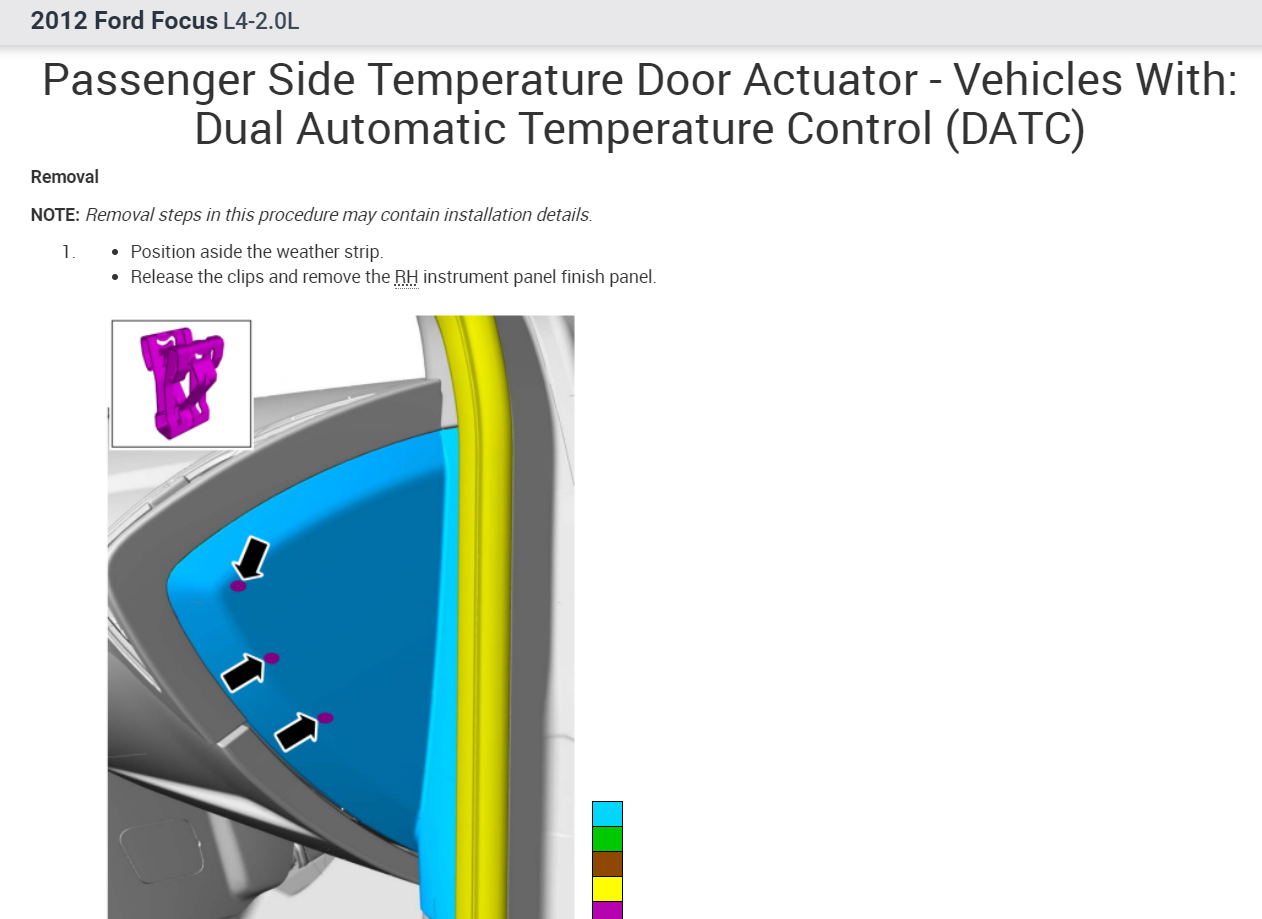

The passengers side blend door actuator is by the glove box which must be removed to access the actuator. Here are the instructions on how to change it out in the images below. Check out the images (below). Please let us know what happens.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jun 11, 2023 at 1:28 PM
