serpentine belt diagram

Hello,

Here is a guide to help walk you through the steps and diagrams below to show you the belt routing and insertions for your car.

https://www.2carpros.com/articles/replace-serpentine-belt

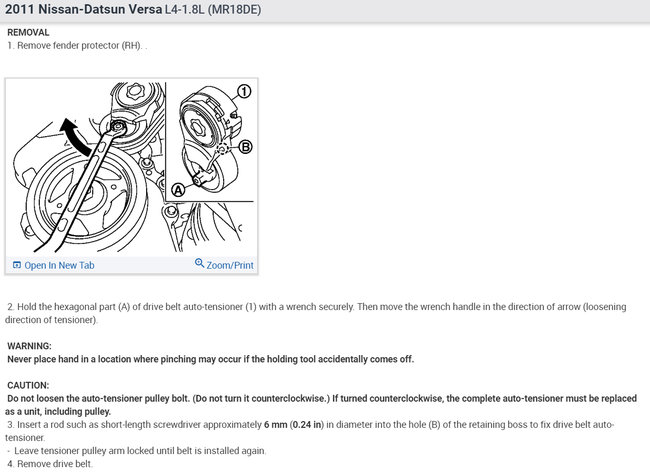

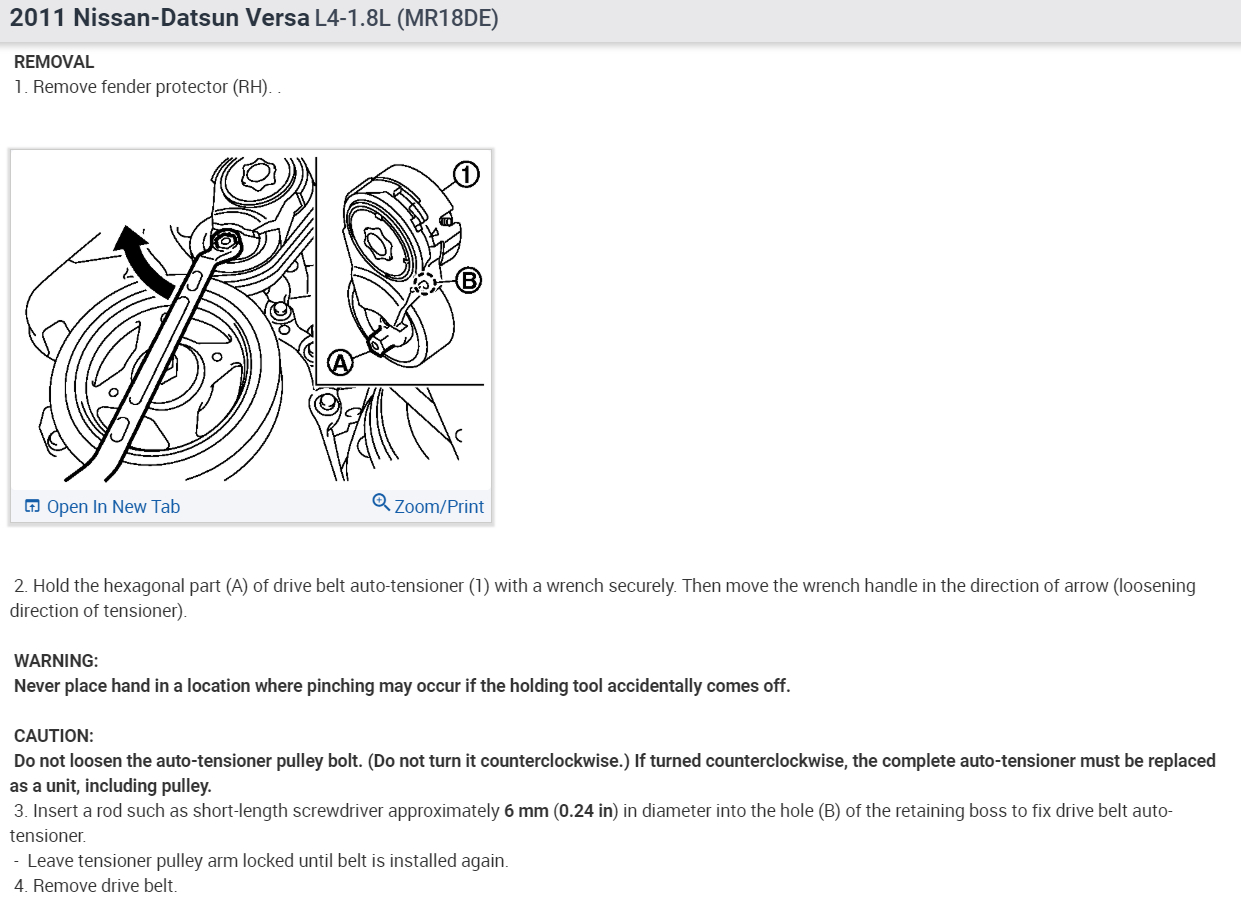

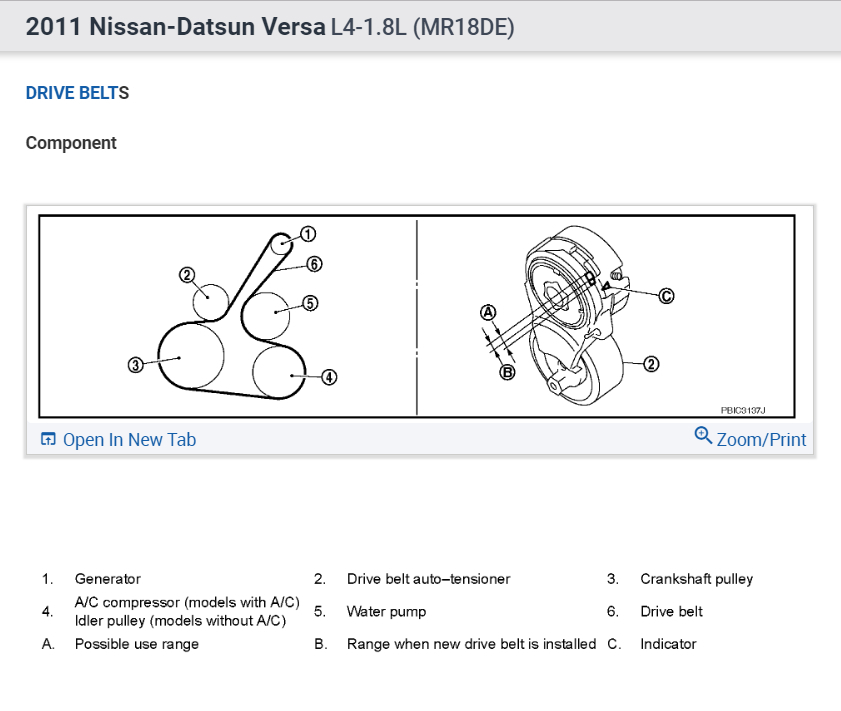

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
