Engine hesitation?

2011 NISSAN ROGUE
AWD
Avatar
RAYMONDKAYE
  • MEMBER
  • 1 POST
I was told by mechanic to service the throttle body he wanted $270.00 I can do them for less cash with your help.
Jun 18, 2014 at 8:41 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

The throttle body / throttle actuator can be easily removed and serviced.
To remove the throttle actuator, you will first have to remove the air intake tubing, disconnecting any sensor on the tubing like the mass air flow sensor.

Here are couple of helpful guides on how to service the throttle actuator:

https://www.2carpros.com/articles/how-a-throttle-body-works
https://www.2carpros.com/articles/throttle-actuator-service

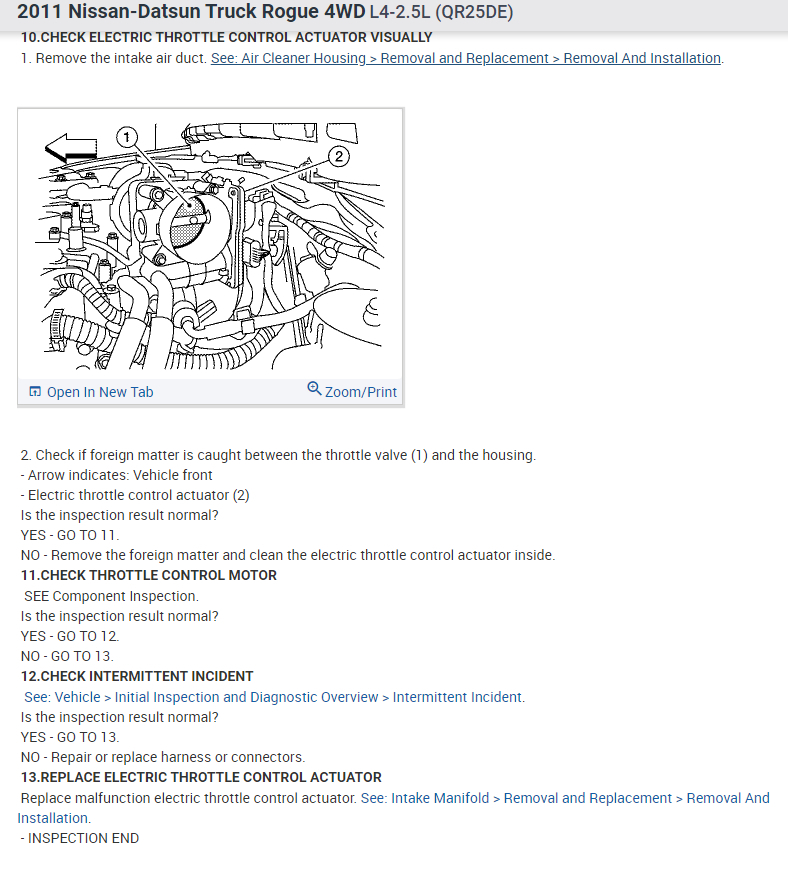

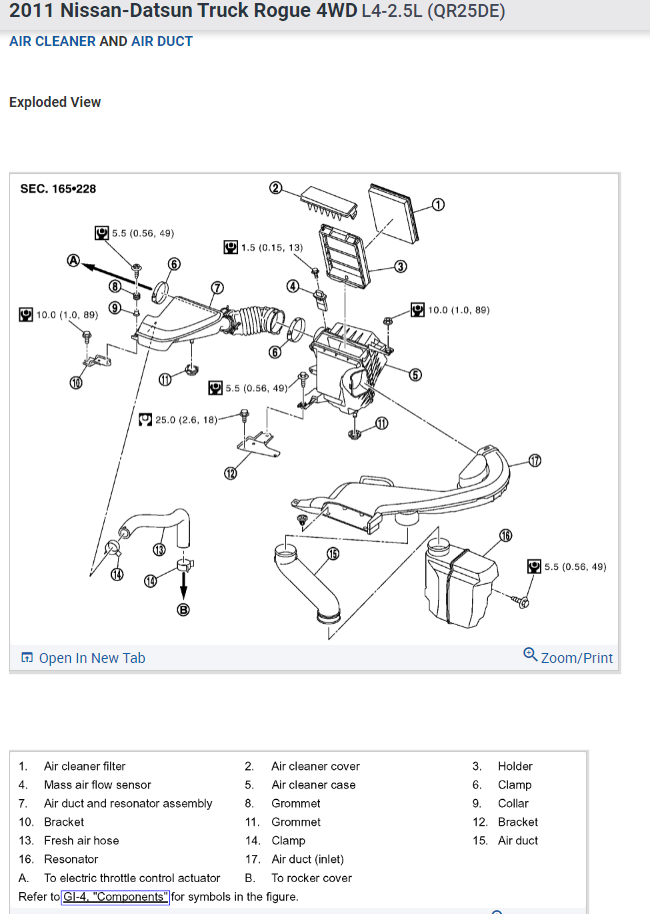

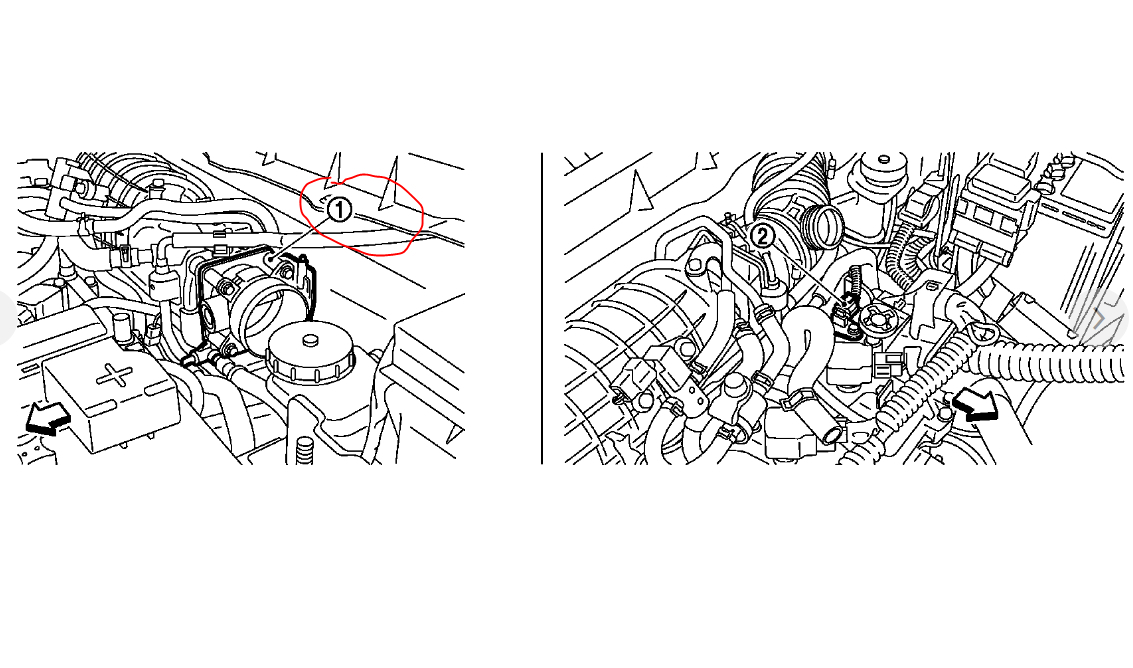

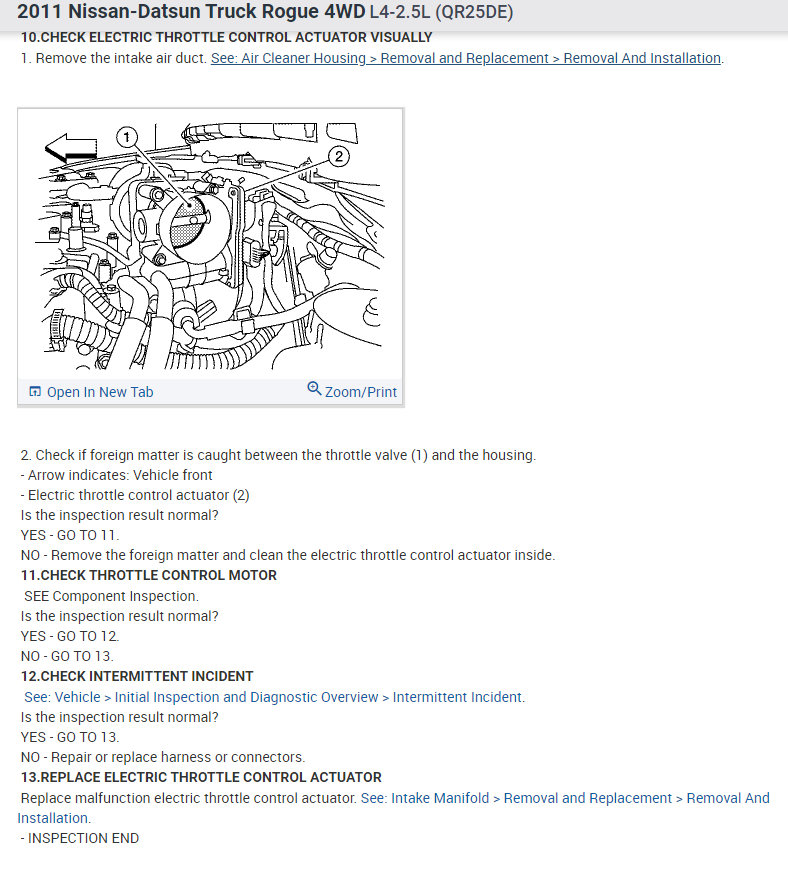

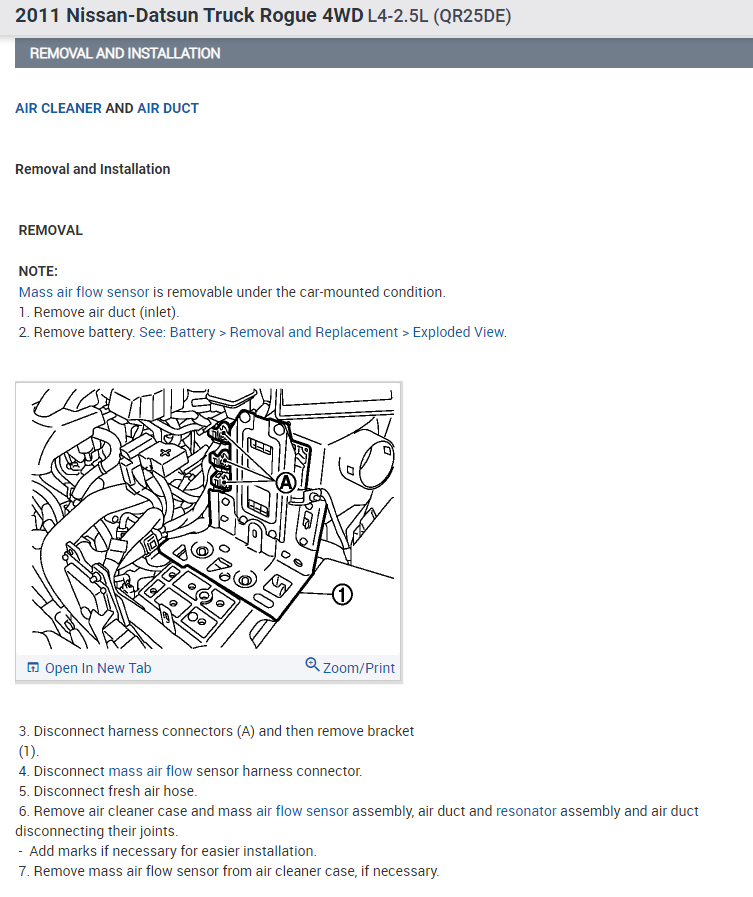

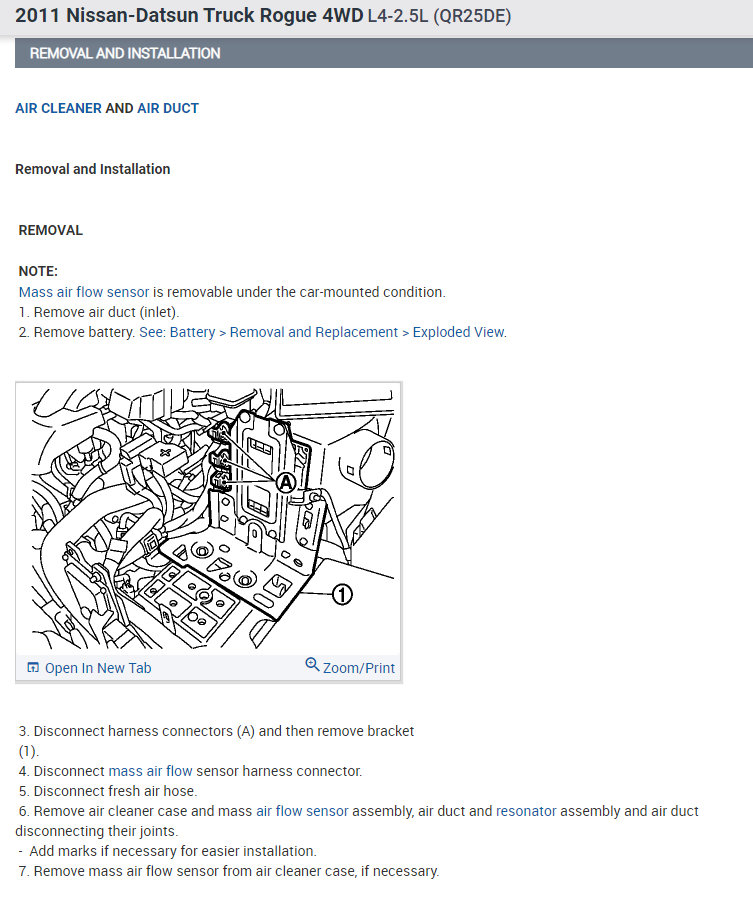

I have attached diagrams for your reference.

Please let me know of any questions.
Thank you.
Oct 8, 2021 at 10:25 AM
