heater blows out cold air

2011 NISSAN ARMADA
57,000 MILES • V8 • 2WD • AUTOMATIC
Avatar
DALLAS COX
  • MEMBER
  • 1 POST
At the first cold spell I turned on the heater, but it blows out only cold air. The vehicle only has 57,000 miles ad all appears to be normal. there's just no heat. I added anti-freeze, attempted to change the fuse, but the fuse panel cover illustration doesn't appear to match the actual fuses, not to mention the fuses are next to impossible to put back in. I am attempting to "bleed" the system now by removing the radiator cap, running the vehicle with the heater on max. No change after 20 minutes or so. Help, thanks.
Nov 30, 2013 at 7:11 AM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Are both the heater hoses going into the firewall going into the firewall getting too hot to hold when the engine is at operating temp?

Those cars had a problem with the blend door actuator which controls the temperature.
Nov 30, 2013 at 7:35 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Here is a diagram for how to replace the temperature blend door actuator. Also disconnect the battery for 5 minutes to reset the system, this could reboot the climate control and get it working.

Here is a guide to help you see what you are in for when doing the job

https://www.2carpros.com/articles/replace-blend-door-motor

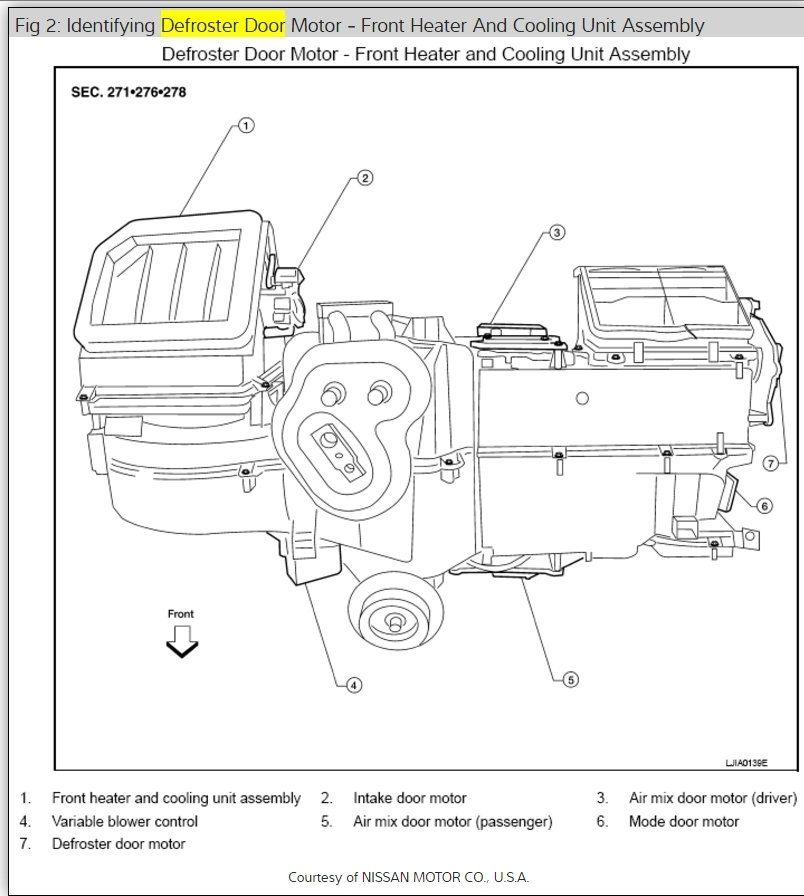

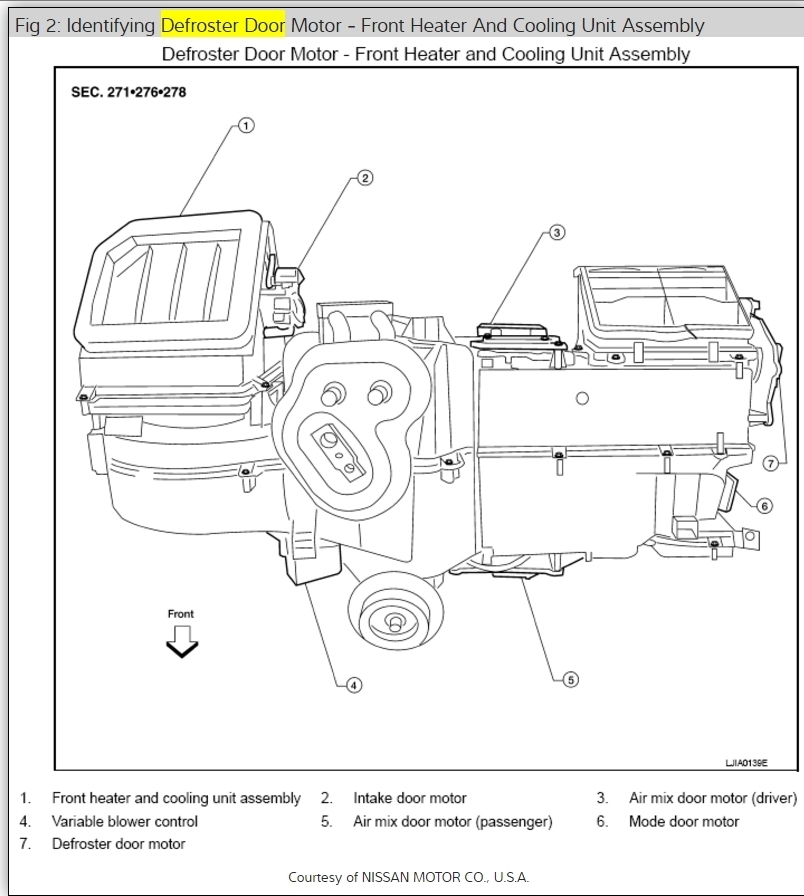

Check out the diagrams (Below)

Please let us know what you find.

Cheers, Ken
Nov 22, 2016 at 11:14 AM
Advertisement
Avatar
DALLAS COX
  • MEMBER
  • 1 POST
It took me a bit but I got the temp actuator replaced and the system blows heat again ya! great site BTW
Nov 22, 2016 at 5:50 PM
