where is the cabin air filter located?

Hello,

The cabin air filter is behind the glove box here is a a guide and the diagrams below to show you how its done in your car.

https://www.2carpros.com/articles/how-to-change-an-air-cabin-filter

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

whats the location of the cabin air filter

cabin filter is located behind glove compartment. would you like replacement procedures?

yes that would be great

Where is the filter located? How do I get to it?

remove the glove box and glove box frame. the filter is located behind this , in the evaporater. remove the filter lid from the evaporator to replace the filters.

Where is thwe cabin air filter located on the Accord?

You have to remove the glove box to get to it-see below: Dust and Pollen Filter Replacement The dust and pollen filter should be replace every 30,000 miles (48,000 km) or 24 months whichever comes first. Replace the filter more often if the airflow is less than usual. Remove the glove box.

Remove the bolt, the screws and the glove box frame.

Remove the filter lid (A) from the evaporator, then pull out the lower dust and pollen filter (B) and the upper dust and pollen filter (C) in that order.

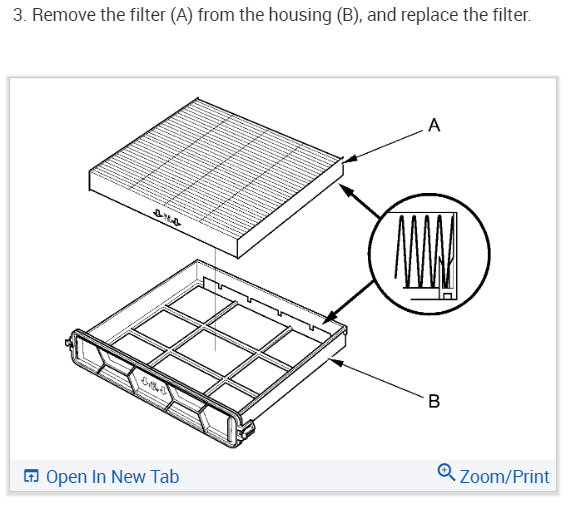

Remove the filter (A) from the housing (B), and replace it. Install the filter in the reverse order of removal. Make sure that there is no air leaking out of the evaporator. https://www.2carpros.com/kpages/auto_repair_manuals_alldata.htm

Where would I find the location of the cabin air filter. I just had mine changed today and the part was 26.24 and the labor was 63.80. The next time it needs changing I'd like to sbe able to do it myself.

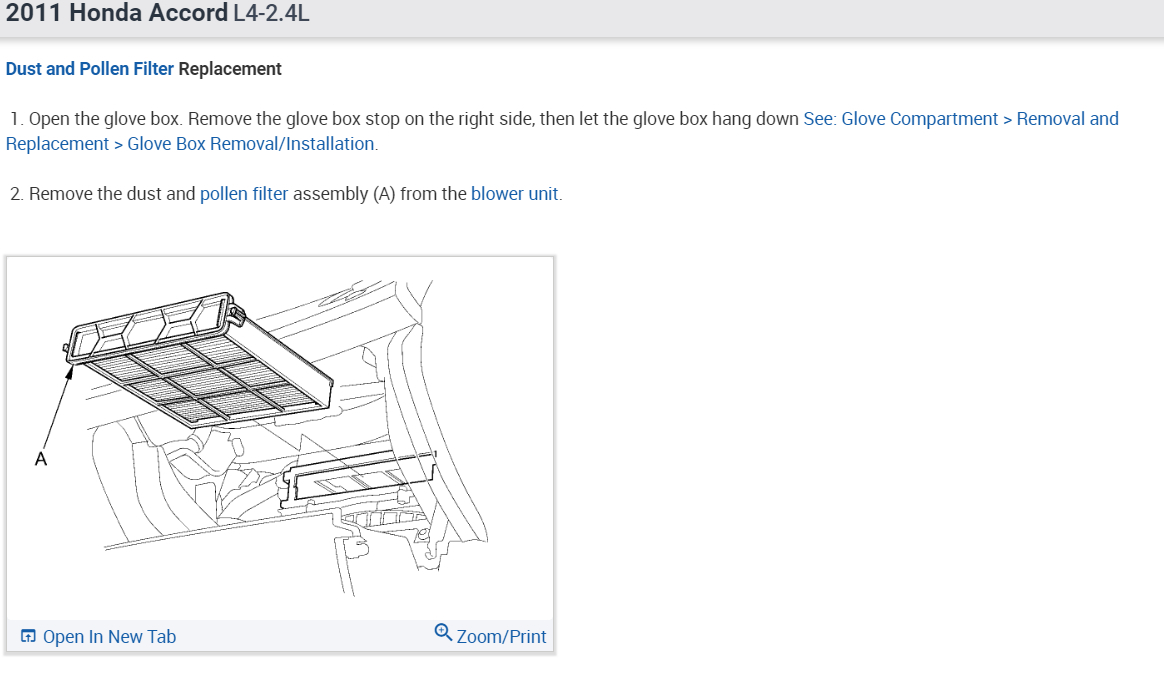

Hi jstorin754, Here are the procedures for replacing the cabin filter. CABIN AIR FILTER Removal & Installation 1. Open the glove box. Remove the damper from the glove box then let the glove box hang down.

2. Remove the dust and pollen filter assembly from the evaporator case.

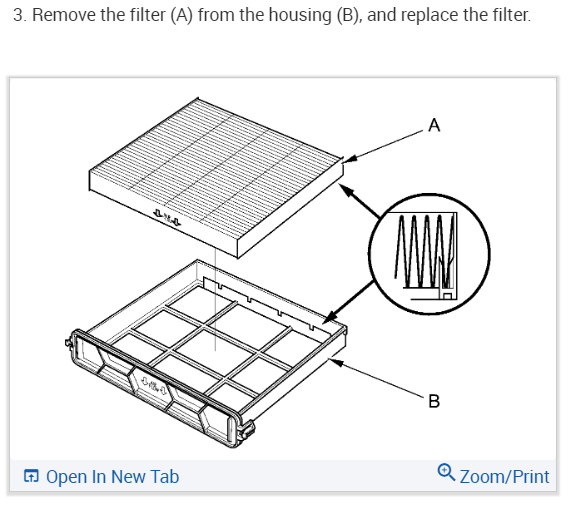

3. Remove the filter from the housing and replace the filter.

4. Install the filter in the reverse order of removal. Ensure arrow marks on edge of filter point in direction of air flow. Make sure that there is no air leaking out of the evaporator.

I am trying to locate the cabin air filter housing. Is it located in the inside of the interior or outside in the engine compartment?

Hi Jerry,

It is located inside vehicle behind the glove box.
