stuck on defrost?

2011 FORD FOCUS
108,000 MILES • 4 CYL • 2WD • AUTOMATIC
Avatar
JULIENNE
  • MEMBER
  • 1 POST
air or heat will only come out of the defrost even though the button light for the vents when depress is lit.
Jun 29, 2015 at 12:56 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
This is due to the mode door actuator failing. Here is a guide on this issue:

https://www.2carpros.com/articles/air-vents-stay-in-the-defrost-position

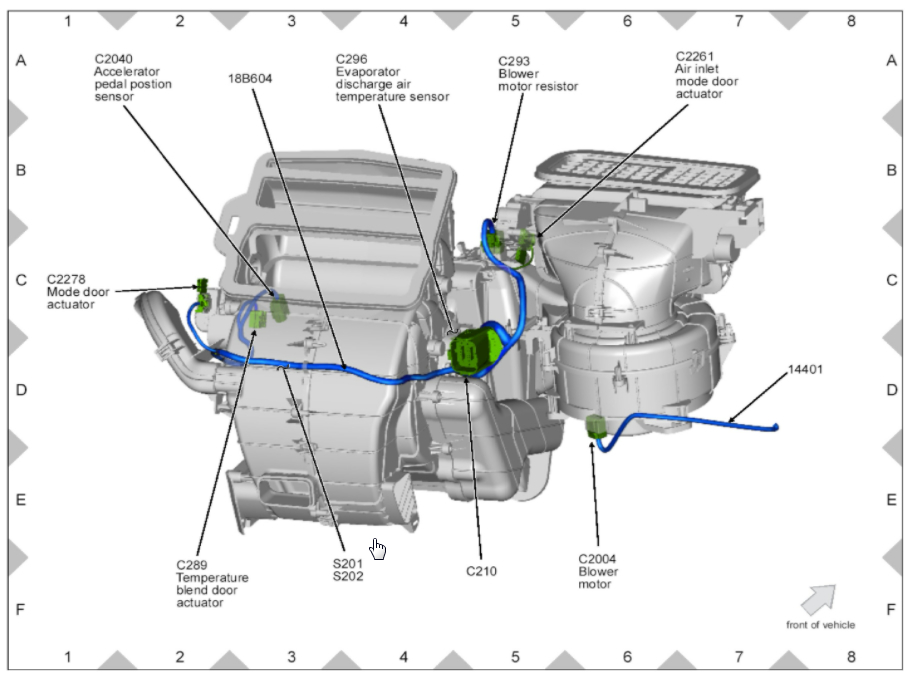

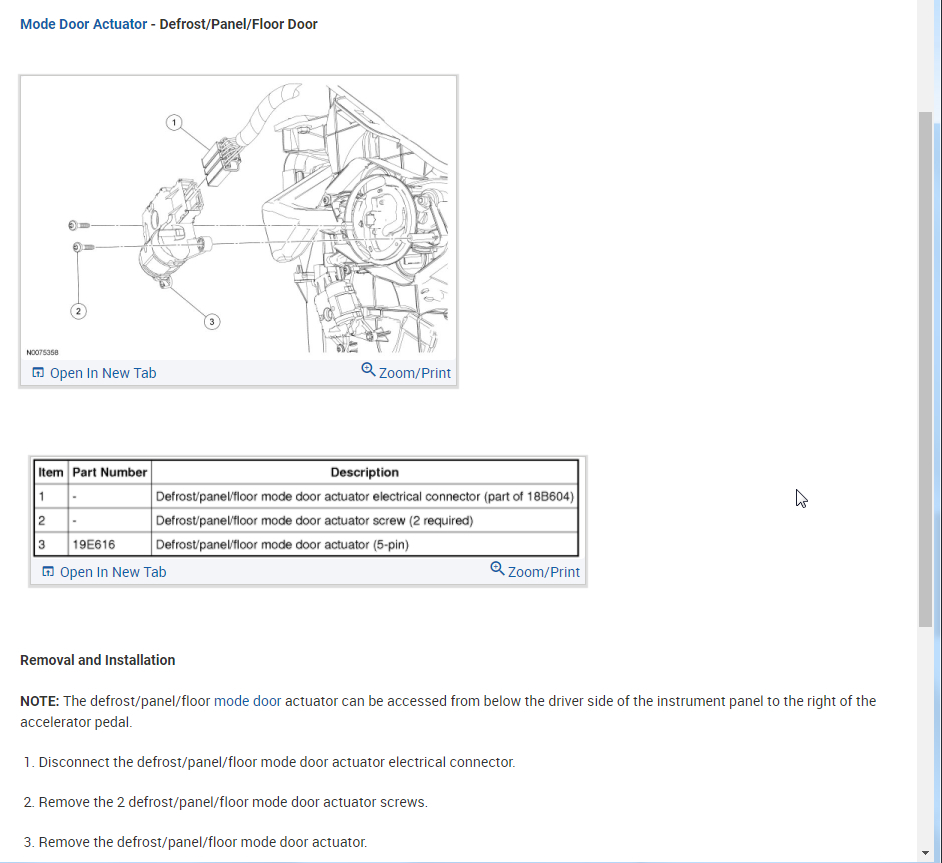

Also, I am attaching the location and process from the manual on how to replace this.

Let us know if you have other questions. Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Dec 15, 2020 at 2:16 PM
