Mode actuator removal

2011 CADILLAC CTS
140,000 MILES • 3.0L • V6 • 2WD • AUTOMATIC
Avatar
RICARDO GUTIERREZ
  • MEMBER
  • 2 POSTS

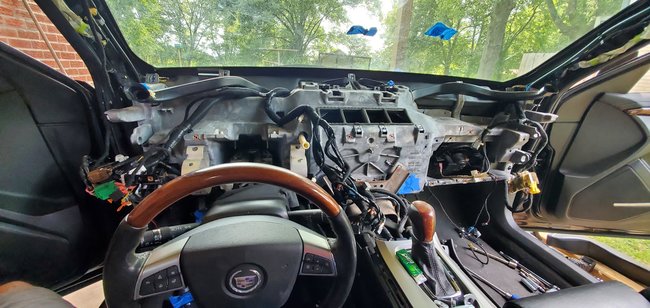

Car listed above is a sedan. I can't get the dash carrier out to get to the mode actuator. need help on all bolt locations.
Image (Click to enlarge)
Attached Media
Sep 19, 2020 at 7:45 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

I need to know if it is a coupe or sedan.

Let me know.
Joe
Sep 19, 2020 at 9:00 PM
Avatar
RICARDO GUTIERREZ
  • MEMBER
  • 2 POSTS
Sedan.

Sep 19, 2020 at 9:01 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

I just realized that you had that listed in the heading. Sorry.

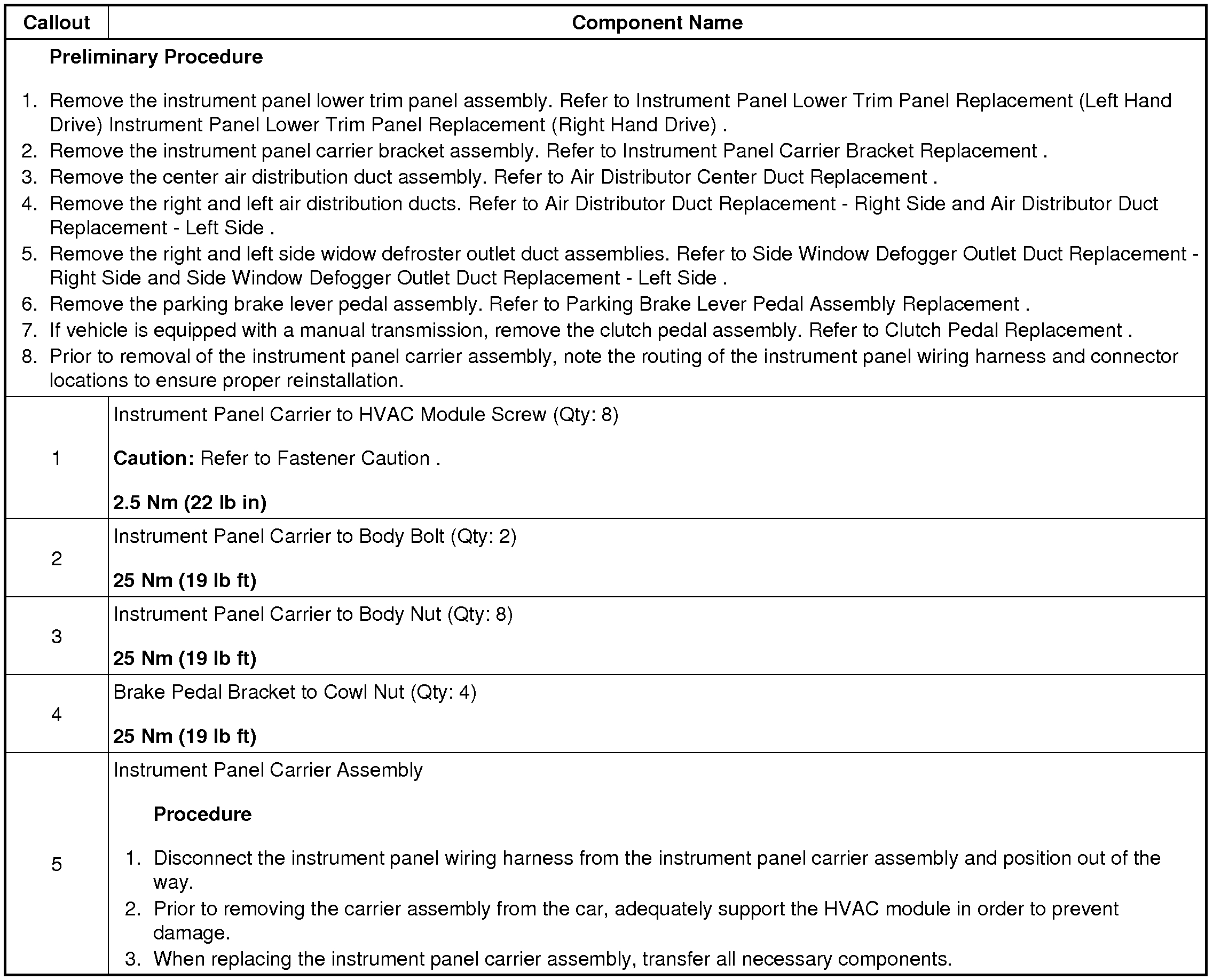

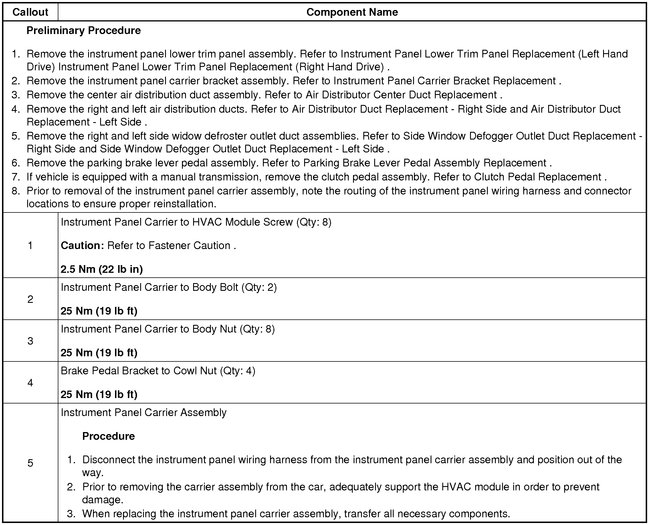

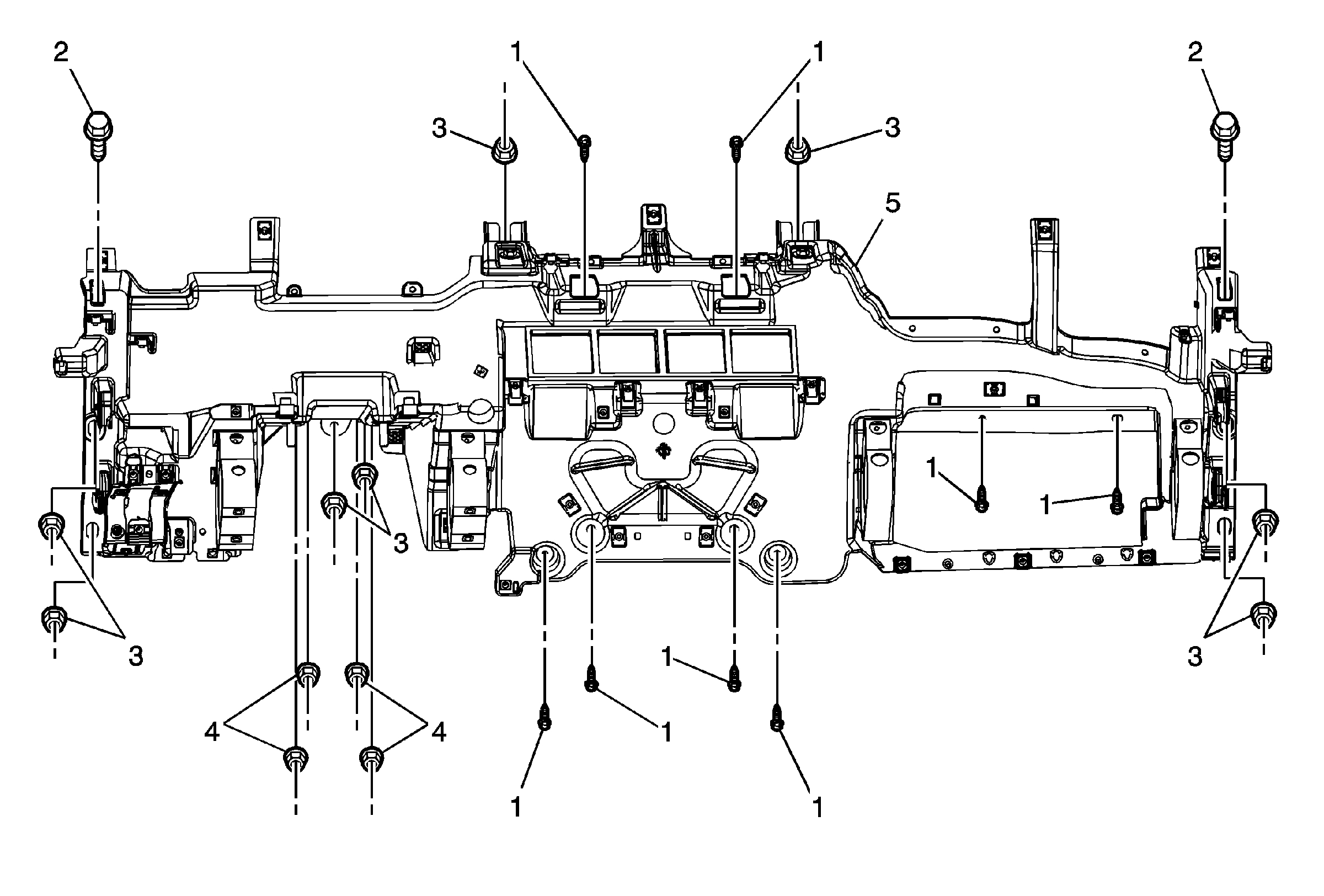

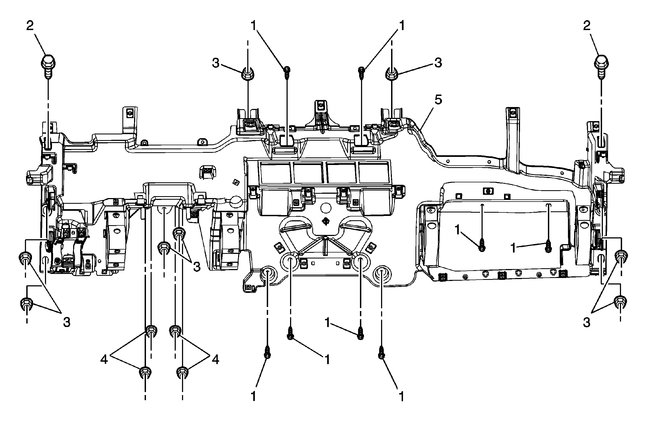

I attached two pics. The first shows the carrier and mounting info. The second are the directions for removal.

Let me know if this helps. Also, I'm not sure you have to remove that to access the mode actuator. You should be able to remove the right side duct air distribution duct, you should be able to access it.

Let me know.

Take care,
Joe
