Motor mount torque specification needed

2011 BMW 550I
97,000 MILES • 4.4L • V8 • TURBO • 2WD • AUTOMATIC
Avatar
BMW 550I
  • MEMBER
  • 20 POSTS
Gents,

Out of an abundance of caution I purchased new motor mounts. Each are fastened to the subframe using three bolts. Soon I will be ready to install theses prior to the new engine. Can you please provide the torque specification and any pro tip/s I need to take into consideration?

Thank you.
Jun 24, 2022 at 10:44 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

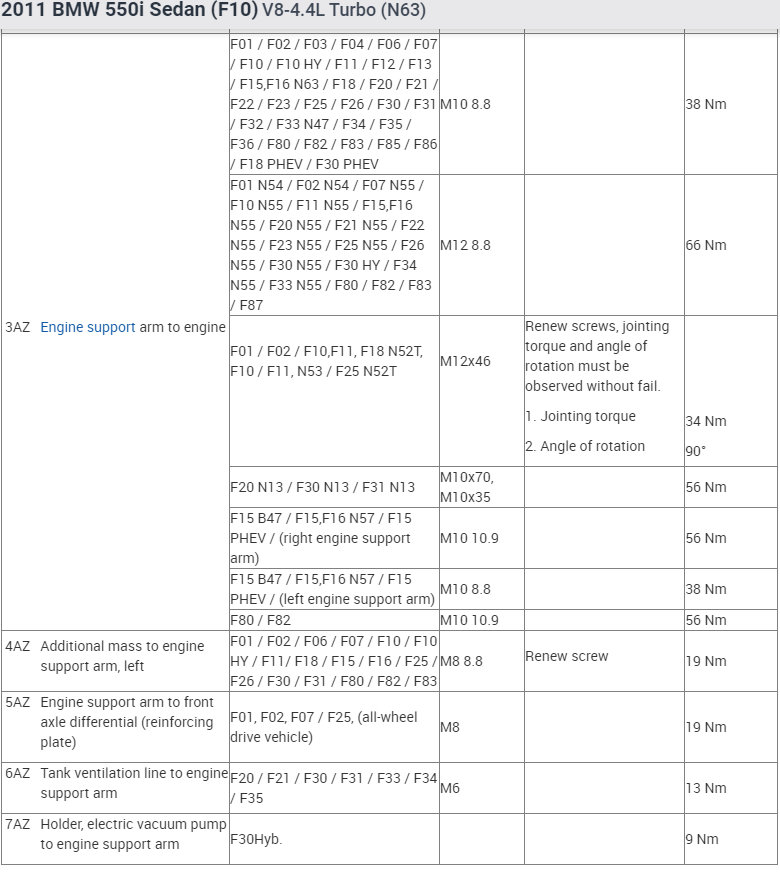

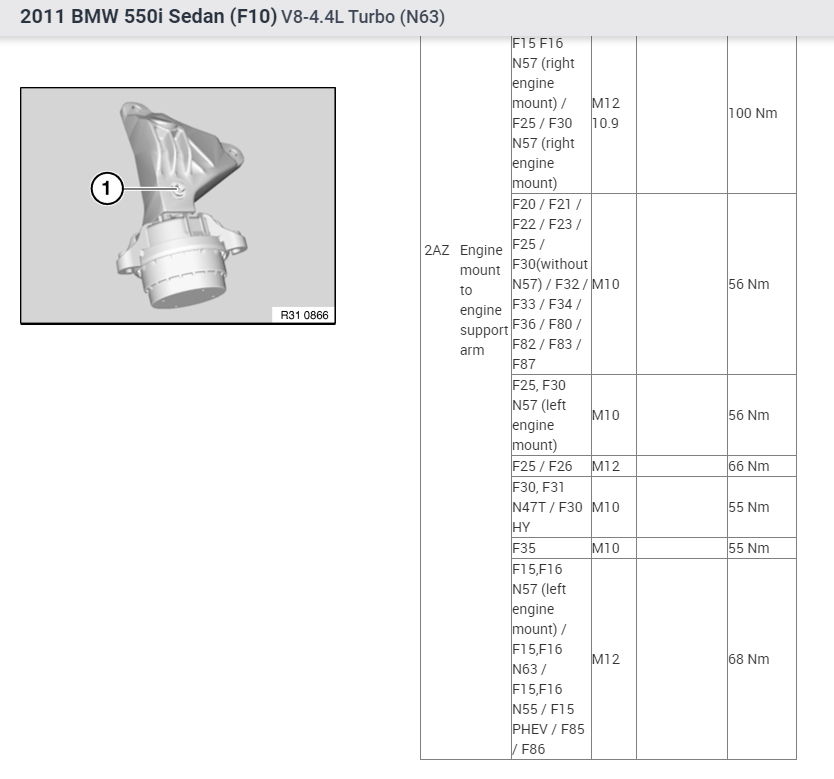

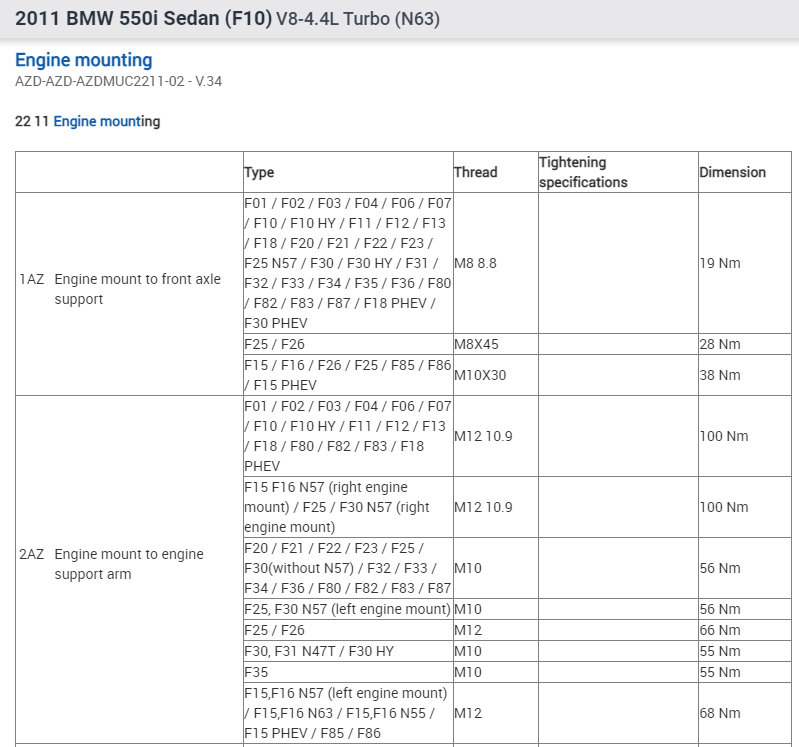

See attached for the torque chart for the motor mounts.

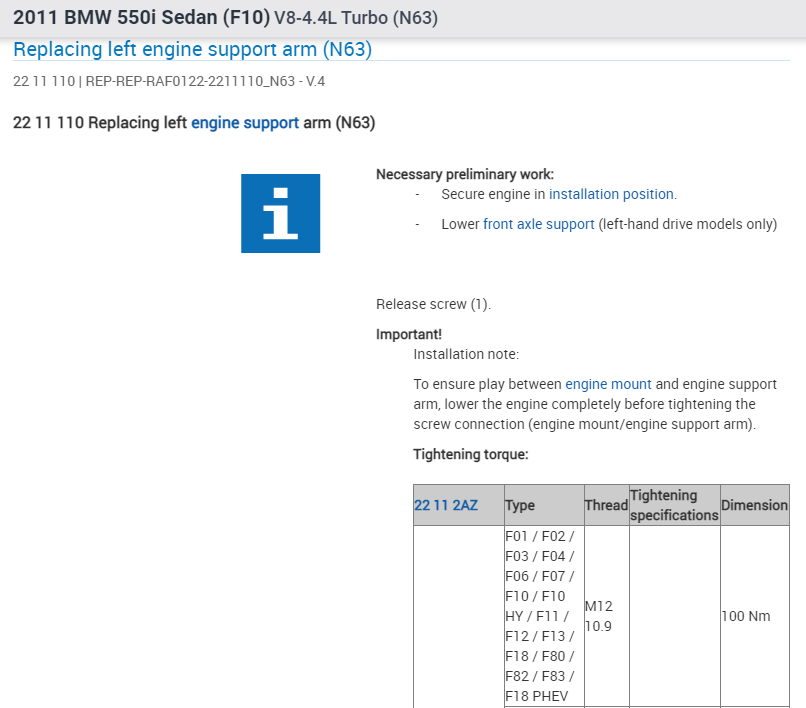

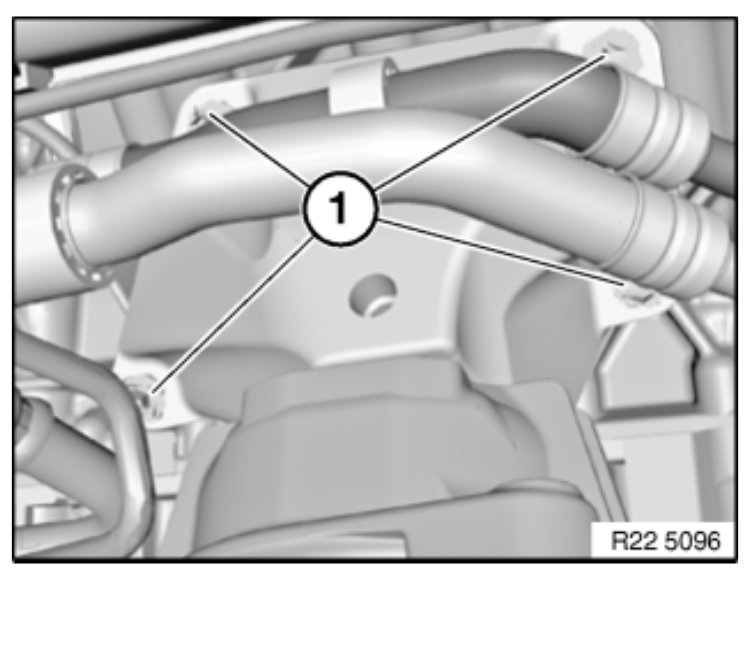

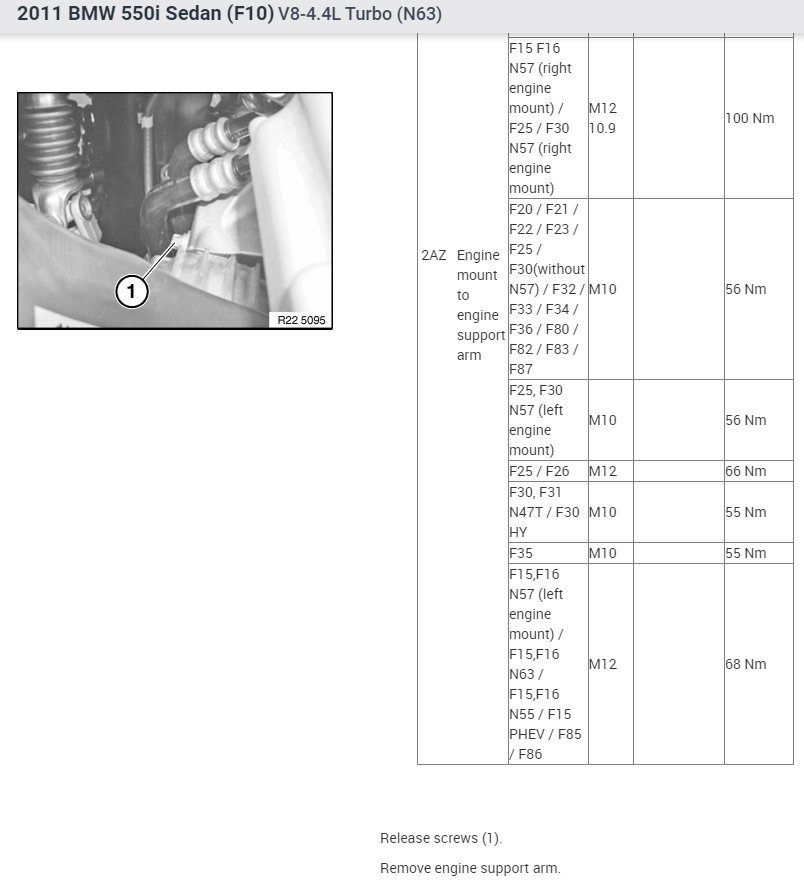

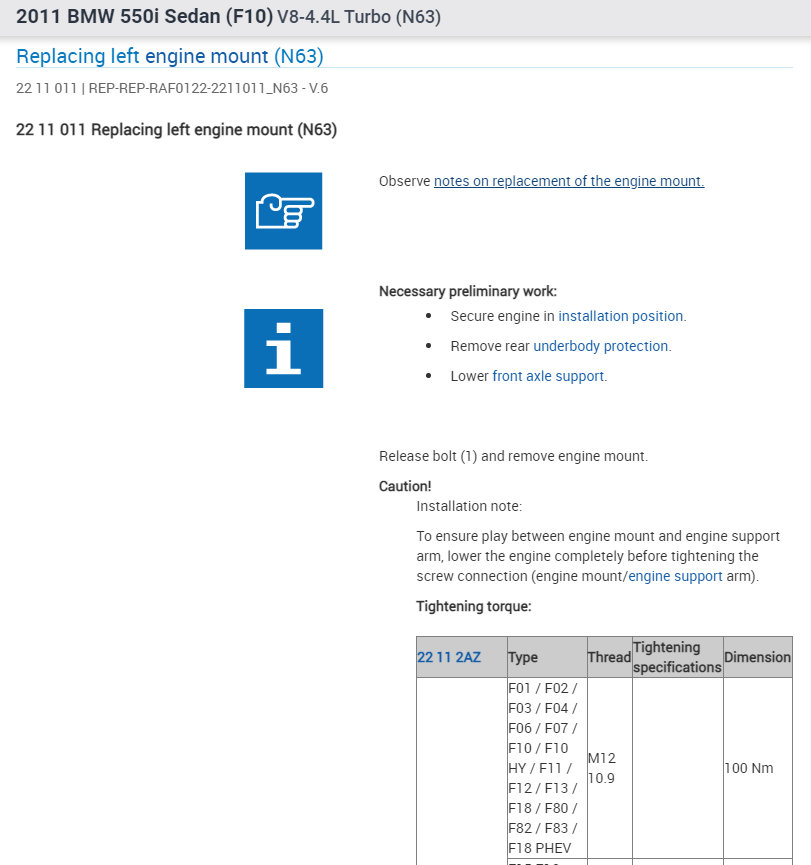

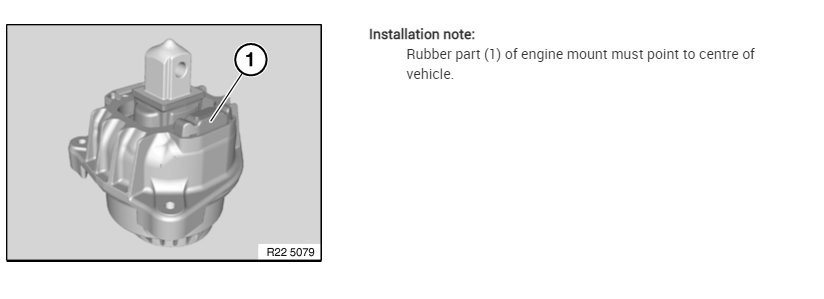

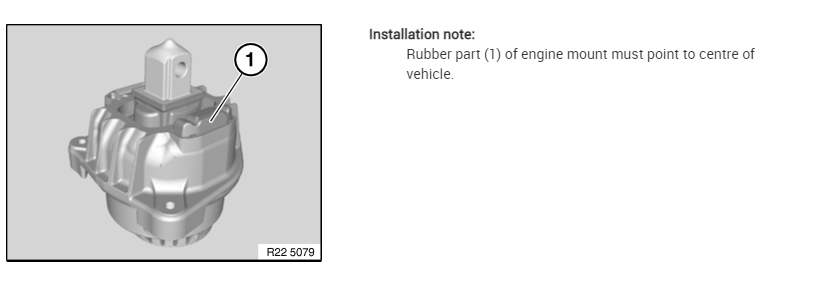

Also included is the replacement procedure.

Let me know of any questions.
Thank you.

https://www.2carpros.com/articles/replace-motor-mounts
Jun 24, 2022 at 11:35 AM
Avatar
BMW 550I
  • MEMBER
  • 20 POSTS
Extremely helpful details you provided. Many thanks!
Jun 24, 2022 at 12:13 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
You are welcome!
Jun 24, 2022 at 1:04 PM
