2010 Mercury Mariner Heat and Air Blower Control

2010 MERCURY MARINER
38,500 MILES
Avatar
JOE SOBO
  • MEMBER
  • 1 POST
I have a 2010 Mercury Mariner and just recently the blower controls have stopped working on numbers 1,2 and 3, but it continues to work on high number 4. Both the heat and the air do the same. I have checked fuses per the owners manual and they seem to be fine. Any suggestions would be appreciated before I head to the dealer. Thank-you.
Oct 22, 2013 at 6:34 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

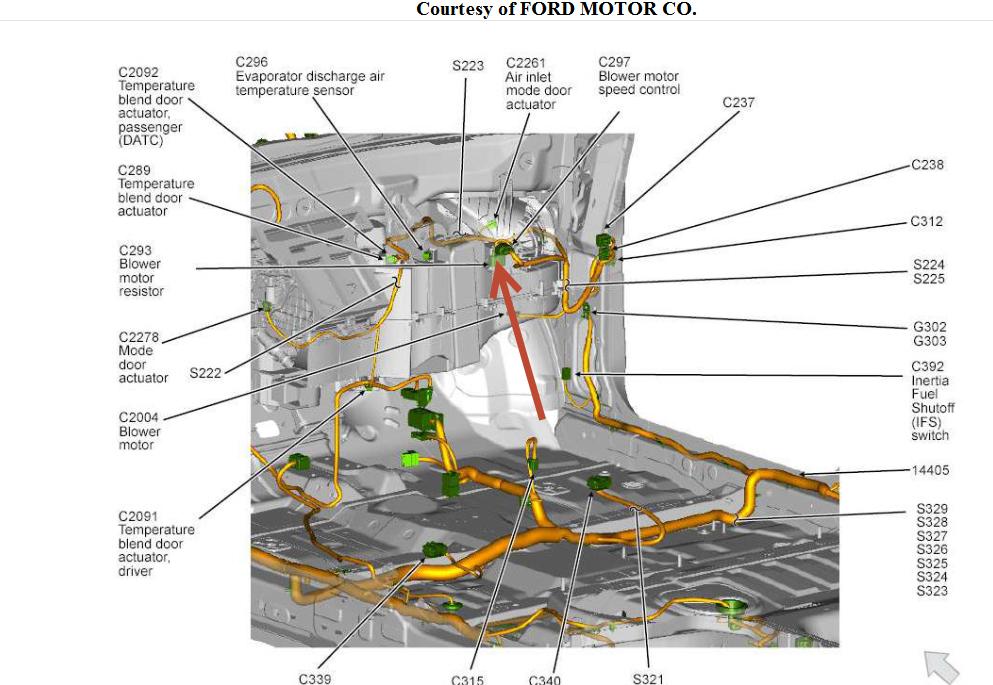

check for power at the blower resistor or just get one and replace it red arrow in pic points to it.
Image (Click to enlarge)
Attached Media
Oct 22, 2013 at 6:58 AM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
also if it'snot that then you can take to any garage to get it scanned to see what else is wrong but it's probably resistor unless this is automatic temp control
Oct 22, 2013 at 6:59 AM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
hmac300 is correct here. I just wanted to add one point. If you are testing the signals coming into the resister for the various speeds, it's a ground signal that you are looking for. The resister is on the ground side of the circuit.
Oct 22, 2013 at 8:42 AM
