Anti theft

2010 CHEVROLET EQUINOX

125,000 MILES • 4 CYL • 4WD • AUTOMATIC

ROCKKO

MEMBER
3 POSTS
FOLLOW

So we started our vehicle it started fine, we went to the store shut it off came out to leave and it would not start. All lights come on we turn the key over and the car does not try to start or turn over at all. there is an anti theft light lit on the dash like a car symbol with a lock through it. I tried the turn key on wait ten minutes do it three times. That did not work what else can I try?

Mar 20, 2018 at 8:19 PM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

The first thing I would do is check the DILS system fuse. Here is a guide to show you how: https://www.2carpros.com/articles/how-to-check-a-car-fuse

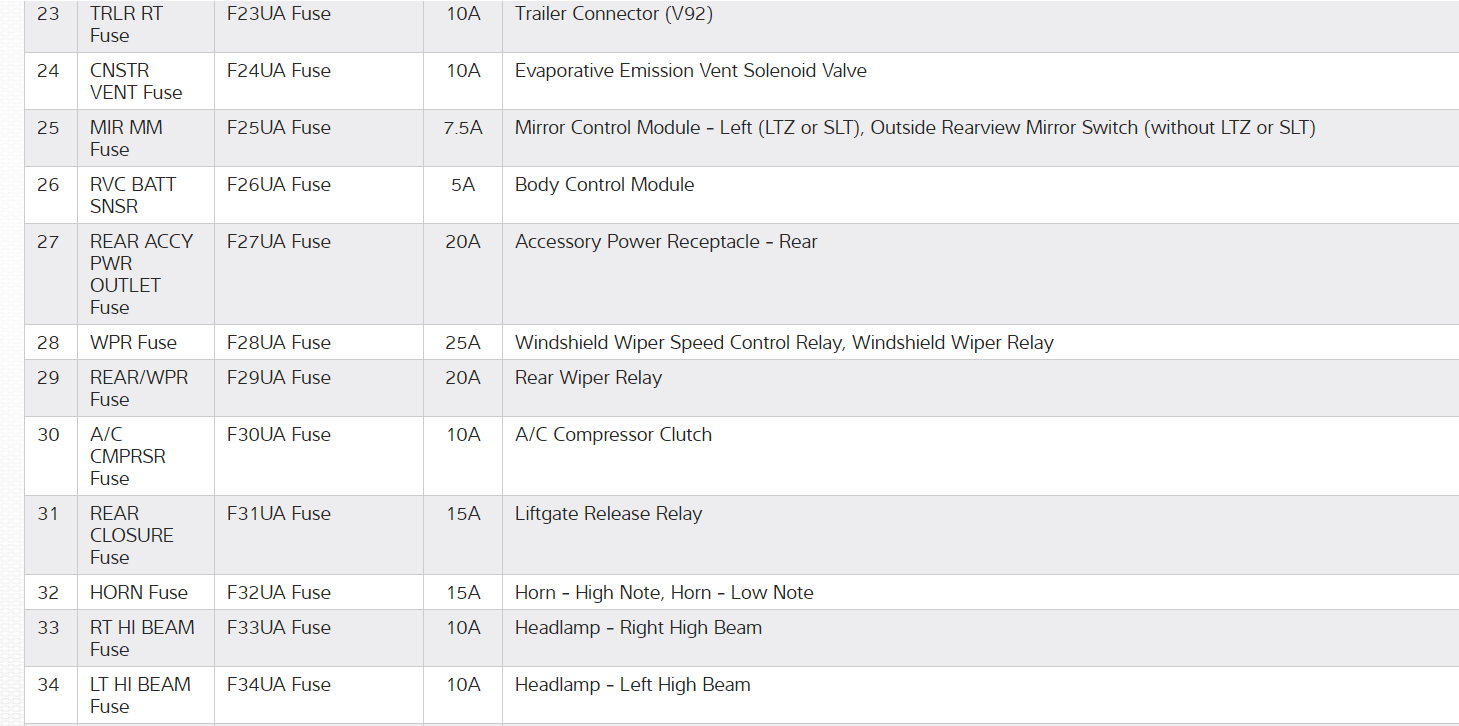

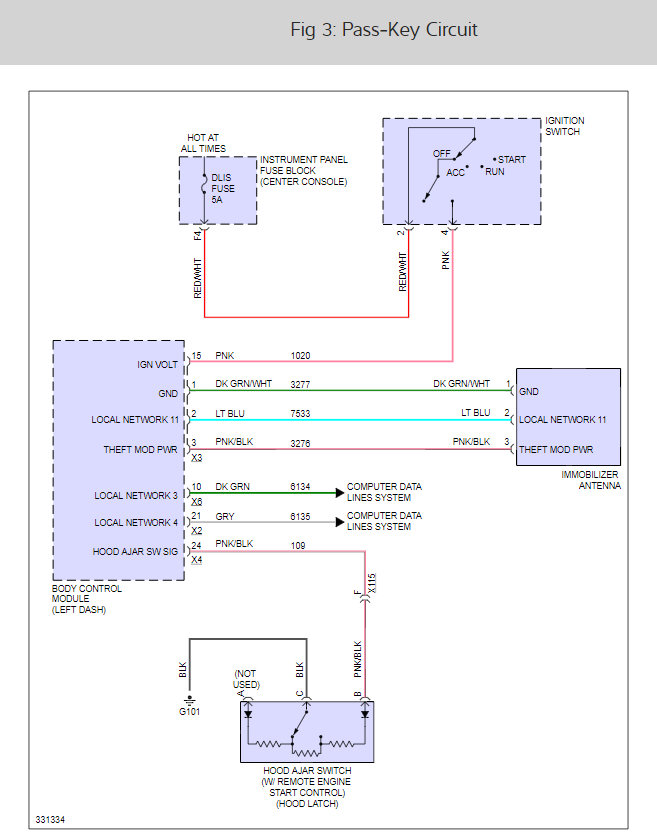

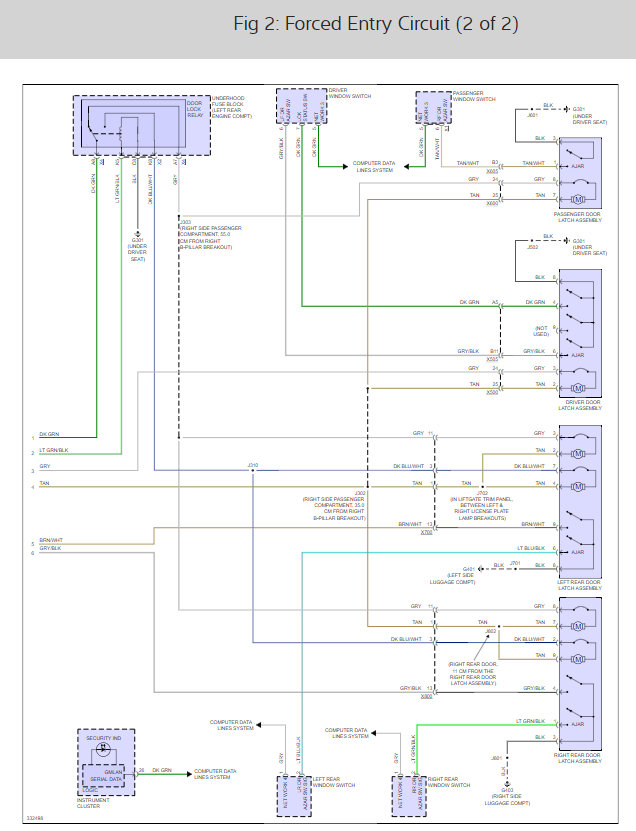

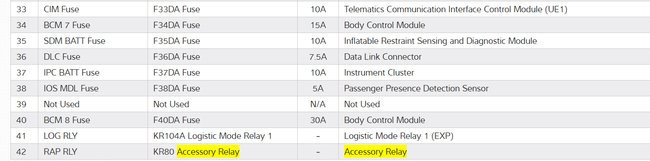

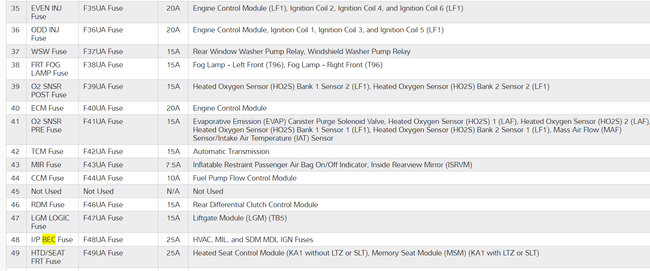

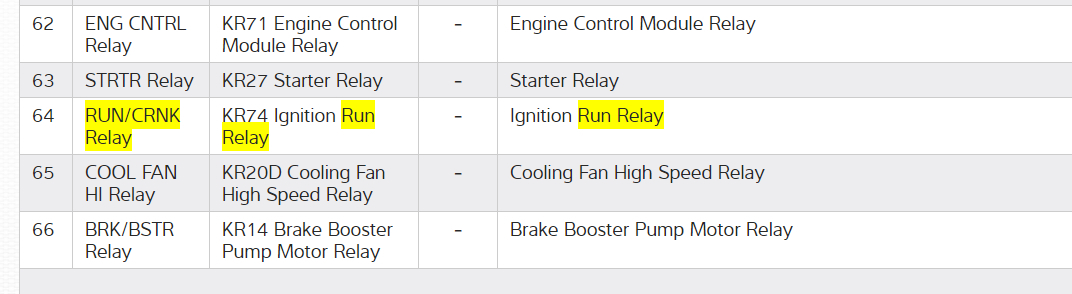

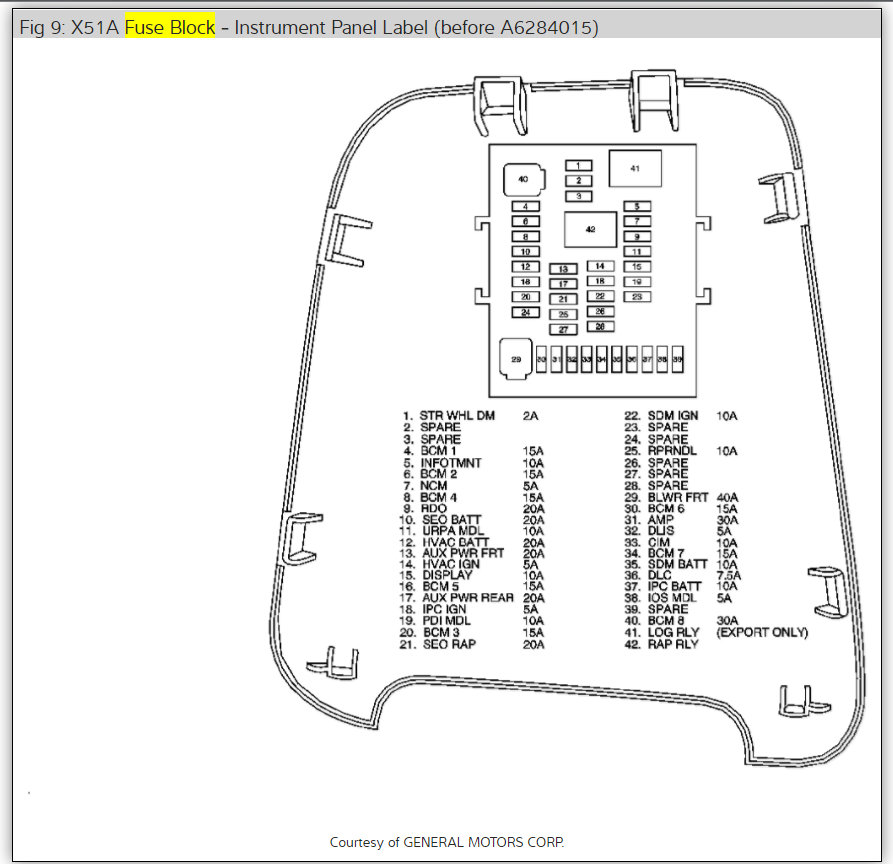

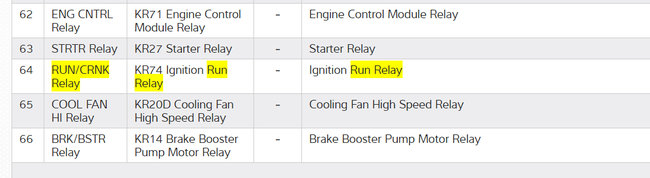

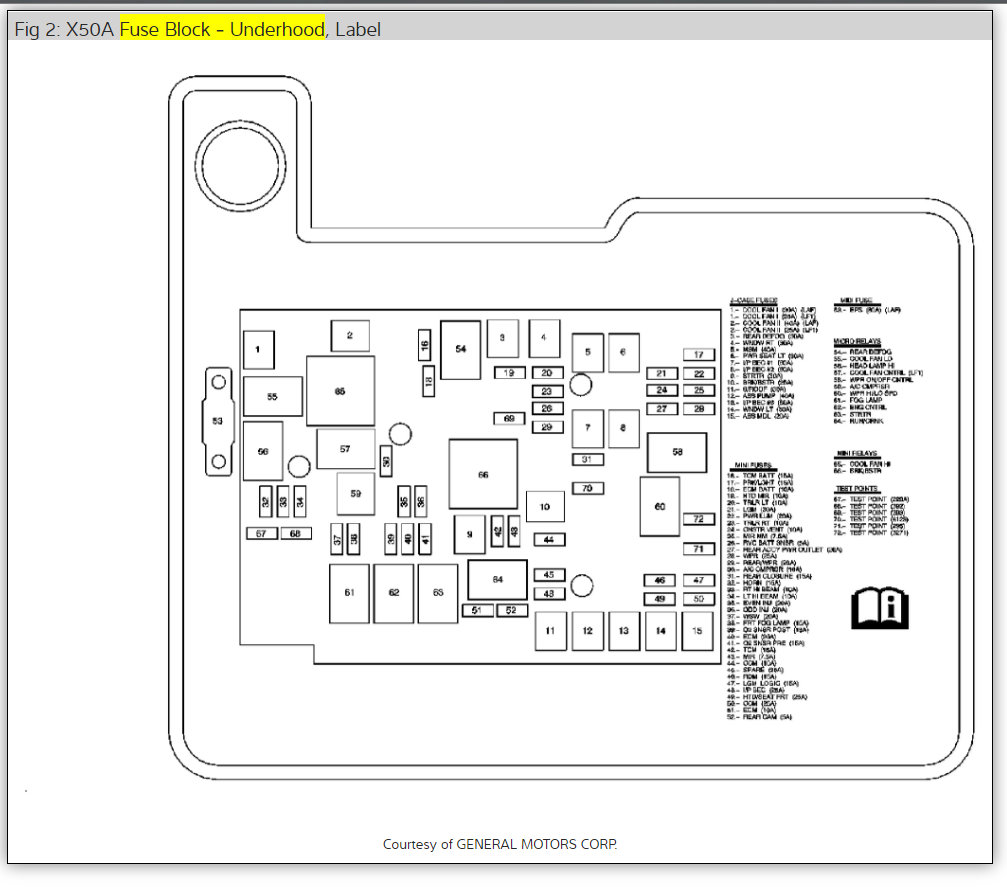

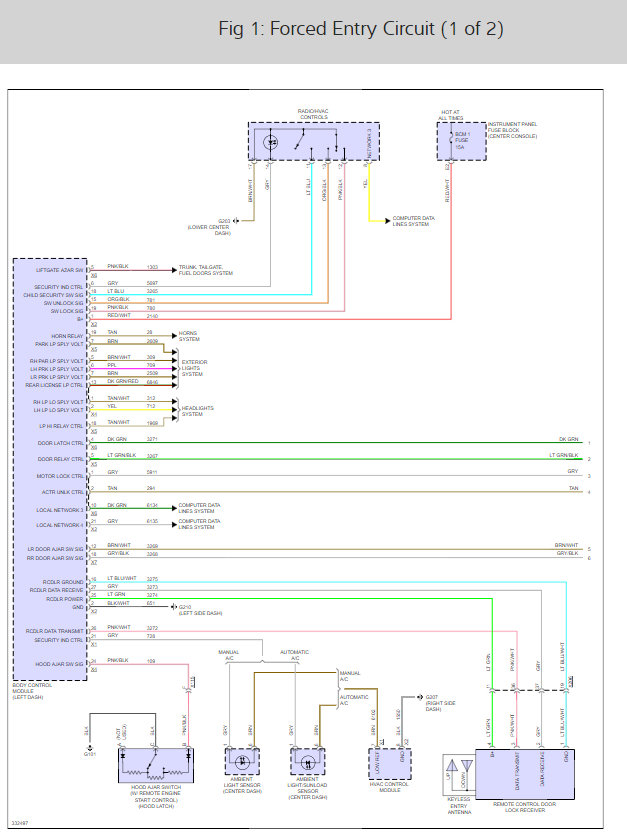

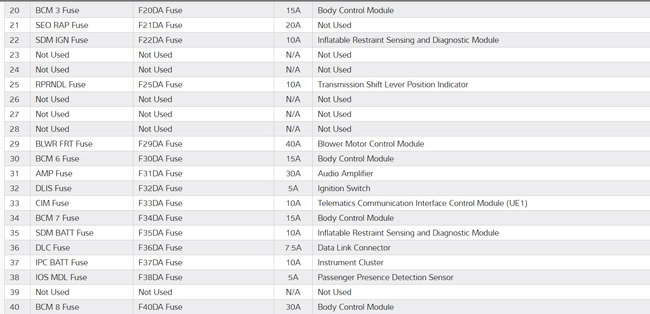

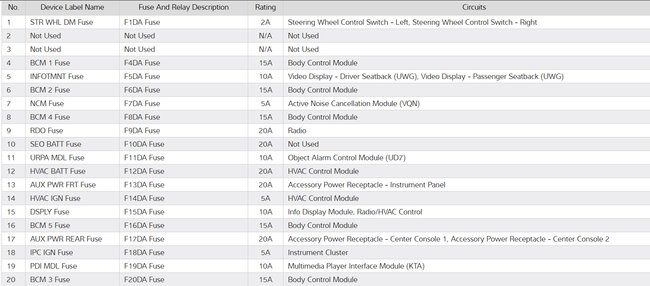

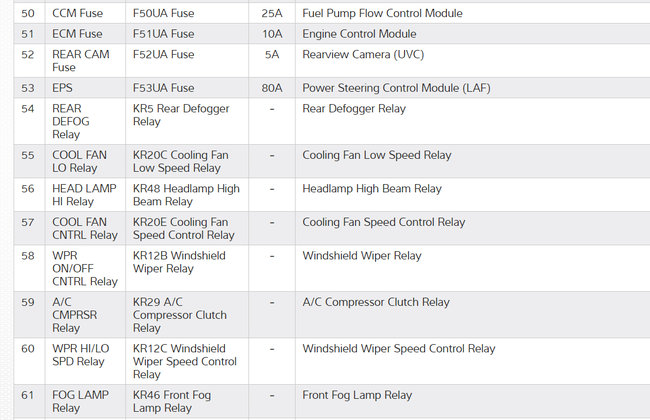

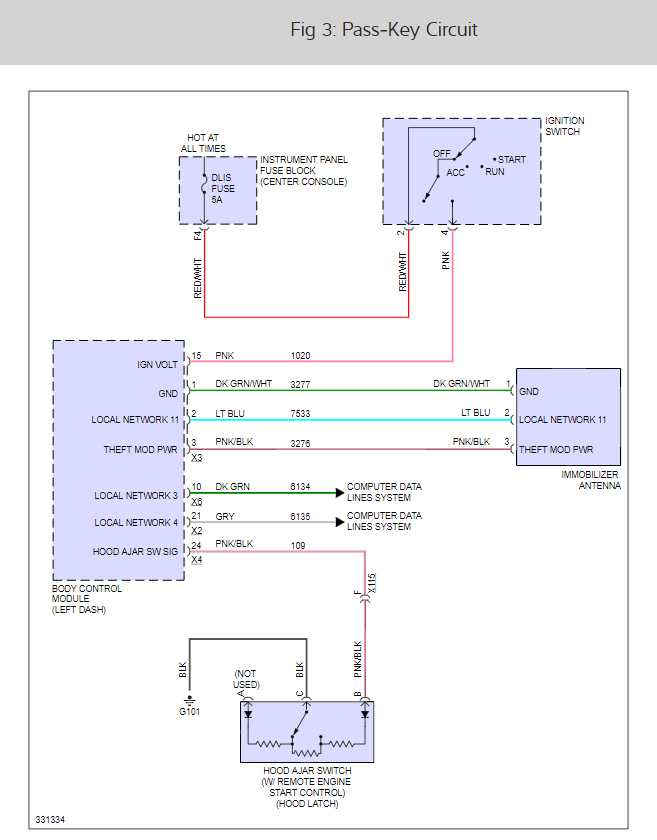

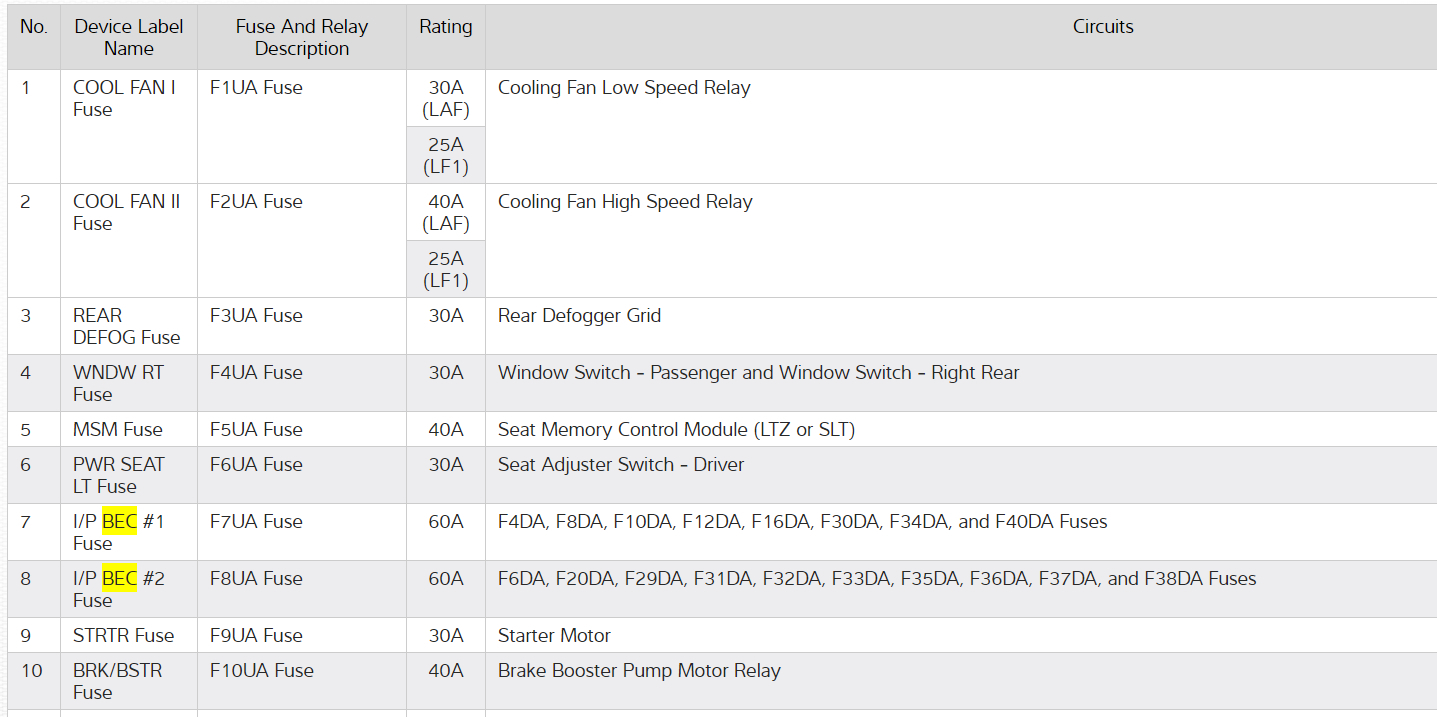

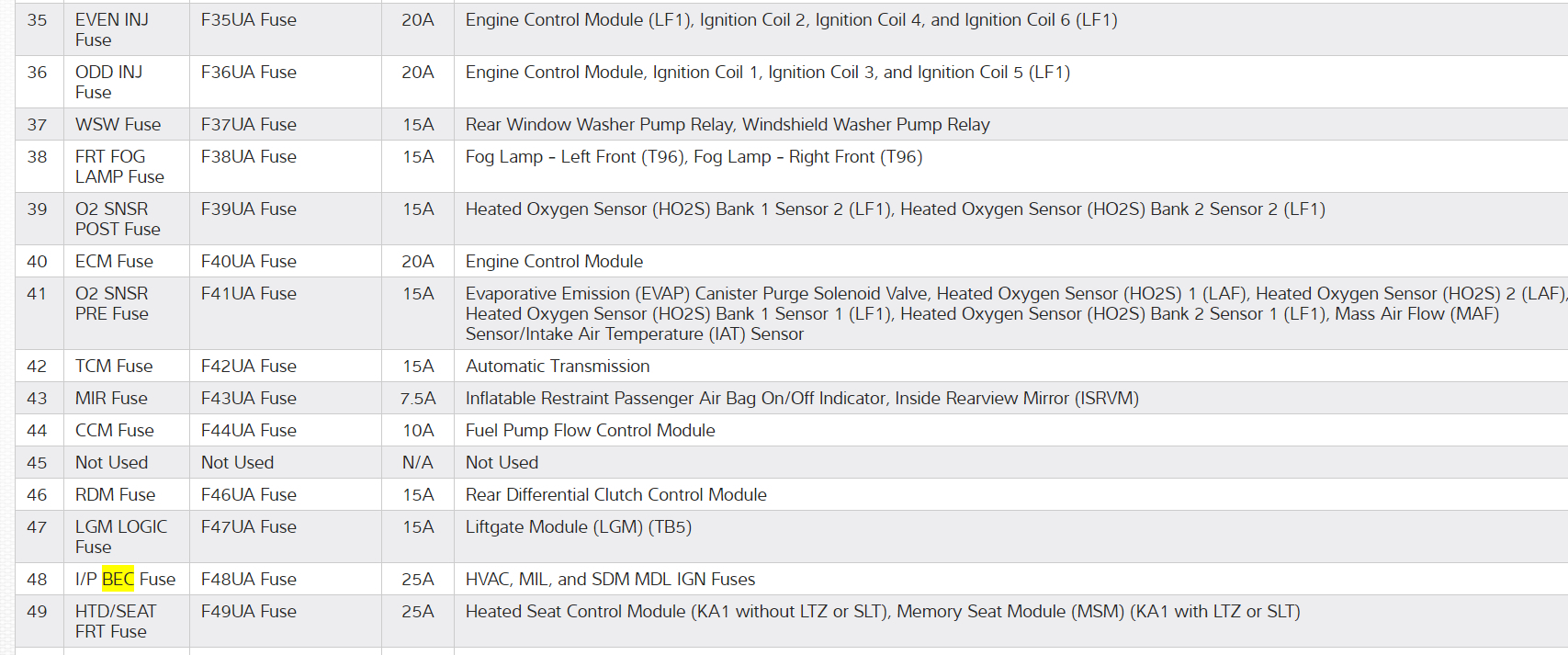

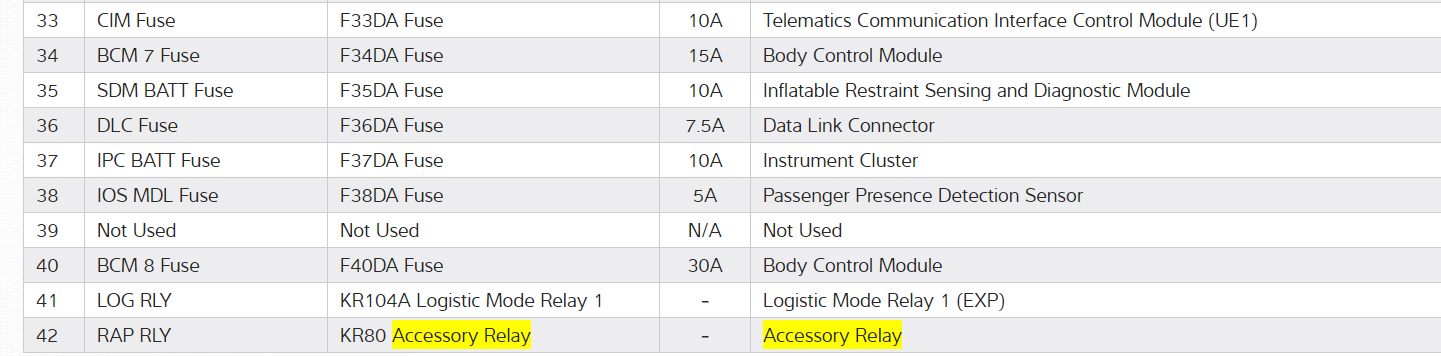

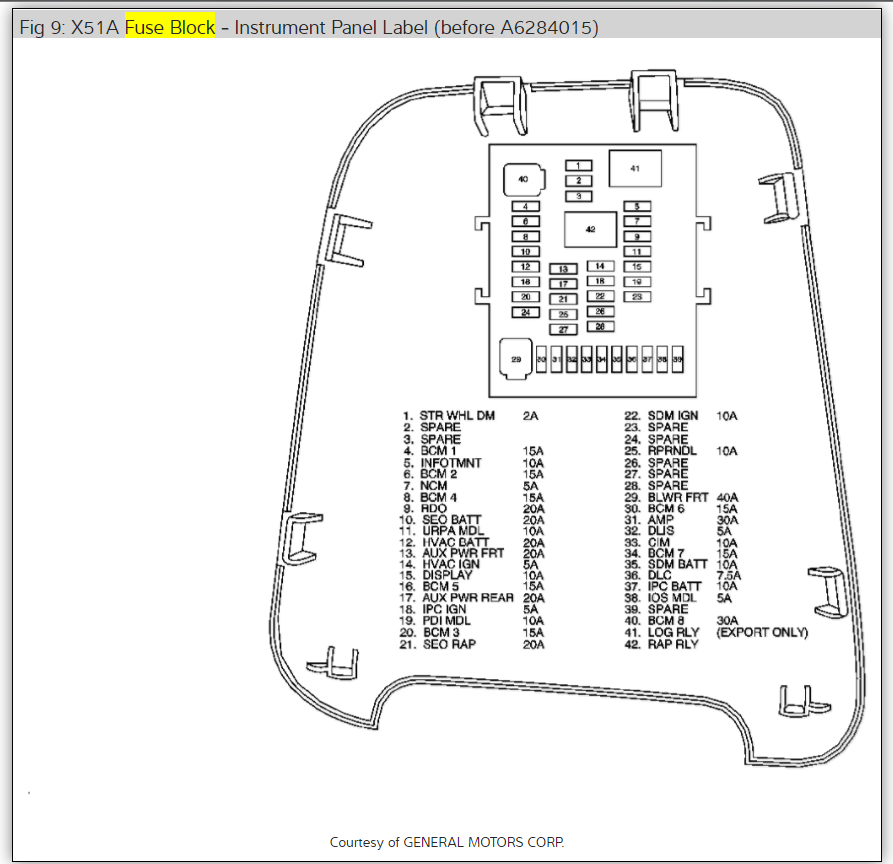

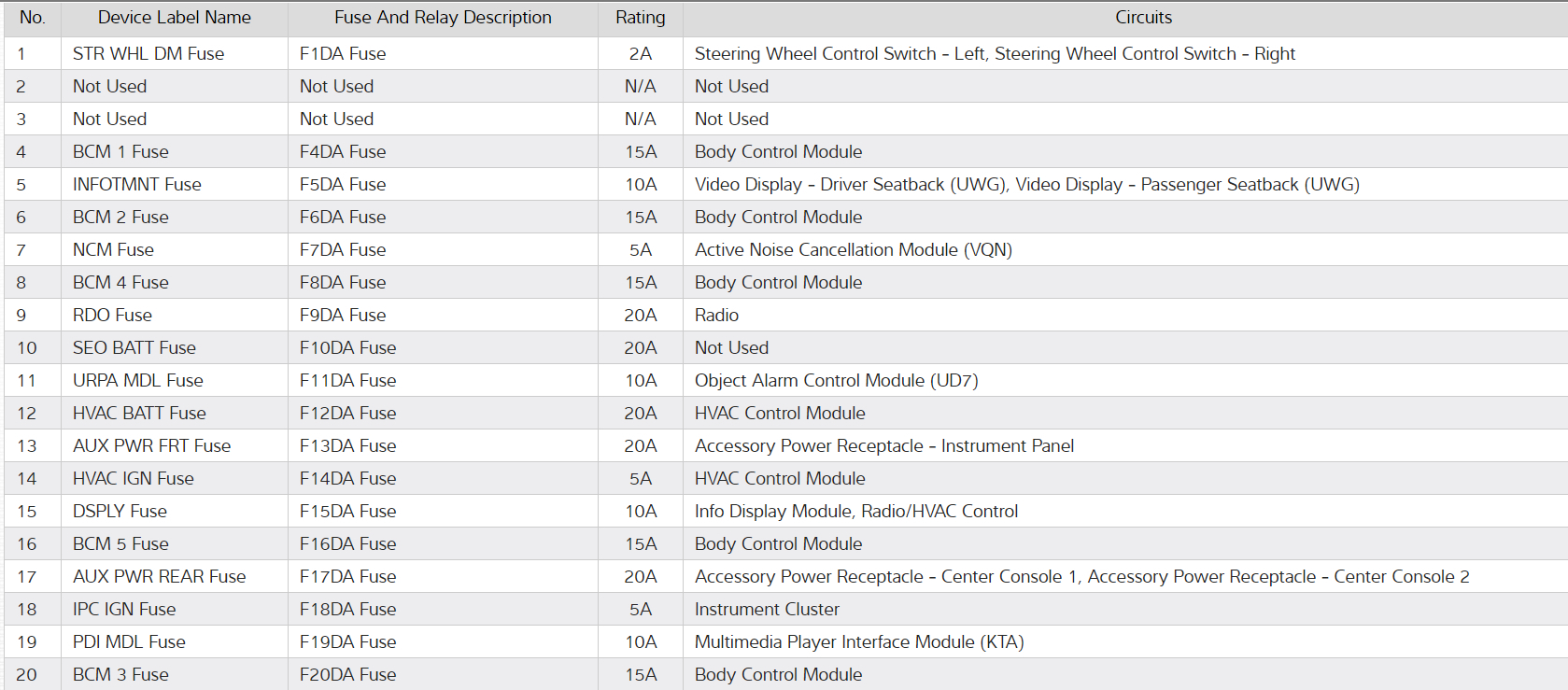

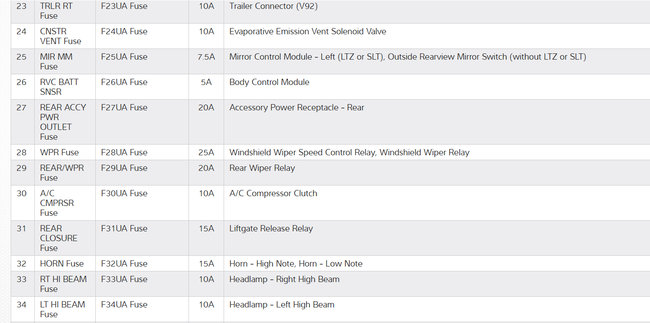

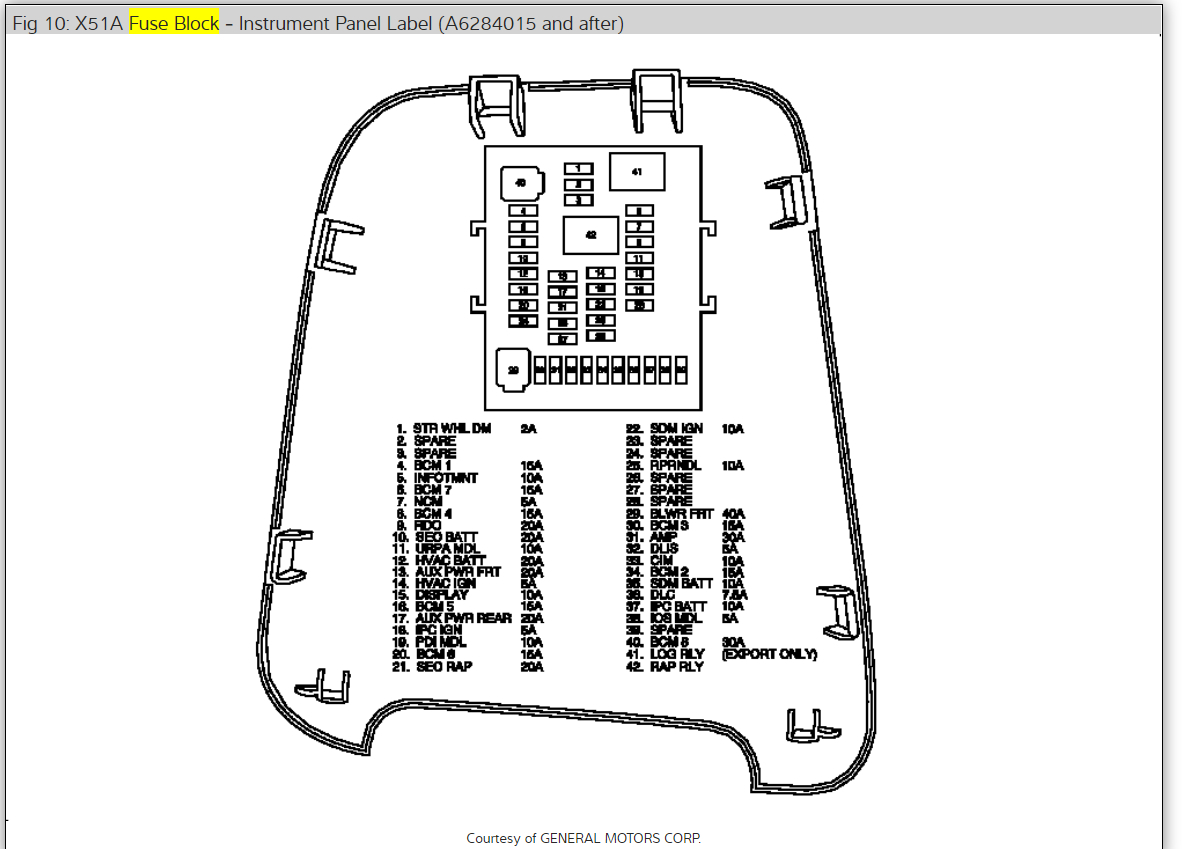

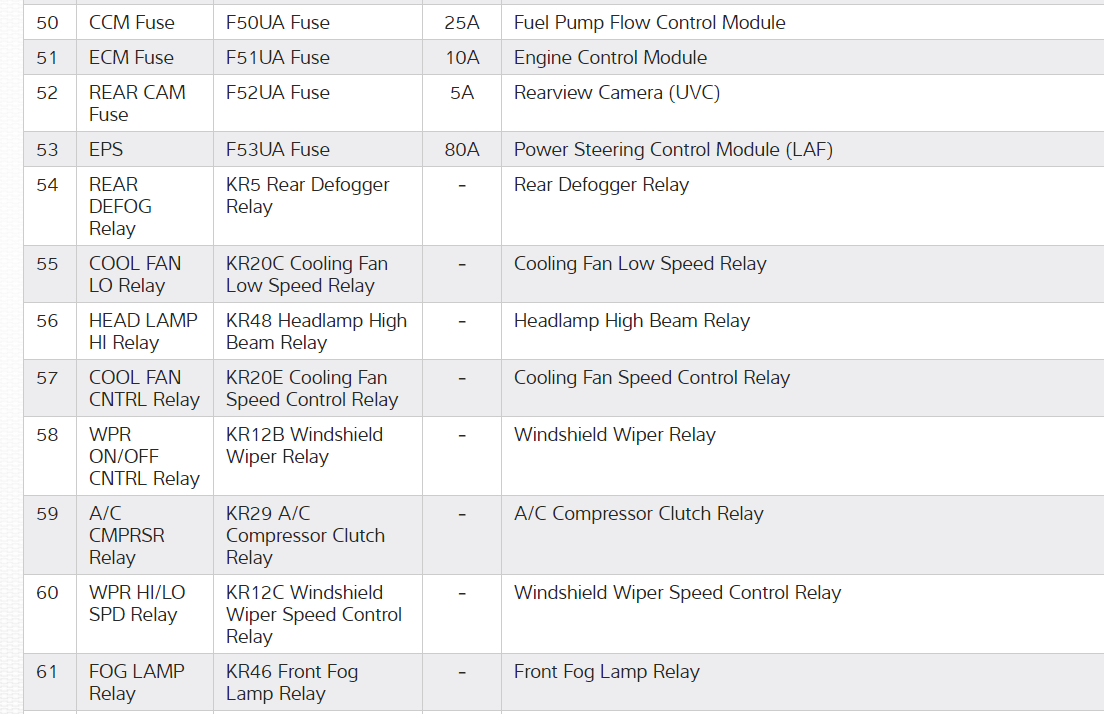

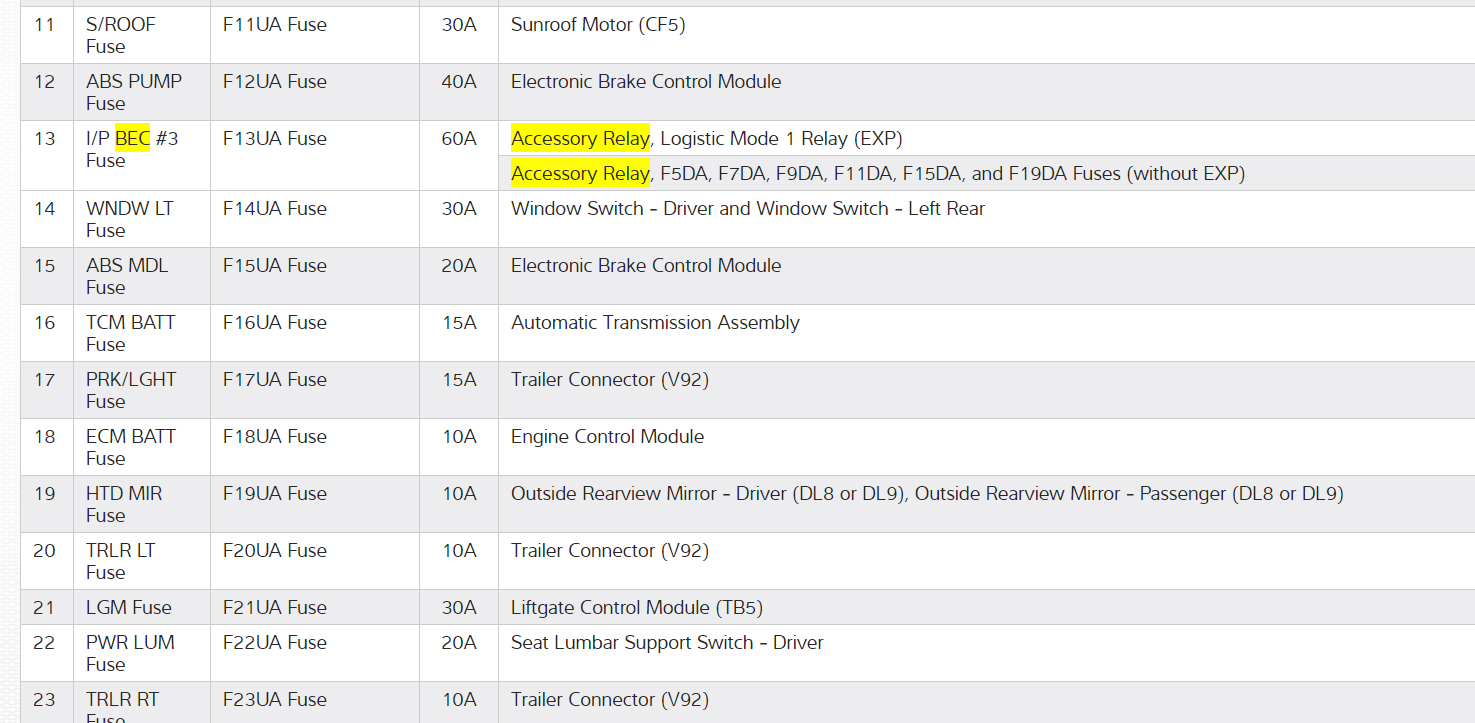

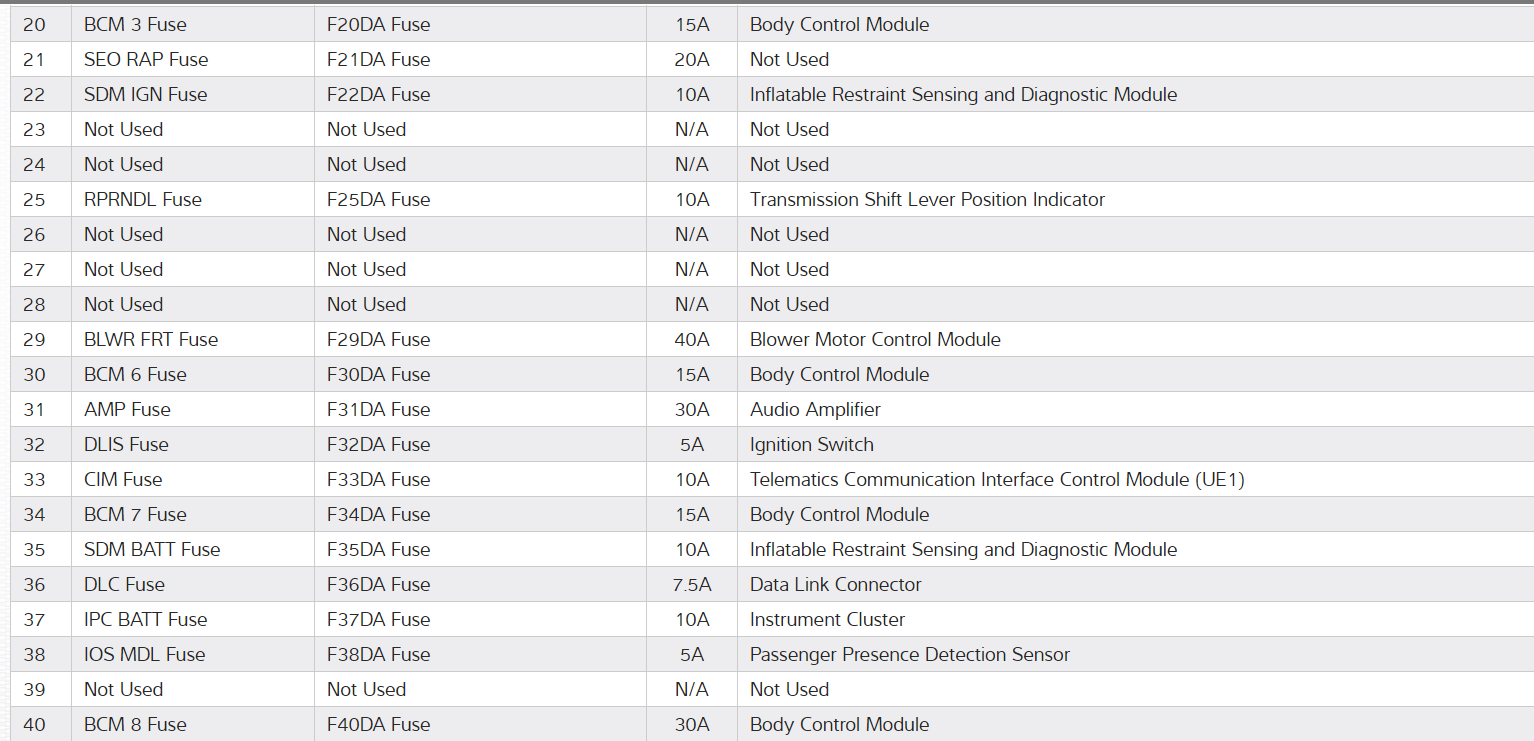

Here are the fuse locations test with the key on. I found the wiring diagrams for the security system so we can see how it works and the fuse locations and identification to help you get the testing done.

Check out the diagrams (below).

Please let us know what you find. We are interested to see what it is.

Cheers, Ken

Images (Click to enlarge)

Mar 22, 2018 at 11:16 AM

ROCKKO

MEMBER
3 POSTS

We ended up have ng it towed to the dealership. They said that they checked everything out and the key fob is not responding to the car so they replace it the key fob and now it works

Mar 24, 2018 at 4:54 AM

ROCKKO

MEMBER
3 POSTS

Thanks for your reply

Mar 24, 2018 at 4:55 AM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

Good to hear, please use 2CarPros anytime we are here to help.

Cheers, Ken

Mar 25, 2018 at 11:30 AM
