Can you tell me what the cylinder numbers are?

2010 CHRYSLER TOWN AND COUNTRY
50,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
Can you tell me what the cylinder numbers are?
Mar 30, 2013 at 3:48 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS

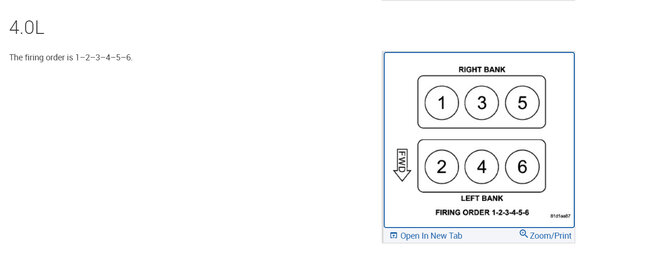

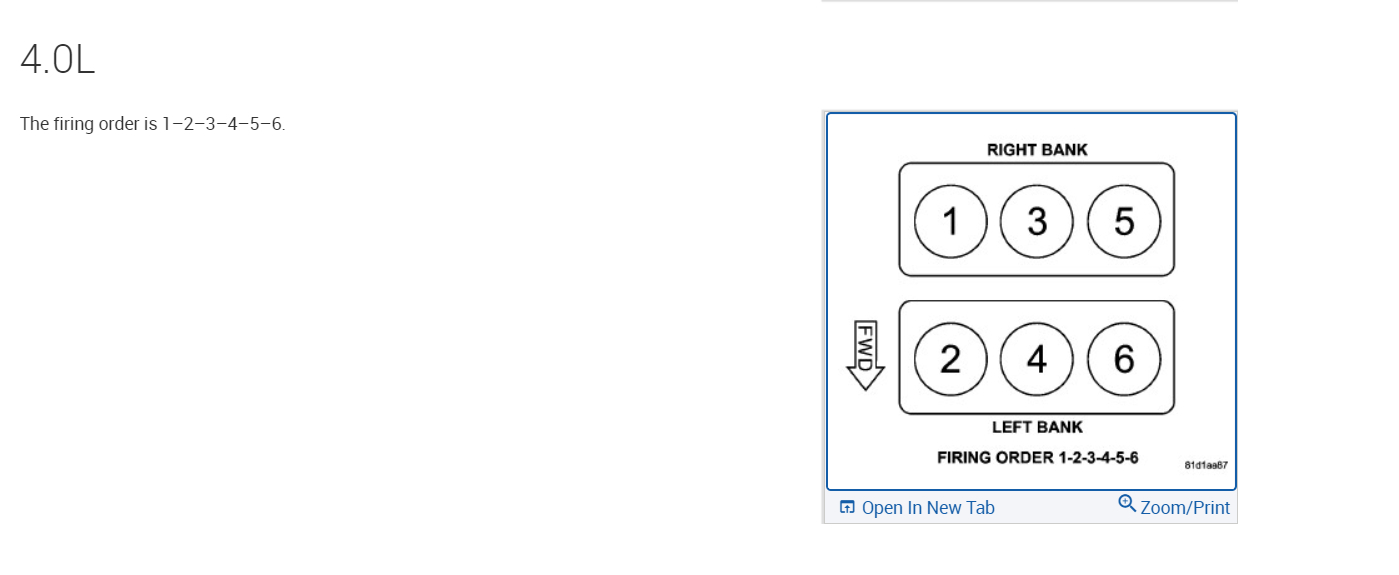

Here are all three engine firing orders and the number 1 cylinder. Check out the images (Below). Please let us know if you need anything else to get the problem fixed.
Mar 30, 2013 at 3:51 PM
Avatar
FREEMBA
  • CERTIFIED EXPERT
  • 1,152 POSTS
2.4L engine Firing order: 1-3-4-2 Distributorless ignition system

3.0L engine Firing order: 1-2-3-4-5-6 Distributor rotation: Counterclockwise

3.3L and 3.8L engines Firing order: 1-2-3-4-5-6 Distributorless ignition system

Mar 30, 2013 at 4:52 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
they mean the bank id.......

Roy
Mar 30, 2013 at 4:54 PM
Avatar
FREEMBA
  • CERTIFIED EXPERT
  • 1,152 POSTS
On the 3.0 liter engine:
the cylinders near the radiator are: 2-4-6
the cylinders near the firewall are: 1-3-5

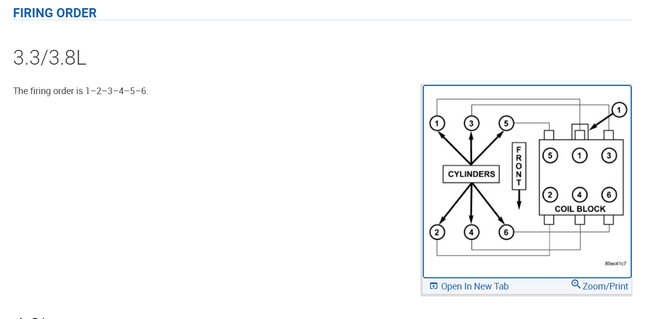

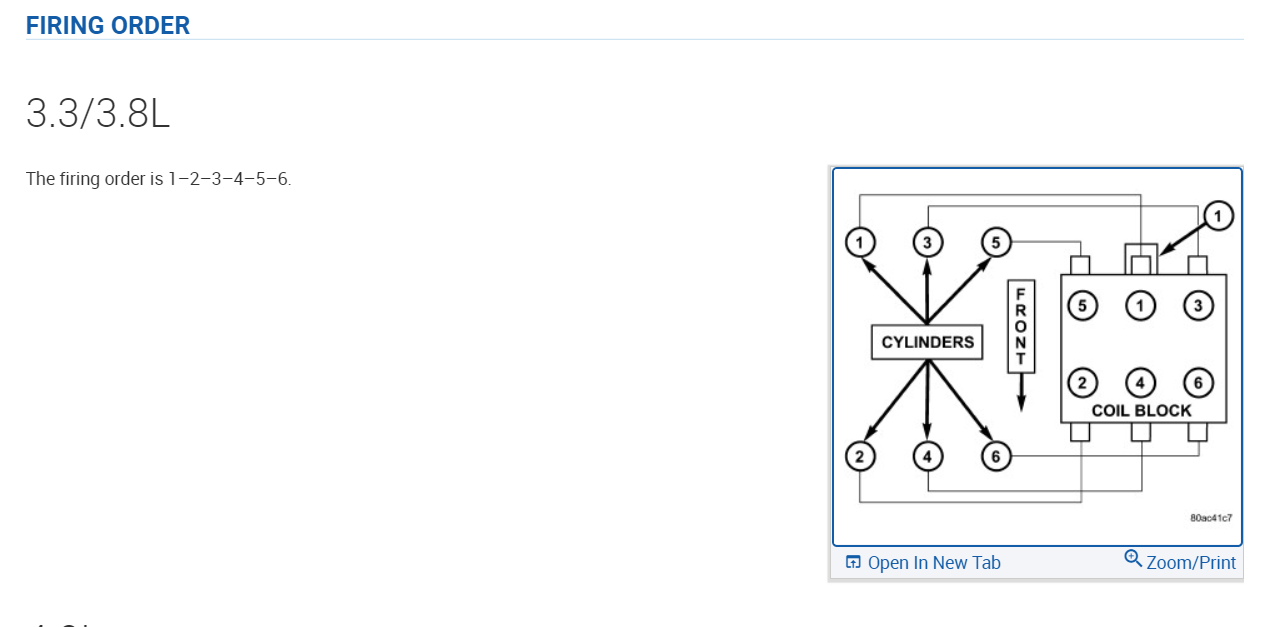

the attached image is for the 3.3 and 3.8 liter engines.
Mar 31, 2013 at 12:06 AM
