locks up again the brake pads are too low

2010 CHRYSLER TOWN AND COUNTRY

50,000 MILES • 3.0L • V6 • 2WD • AUTOMATIC

RBLACKFO

MEMBER
1 POST
FOLLOW

the right rear passengers brake has been locking up. when we stop for a short time it works again for a while then it locks up again the brake pads are too low.

Jun 30, 2014 at 4:31 PM

DANNY L

CERTIFIED EXPERT
5,648 POSTS

Here is the information you requested. Here is a tutorial on how to remove and replace rear brake pads and rotors:

https://www.2carpros.com/articles/how-to-replace-rear-brake-pads-and-rotors

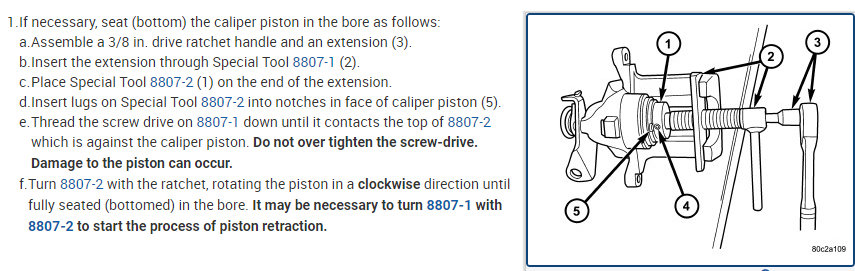

Here is a YouTube video from our site on how to compress the rear caliper piston when performing a rear brake job:

https://youtu.be/j8YwfSKEzZo

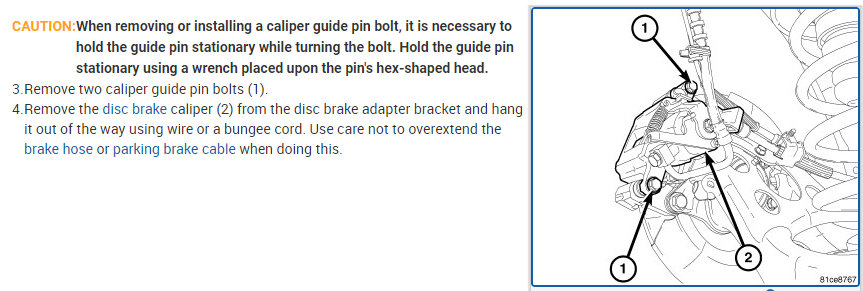

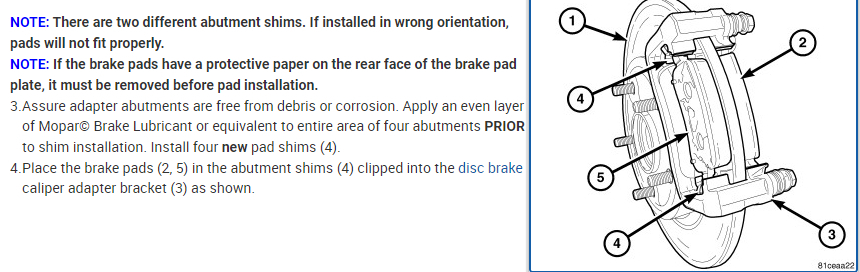

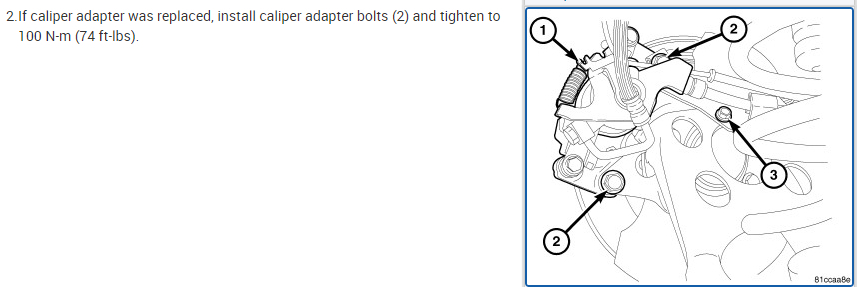

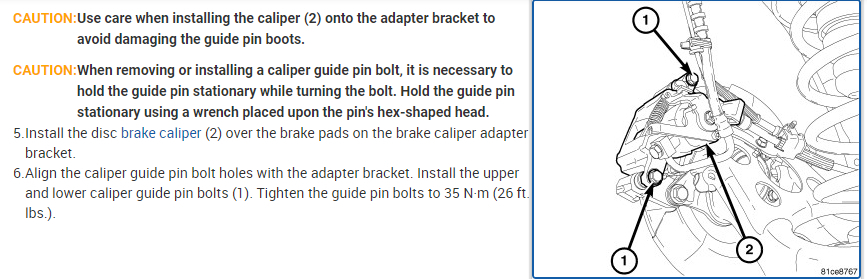

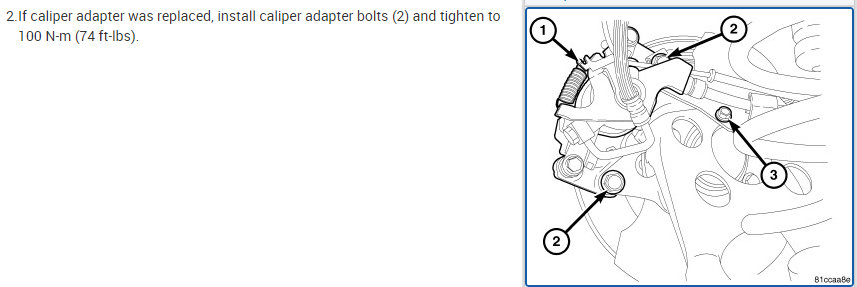

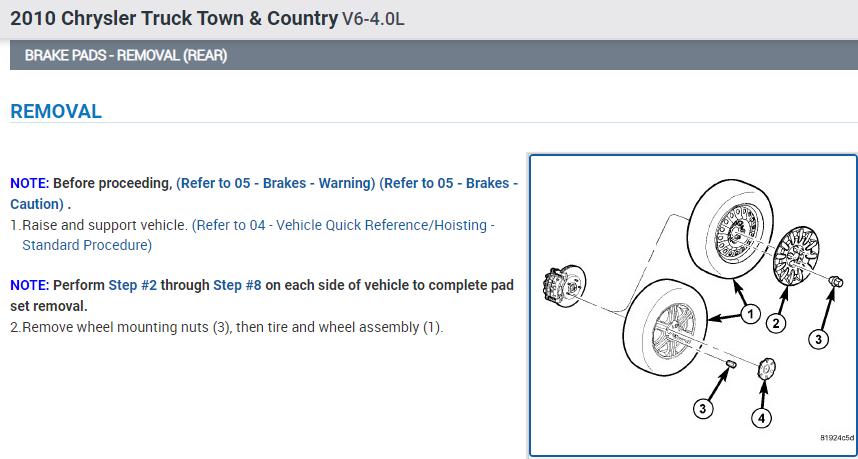

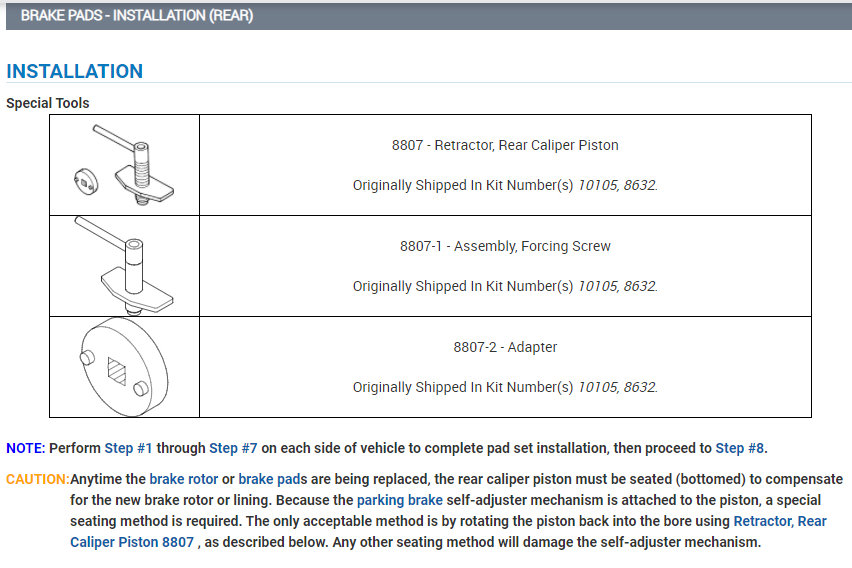

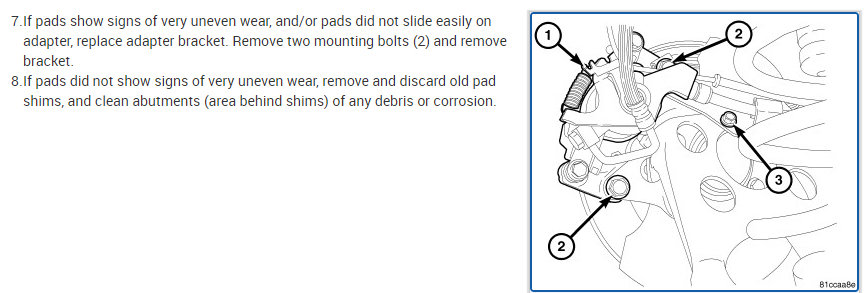

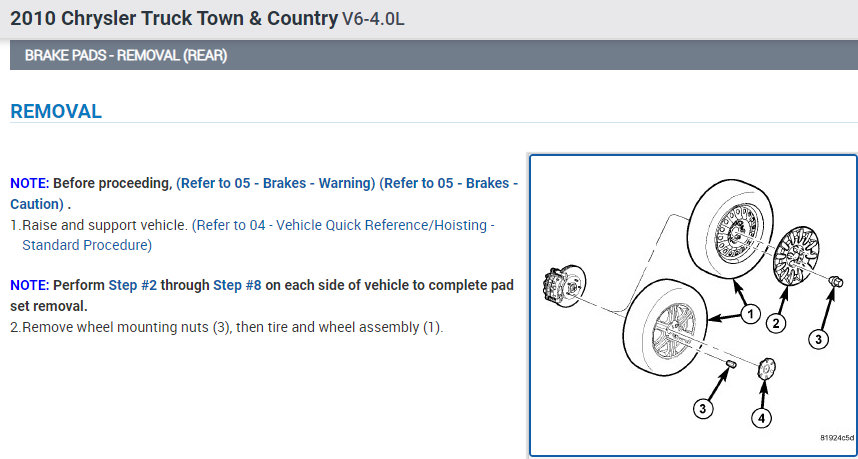

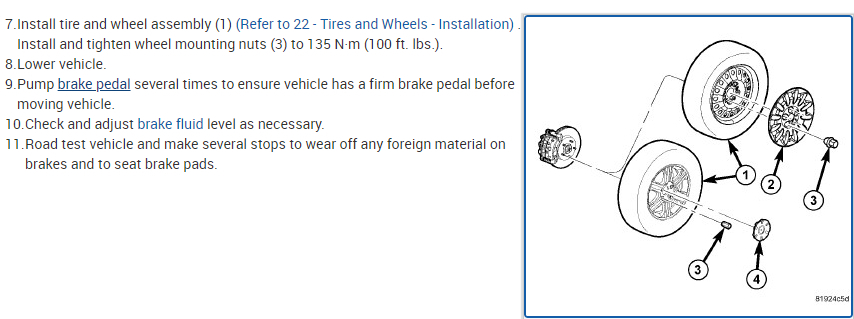

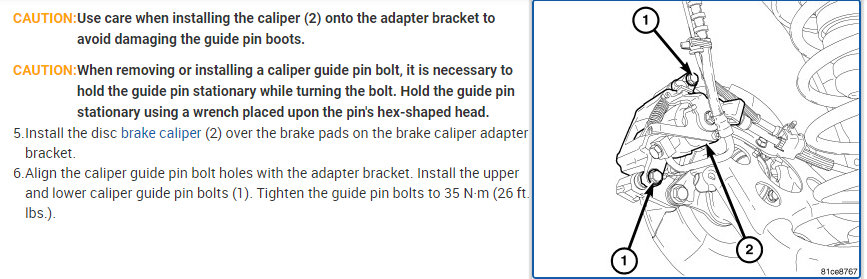

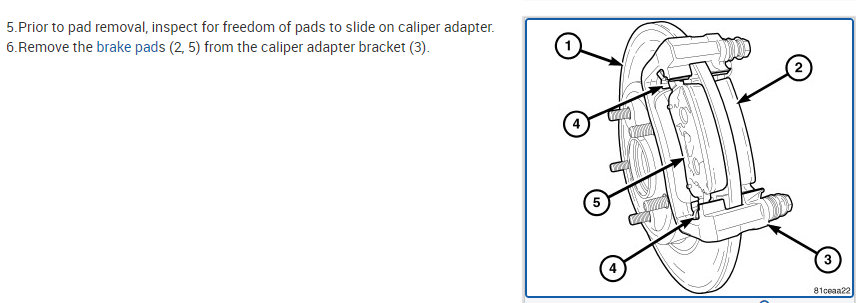

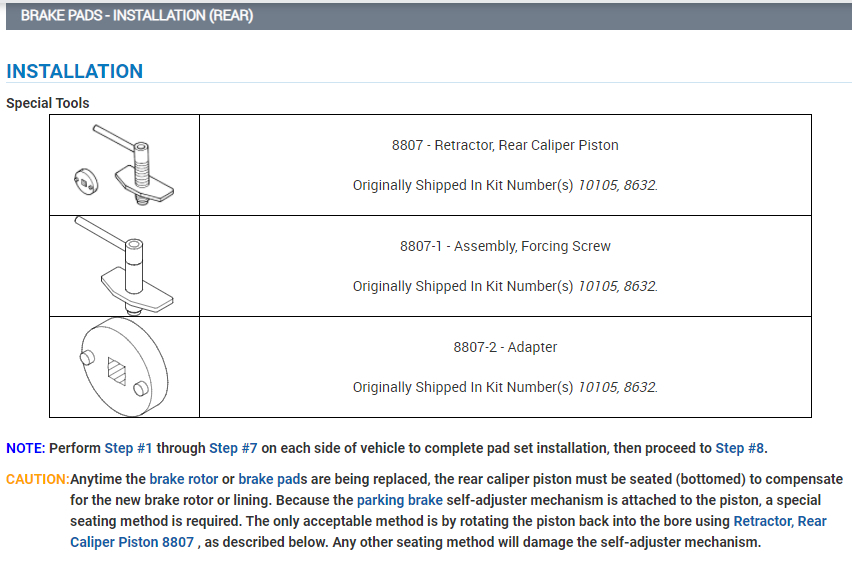

I've attached picture steps below on how to replace the brake pads on your van. Hope this helps and thanks for using 2CarPros.

Images (Click to enlarge)

Mar 15, 2021 at 12:23 PM
