AC blowing hot air

2010 CHEVROLET MALIBU
30,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
JOHN DABBS
  • MEMBER
  • 1 POST
What would make the AC start blowing out hot air in my car. Real hot air comes out of the defrost vent on the inside of windshield only no matter how the controls are set.
Mar 16, 2011 at 8:34 PM
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
This sounds like you have a mode actuator that is not working. Here is a guide that will show you what you are in for when changing it along with the locations for your car below:

https://www.2carpros.com/articles/replace-blend-door-motor

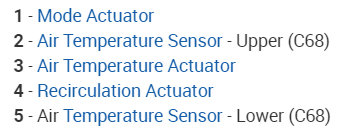

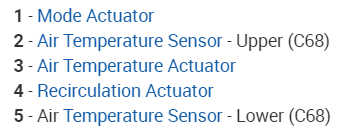

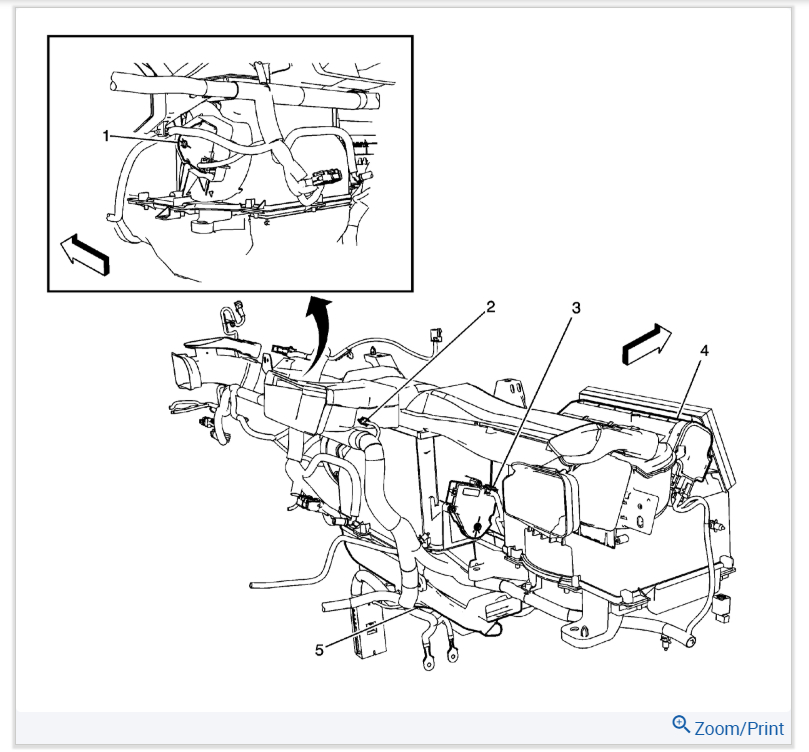

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Mar 16, 2011 at 8:37 PM
Avatar
HLACEFIELD
  • MEMBER
  • 1 POST
Yep, it cost me $56.00 for the actuator and took a bit to install but it works great now. Thanks for the guides.
Jul 21, 2018 at 3:54 PM
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
Thank You for reply come again and tell a friend
Jul 22, 2018 at 2:33 PM
