transfer case

2010 CHEVROLET EQUINOX

60,000 MILES • 3.0L • 6 CYL • AWD • AUTOMATIC

HAIDERTALIB

MEMBER
11 POSTS
FOLLOW

dear sir

i don't how to specify the problem in the transfer system, but simply when giving to "R" the whole car make delay than hit herself to back and not in normal way .
until now i didn't take it to the service , but i ask some service man and they told me you have to change the transfer case filter and some of them they say change the hydraulic lubricant .

i hope you can help me about this problem

Sep 21, 2014 at 6:25 AM

HMAC300

CERTIFIED EXPERT
48,601 POSTS

Hello,

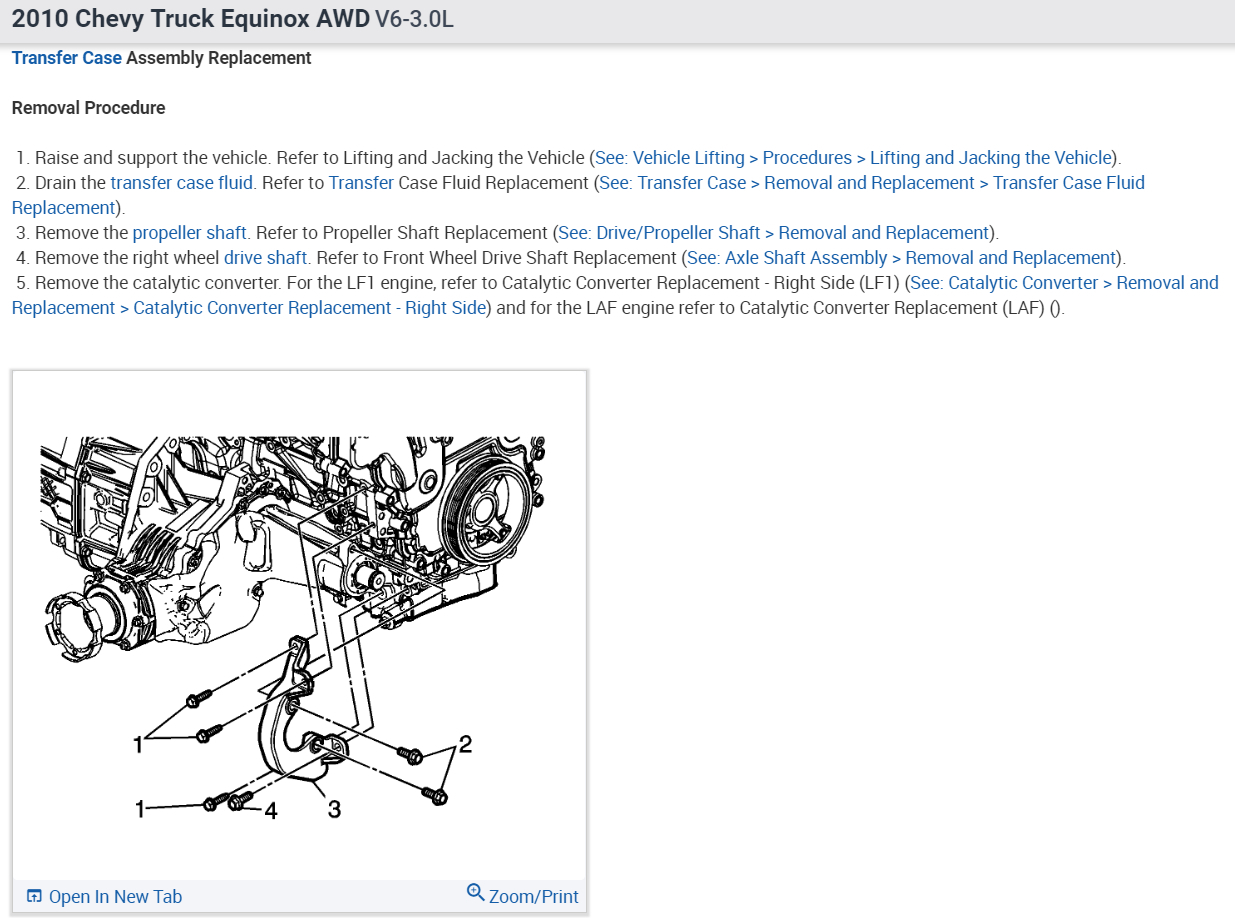

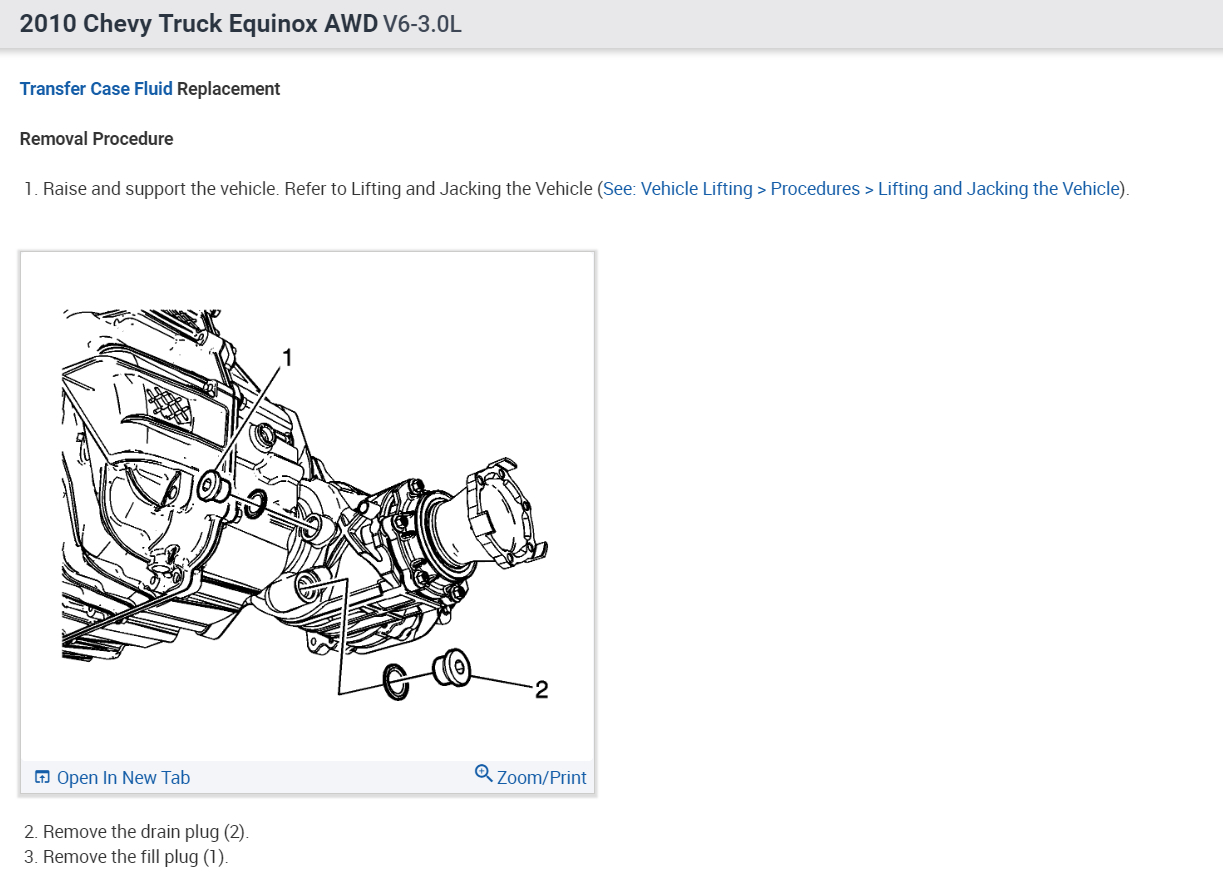

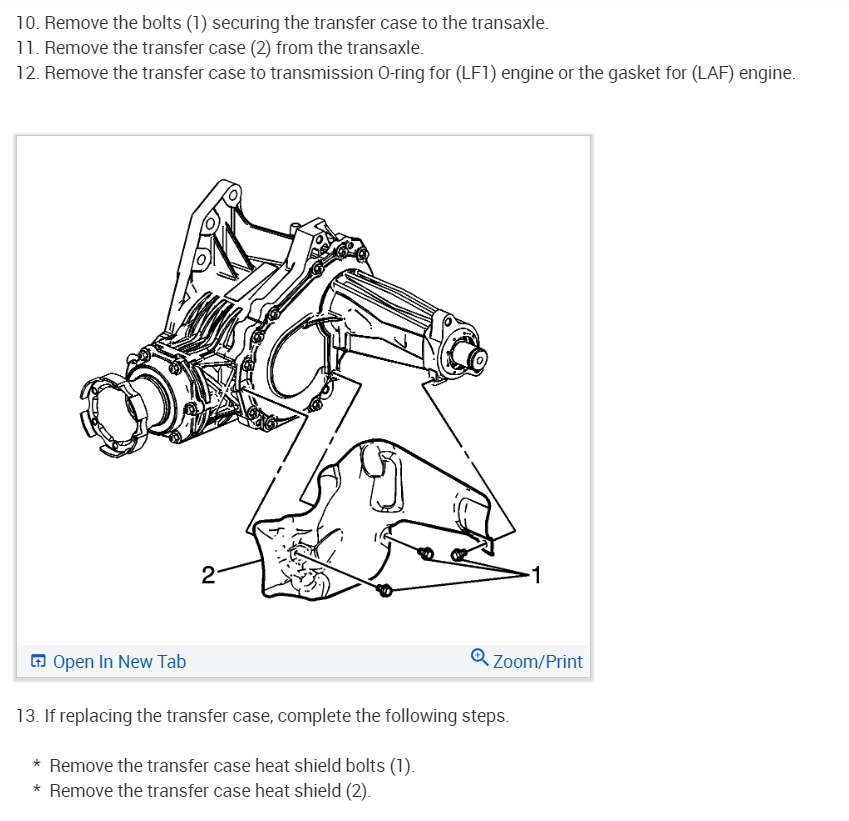

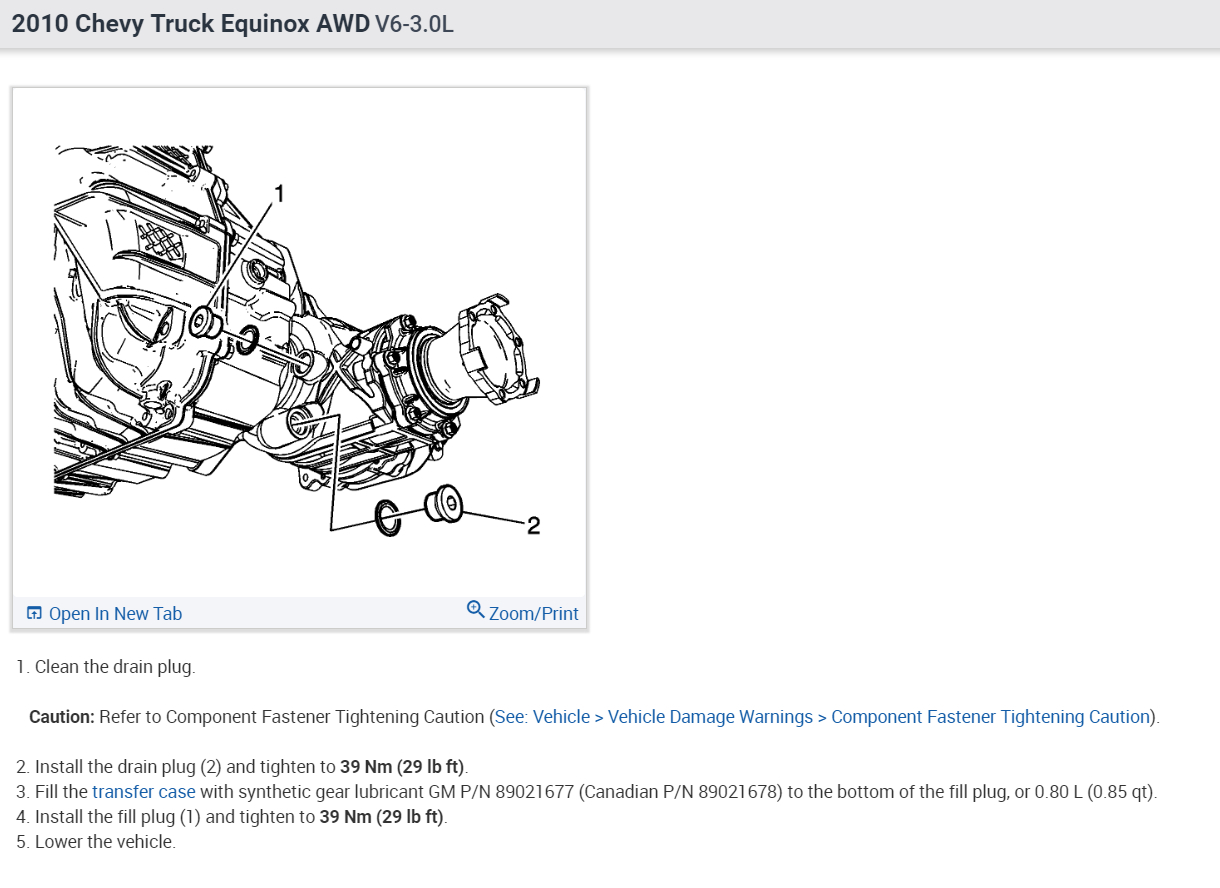

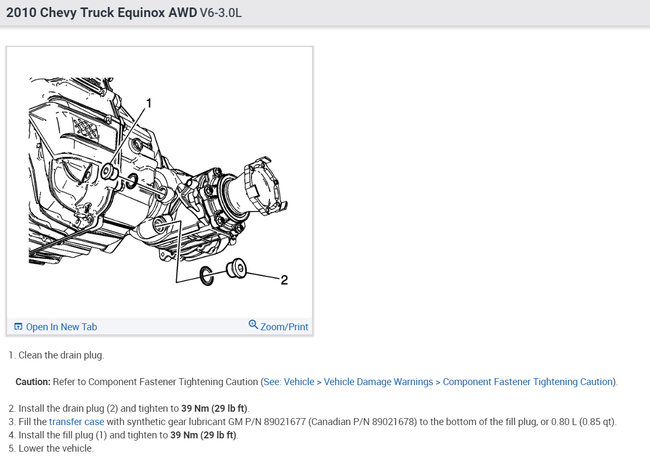

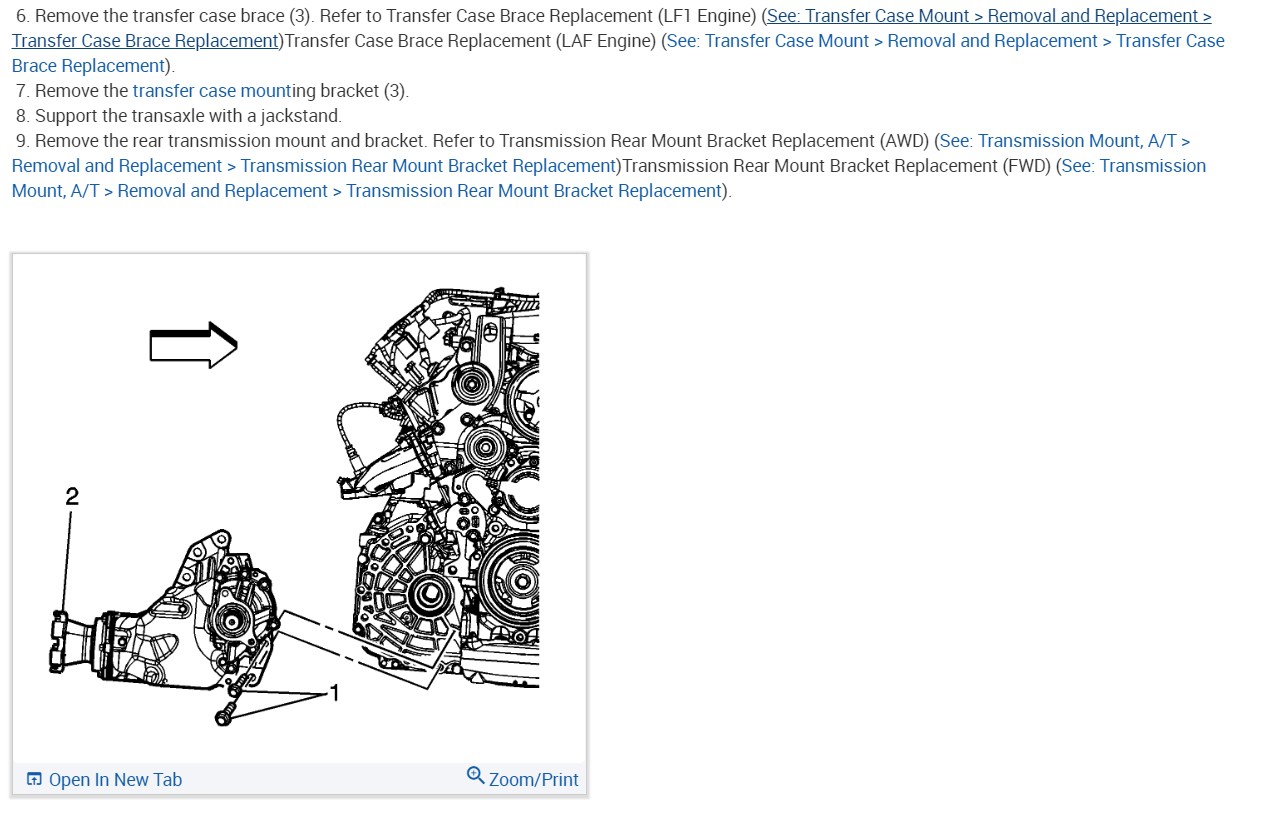

It could be the fluid or the transfer case itself let go and needs to be rebuilt here are instructions and diagrams to help you service the transfer case and remove it if necessary.

Fluid Types
Getrag 760 - Transfer Case

TRANSFER CASE (POWER TRANSFER UNIT)

SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 89021677, in Canada 89021678) meeting GM Specification 9986115.
Capacities
Getrag 760 - Transfer Case

Getrag 760 .................... 1.0 liters (1.06 quarts)

NOTE: All capacities are approximate. When adding, be sure to fill to the approximate level. Recheck fluid level after filling.

Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.

Images (Click to enlarge)

Sep 21, 2014 at 2:51 PM
