Secondary air injection pump

Hello

Here is a guide to help you check the #5 fuse when you find it in the diagrams below

https://www.2carpros.com/articles/how-to-check-a-car-fuse

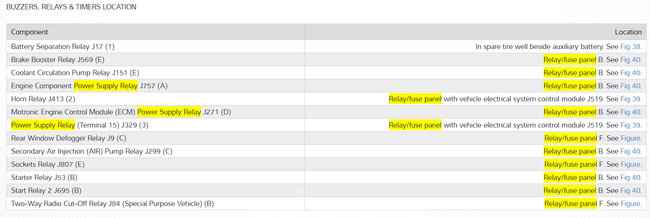

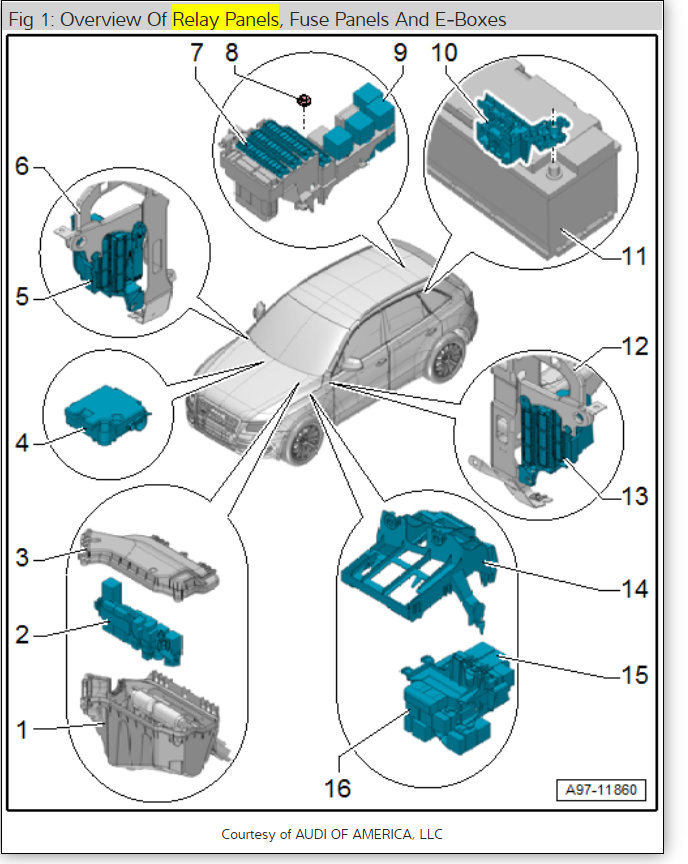

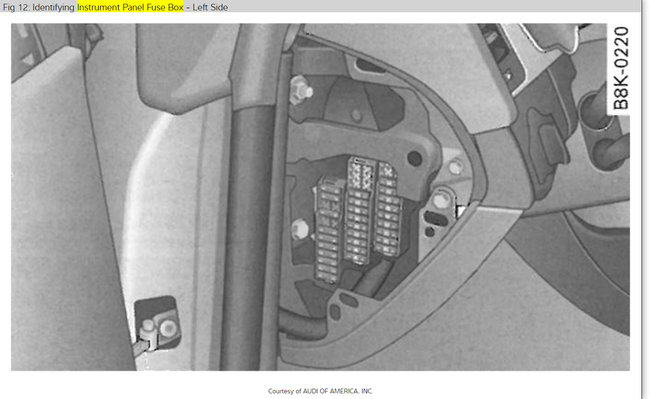

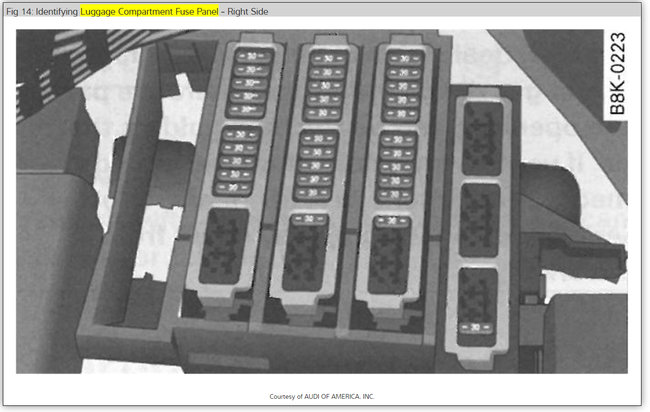

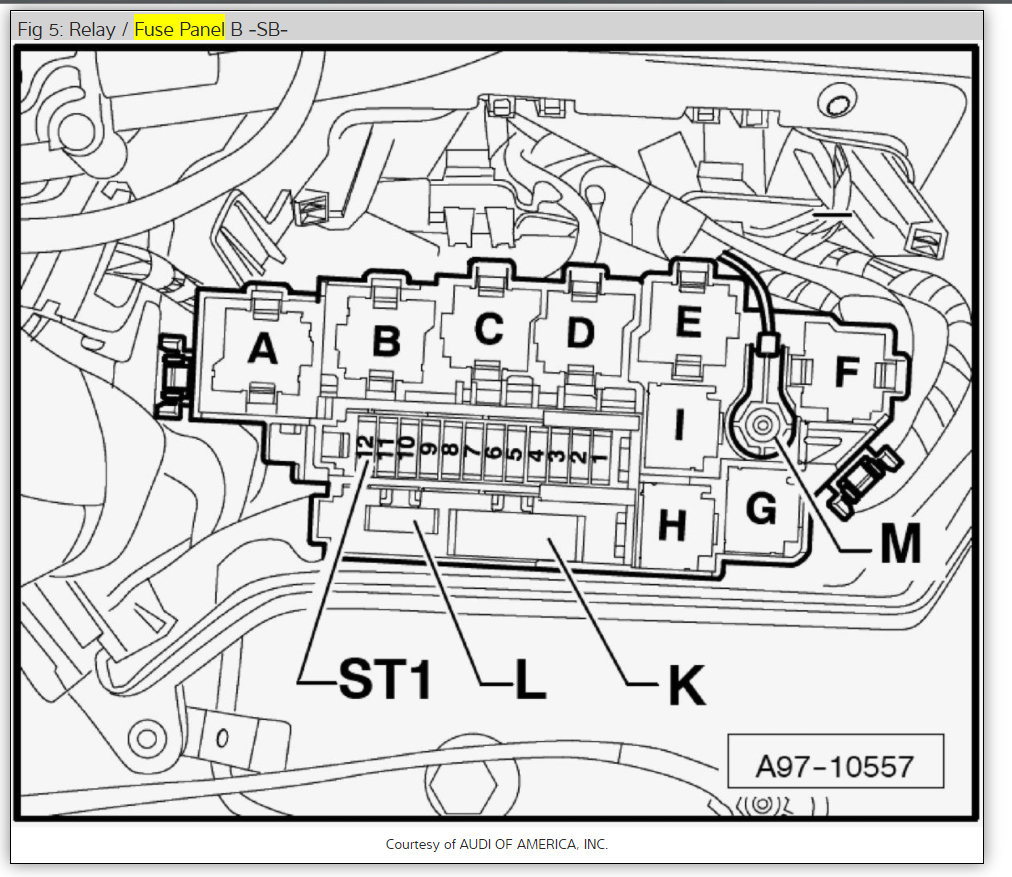

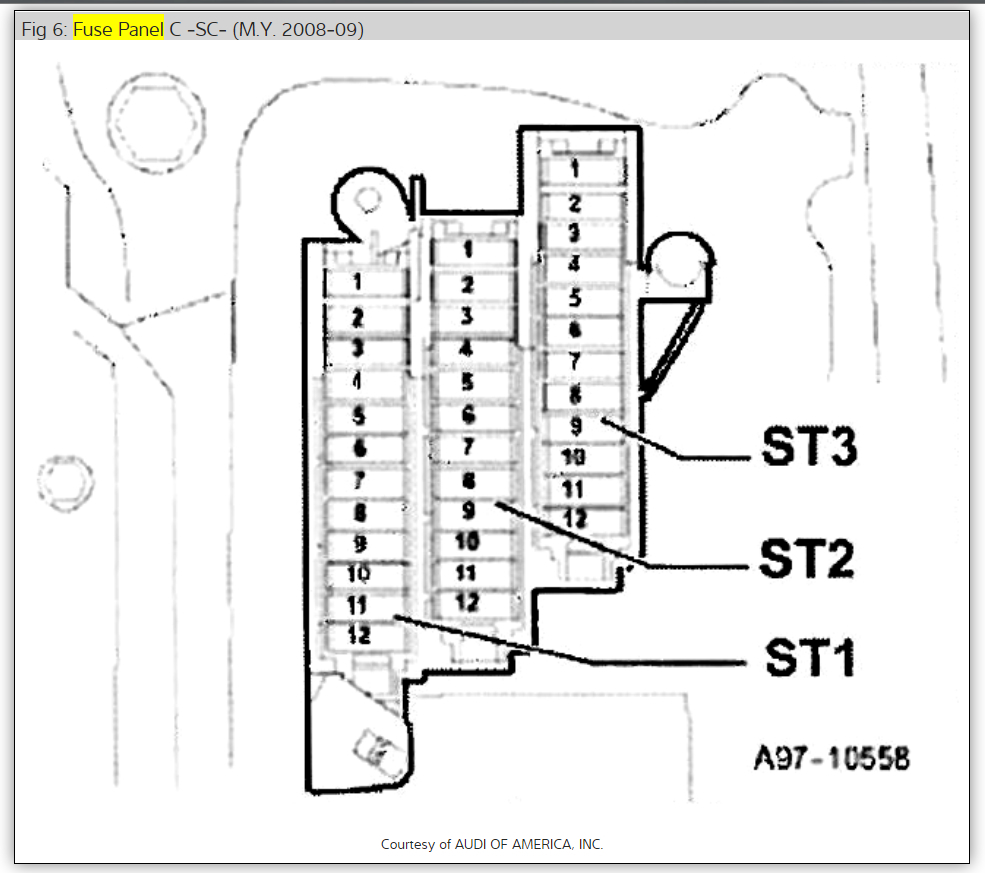

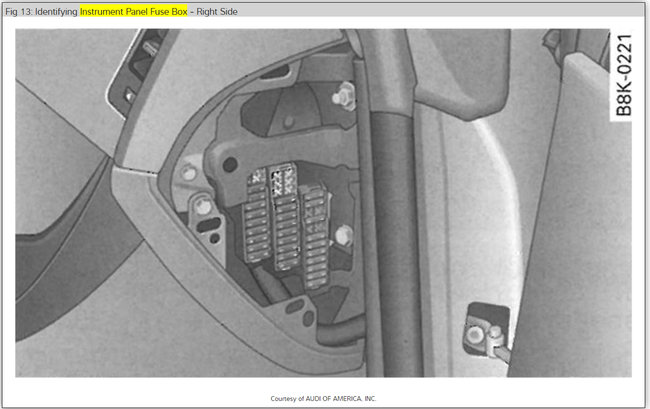

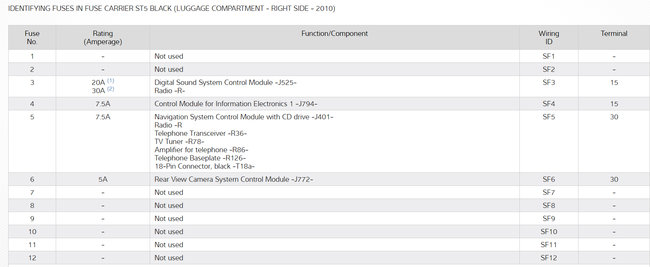

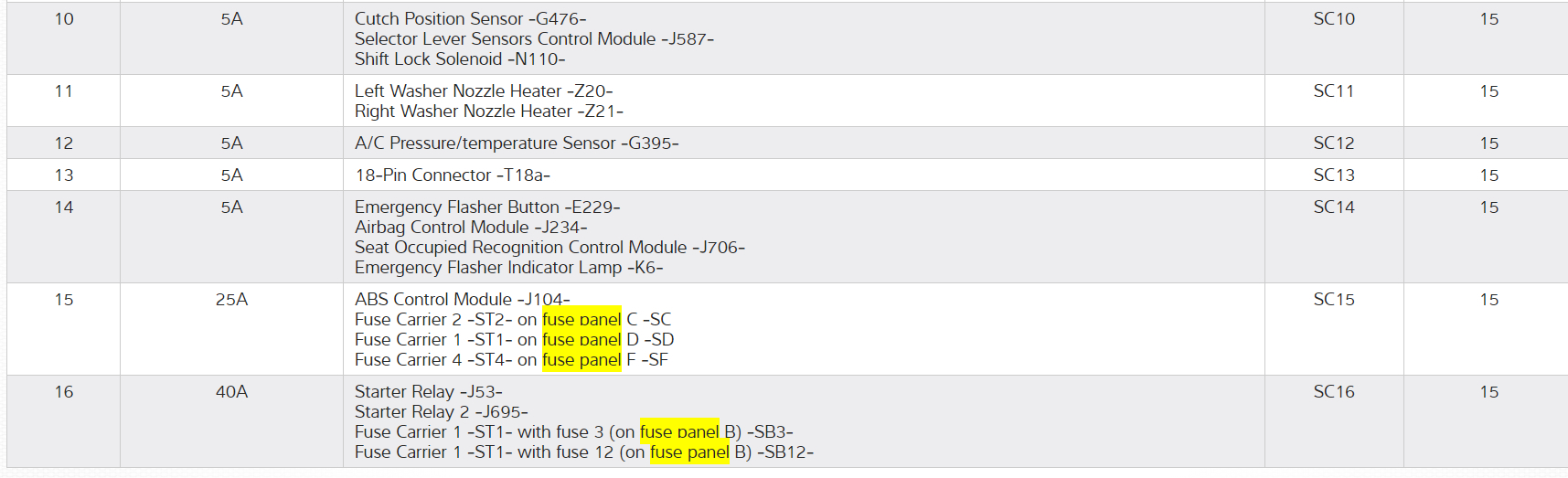

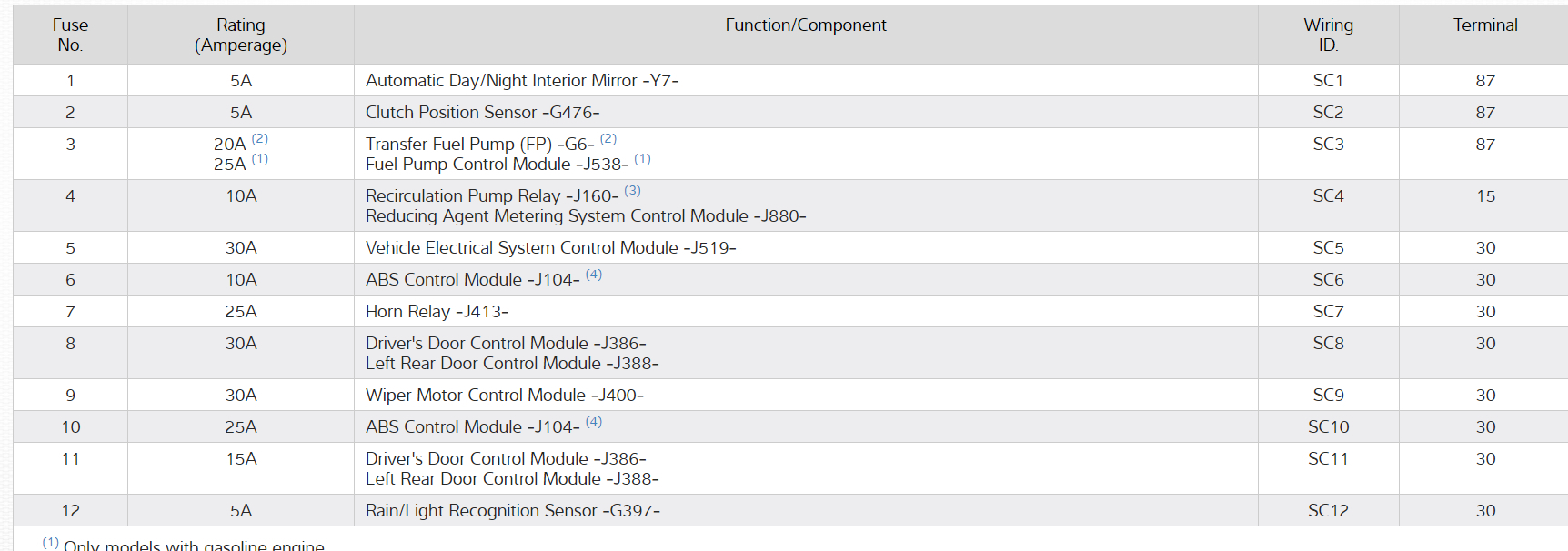

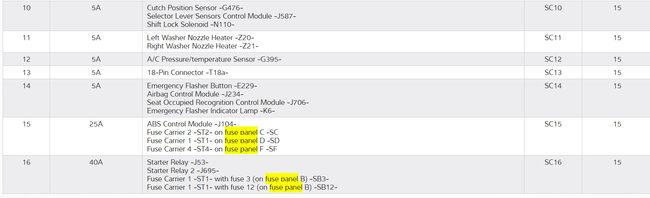

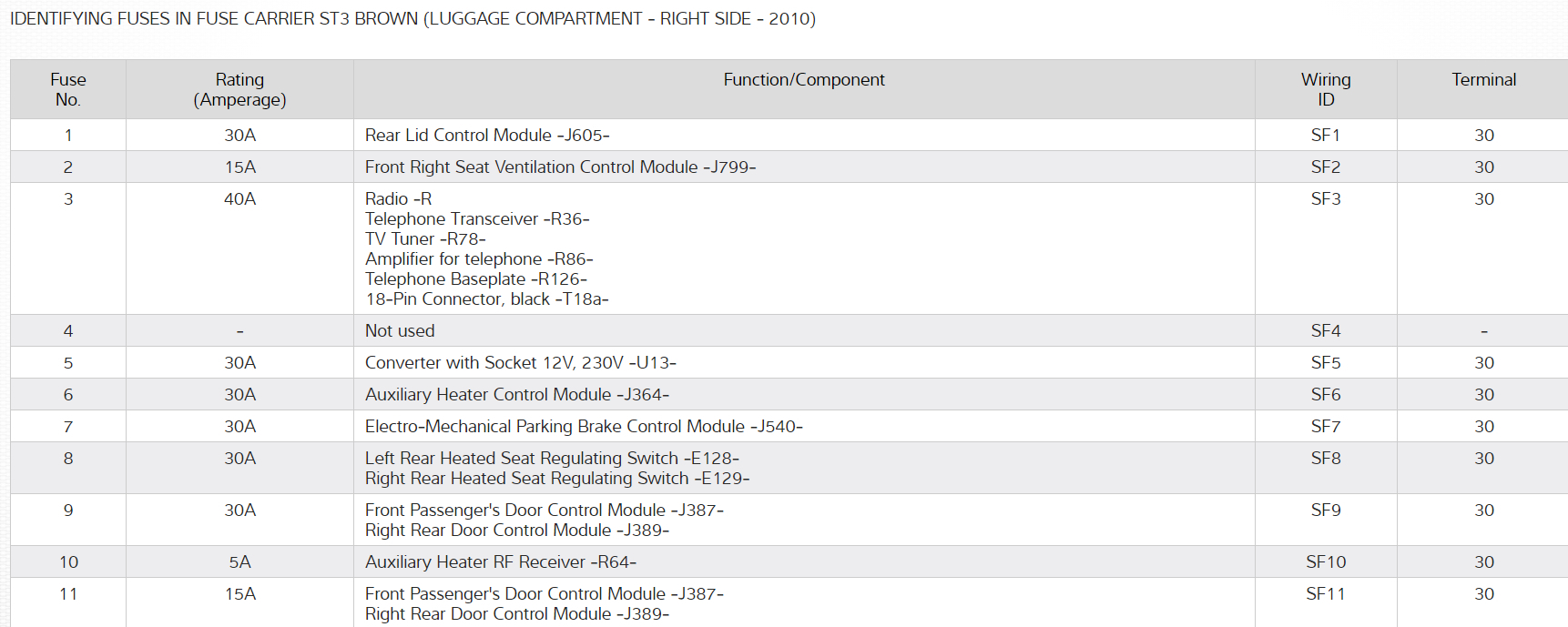

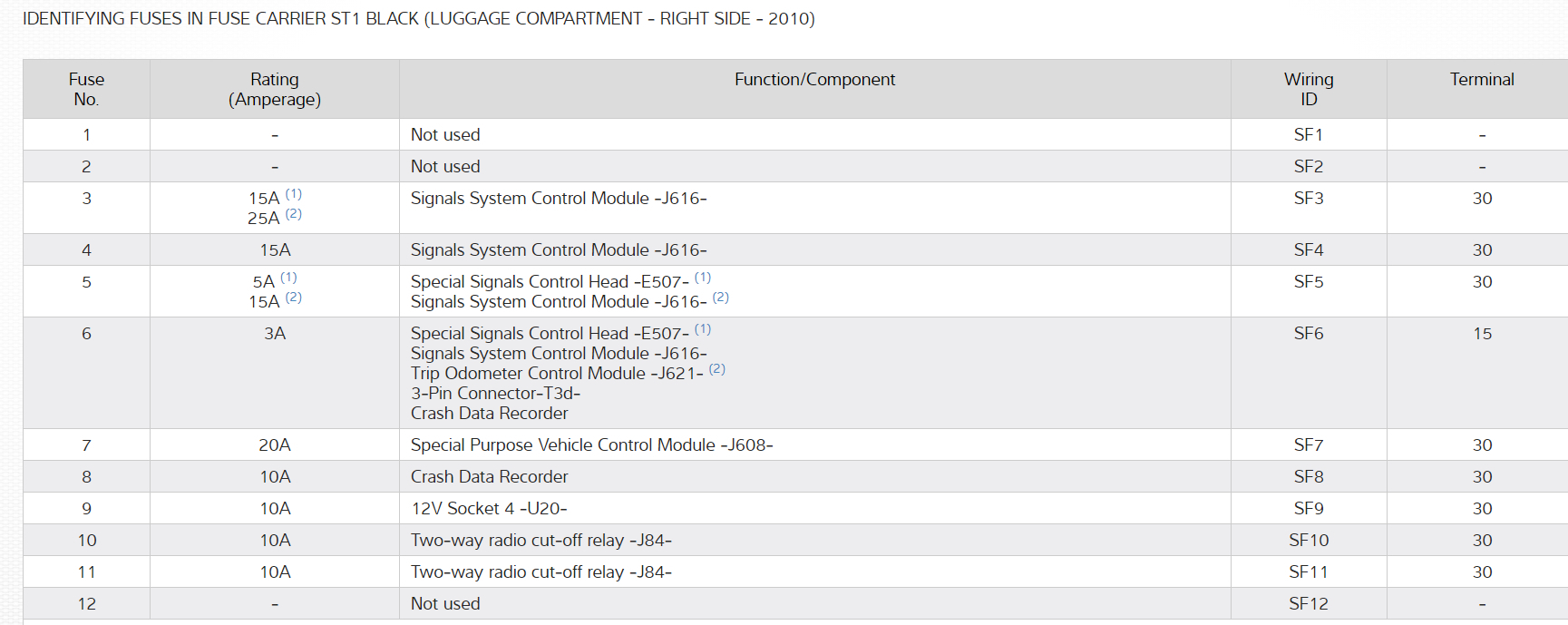

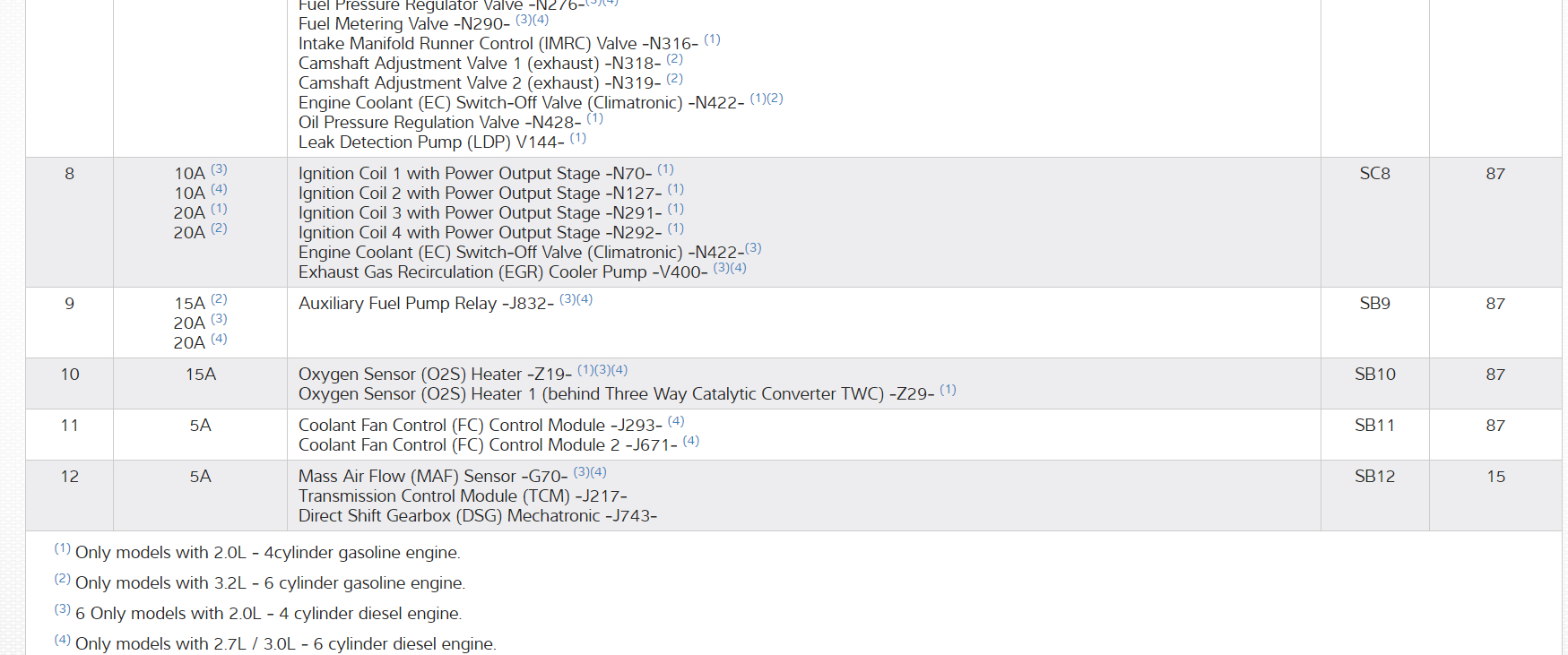

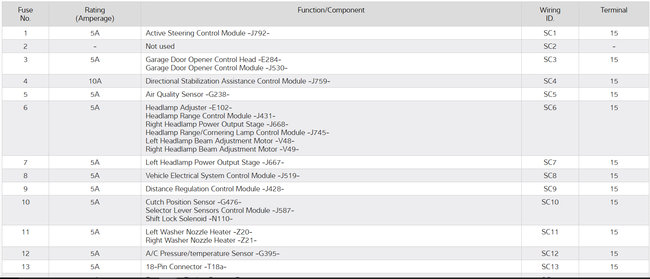

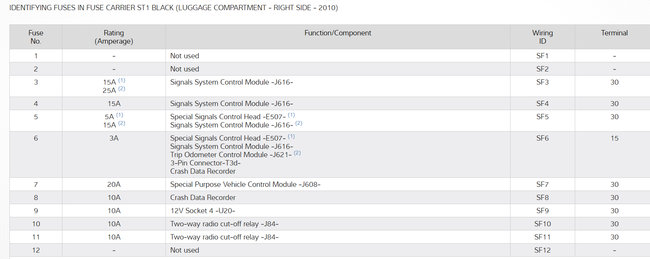

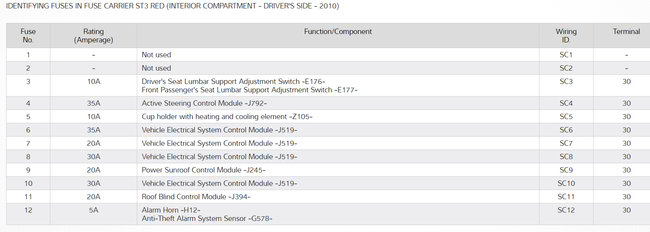

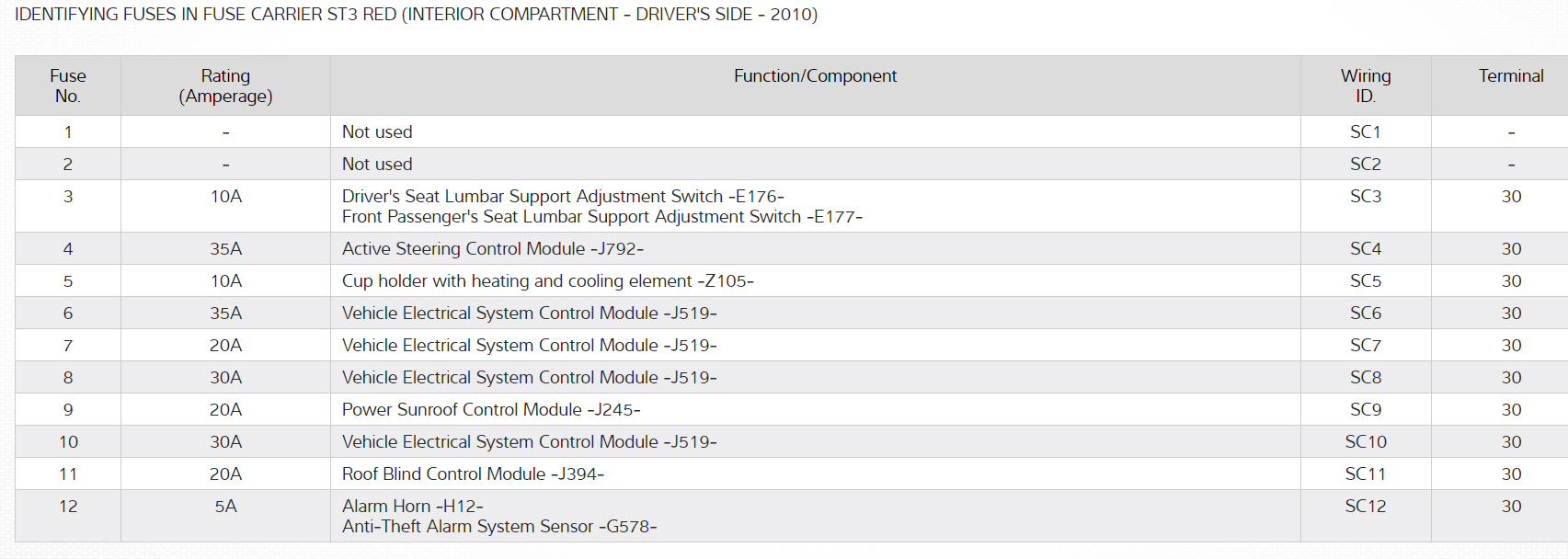

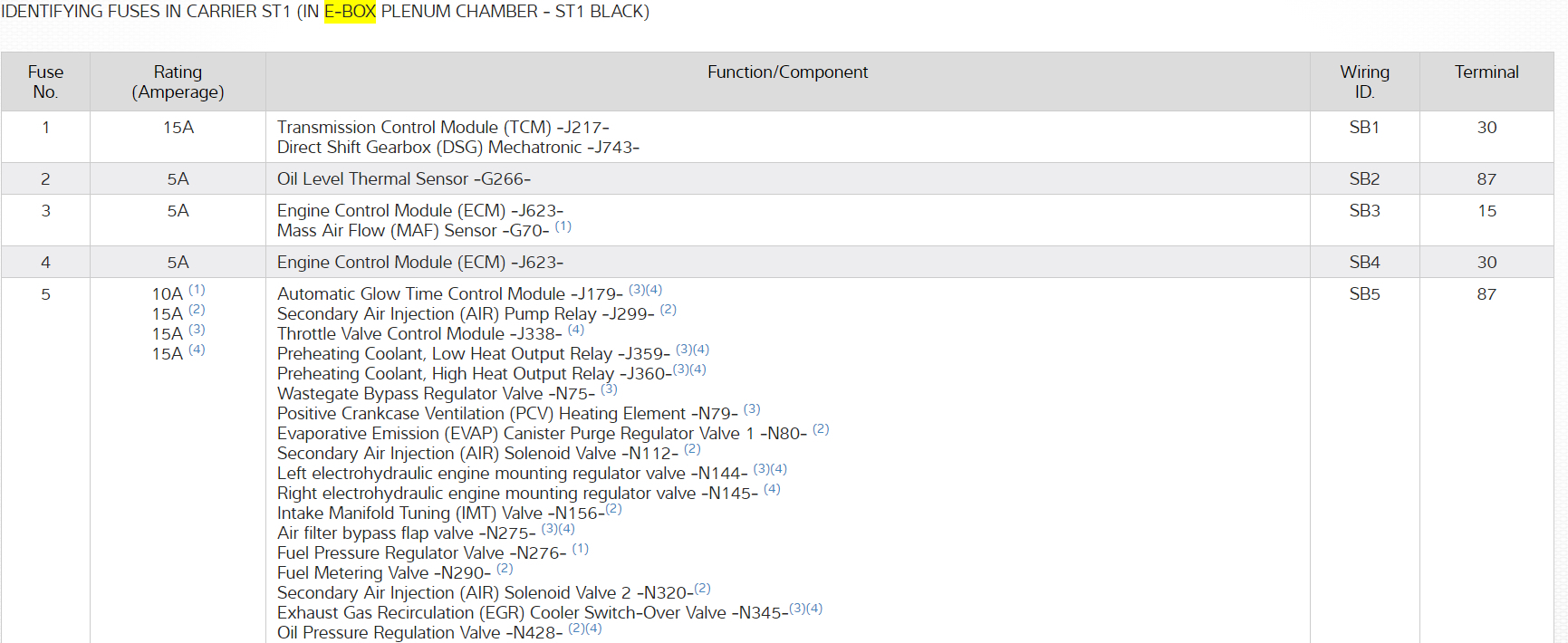

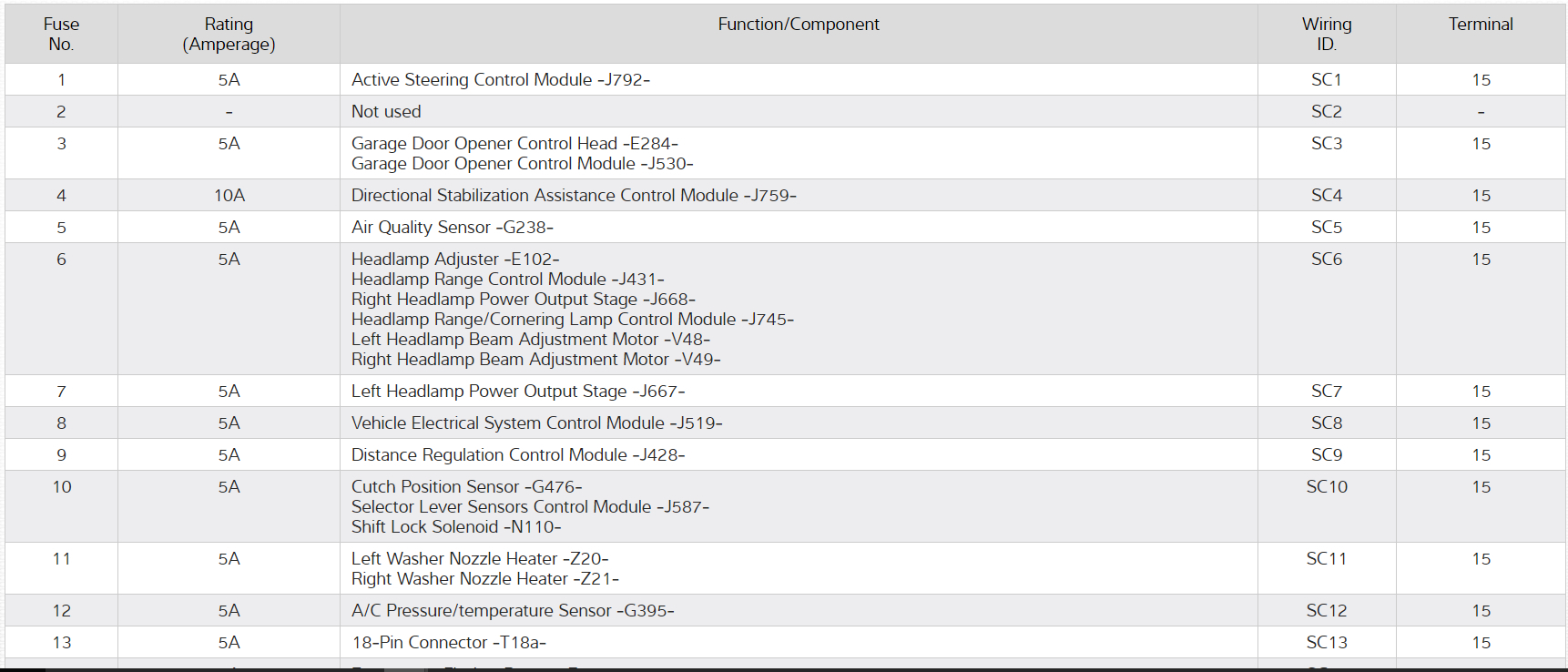

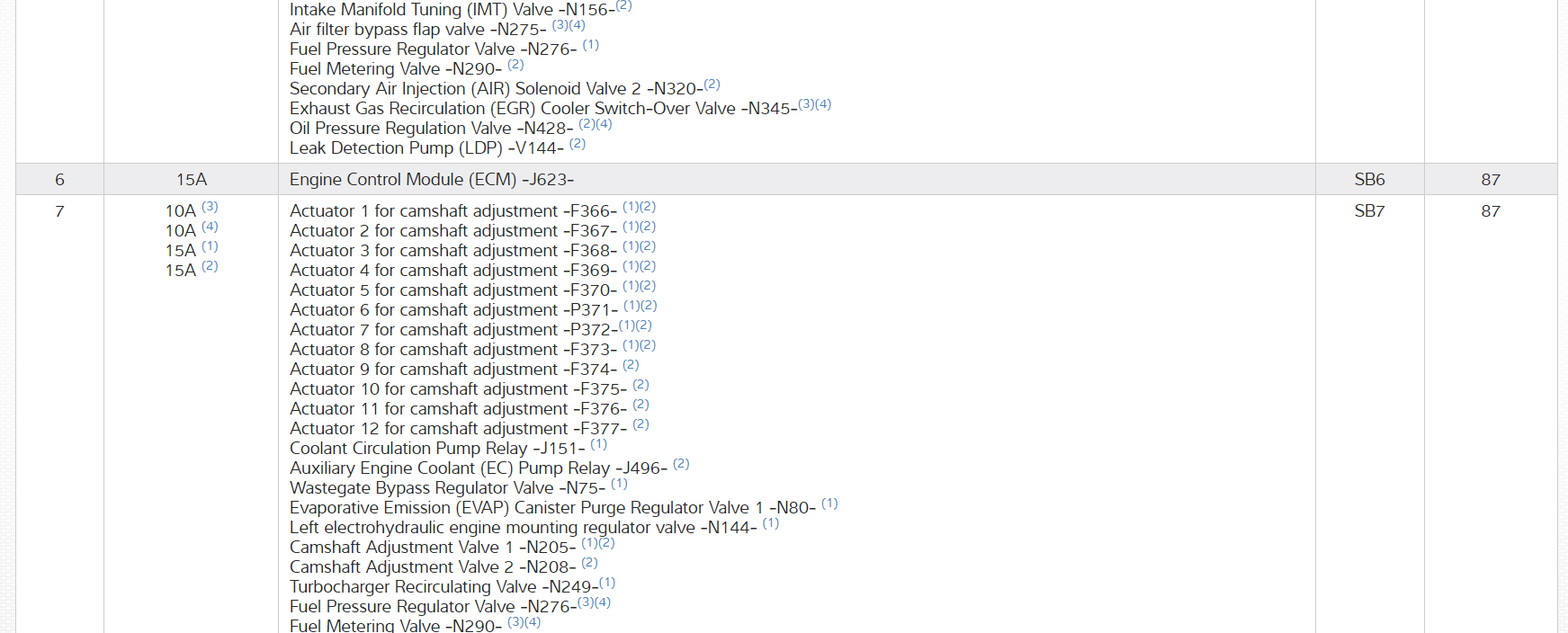

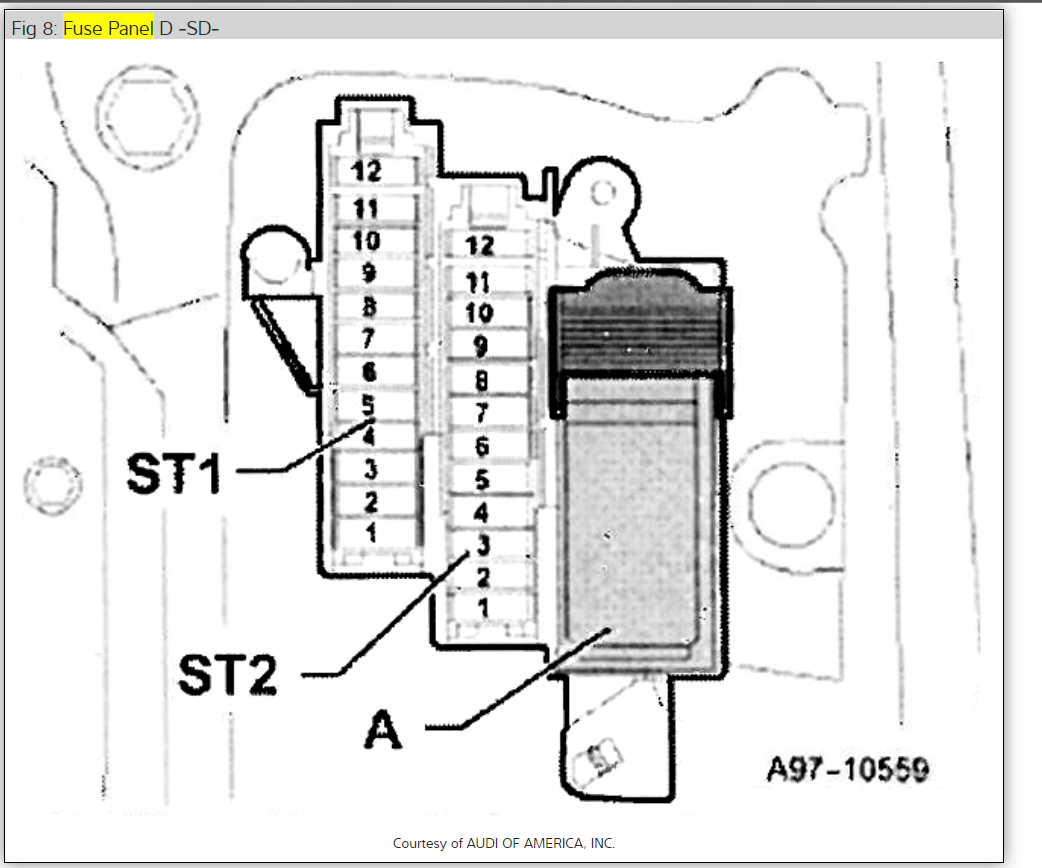

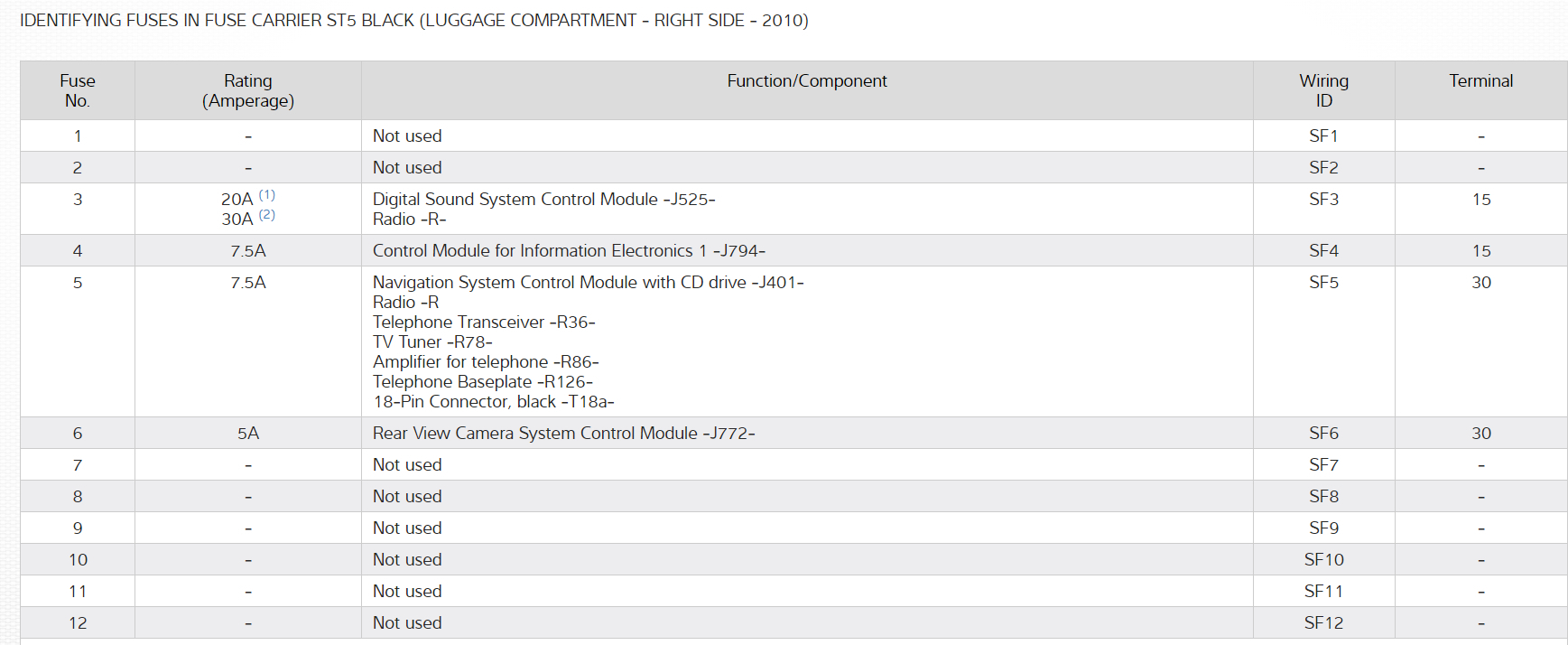

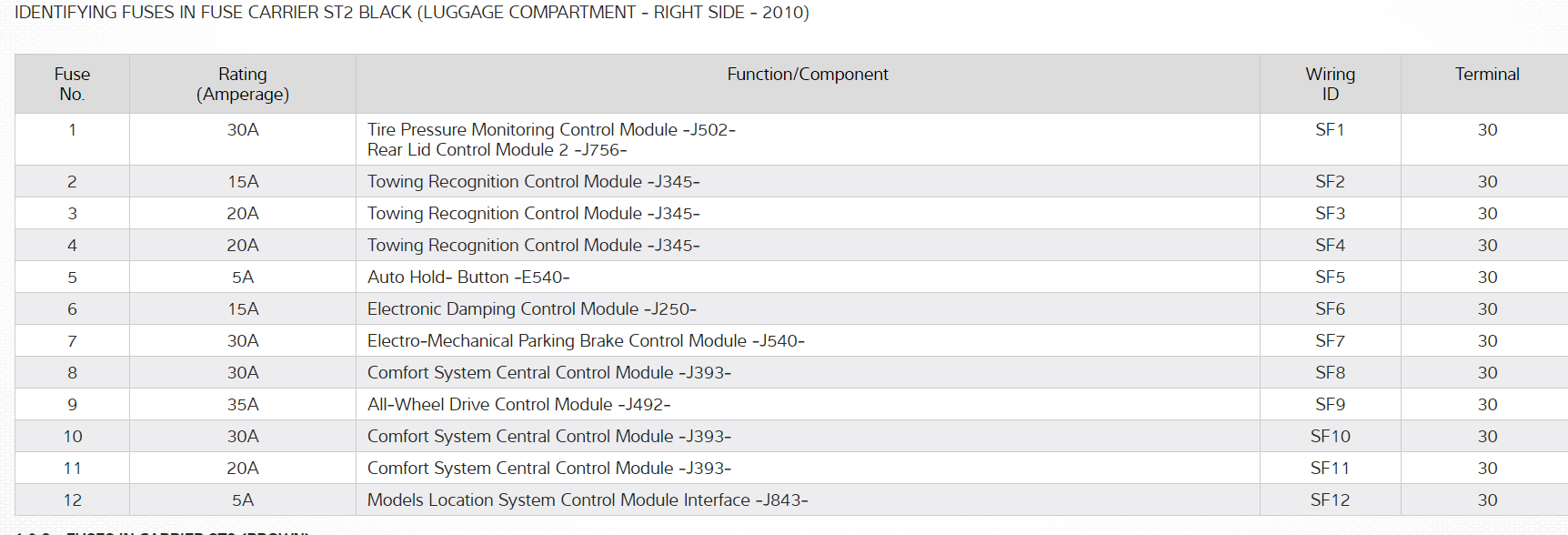

Here are the many fuse box and identification (below) I would save this page for future reference.

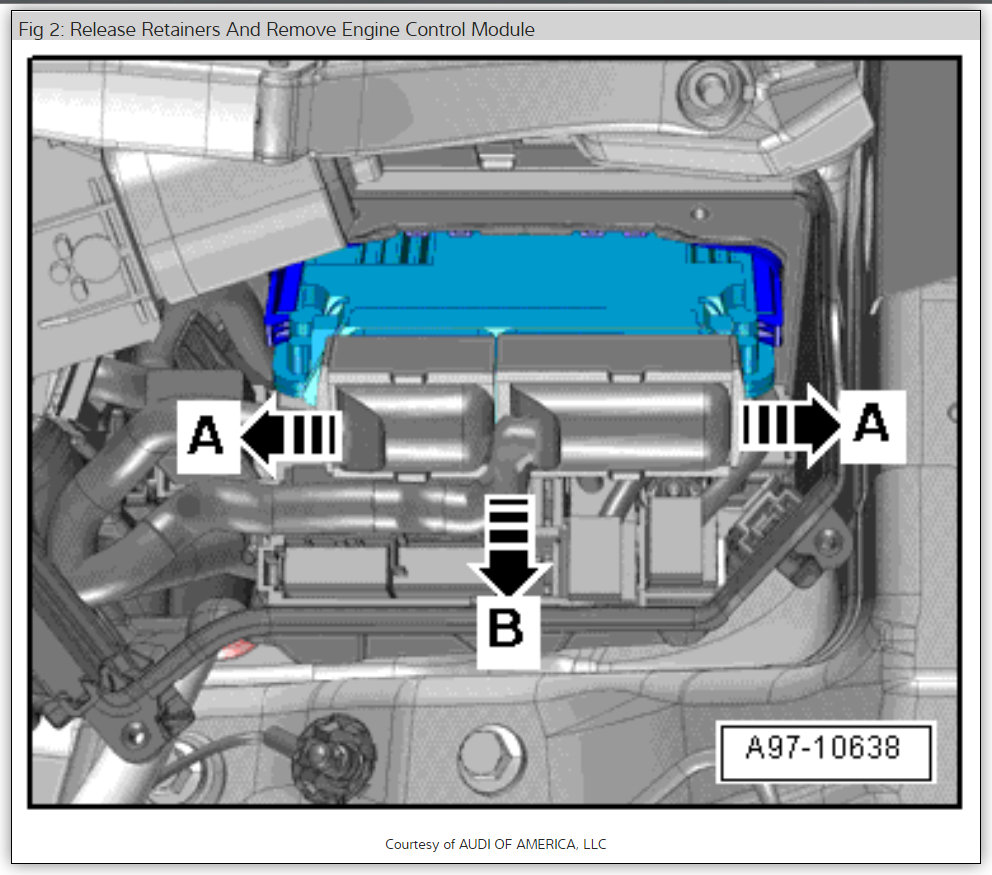

Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken

Great site!

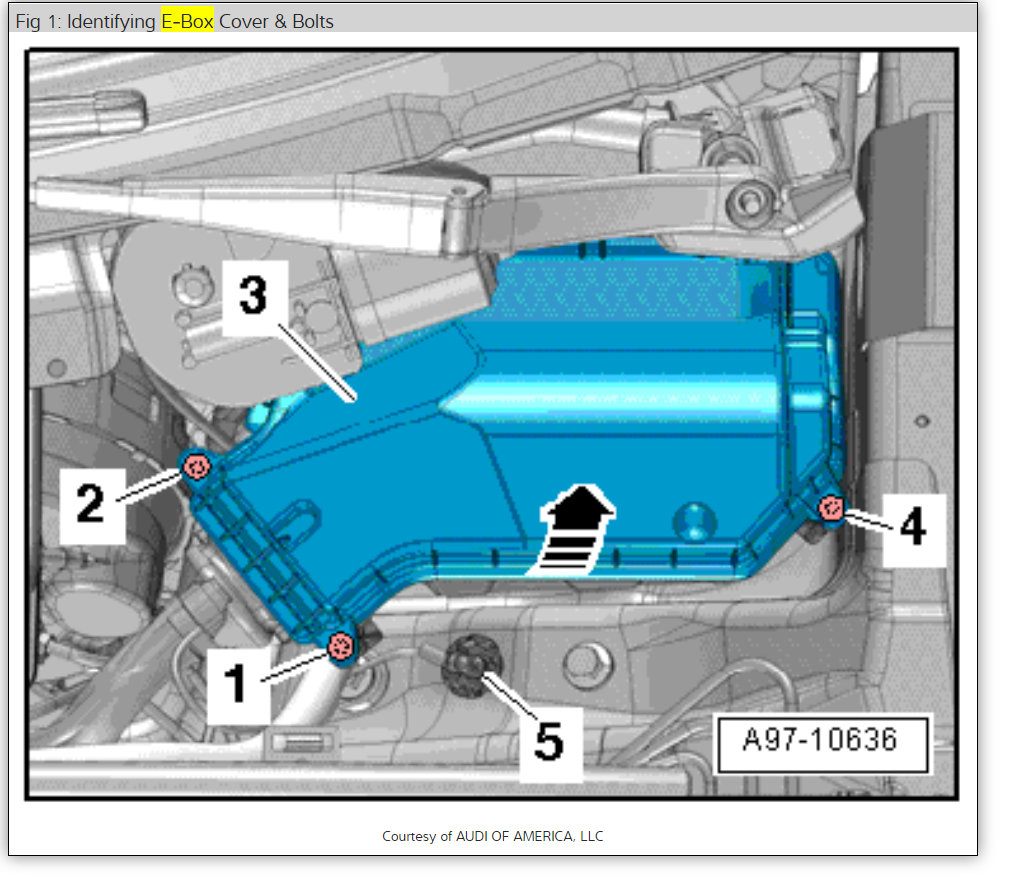

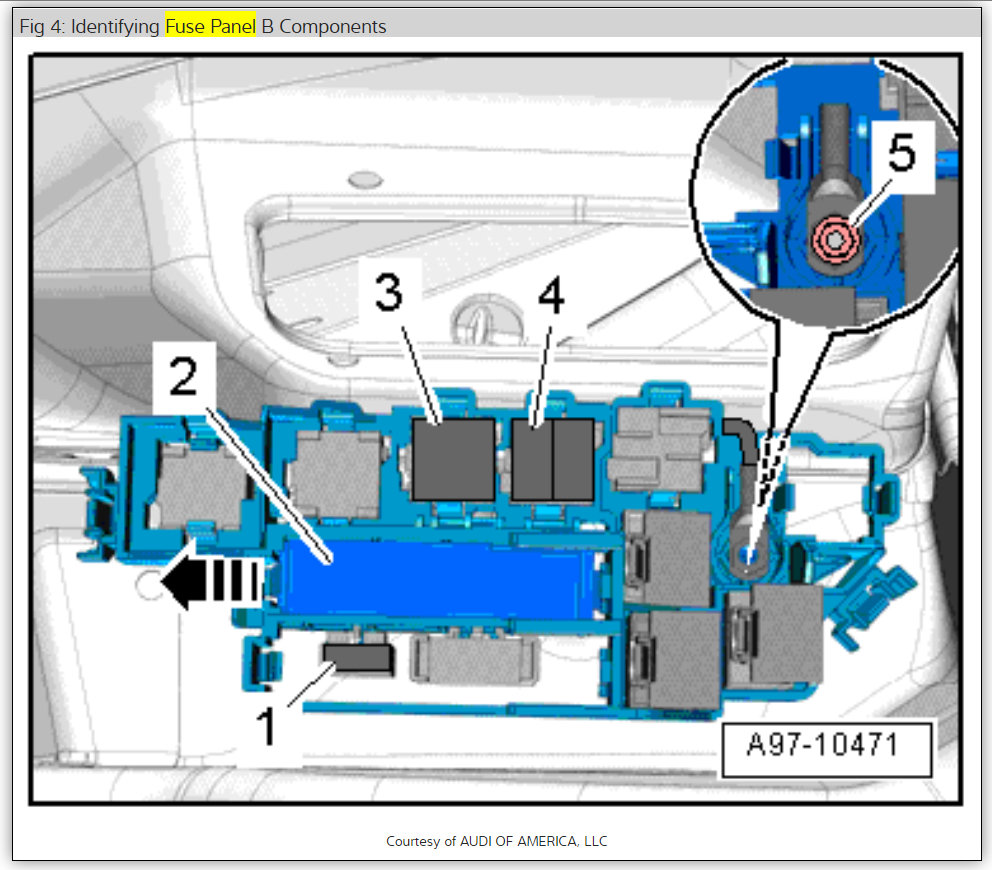

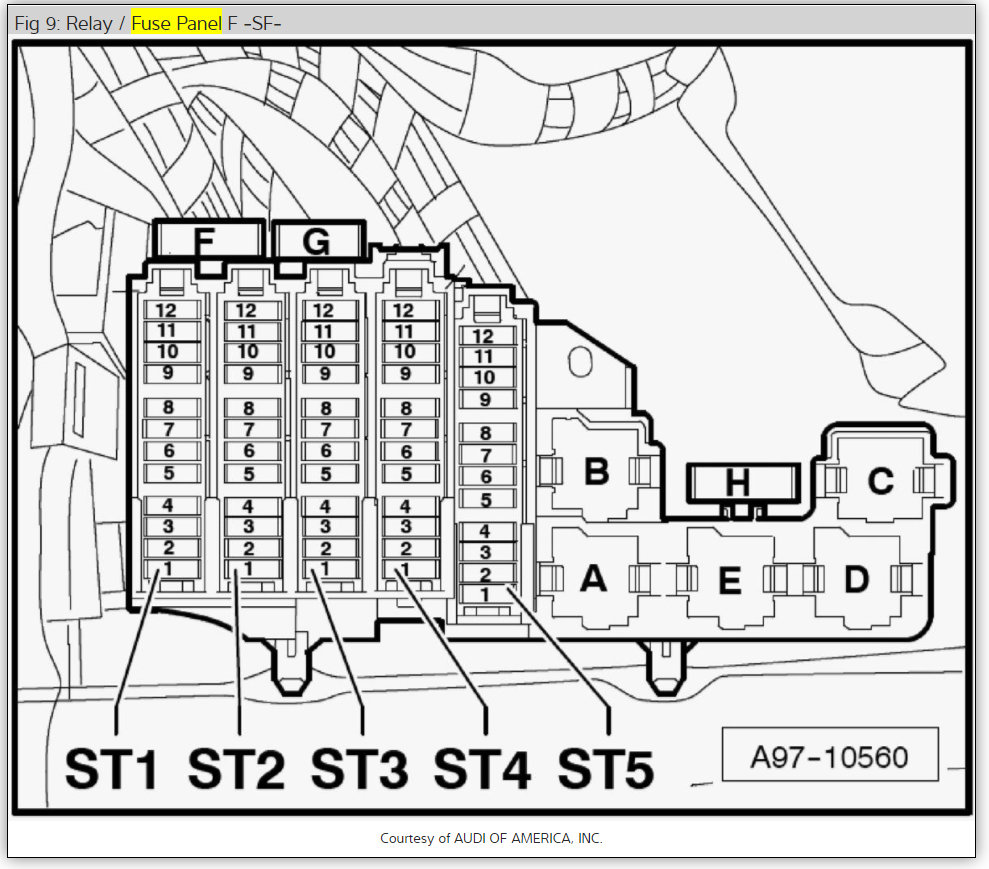

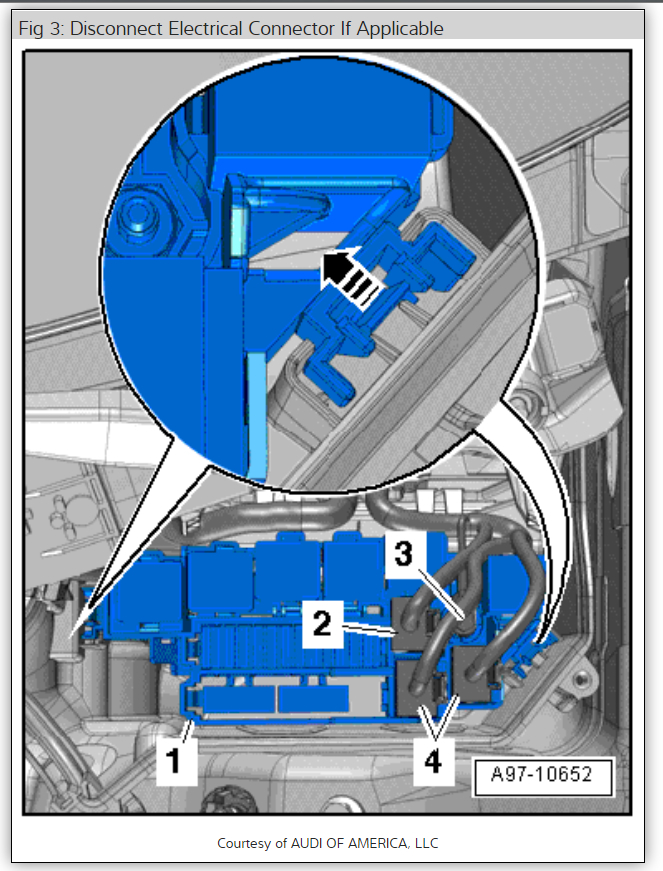

Thanks Thomas, I found the relay and fuse panel, you have to remove a very large cowl cover and the washer fluid reservoir filler neck to get at it. There are 3 relays and no identification diagram so I'm not sure which one it is and have never tested a relay before. Any idea where to find.a fuse box diagram for the Q5? Thanks again.
Fred

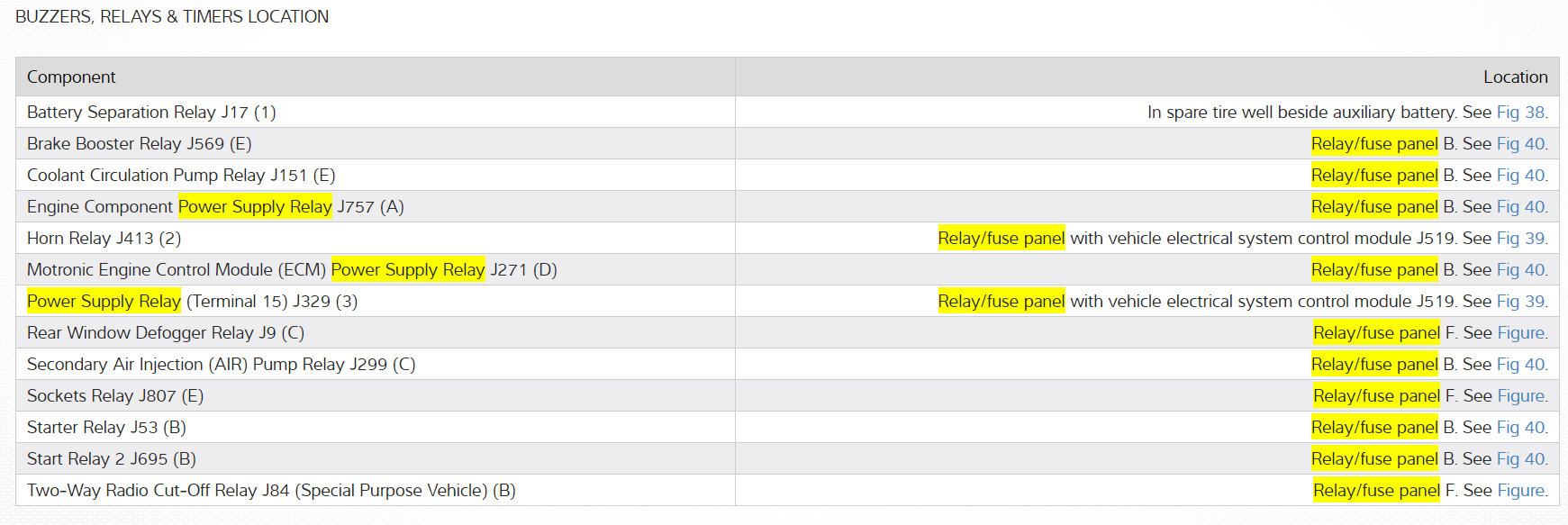

Got you covered with an updated post check it out above.

I have a Audi Q5 2010 it showing a code p2432. I am looking to fine the location for the secondary air injection pressure sensor goes in the car. i have look all over. can some help please?

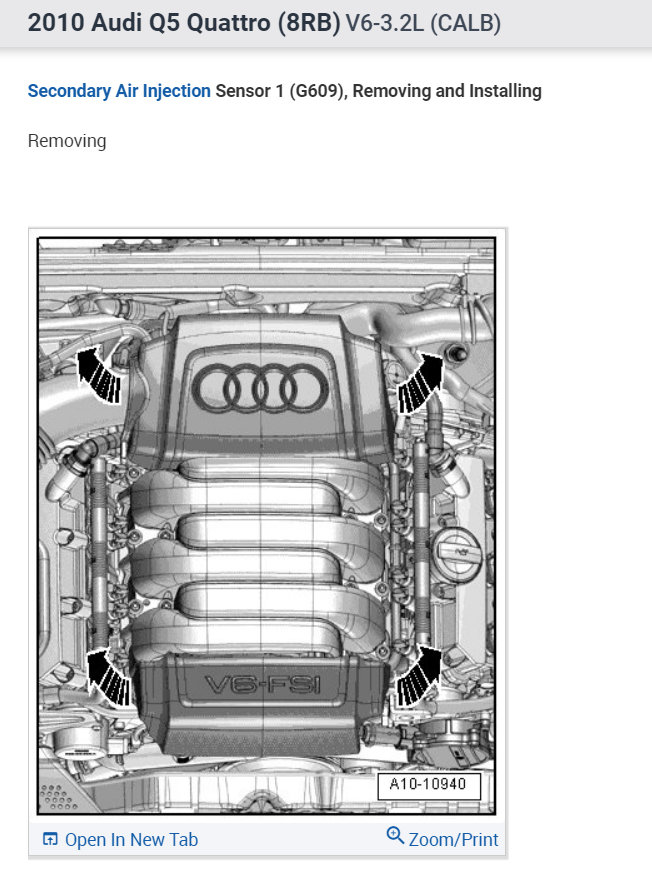

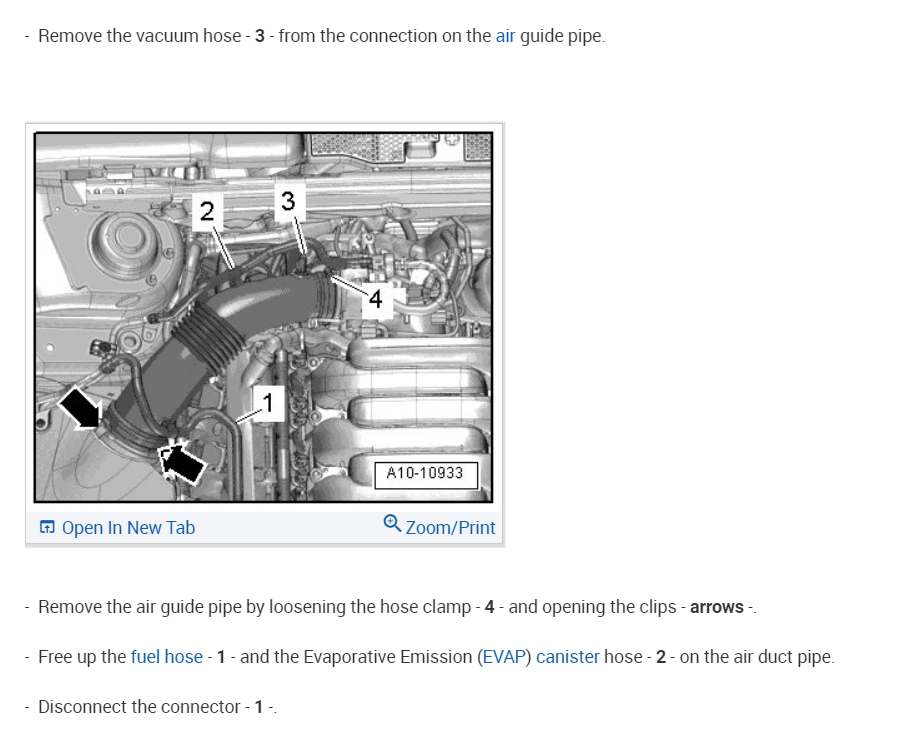

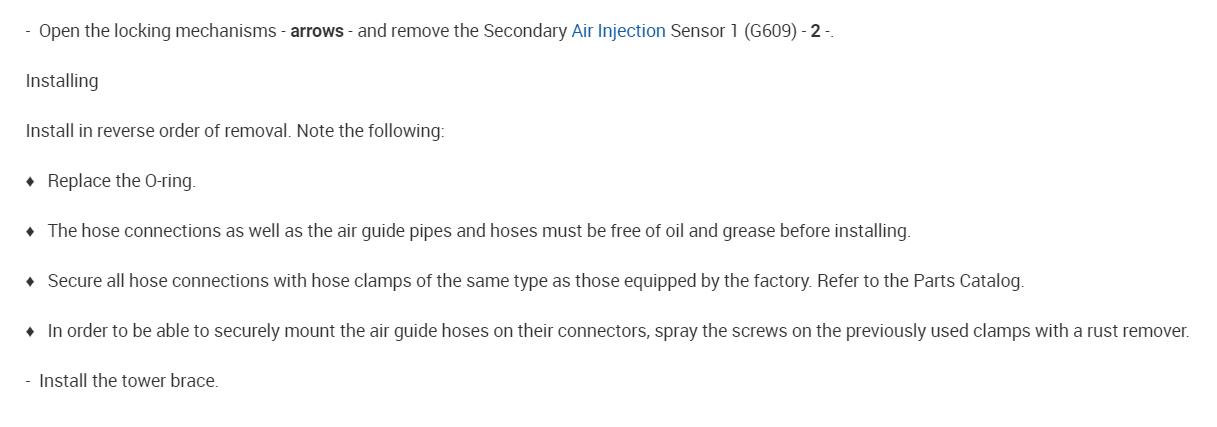

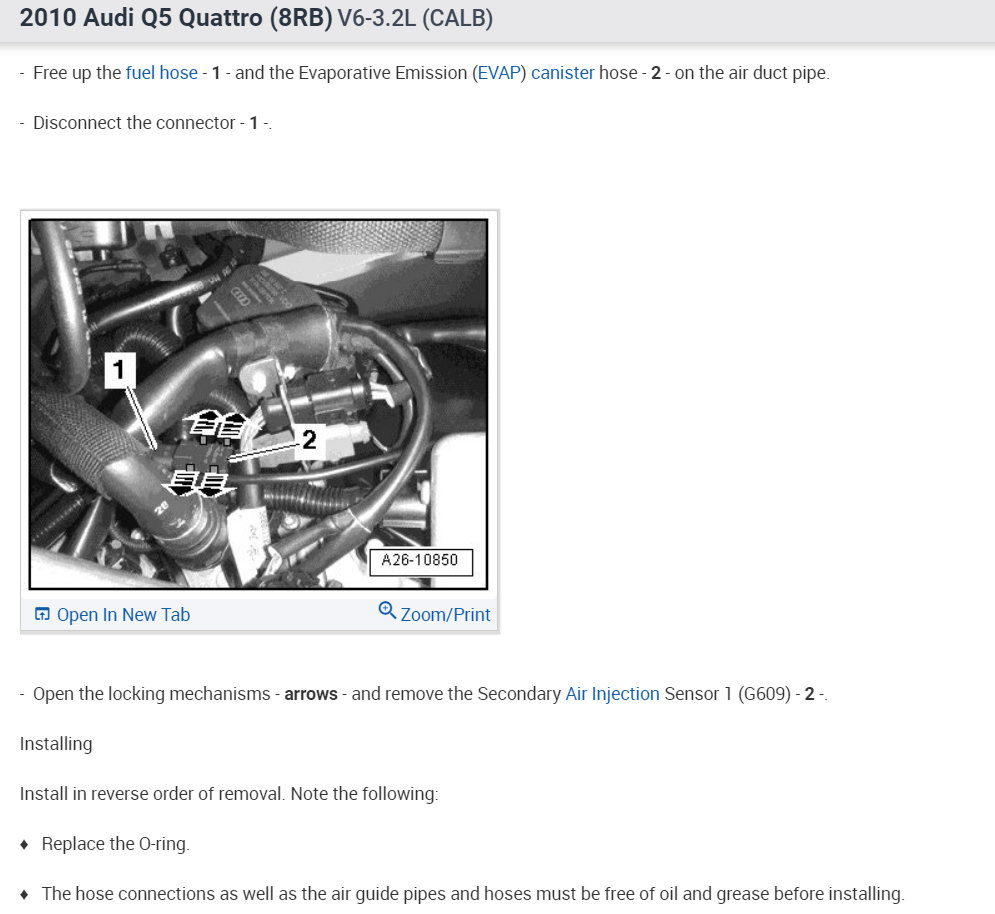

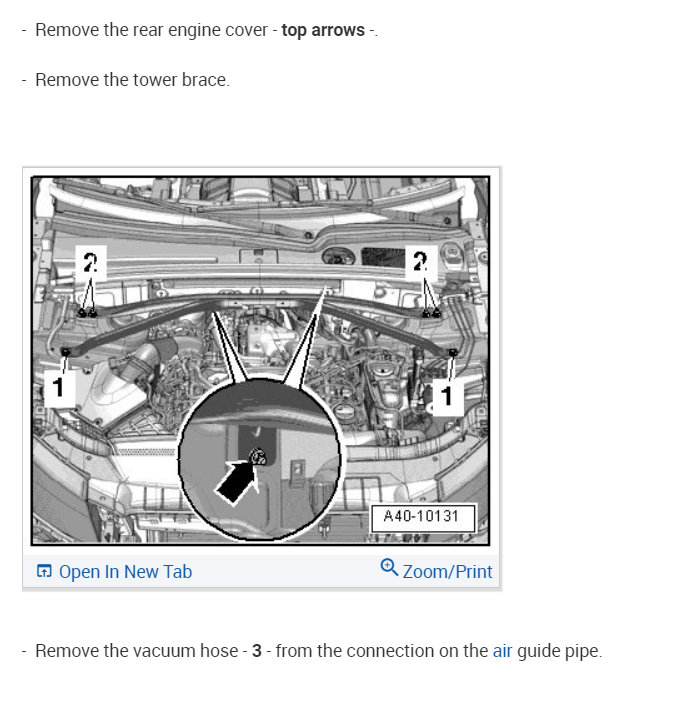

it looks like the secondary air injection sensor is under the hood, you must first remove the engine cover here are diagrams below to show you where it is. Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
