valve cover gasket seal oil leak?

2009 VAUXHALL
119,000 MILES • 2.0L • MANUAL
Avatar
FAZALMAHMOOD
  • MEMBER
  • 1 POST
Hi i need the camshaft carrier cover for Insignia it's peeing the oil from timing belt side I want that aluminium cover as soon as possible
Feb 13, 2015 at 6:30 AM
Advertisement
Avatar
DR LOOT
  • CERTIFIED EXPERT
  • 2,311 POSTS
I'm sorry we have no way of contacting you lead me a detailed message and I'll try to assist you with your problem
Feb 14, 2015 at 6:31 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

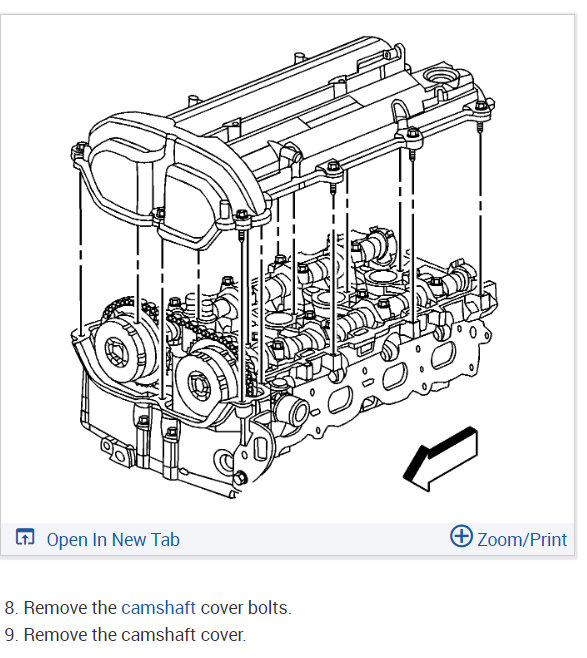

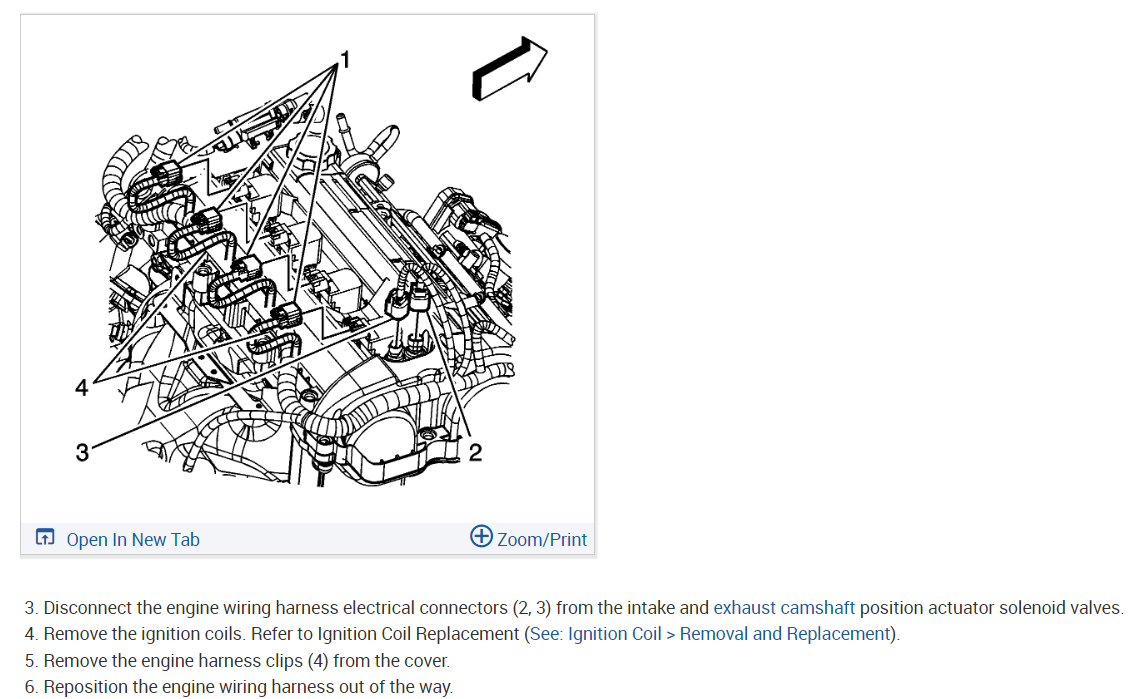

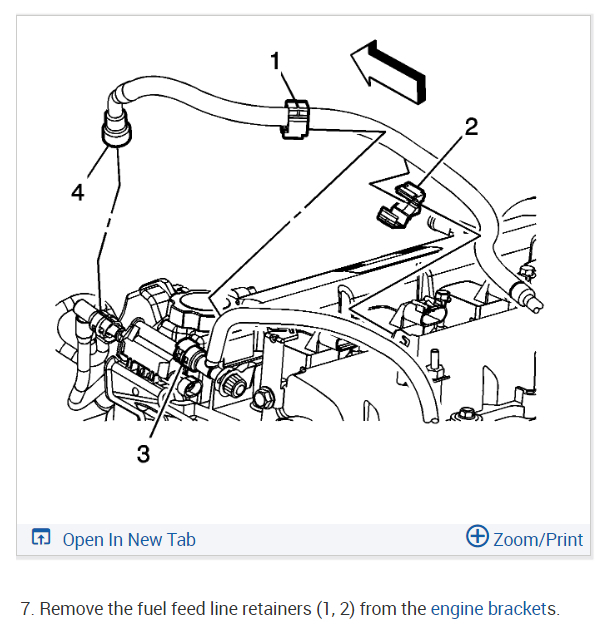

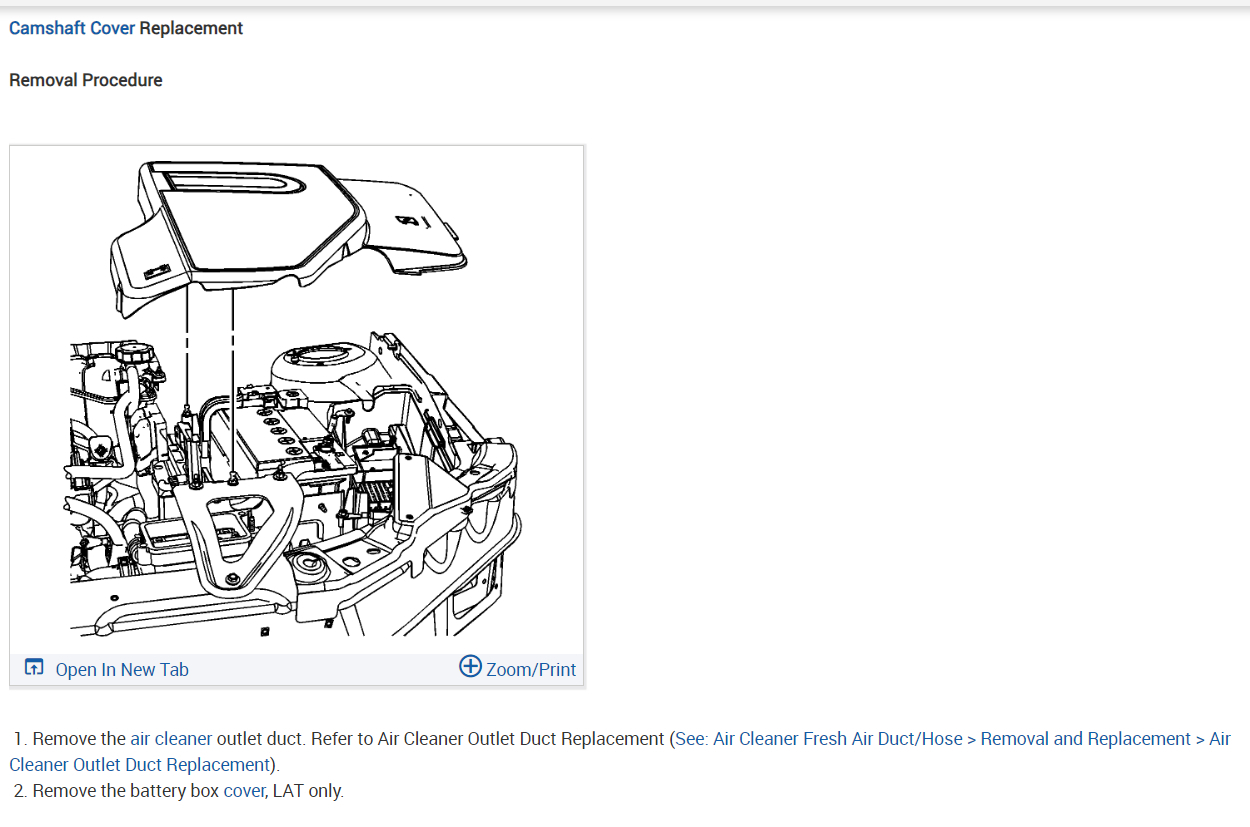

You will need to remove the valve cover and replace the seal that is in front of the camshaft , the camshaft itself has no seal. Here is how the job is done. Check out the images (below). Please upload pictures or videos in your response of any problems so we can see what to help you with.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Jul 1, 2024 at 4:54 PM
