2009 Toyota Other Engine Noise

2009 TOYOTA
438,000 MILES • 2.7L • MANUAL
Avatar
FREEZA
  • MEMBER
  • 3 POSTS
The head cylinder was overhauled, skimmed etc, but the engine now has a knocking sound. Its not a bearing knock, but the sound is almost similar to a bearing knock. If you start the car, leave it idling on neutral, you wont hear the sound, but when you push the accelerator and rev the car, you then hear the noise. The car can drive, has power, but the noise is too irritating. Could this be the camshaft followers that needs to be replaced? I am in South Africa and we call this car a Toyota Quantum Sesfilkile, 2009 model

Thank you for time taken in perusing my query.

Regards,
Freedom Nemalale

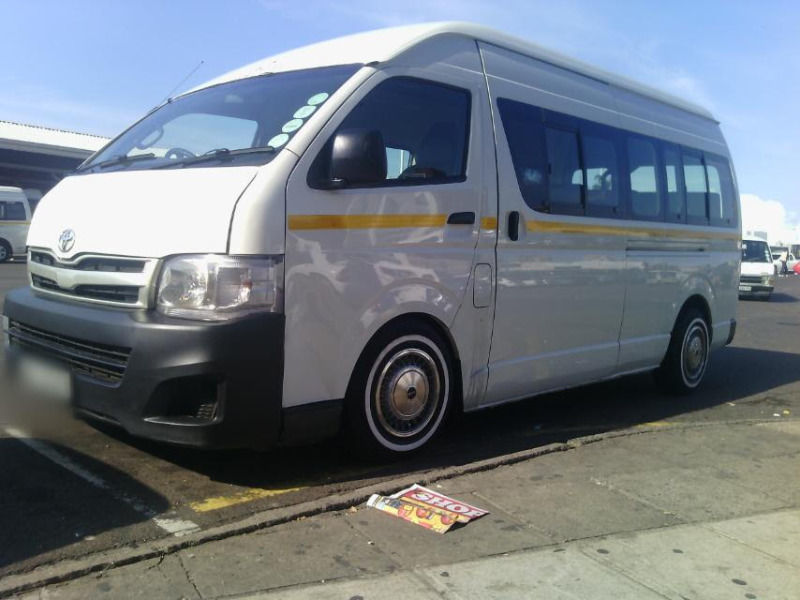

Image (Click to enlarge)
Attached Media
Sep 7, 2015 at 11:39 AM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
I am not familiar with this version, can you advise which engine is fitted I.E engine code.
Sep 9, 2015 at 2:14 AM
Avatar
FREEZA
  • MEMBER
  • 3 POSTS
Good day, apologies for the query. Please allow me the opportunity to rephrase.....
The head cylinder was overhauled, skimmed etc, but the engine now has a knocking sound. Its not a bearing knock, but the sound is almost similar to a bearing knock. If you start the car, leave it idling on neutral, you WILL hear the sound, but when you push the accelerator and rev the car, you WILL NOT hear the noise. The car can drive, has power, but the noise is too irritating. TODAY, I replaced all 16 camshaft lifters, purchased from direct Toyota, but the noise is still there. I am in South Africa and we call this car a Toyota Quantum Sesfilkile, 2009 model.
The Engine is a 2.7 VVTI - Engine 2TR

This is called Toyota Hiace in Japan: http://www.youtube.com/watch?v=kmAetYWPCt8


Sep 11, 2015 at 4:47 AM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
I would recommend that you check the oil pressure at idle with a mechanical gauge, do this cold and hot and also hot at 1500rpm, please post the results for evaluation.
Sep 11, 2015 at 5:16 AM
Avatar
FREEZA
  • MEMBER
  • 3 POSTS
Thank you

What will I use to check the oil pressure?
Sep 11, 2015 at 5:59 AM
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
Use a mechanical type oil pressure gauge that you screw into the oil pressure switch thread
Sep 11, 2015 at 9:19 PM
