How do you change the fuel filter?

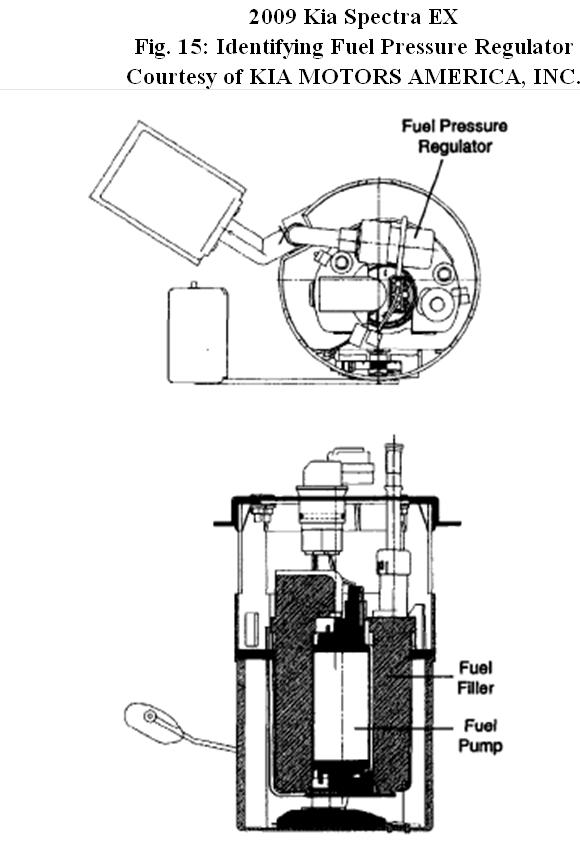

Fuel filter is intank with fuel pump.

REMOVAL (INCLUDING FUEL FILTER AND FUEL PRESSURE REGULATOR)

1. Remove the rear seat cushion.

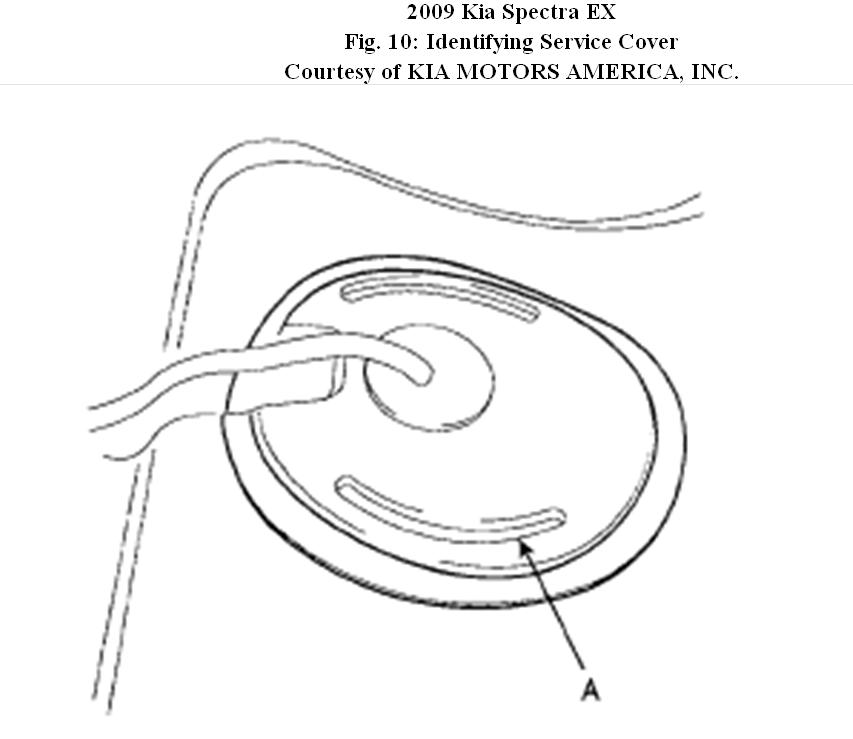

2. Open the service cover (A) under the rear seat cushion.

3. Release the internal pressure of the fuel lines and hoses as following:

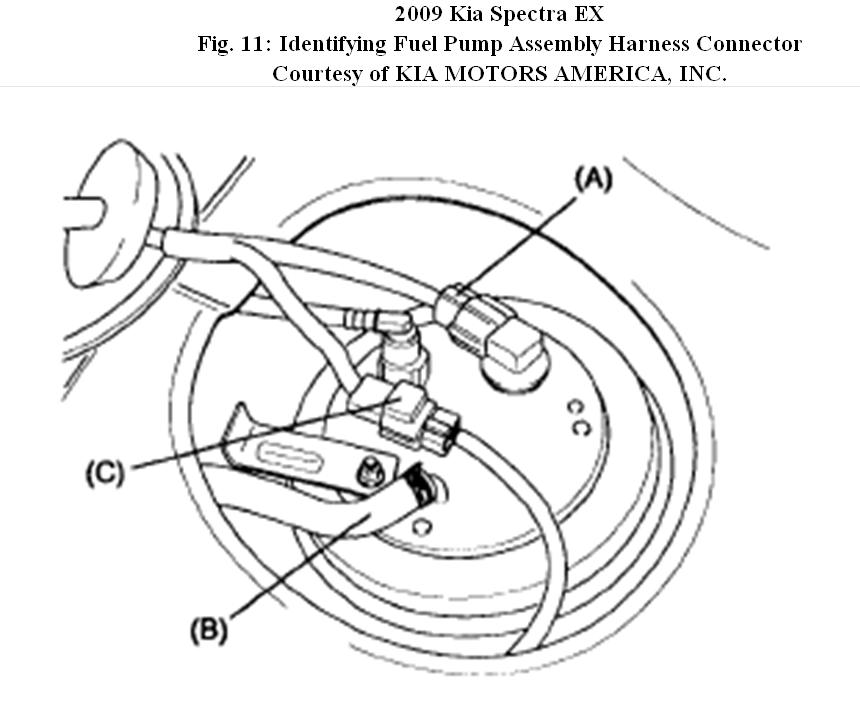

a) Disconnect the fuel pump assembly harness connector (A).

b) Start the engine and wait until fuel in fuel line is exhausted. After the engine stalls, turn the ignition switch to OFF position.

c) Disconnect the negative (-) terminal from the battery.

4. Disconnect the fuel feed line (B) and the Fuel Tank Pressure Sensor (FTPS) connector (C).

CAUTION:Cover the hose connection with a shop towel to prevent splashing of fuel caused by residual pressure in the fuel line

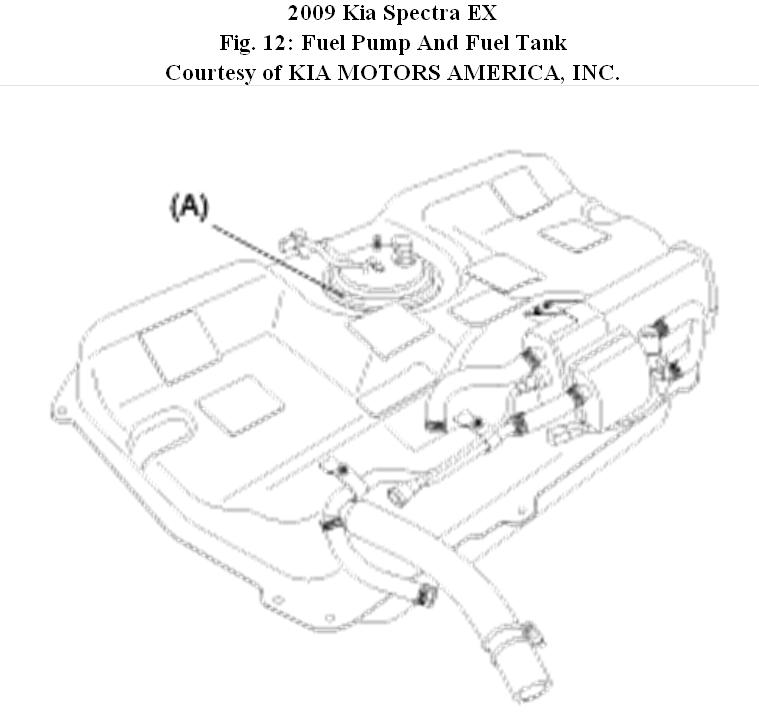

5. Unfasten the fuel pump (A) from the fuel tank.

6. Remove the fuel pump assembly.

2004 1/2 Kia Spectra 2.0L engine. Would like to replace the fuel filter. Where is it located? How to replace?

Relieve the fuel system pressure.
Disconnect the negative battery cable.
Disconnect the fuel lines from both ends of the fuel filter. Plug the lines to prevent leakage.
Remove the bracket retaining nuts and bolts, as necessary.
Remove the filter and the mounting bracket.



To install:

Install the filter in the mounting bracket.
Connect the fuel lines to the filter.
Install the bracket nuts and tighten to 9.5 ft. lbs. (13 Nm) for 1.5L, 1.6L, 1.8L and 2.0L engines. For 2.4L engines, torque the nuts to 18-25 ft. lbs. (25-35 Nm).
Connect the negative battery cable.
Run the engine and check for any fuel leaks.

Could someone tell me how to replace the fuel filter on my 2004 Kia Spectra LX 2.0L, please? I believe that the fuel filter is under the rear seat of the car. ANY advice would be greatly appreciated!

FUEL FILTER is located under rear of vehicle near the tank ... there is also a low pressure filter inside the tank on the fuel pump ! REMOVAL WARNING:Fuel is explosive. When working on fuel system, make sure to supply adequate ventilation to the work area. Do not smoke, and keep sparks and open flames away. Depressurize fuel system. Disconnect fuel hoses from fuel filter. Remove fuel filter and bracket. Fig. 14: Removing Fuel Filter

When installing fuel filter, push fuel hose fully onto fuel filter. Install fuel filter and bracket. Tightening torque: 9.5 lb-ft (12.9 N.m, 1.3 kg-cm) Connect fuel hoses.

Looking to finish a tune up and I need to know where the fuel filter is located?

it IS IN THE AREA OF THE LEFT FRONT WHEEL.

(Damn cap lock button)

Roughly between the wheel and the drivers door, but underneath
