2009 Kia Sedona A/C fan controls

2009 KIA SEDONA
98,000 MILES • 3.8L • V6 • 2WD • AUTOMATIC
Avatar
CASEYOWENS
  • MEMBER
  • 1 POST
When we turn on our AC the fan controls won't work... It just goes full blast and the ac fuse is fine
Jul 5, 2015 at 8:21 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

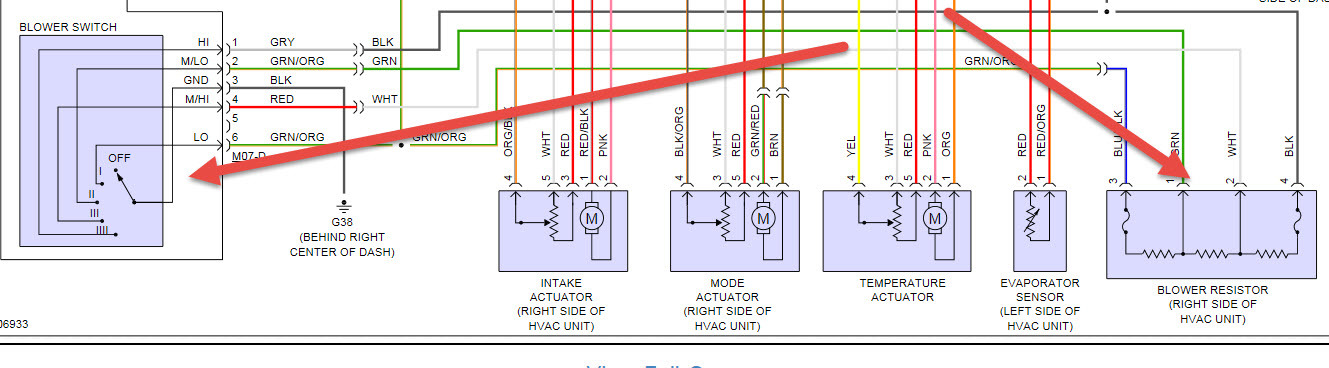

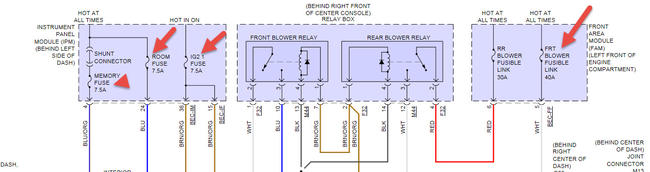

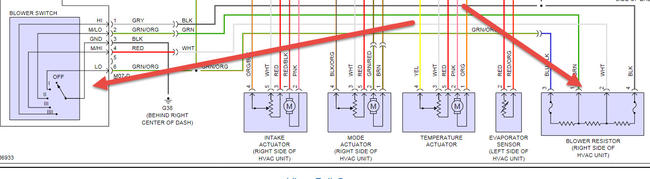

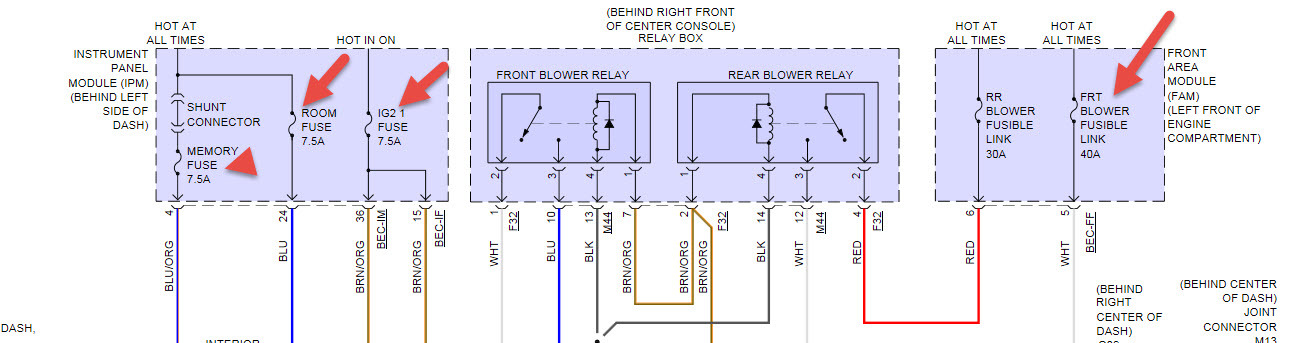

check fuse s in pic first then check to see if power is going to resistor. if it is then it may be a bad resistor. Of course if this is auto temp control where you set the tem p then what I'm sending is wrong and unit must be scanned. for codes.
Images (Click to enlarge)
Attached Media
Attached Media
Jul 5, 2015 at 9:55 AM
