window does not fully open

2009 JAGUAR XF

36,000 MILES

BEDROCK2710

MEMBER
1 POST
FOLLOW

one of the front windows does not roll fully down. it used to go down fully but slowly it started to go down less and less until it only goes down half way. any ideas?? I have checked for possible problems with the motor winder but it all seems to be fine

Jun 24, 2013 at 2:46 AM

SQM

CERTIFIED EXPERT
6,383 POSTS

Hello,

This issue is likely a faulty or misaligned window regulator.
The window regulator is what guides the window up or down after the button is pressed. The window motor operates the regulator.
The symptom you are describing it exactly what happens when the regulator goes bad.

In order to access the regulator, you will have to remove the inside door panel. Which is mounted with a few screws and several plastic fasteners.

https://www.2carpros.com/articles/door-panel-removal
https://www.2carpros.com/articles/how-to-check-and-replace-a-electric-power-window-motor

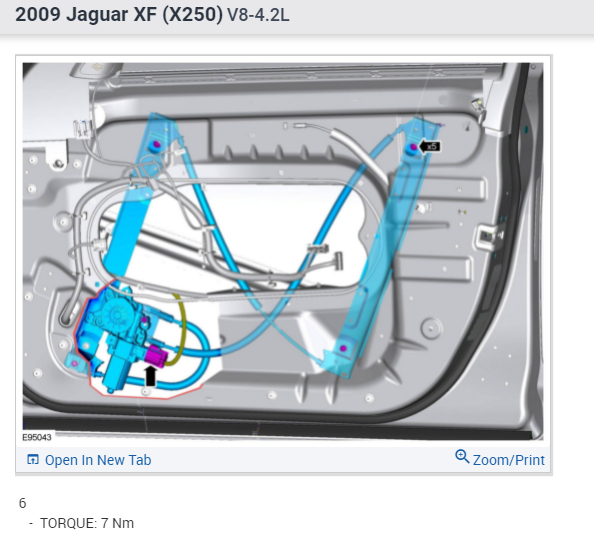

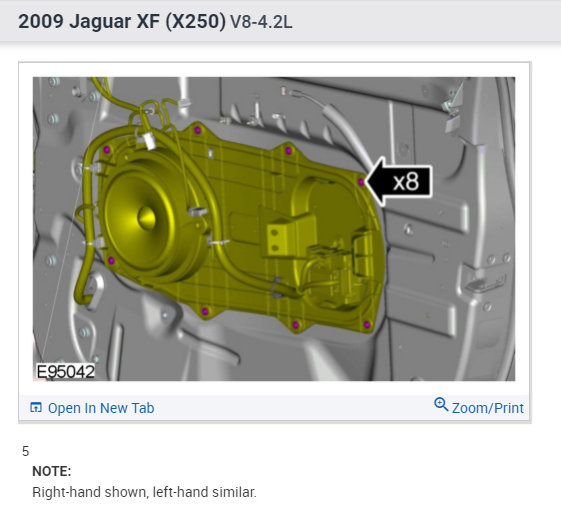

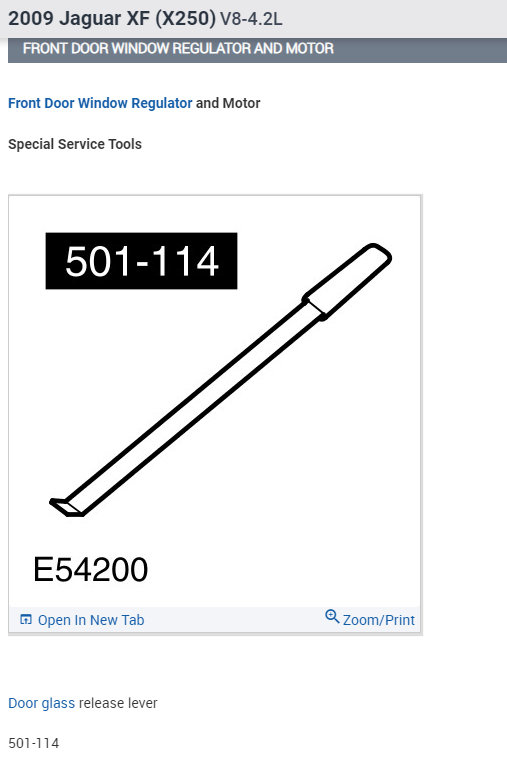

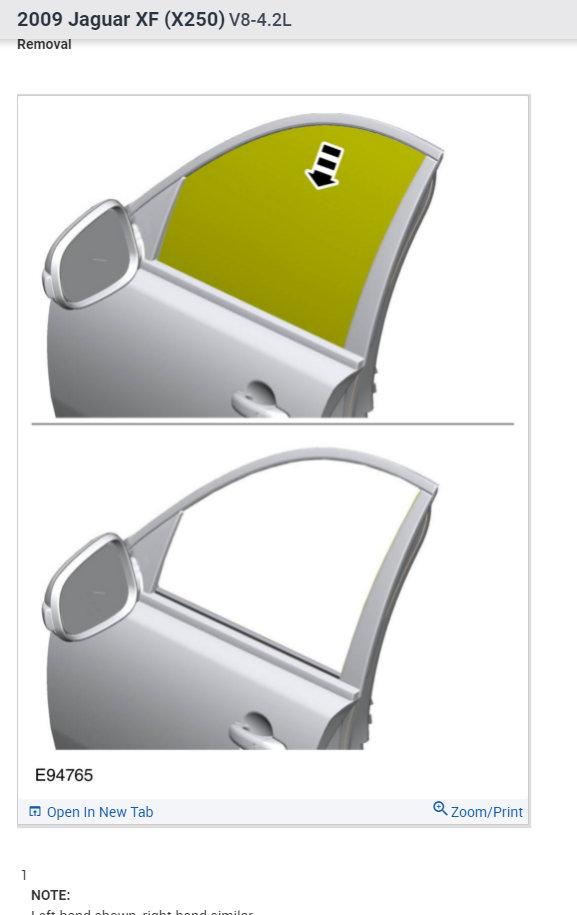

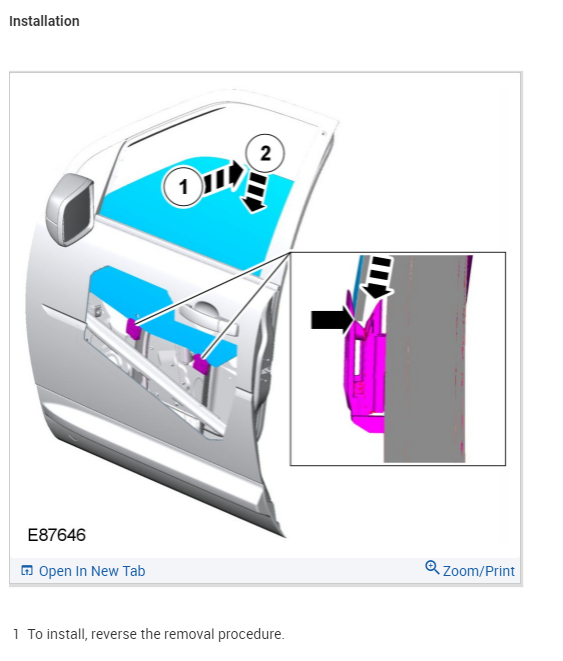

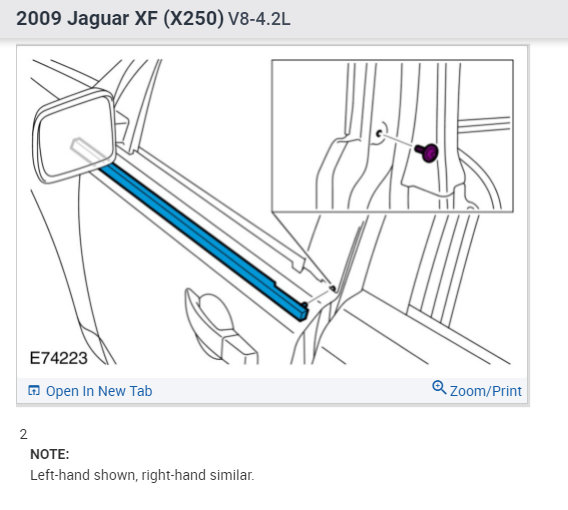

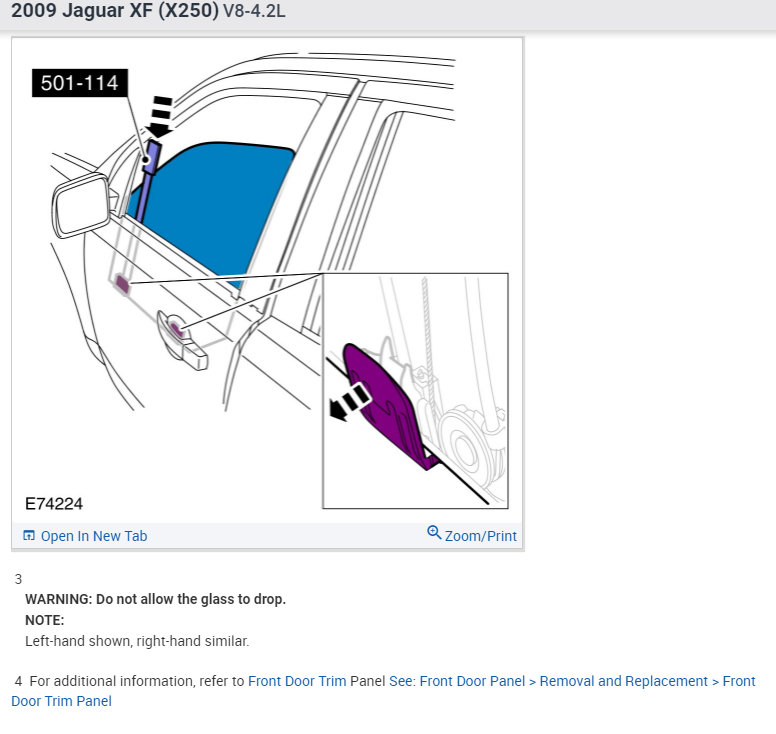

I have attached diagrams for your reference.

Please let me know if you have any questions.
Thank you.

Images (Click to enlarge)

Jan 9, 2022 at 9:00 PM
