My windshield wipers are not working why?

2009 HONDA CIVIC
Avatar
TOKI TOVER
  • MEMBER
  • 25 POSTS
I was wondering the best way to find out why me wipers are not working?
Thanks!
Oct 28, 2011 at 2:50 PM
Advertisement
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
Hello, I'm Danny.

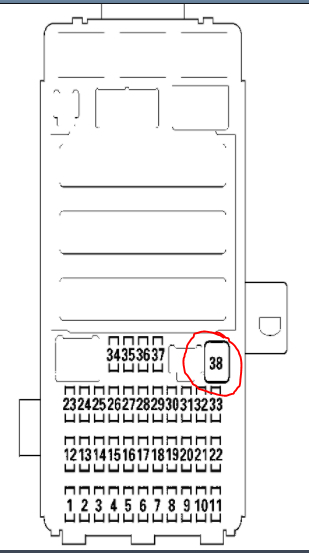

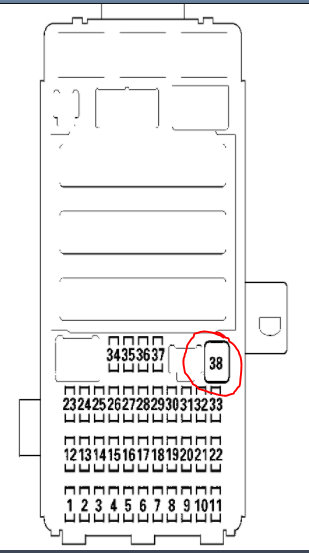

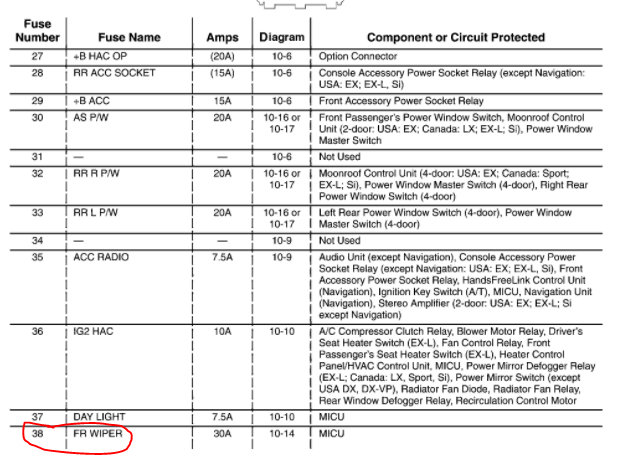

Here is the information you requested. This issue could be caused by 3 different possible things. First I would check the windshield wiper fuse in location 38 in the under dash fuse box. Here is a tutorial showing how to test and replace fuses:

https://www.2carpros.com/articles/how-a-car-fuse-works

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Secondly there could be a wiper circuit wiring problem. Here is a tutorial showing how to test electrical circuits:

https://www.2carpros.com/articles/how-to-check-wiring

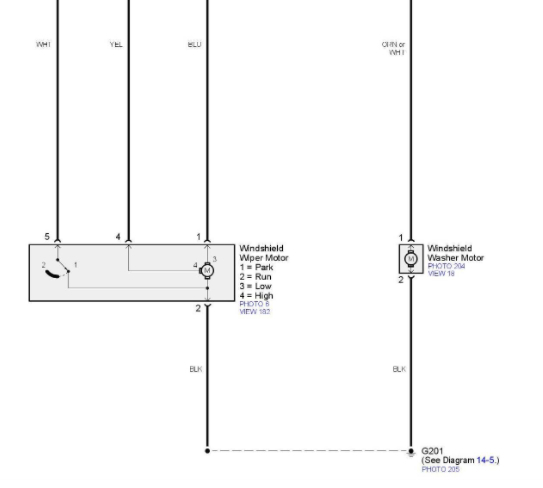

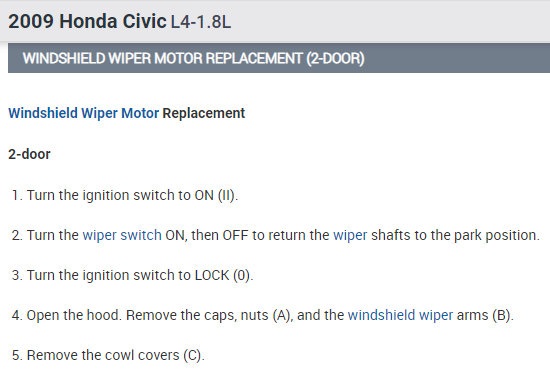

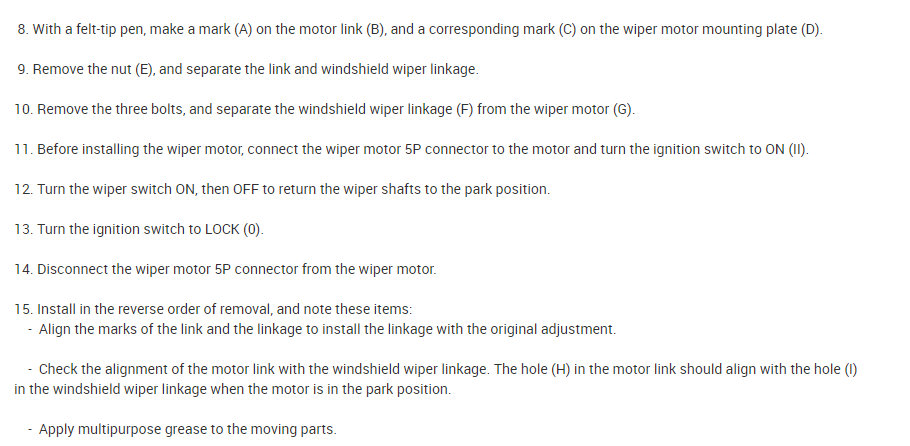

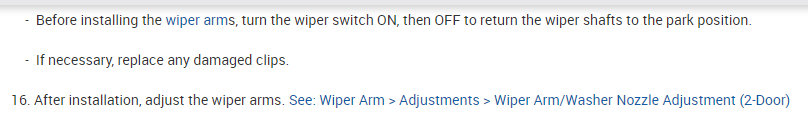

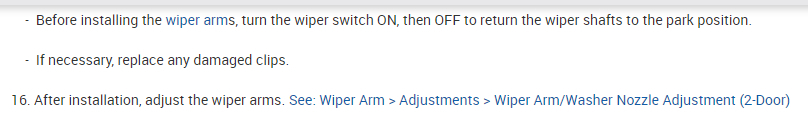

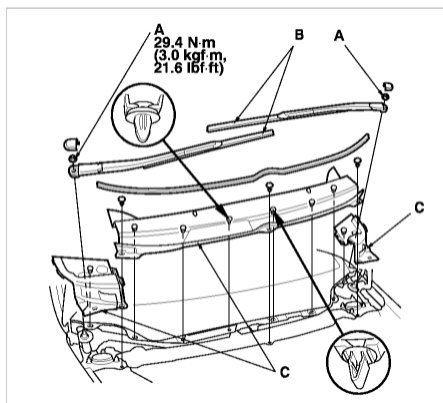

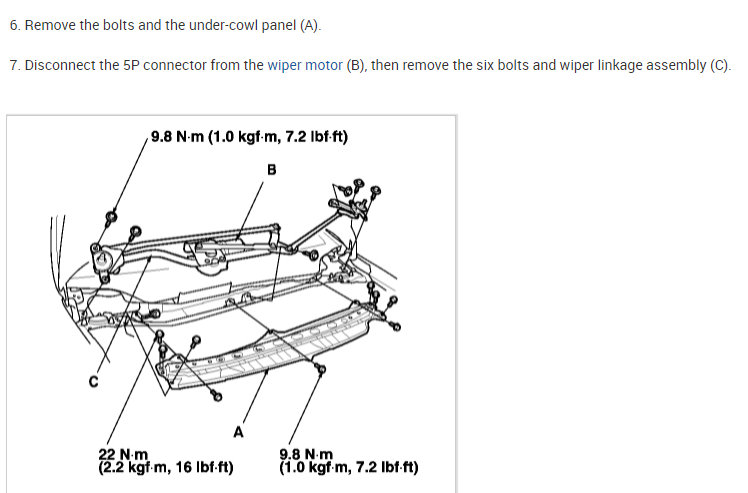

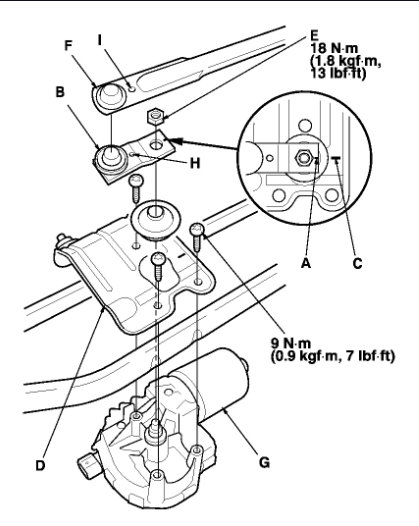

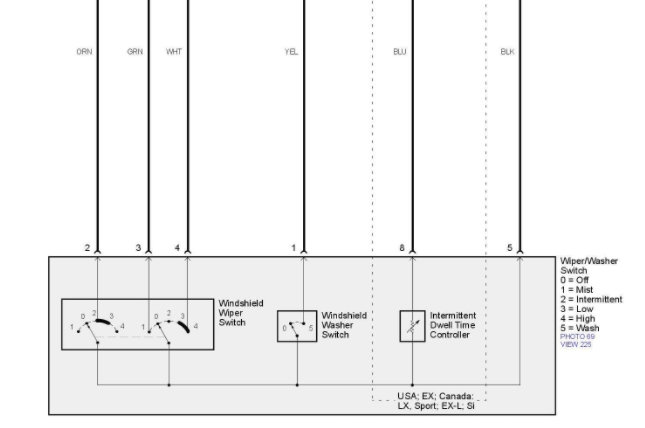

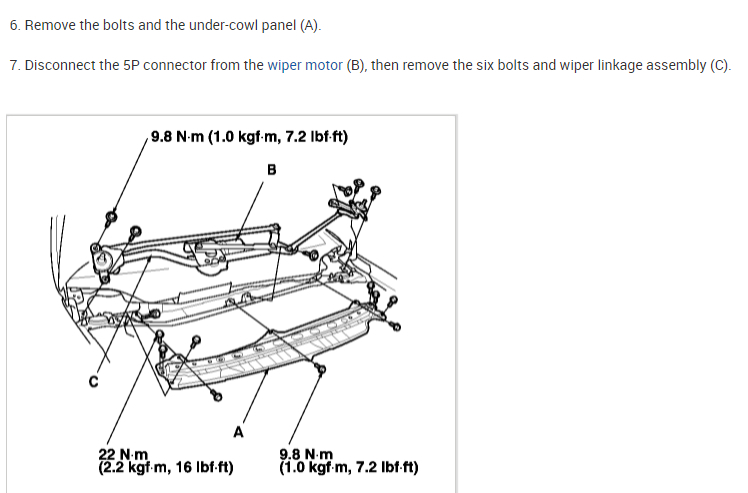

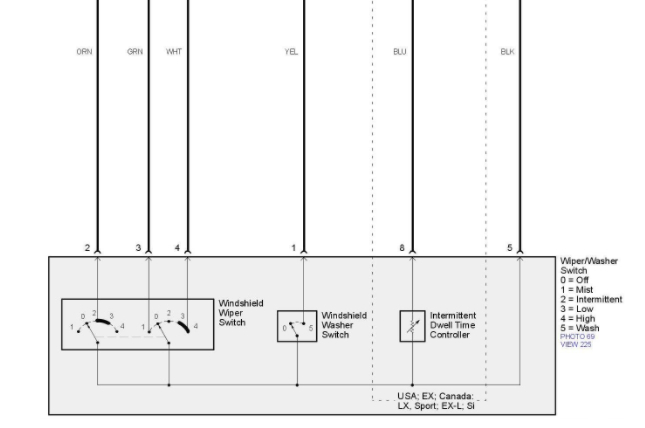

Lastly, It could be a failed wiper motor assembly. I've attached picture steps below showing the fuse location, Wiper motor replacement instructions, And the wiper motor wiring circuit for your car. Hope this helps and thanks for using 2CarPros.

May 4, 2021 at 5:07 PM
Avatar
MERENA
  • MEMBER
  • 3 POSTS
Ran Wipers to move snow off windshield and they went half way up and stopped. The motor runs but the linkage fell off of the motor arm. I popped the linkage connector pivot back onto the motor arm and it worked fine for a few days and now with more snow it popped off again. Is it normal for the pivot connector to pop off, should I be replacing part of the system, nothing appeared broken and it popped back together really easily last time.
May 10, 2021 at 11:52 AM (Merged)
Advertisement
Avatar
F4I_GUY
  • CERTIFIED EXPERT
  • 3,302 POSTS
Your wiper system is not made to clear snow. Only a slight trace of snow. You can try replacing the ball socket that clips on the linkage, but really.. you shouldn't be trying to wipe snow off with your wipers. The component is probably a bit weak since it is 10 years old.
May 10, 2021 at 11:52 AM (Merged)
Avatar
MERENA
  • MEMBER
  • 3 POSTS
We learned the snow thing the hard way. How can that socket be replaced?
May 10, 2021 at 11:52 AM (Merged)
Avatar
F4I_GUY
  • CERTIFIED EXPERT
  • 3,302 POSTS
Merena, you may want to double check with honda if you can just replace that socket. Unforunately, now that I think about it I doubt it can be replaced individually. You will most likely have to purchase a whole new linkage from honda.
May 10, 2021 at 11:52 AM (Merged)
Avatar
MERENA
  • MEMBER
  • 3 POSTS
Going to go take it apart again and see if it will hold again. Thanks for the help, Honda says you have to buy the whole linkage for 260ish or the motor for 360.
May 10, 2021 at 11:52 AM (Merged)
Avatar
F4I_GUY
  • CERTIFIED EXPERT
  • 3,302 POSTS
Well as long as it clips into place, I don't see a problem with it. Like I said, it's not meant to wipe off snow, so don't use your wipers for that and it should be fine.
May 10, 2021 at 11:52 AM (Merged)
