need to find out how to remove blown air bag

2009 FORD ESCAPE
8,200 MILES
Avatar
WELLS_MAN
  • MEMBER
  • 10 POSTS
bought car wrecked, have everything fixed but can,t figure out how to change the blown air bag, any help appreciated, have changed many bags on older cars but have not seen any set up like this, have went online but have not found any help on newer type of ford air bags and how to remove them
Oct 6, 2011 at 10:14 PM
Advertisement
Avatar
DAN_K
  • CERTIFIED EXPERT
  • 213 POSTS
There is a release hole on the underside of the steering wheel. A 3mm allen wrench will work nicely to release the spring clip.
Oct 6, 2011 at 10:35 PM
Avatar
DAN_K
  • CERTIFIED EXPERT
  • 213 POSTS

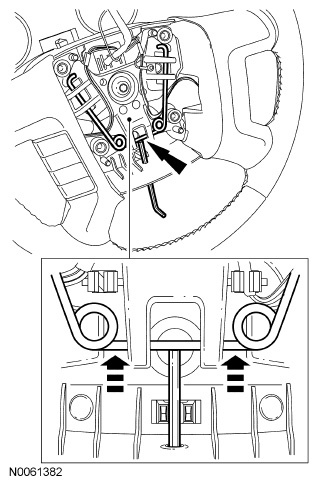

Here's an image that I hope will help:
Image (Click to enlarge)
Attached Media
Oct 6, 2011 at 10:37 PM
Advertisement
Avatar
WELLS_MAN
  • MEMBER
  • 10 POSTS
is the release hole on back side of steering wheel or on the unside of steering wheel, do you push on pin to release thanks again
Oct 6, 2011 at 11:36 PM
Avatar
DAN_K
  • CERTIFIED EXPERT
  • 213 POSTS
Backside/lower. It's a small hole - push the 3mm allen wrench in to release.
Oct 6, 2011 at 11:41 PM
