i tried to get it from the dealer but he don't have it too is there any other way to get it?
Jan 23, 2013 at 12:21 PM
Can you tell me where the fuses are and what they go too?
2009 FORD ESCAPE
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello, I'm Danny.
Here is the information you requested. Here are a few tutorials for you to view on how to test and change fuses:
https://www.2carpros.com/articles/how-a-car-fuse-works
https://www.2carpros.com/articles/how-to-check-a-car-fuse

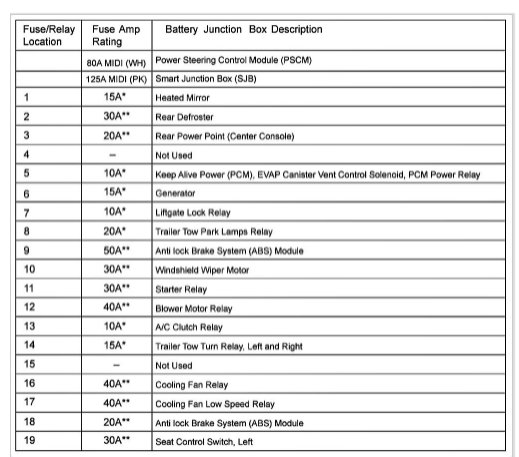

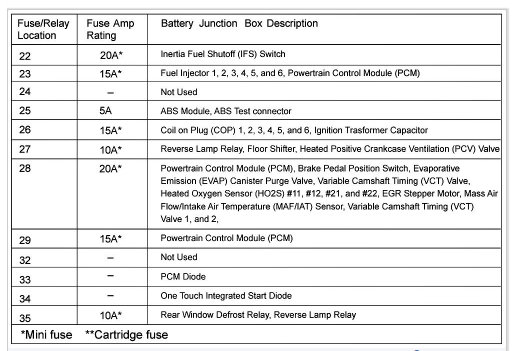

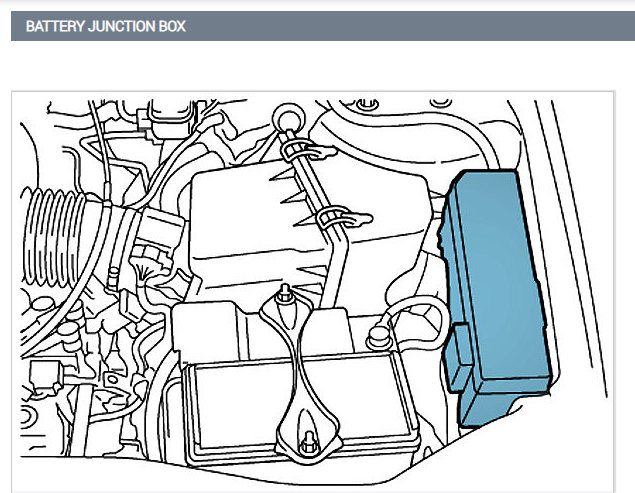

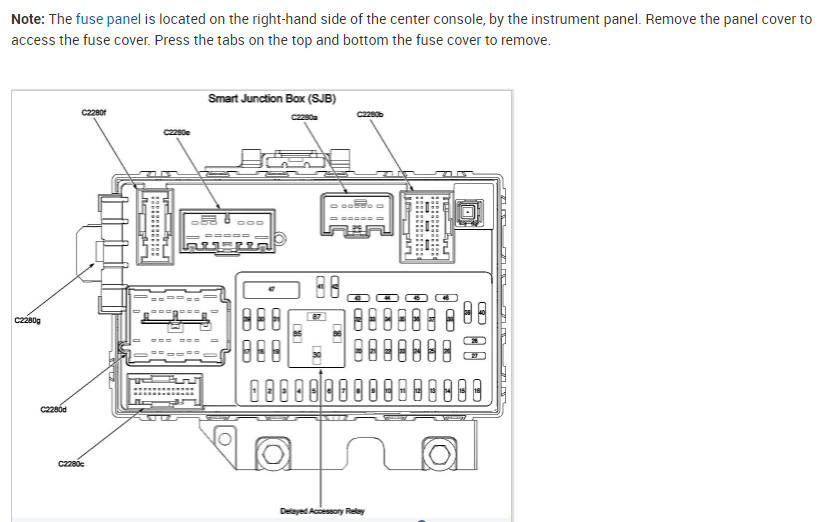

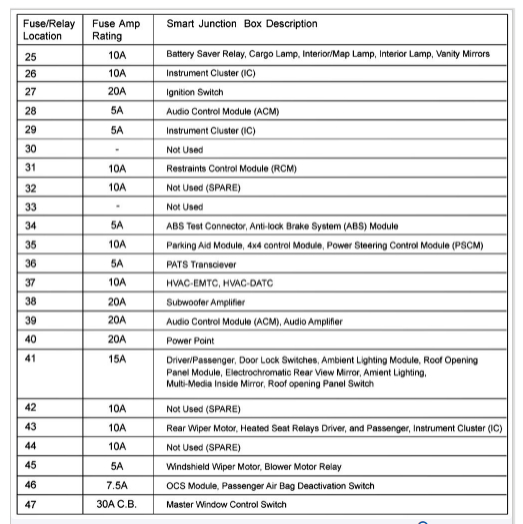

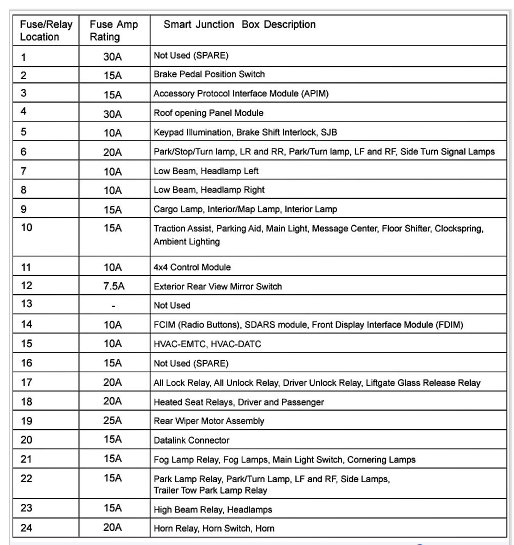

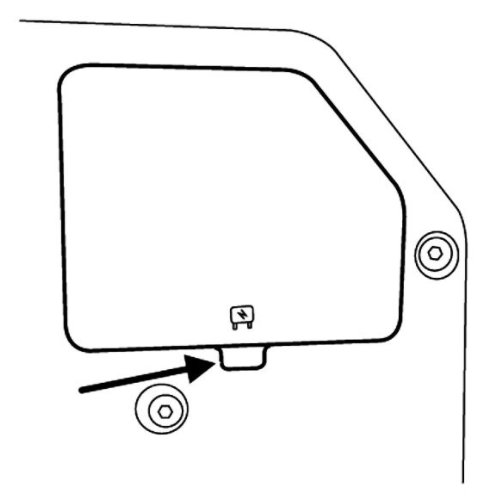

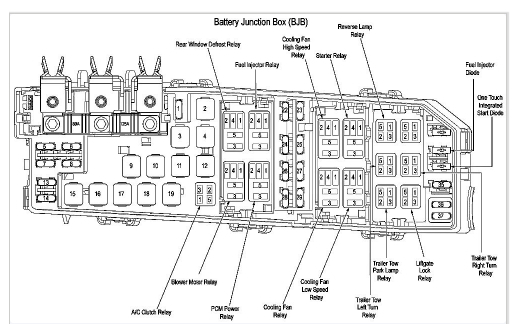

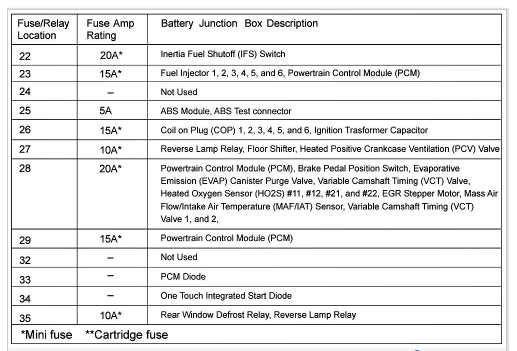

I've attached diagrams below of the fuse locations on your vehicle. Hope this helps and thanks for using 2CarPros.
Here is the information you requested. Here are a few tutorials for you to view on how to test and change fuses:
https://www.2carpros.com/articles/how-a-car-fuse-works
https://www.2carpros.com/articles/how-to-check-a-car-fuse

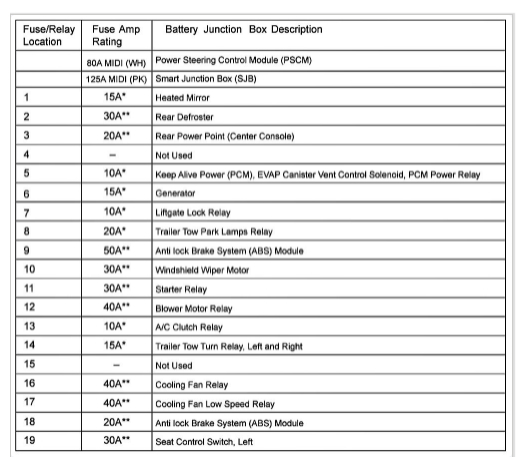

I've attached diagrams below of the fuse locations on your vehicle. Hope this helps and thanks for using 2CarPros.
Images (Click to enlarge)
Jun 6, 2021 at 12:40 PM
