no reverse lights

2009 CHEVROLET EXPRESS
87,675 MILES
Avatar
ANDY2420
  • MEMBER
  • 1 POST
I have checked bulbs wiring fuses under hood there is no safety neutral switch and no reverse light switch on the transmission is there anything else I can check I need to get my van inspected and it will not pass without reverse lights don't know what else to do please help
Oct 24, 2013 at 4:59 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hello,

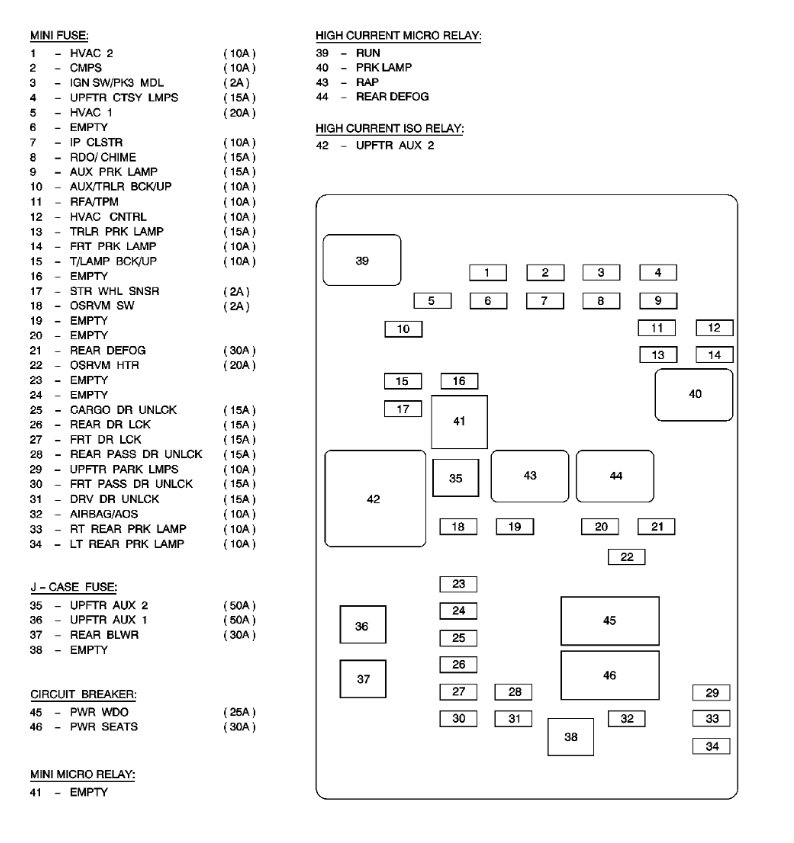

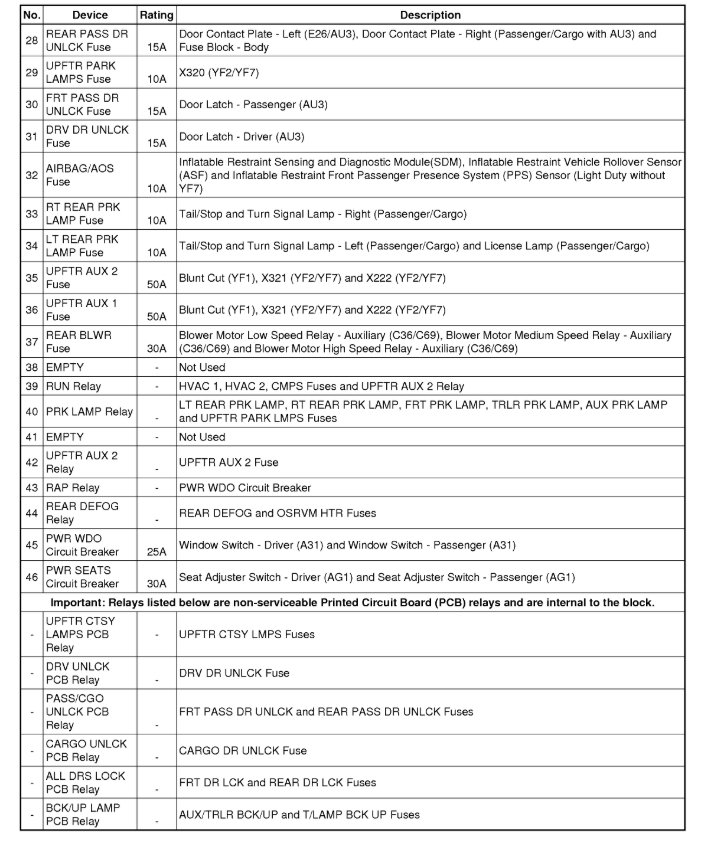

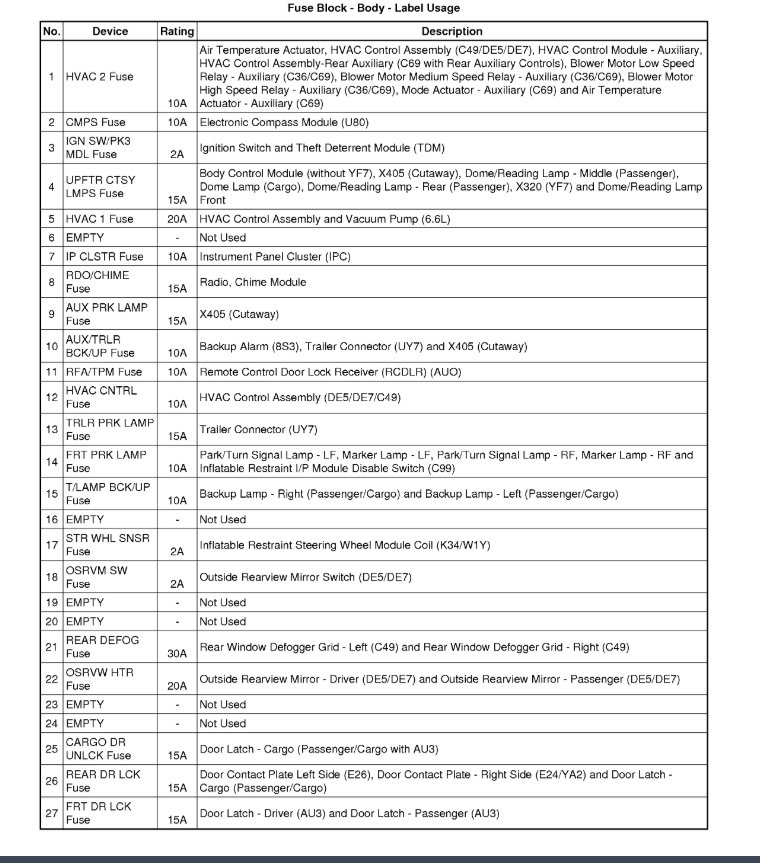

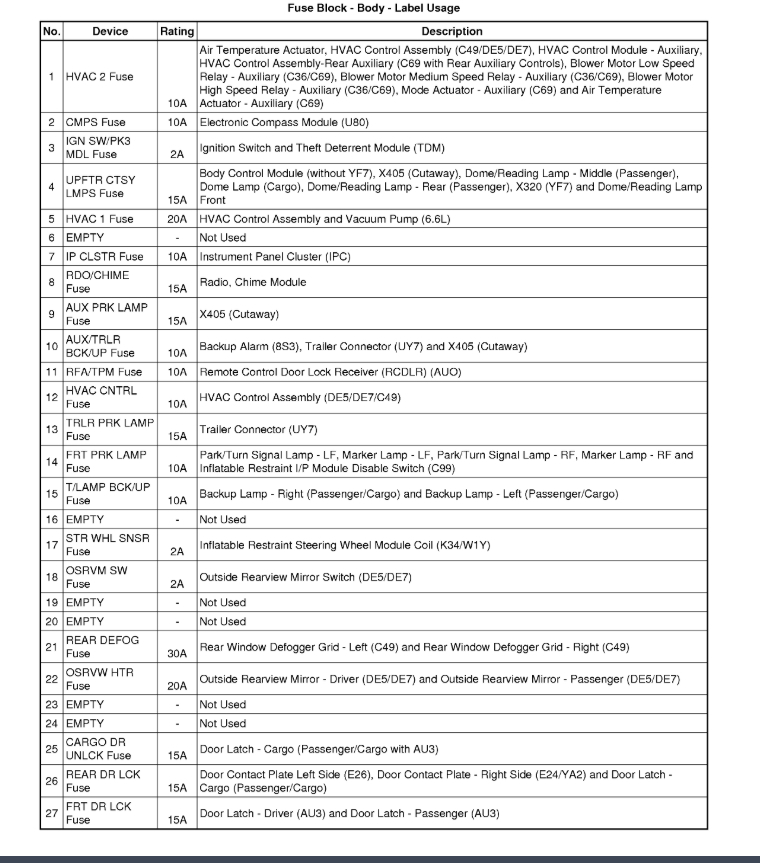

There is a reverse light relay in the fuse panel under the seat I would use this gauge to check with the wiring diagrams below to show you how the system works and the relay location as well. This relay might be integrated into the fuse panel which it will need to be replaced.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

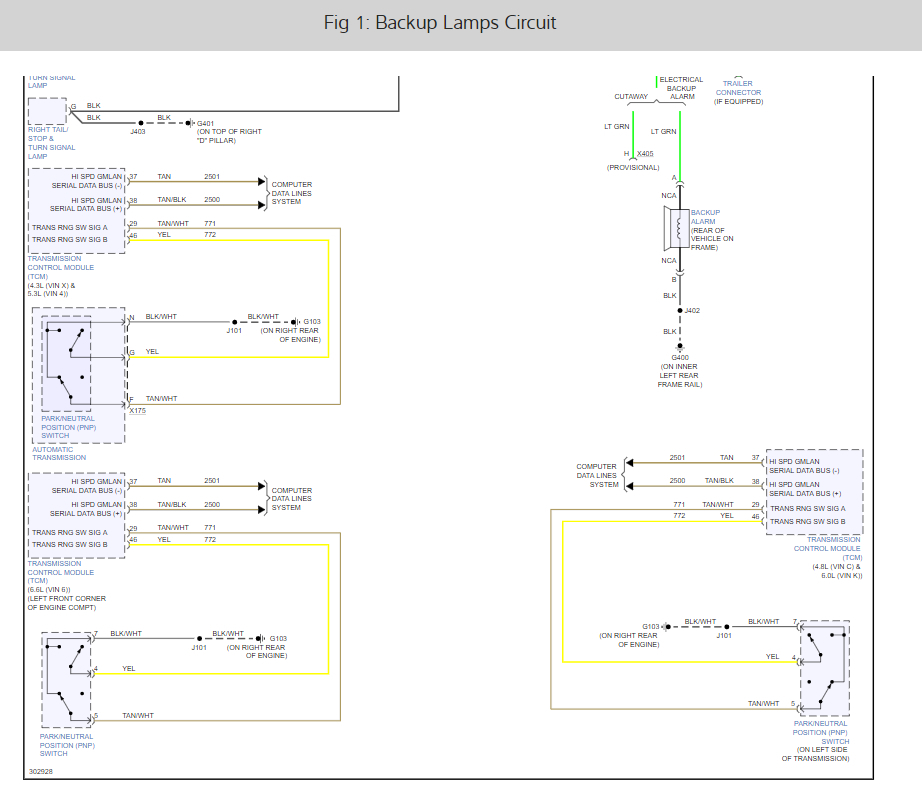

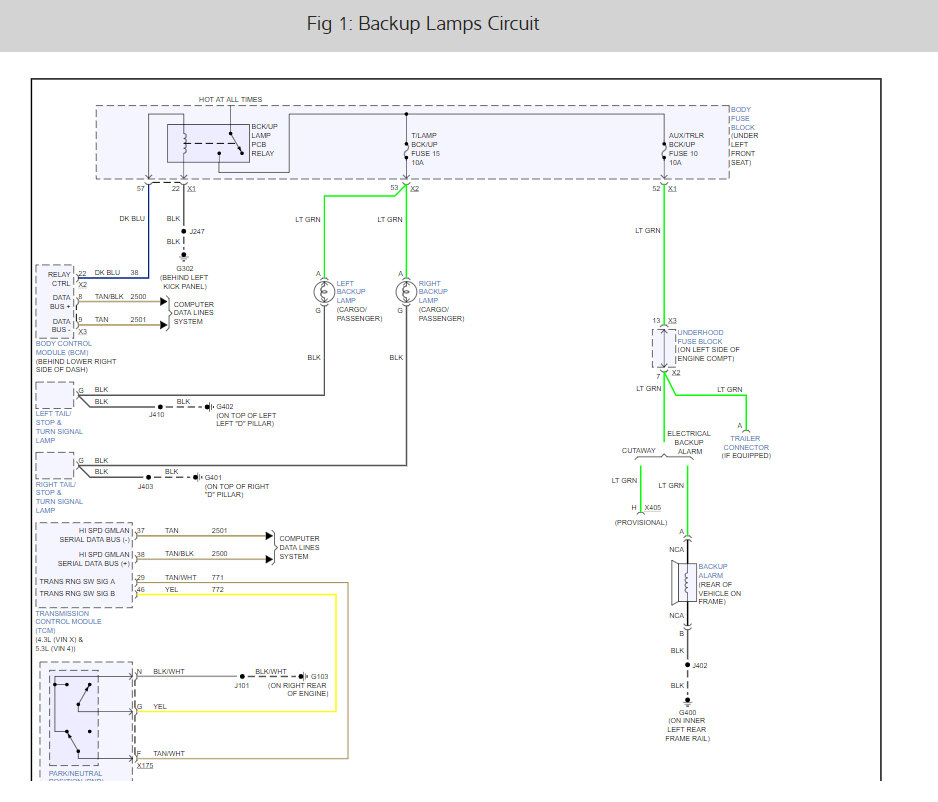

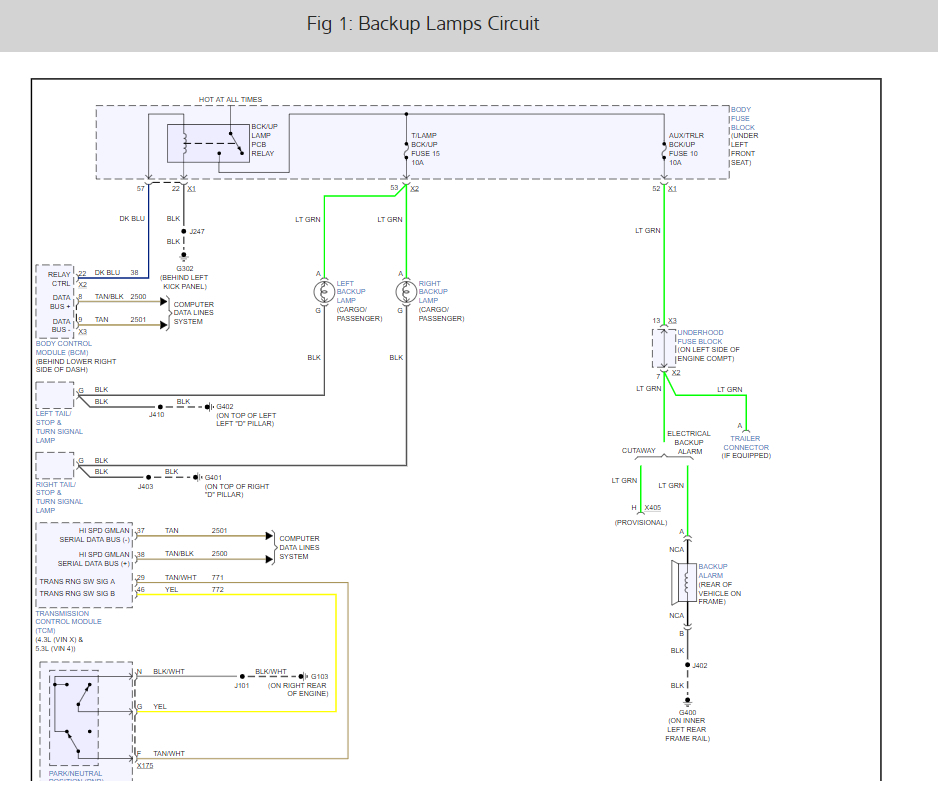

Check out the diagrams (Below). Please let us know what happens.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Oct 25, 2013 at 7:30 AM
