Engine will not crank

2008 TOYOTA PRIUS

7,300 MILES • 4 CYL • FWD • AUTOMATIC

FRANK D MEADOWS

MEMBER
1 POST
FOLLOW

2008 toyota prius hybrid: engine will not crank. car had been wrecked & transaxle was removed to weld crack in case. problem occured after reinstalling transaxle. also, welding was done to repair front frame rail (the auxiliary battery was disconnected during welding). the dash indicators and the hybrid system monitor come on normally. the car will shift from "P" to "N" normally but engine does not crank. all the fuses & relays check ok.

Dec 15, 2010 at 7:28 PM

JACOBANDNICKOLAS

CERTIFIED EXPERT
110,175 POSTS

Hello,

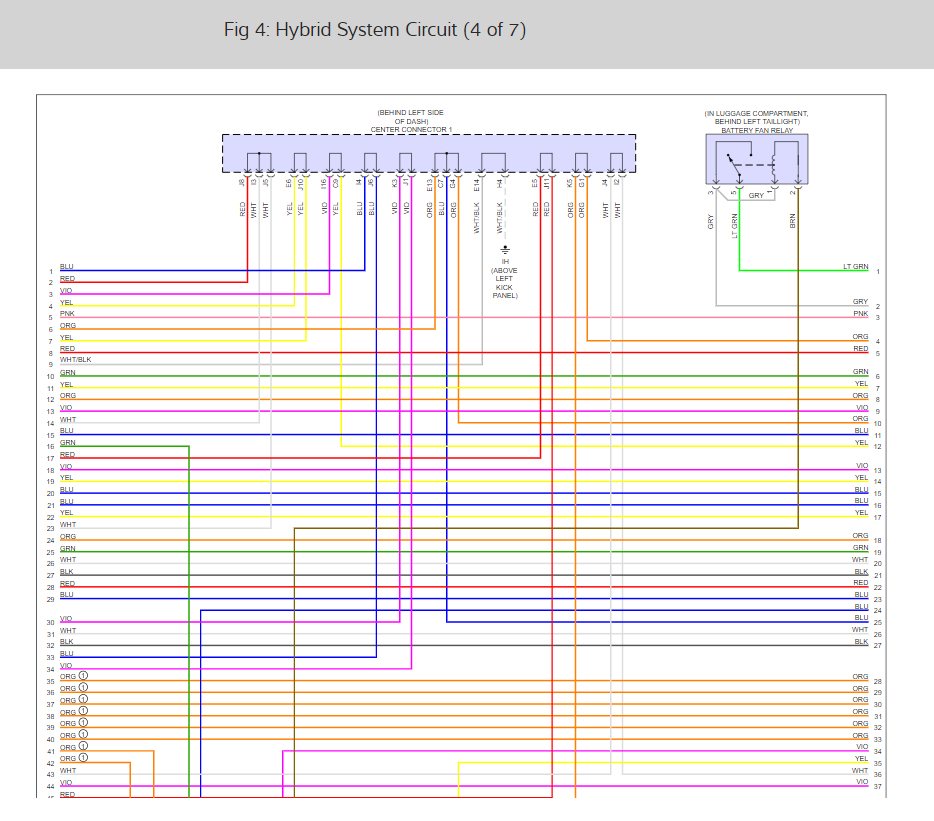

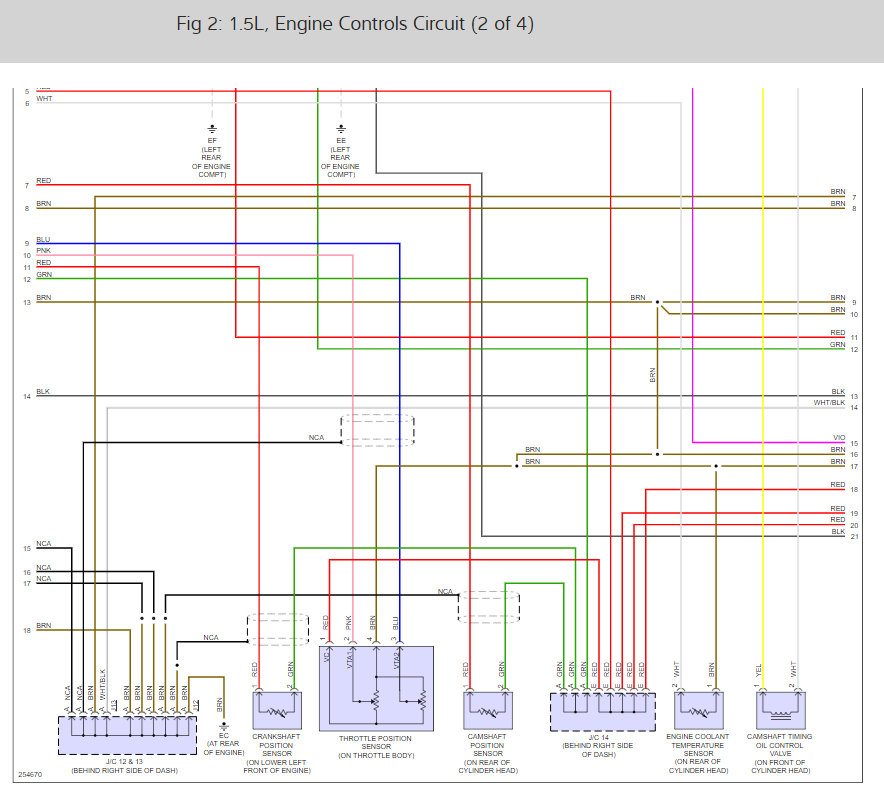

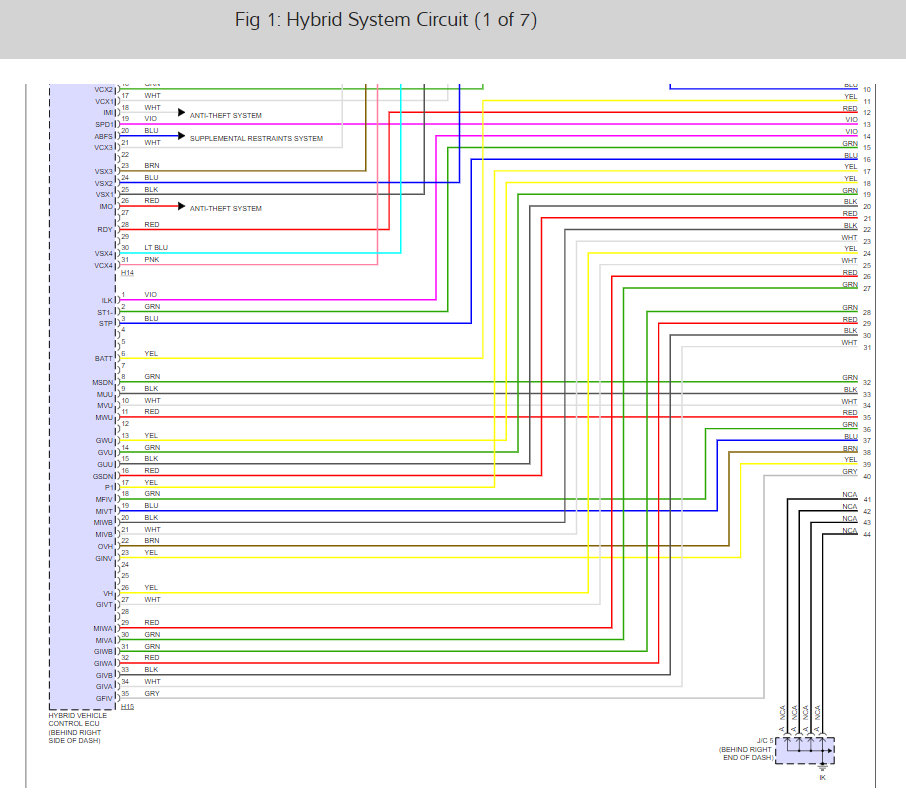

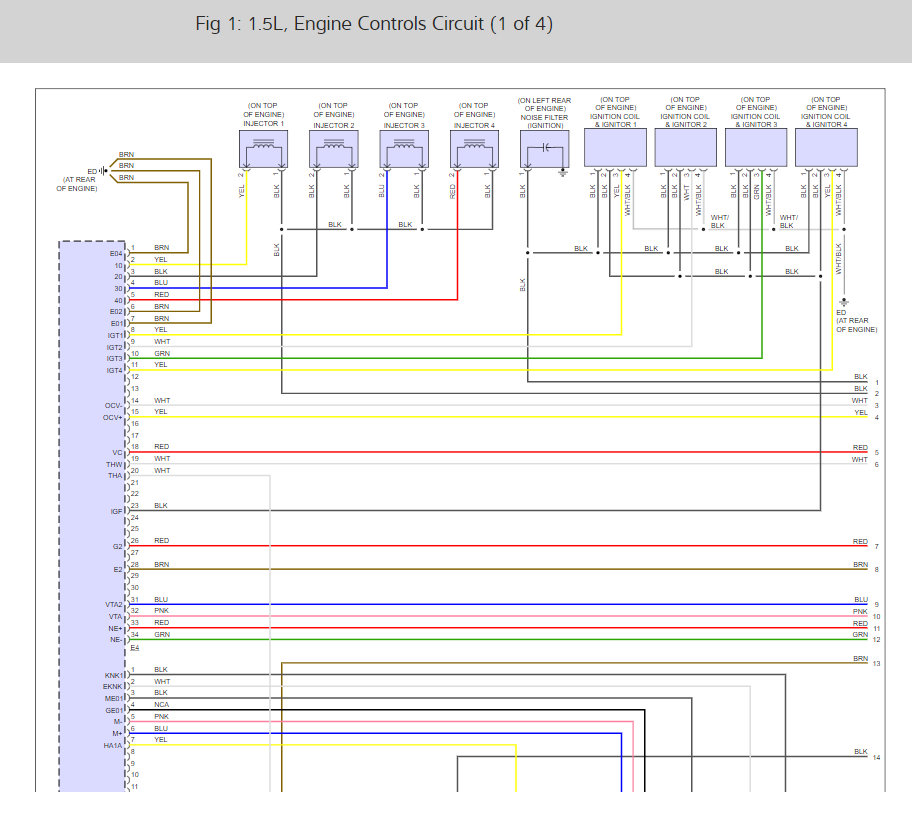

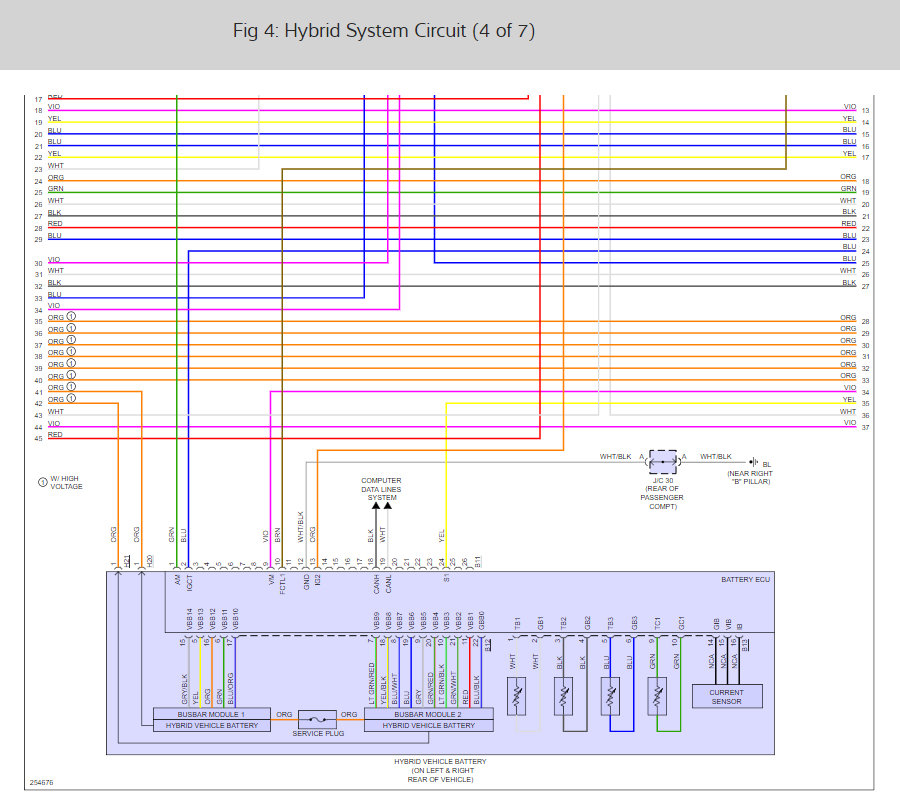

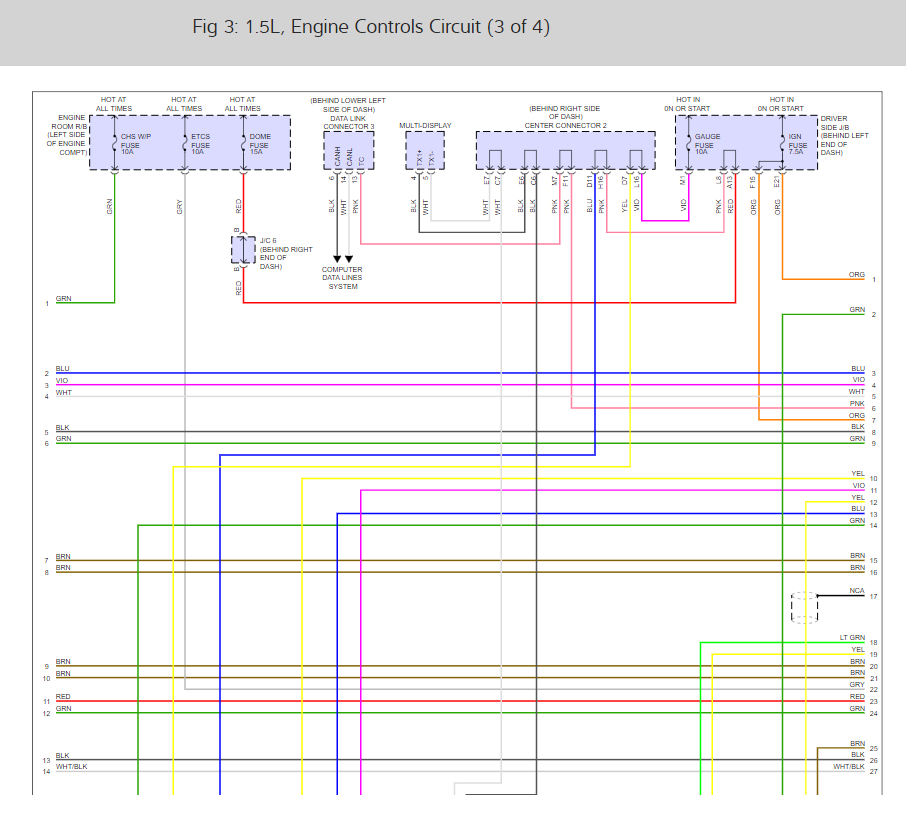

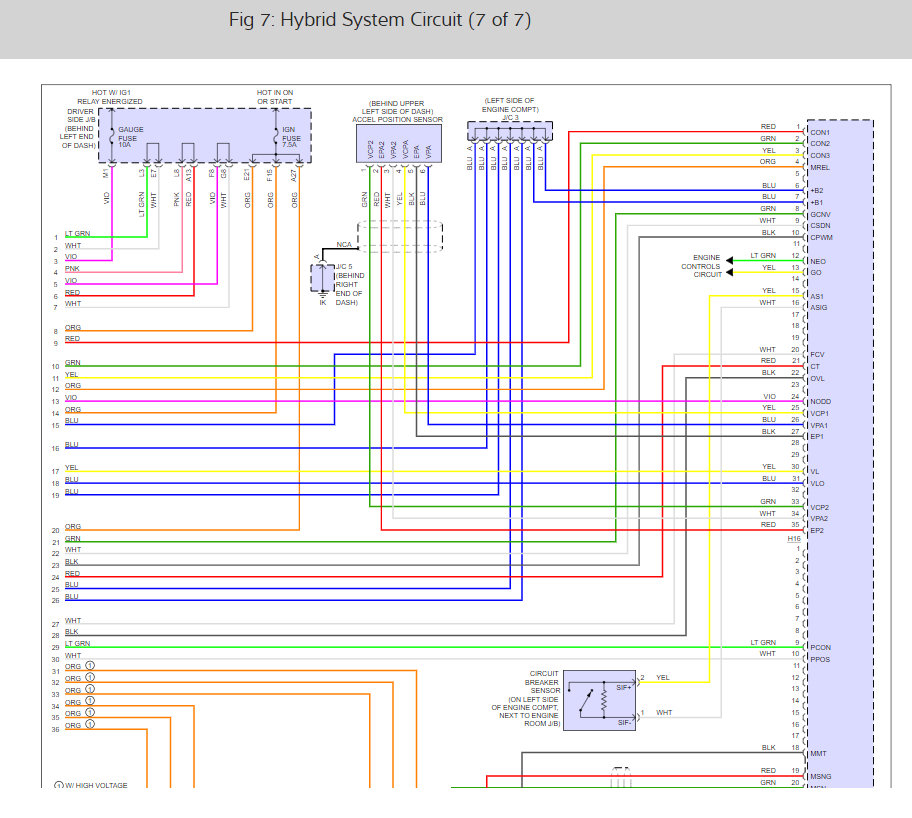

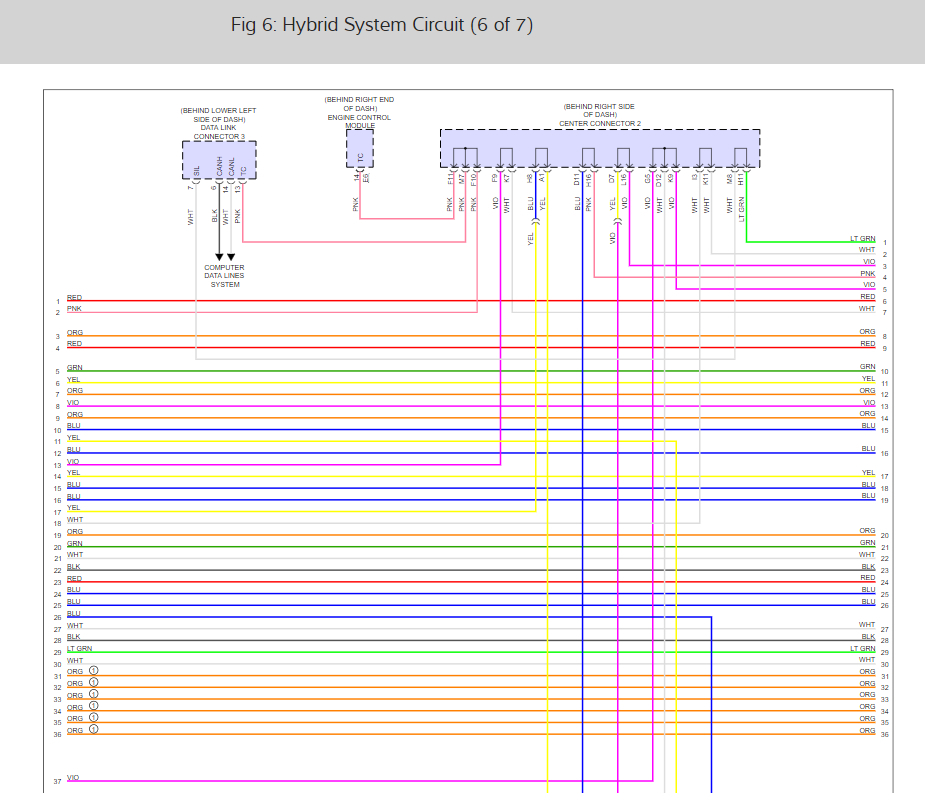

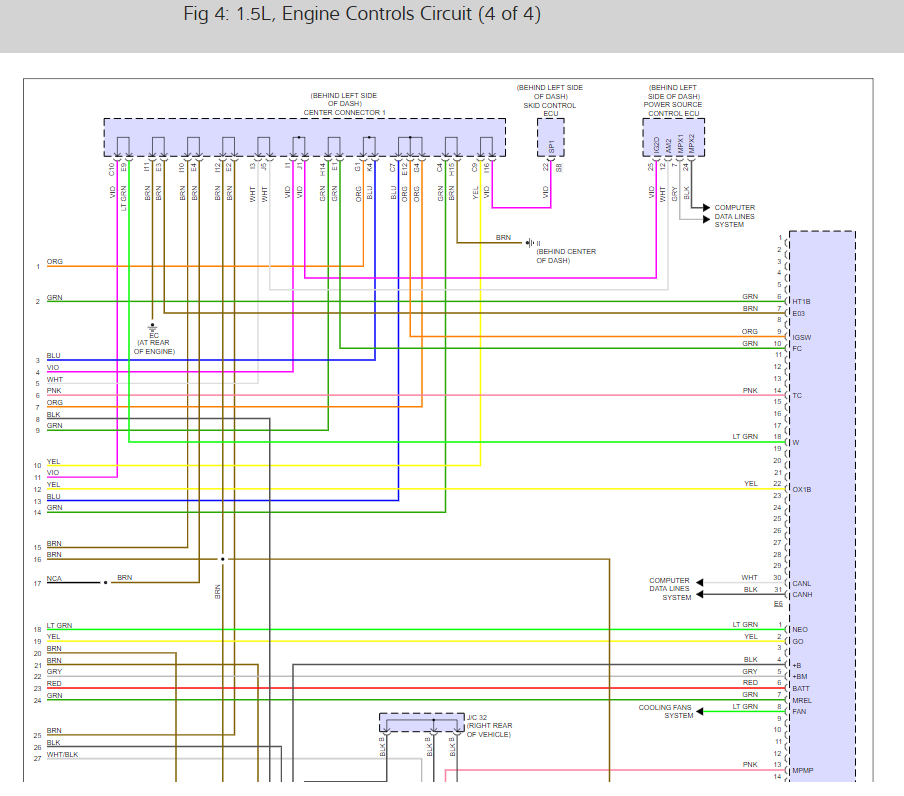

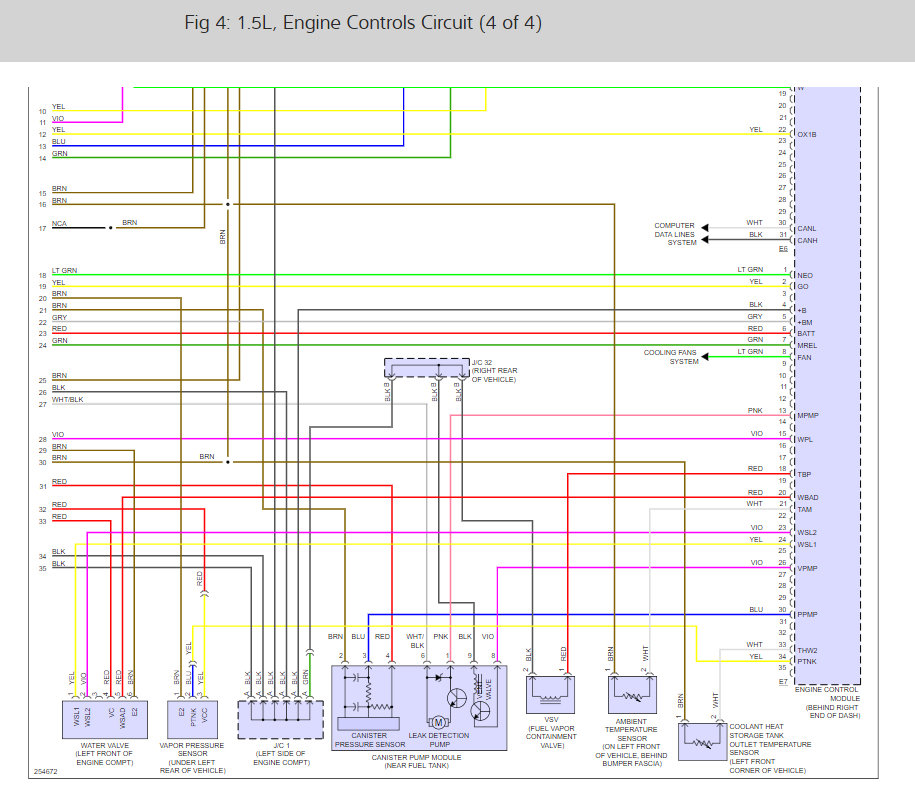

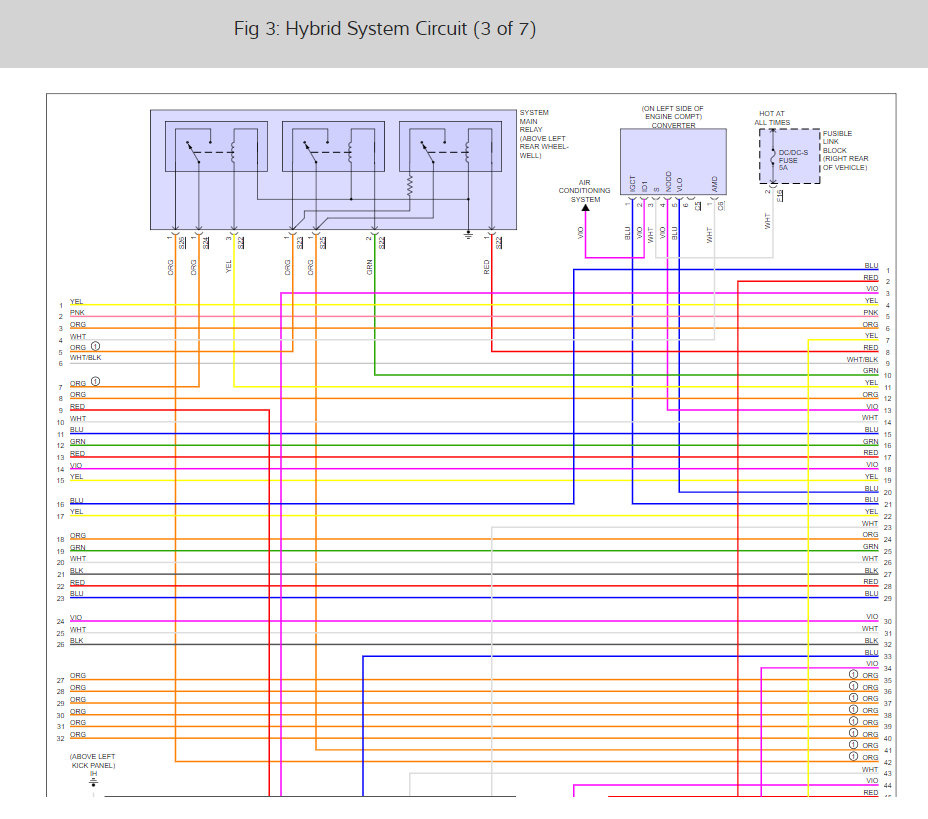

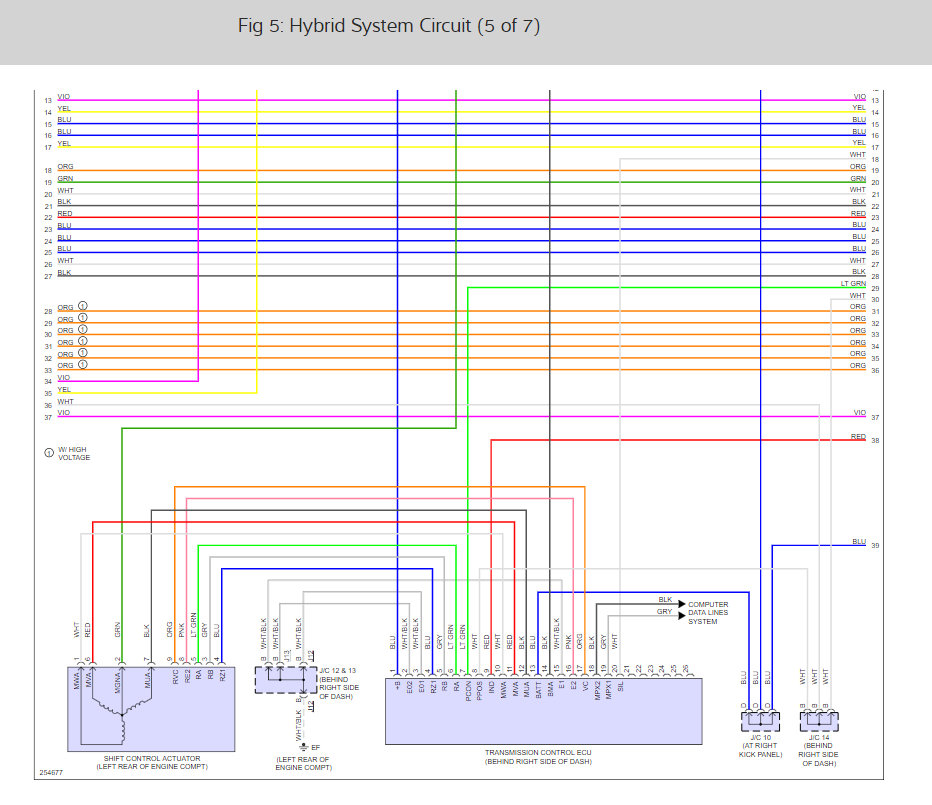

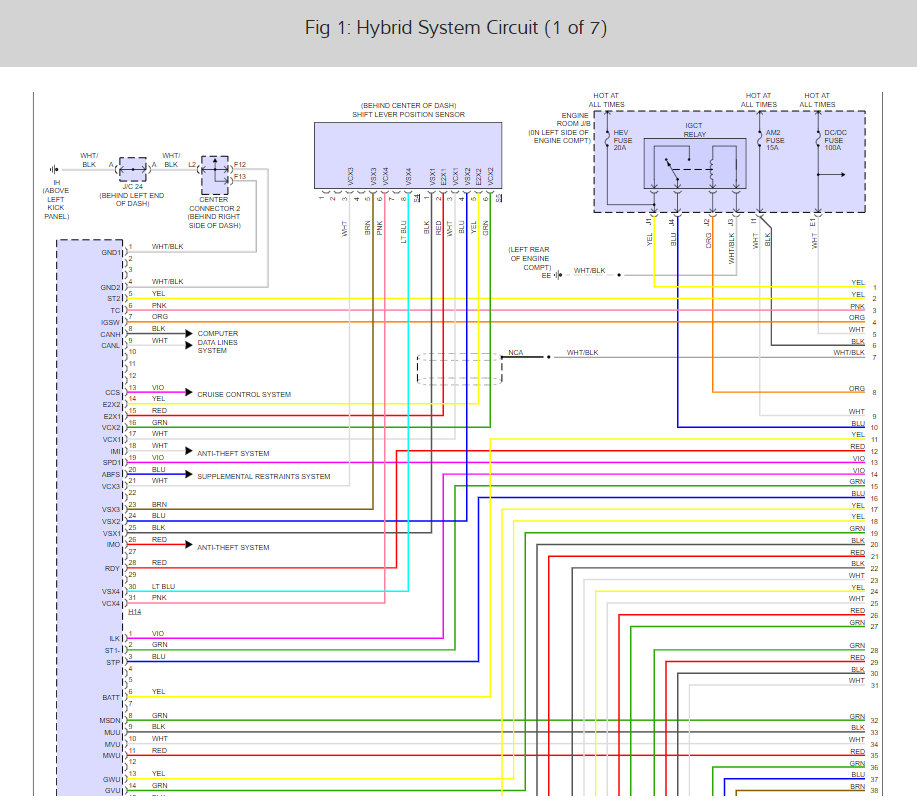

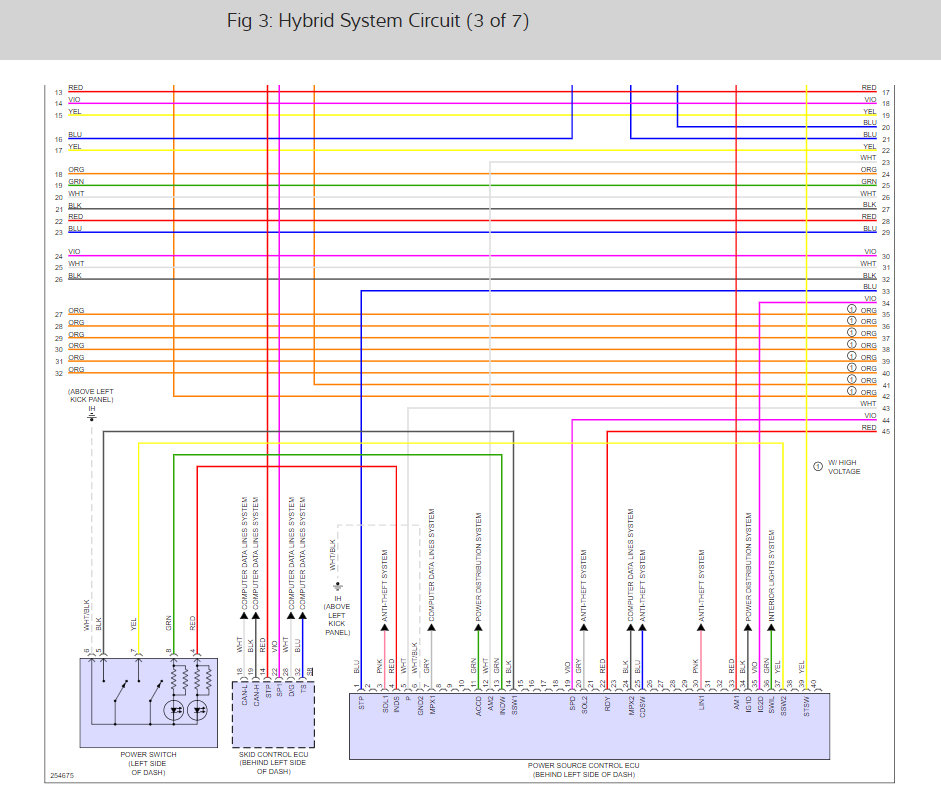

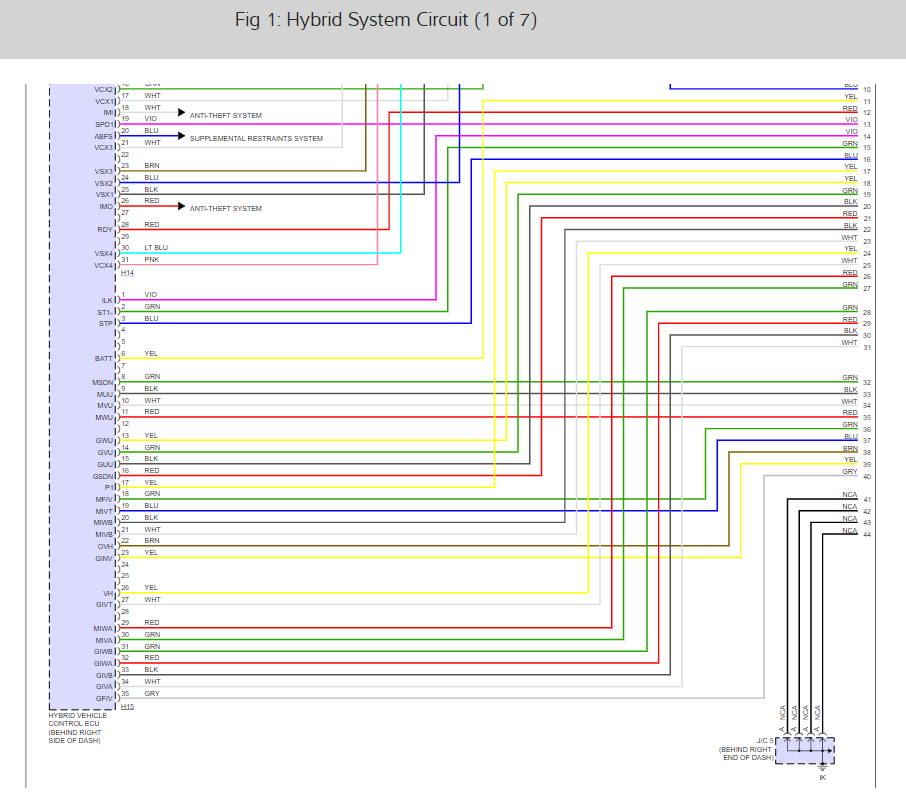

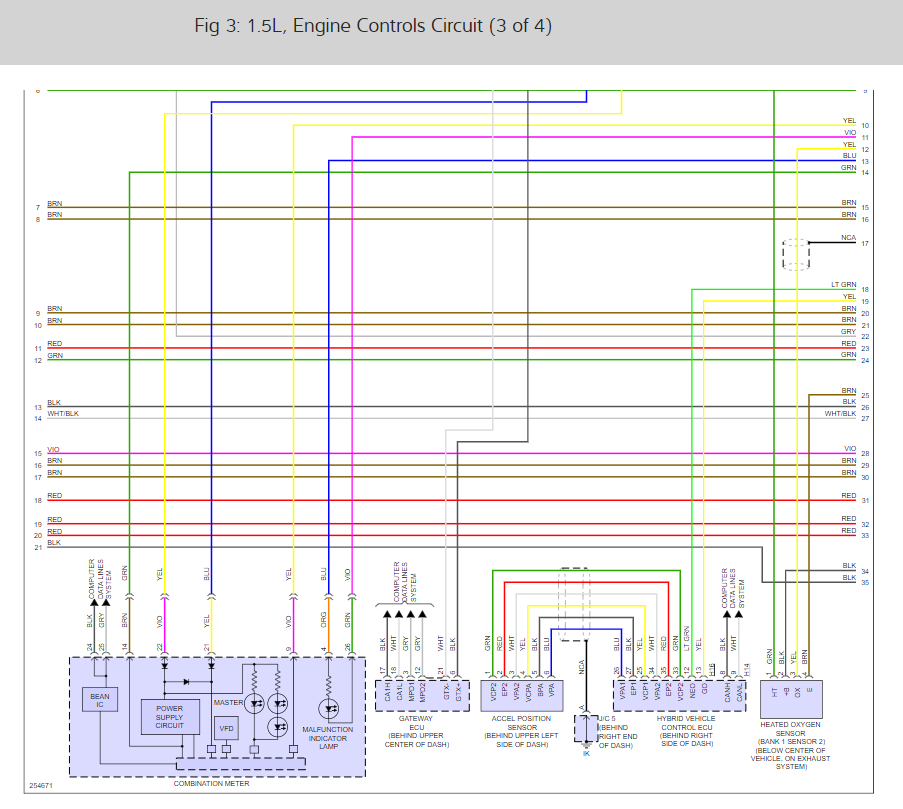

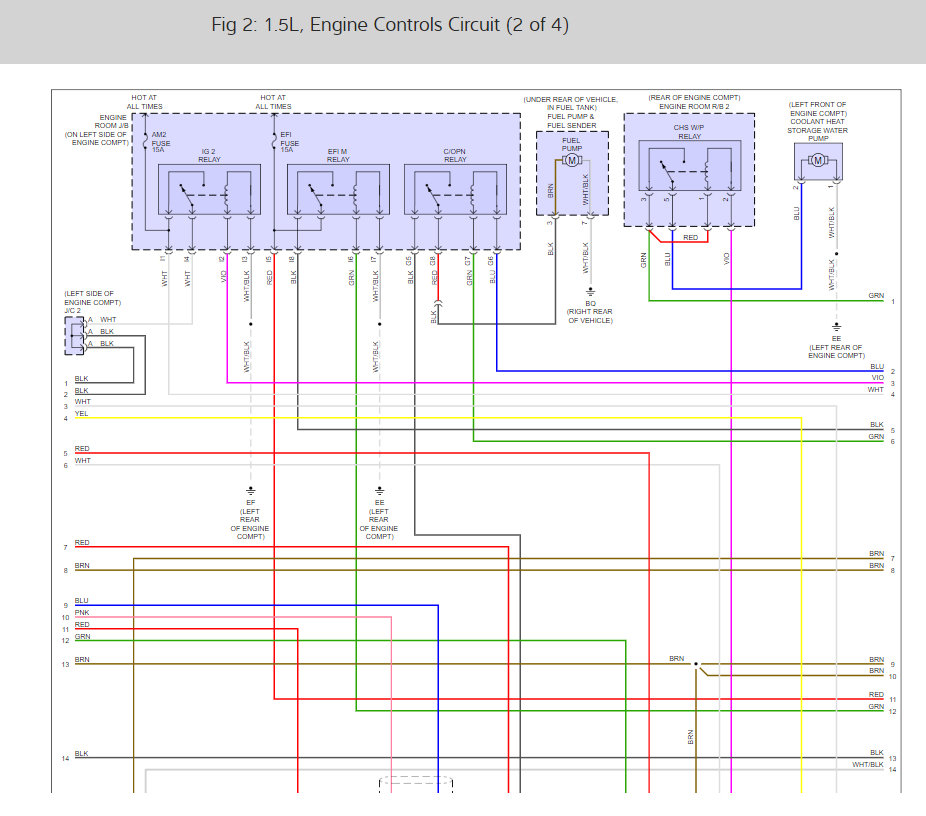

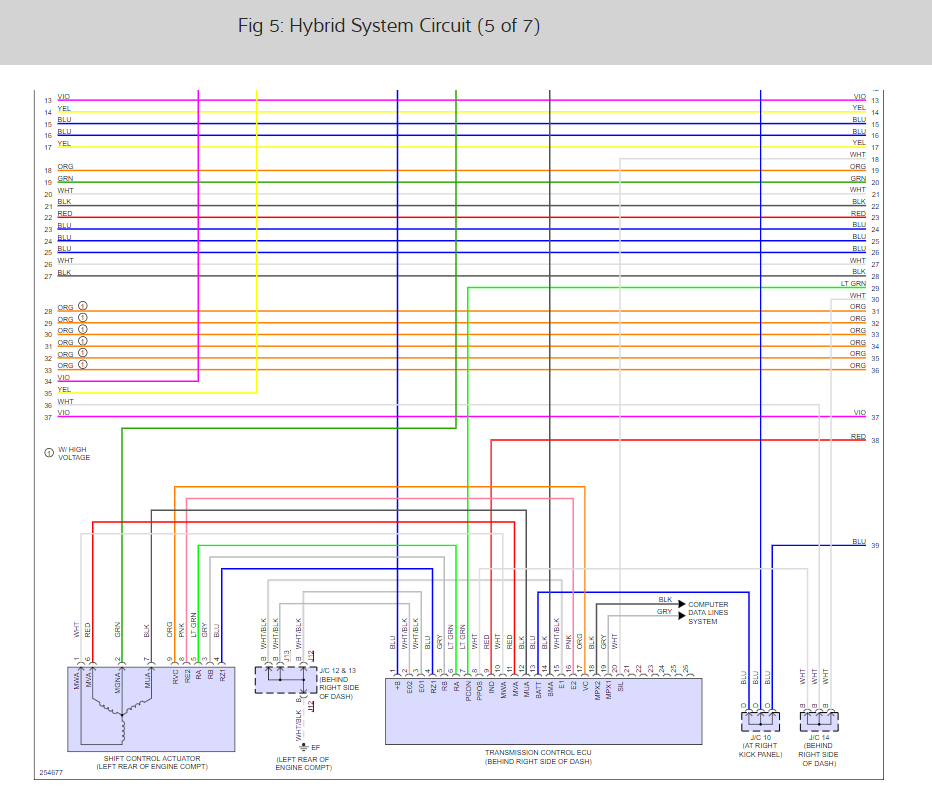

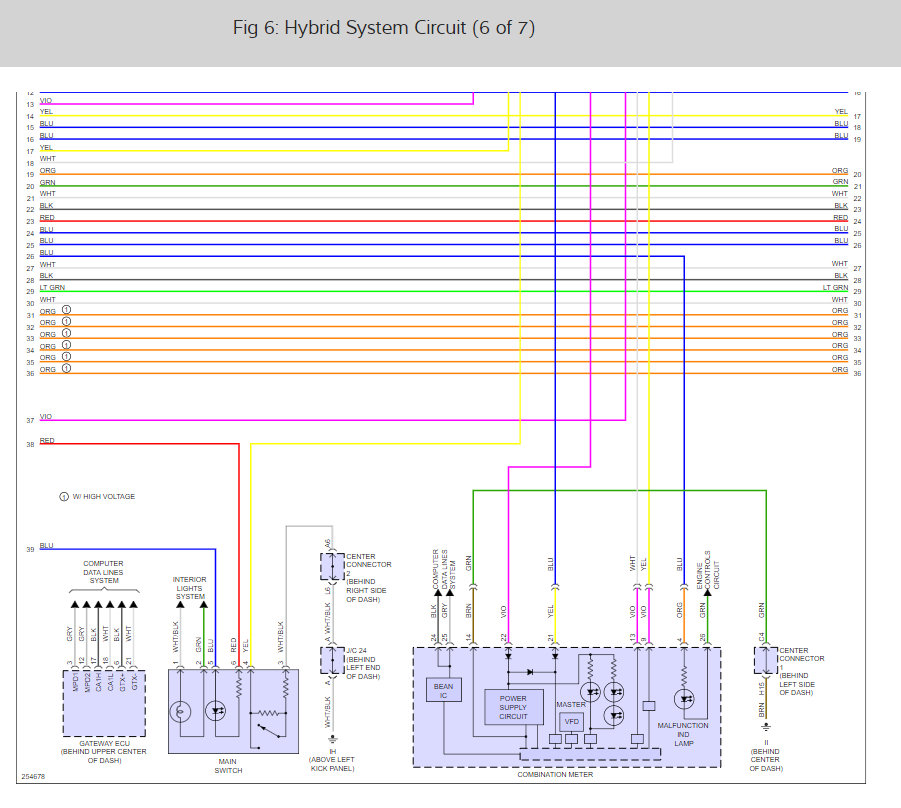

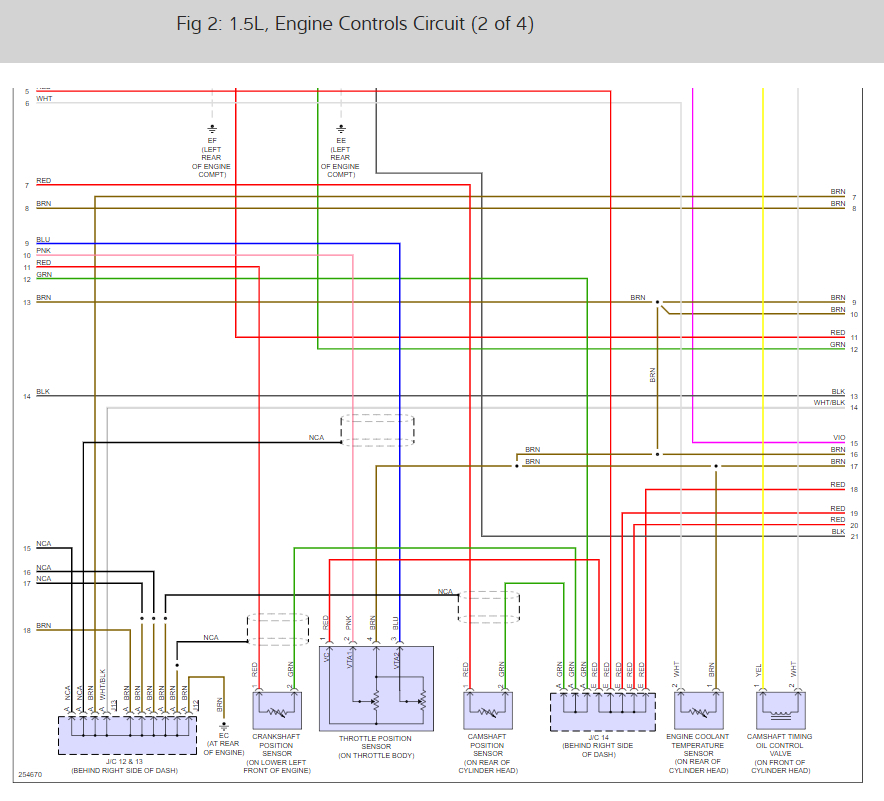

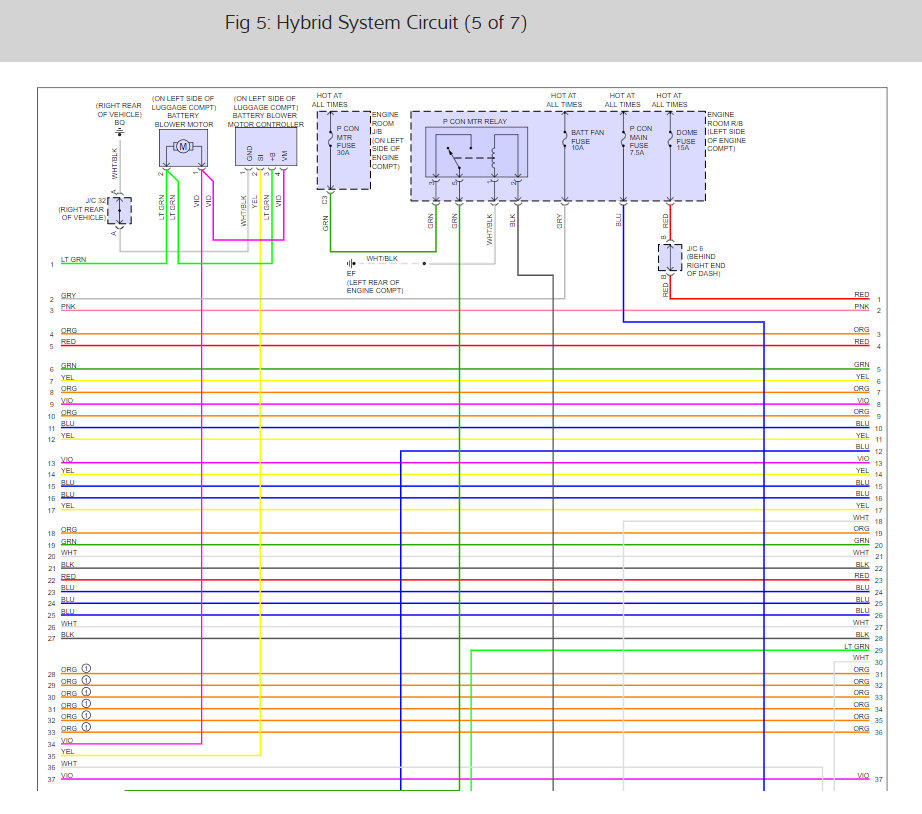

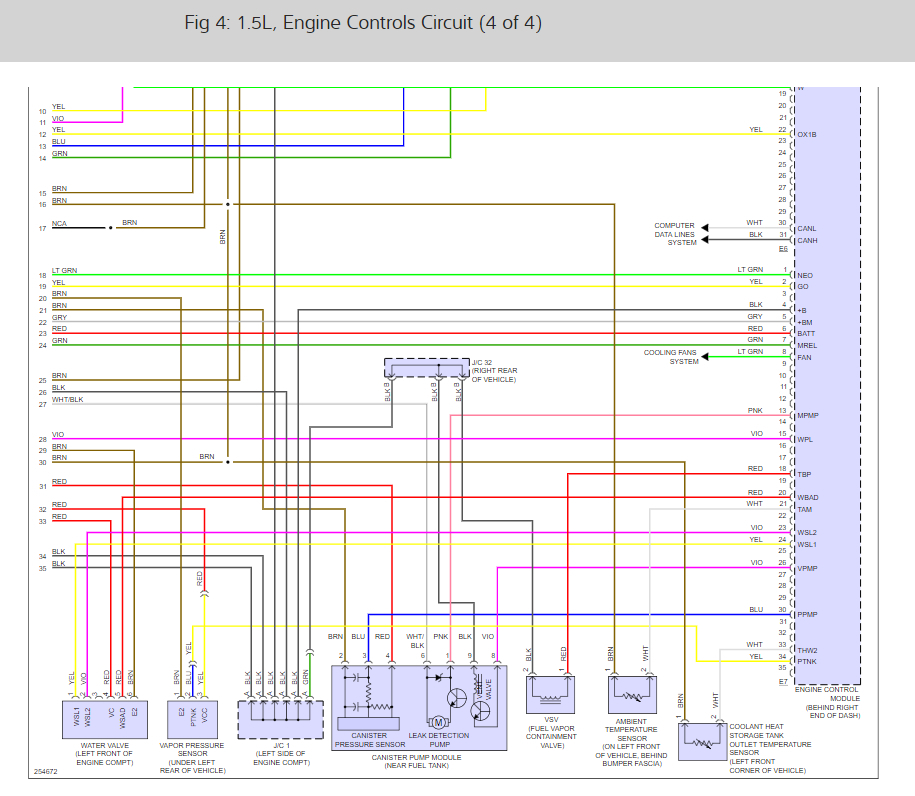

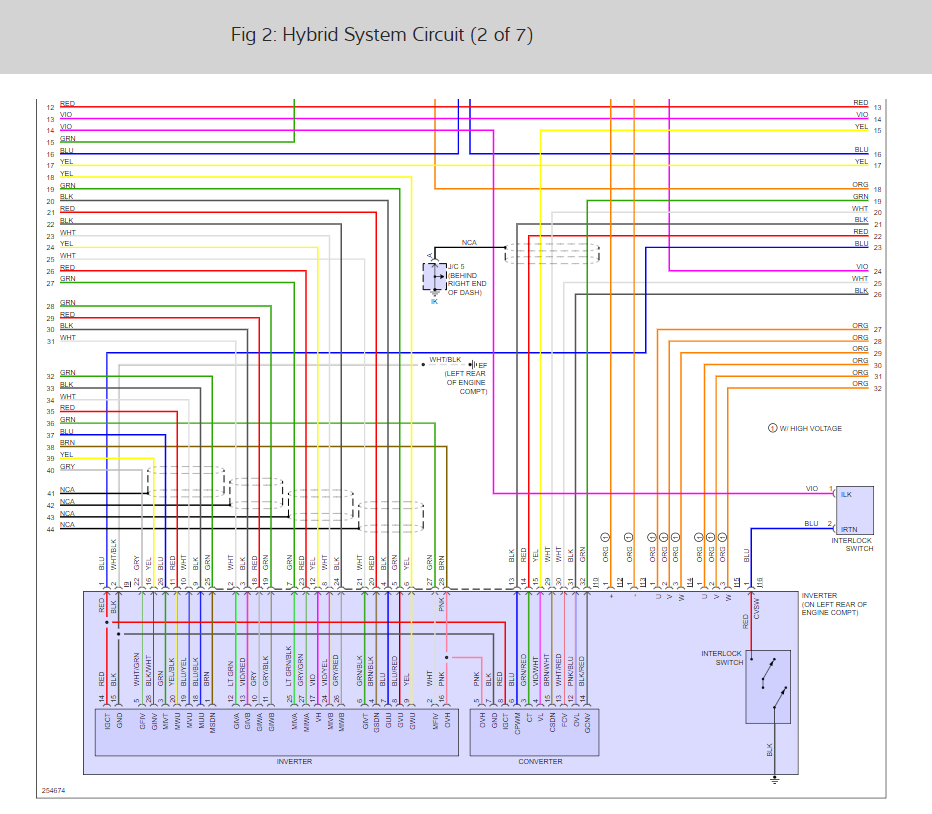

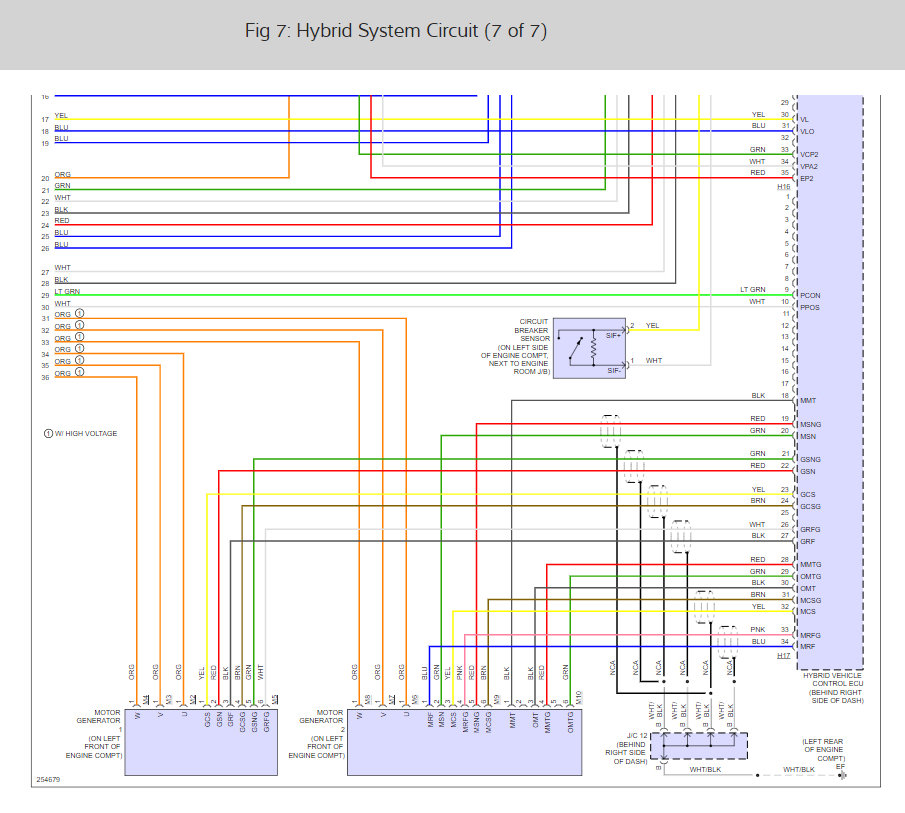

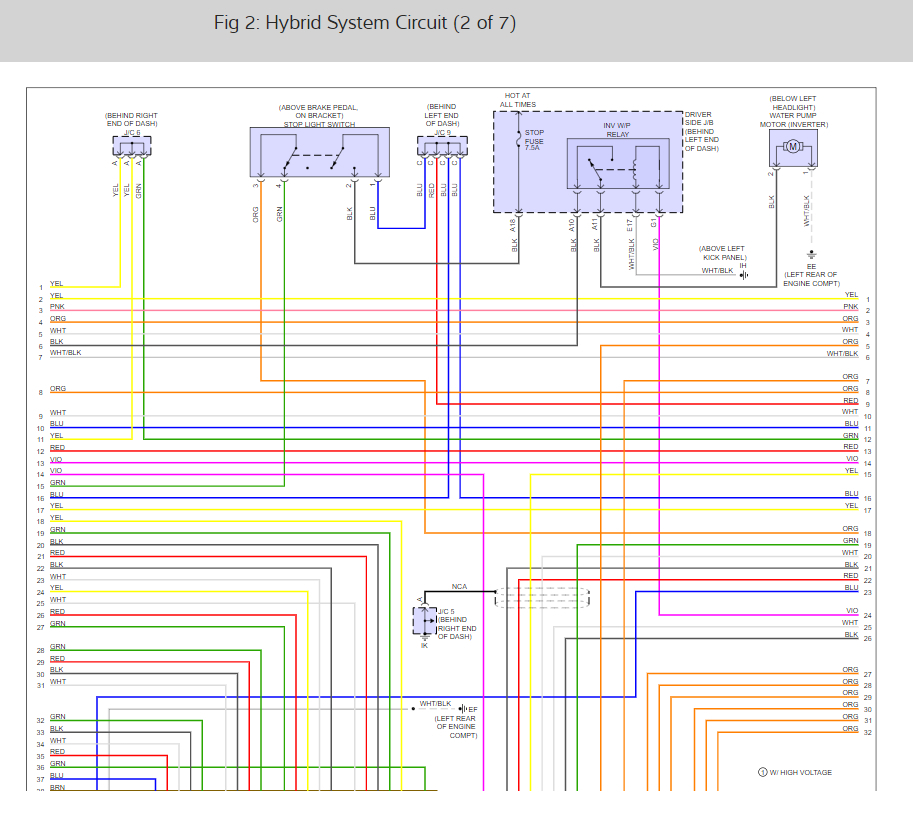

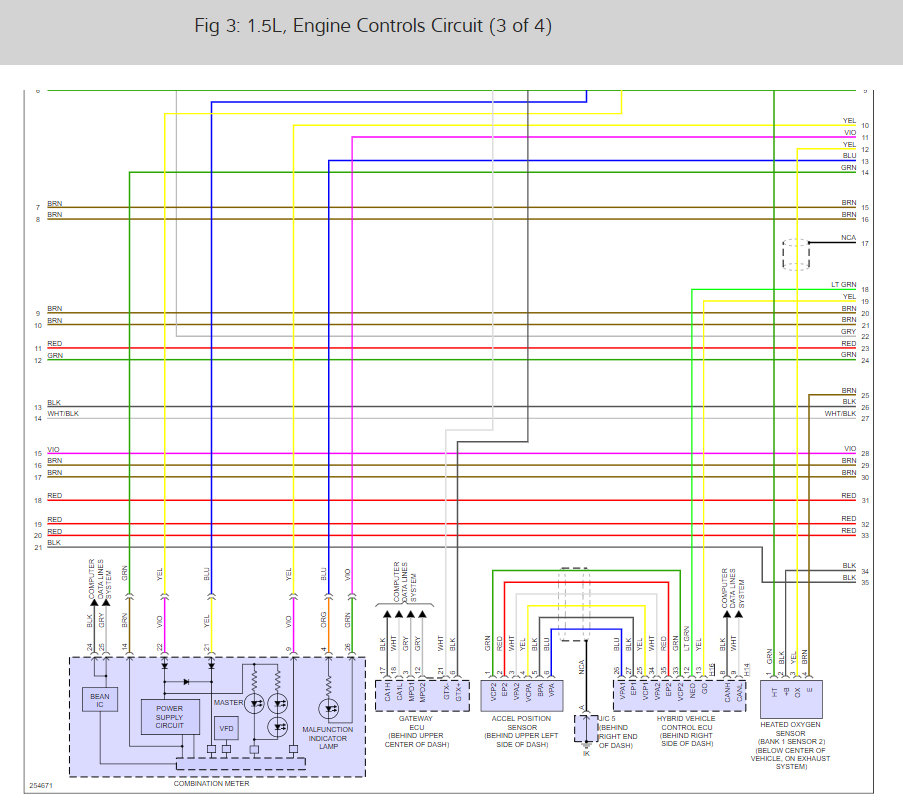

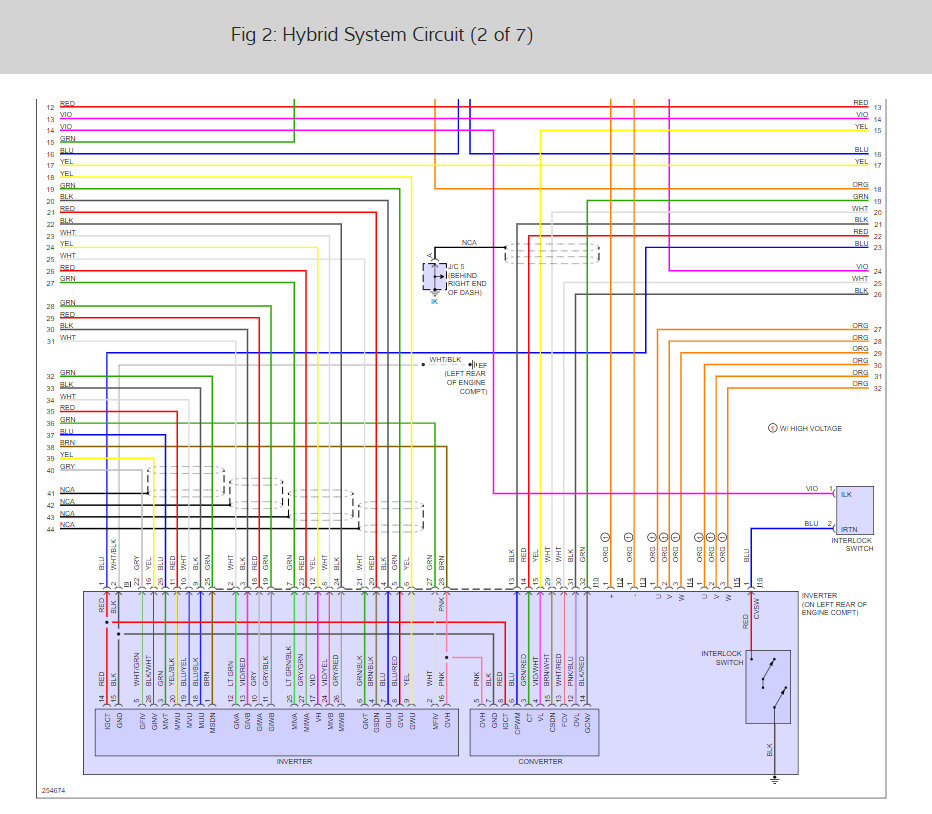

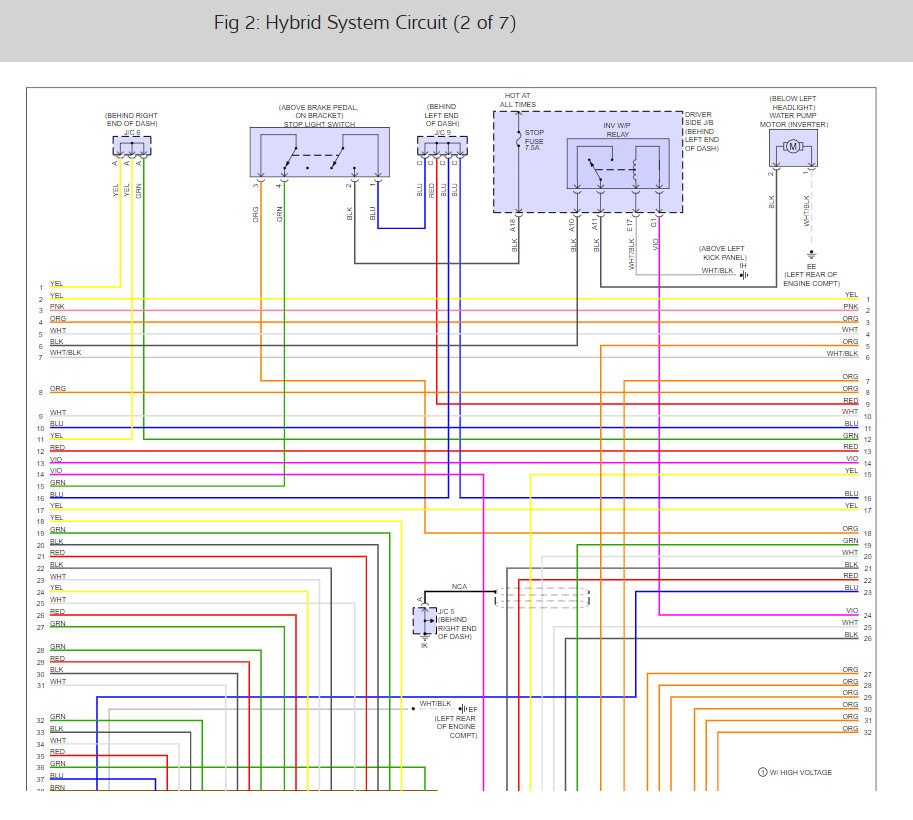

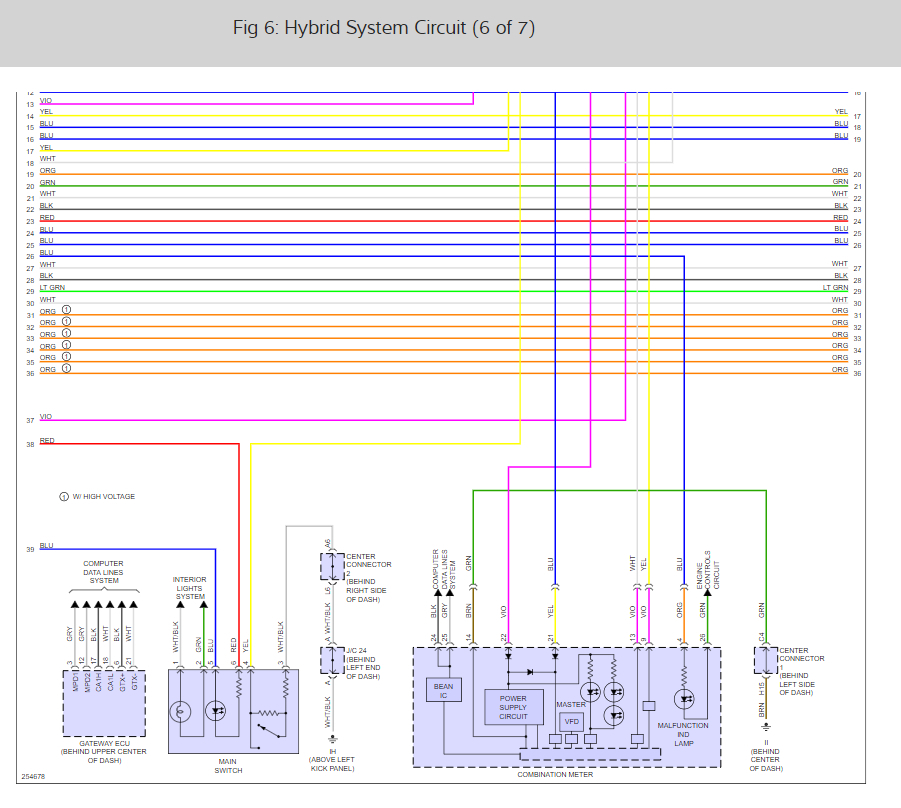

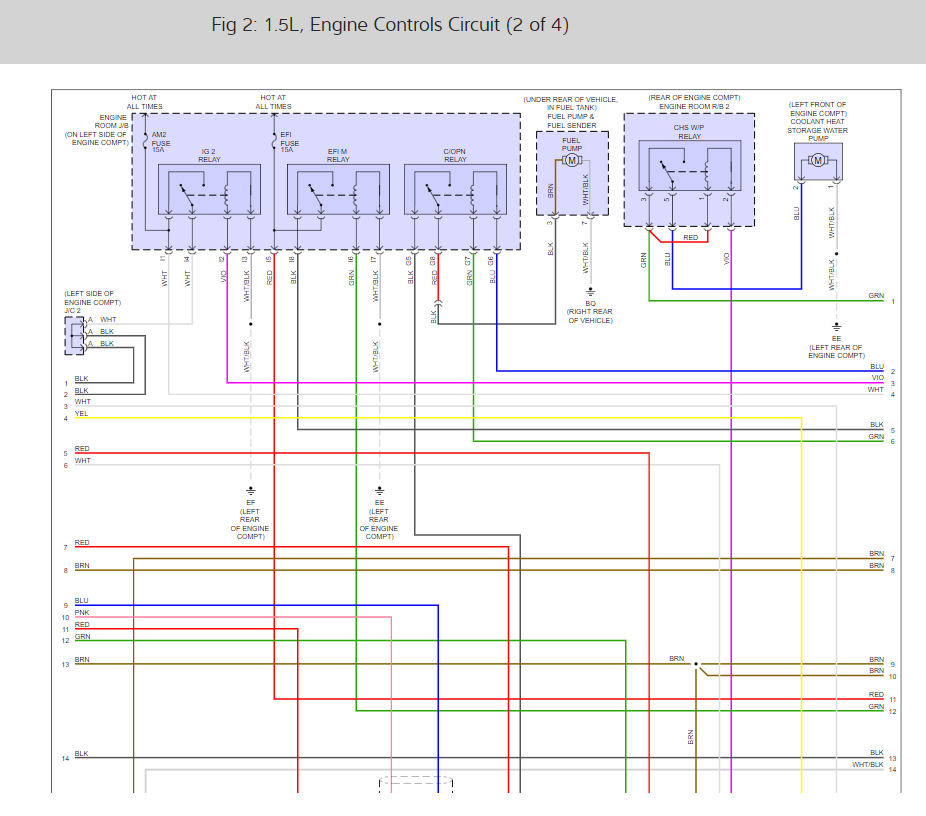

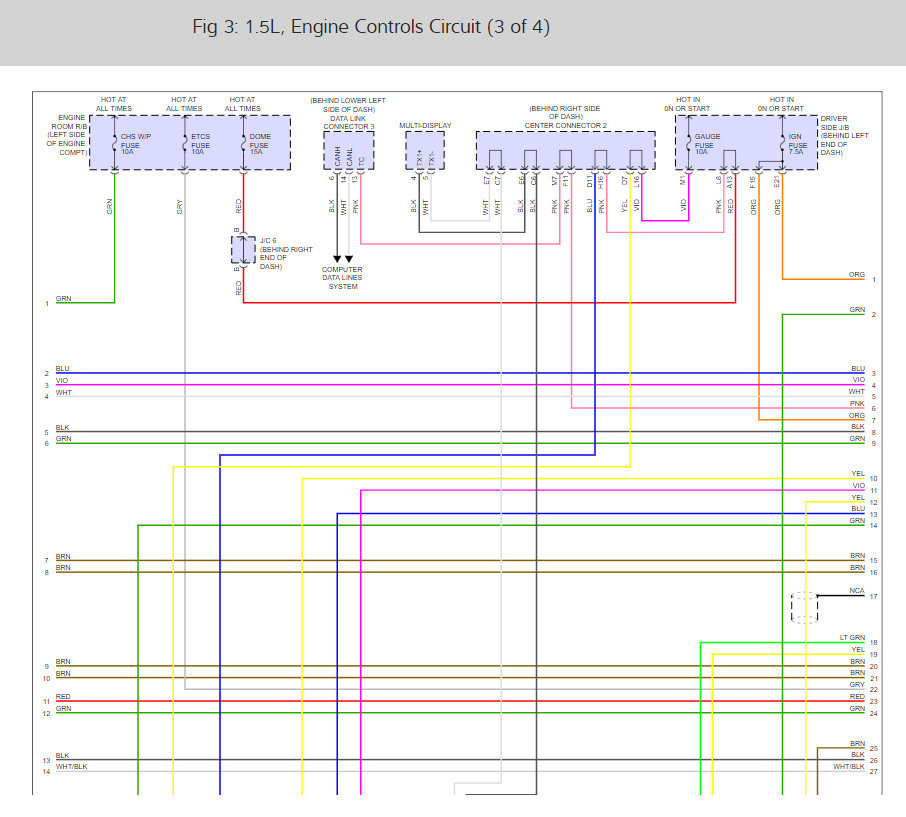

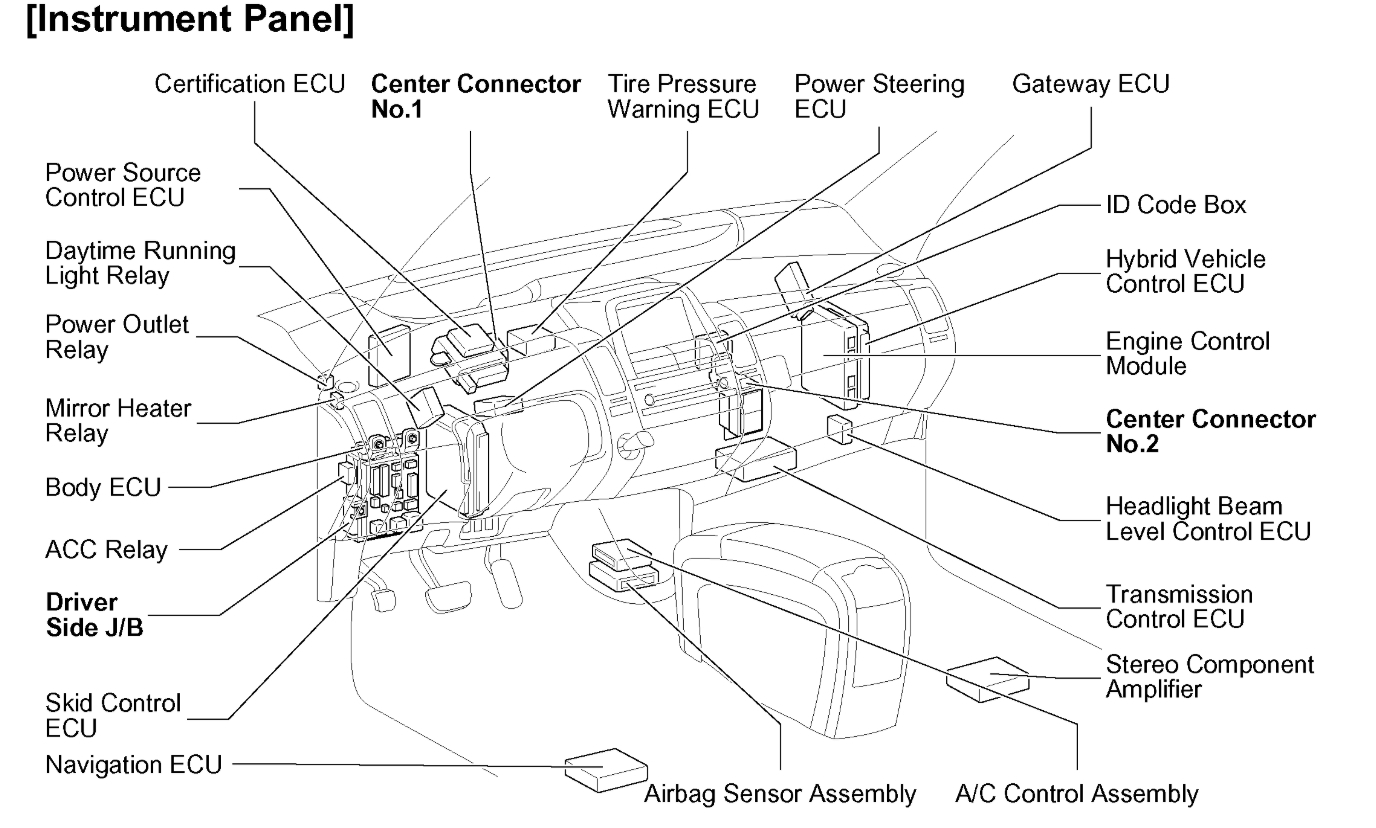

As you know the starter is the hybrid motor which is controlled by the computer so you might have a fuse out. We should also run the codes to see what comes up here is are two guide to help us get started. I also included the engine and hybrid wiring diagrams below so you can see how the system works and to see which fuses you should check.

https://www.2carpros.com/articles/checking-a-service-engine-soon-or-check-engine-light-on-or-flashing

and

https://www.2carpros.com/articles/how-to-check-a-car-fuse

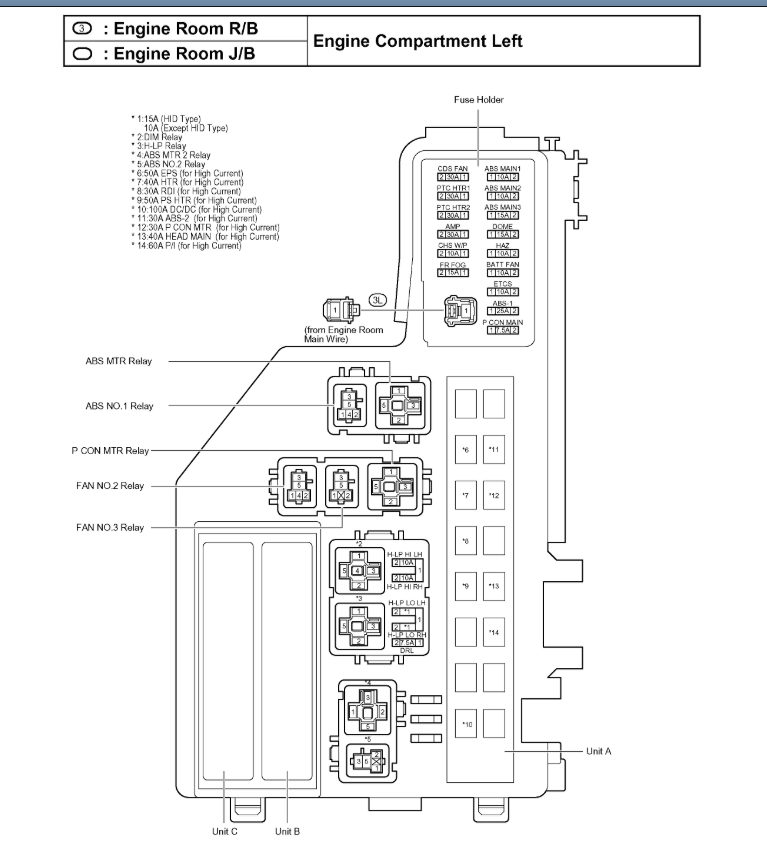

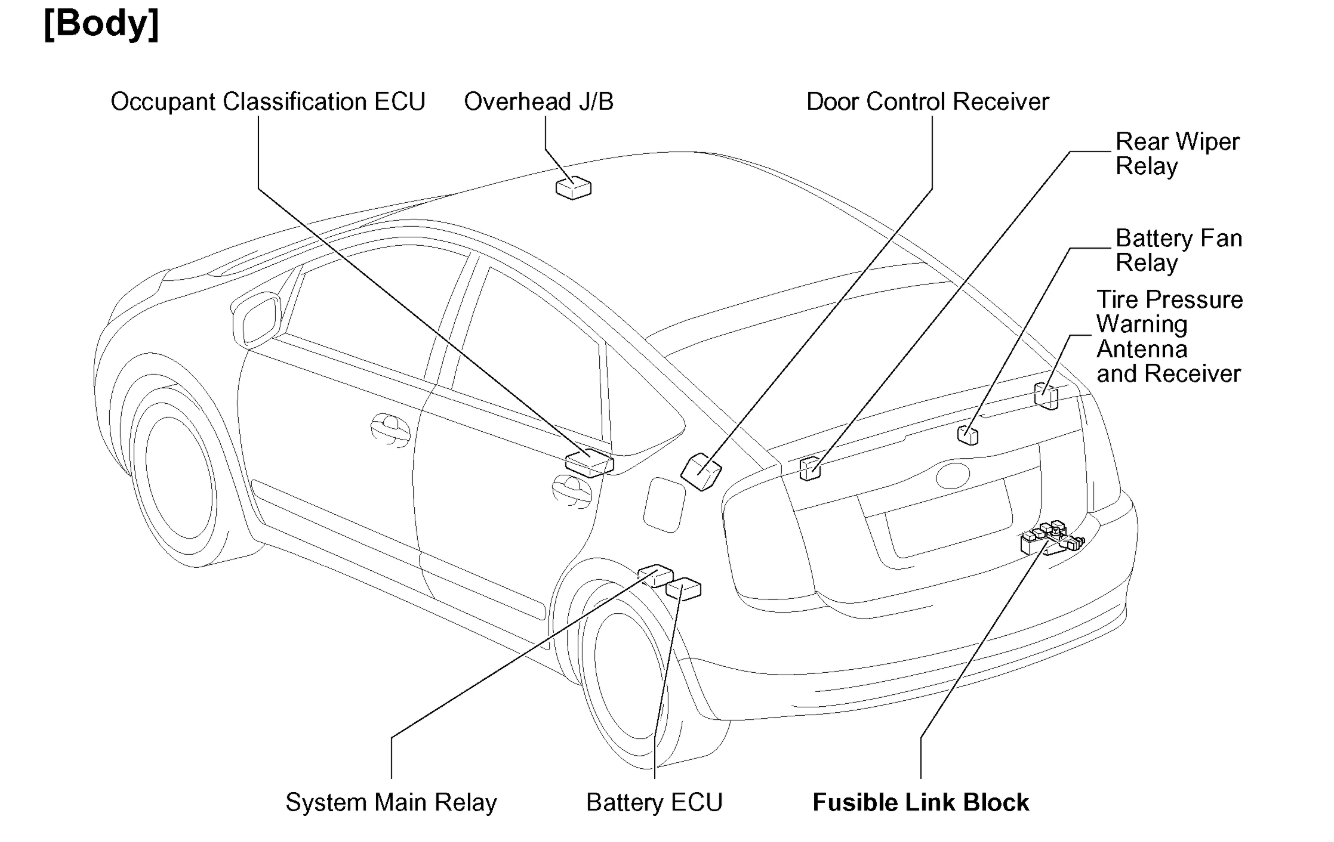

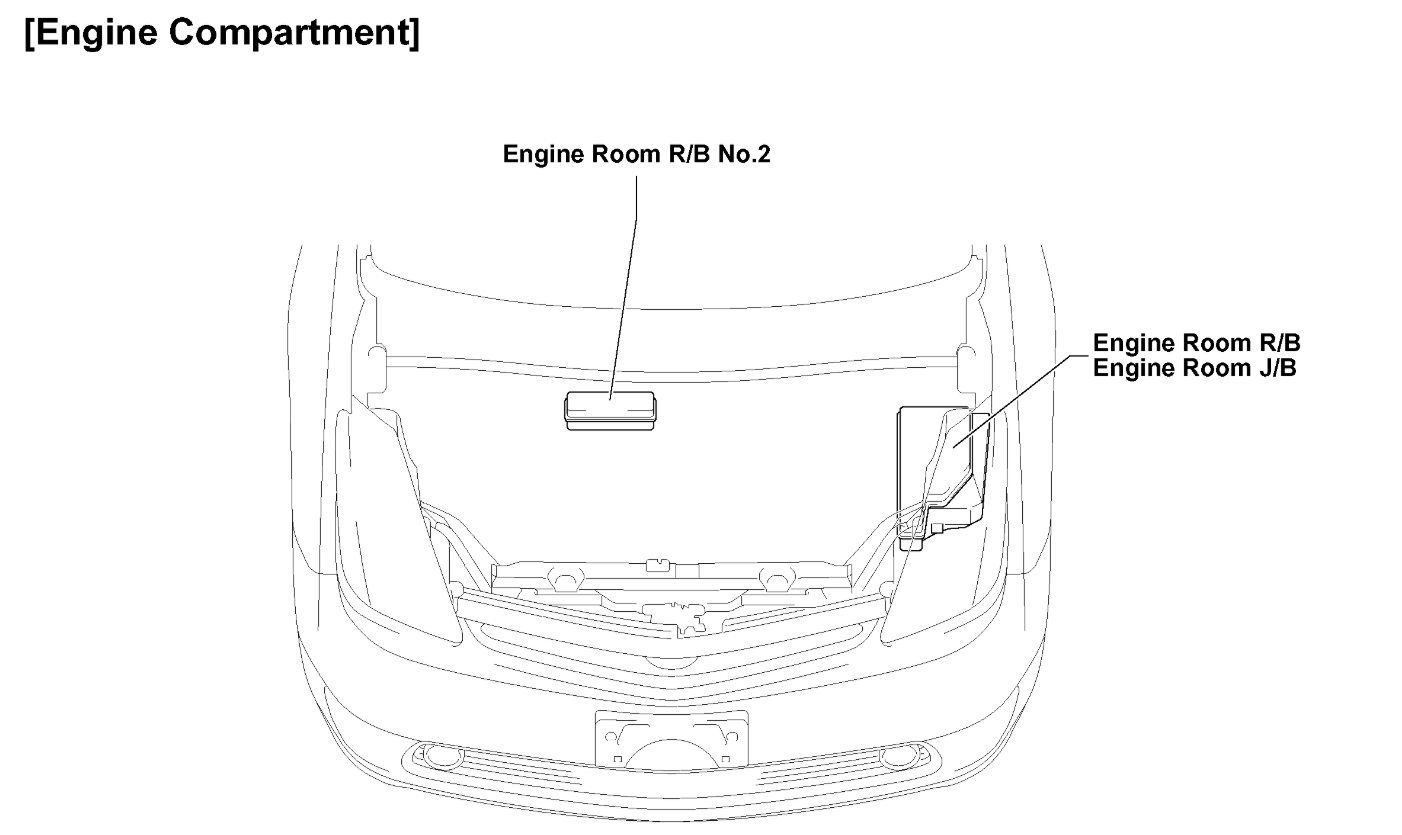

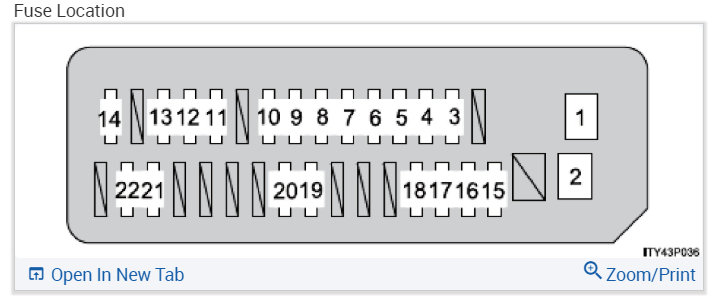

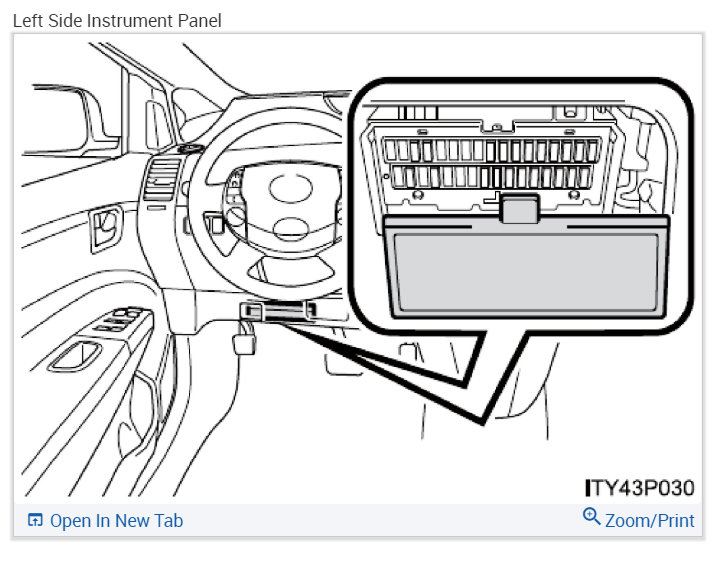

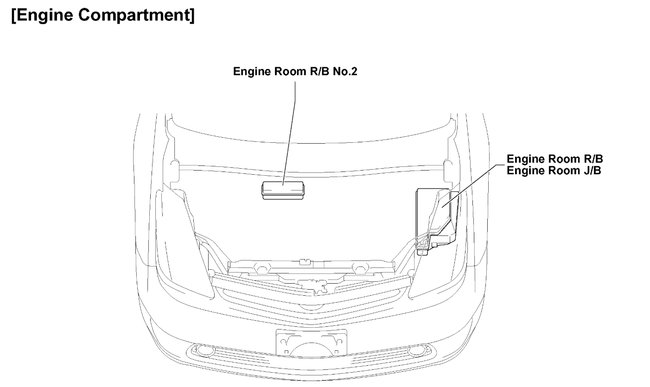

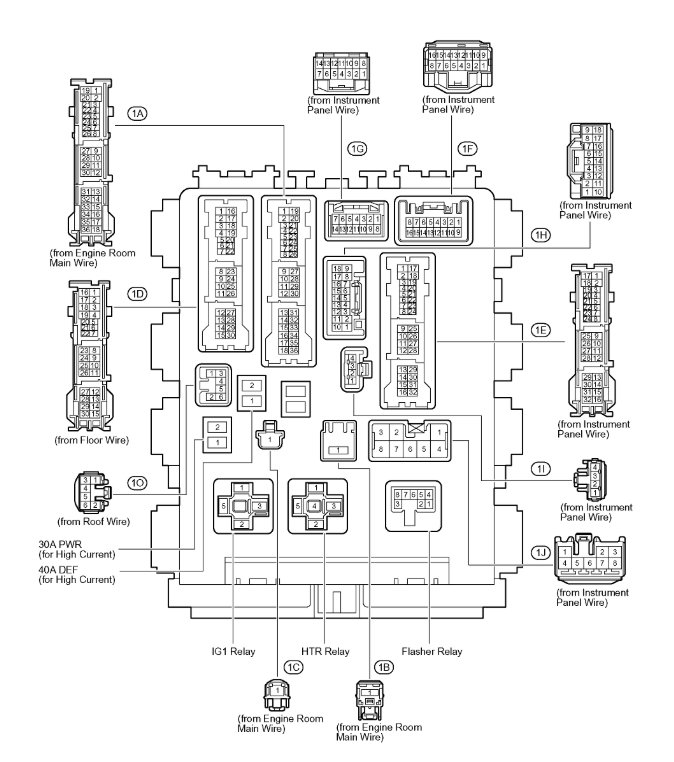

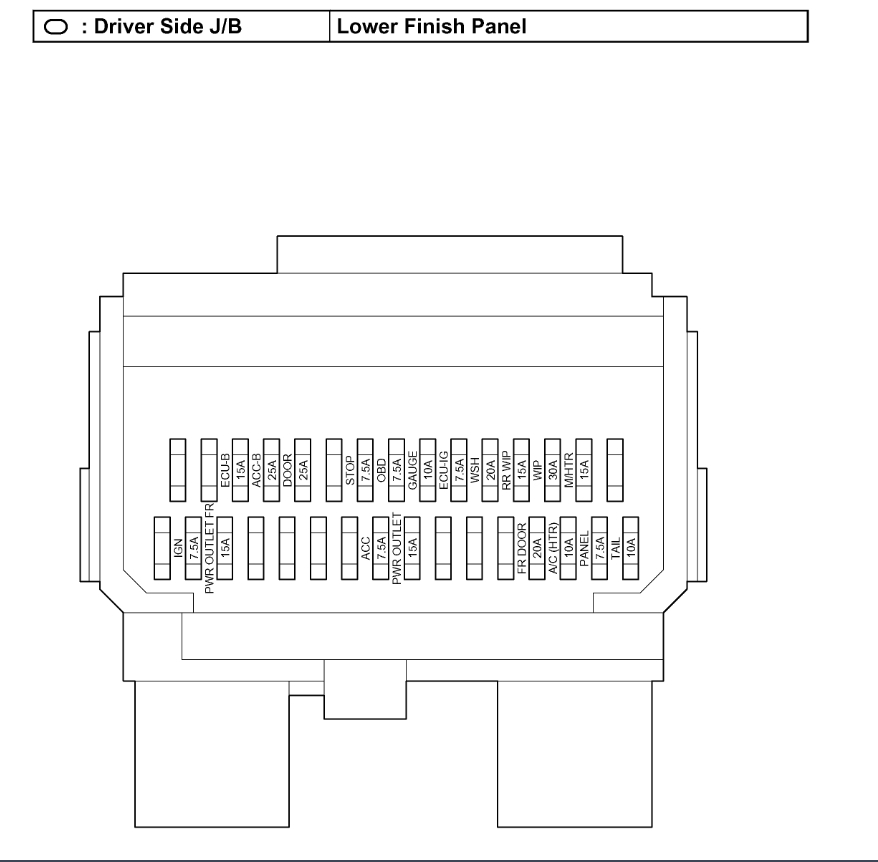

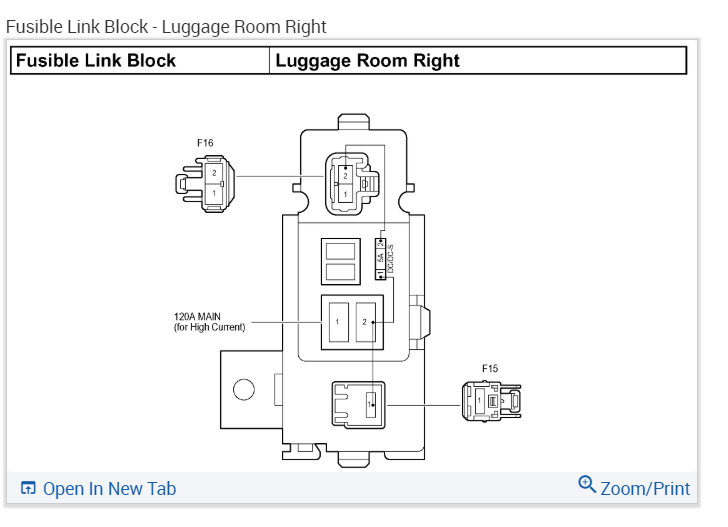

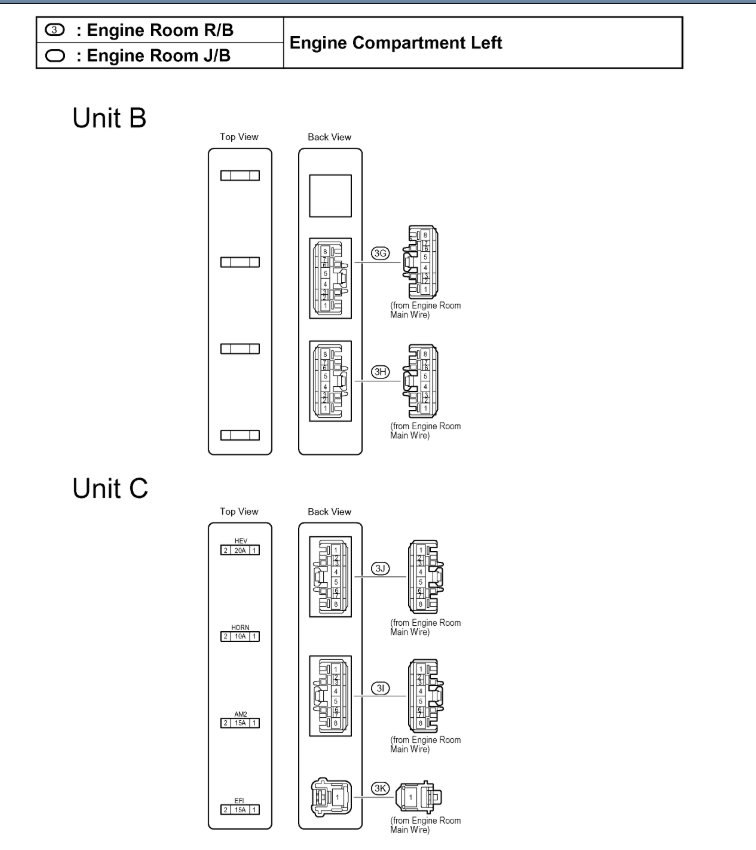

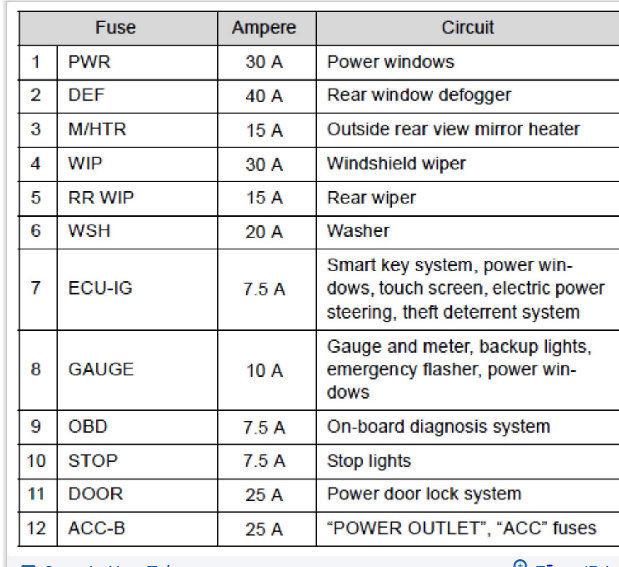

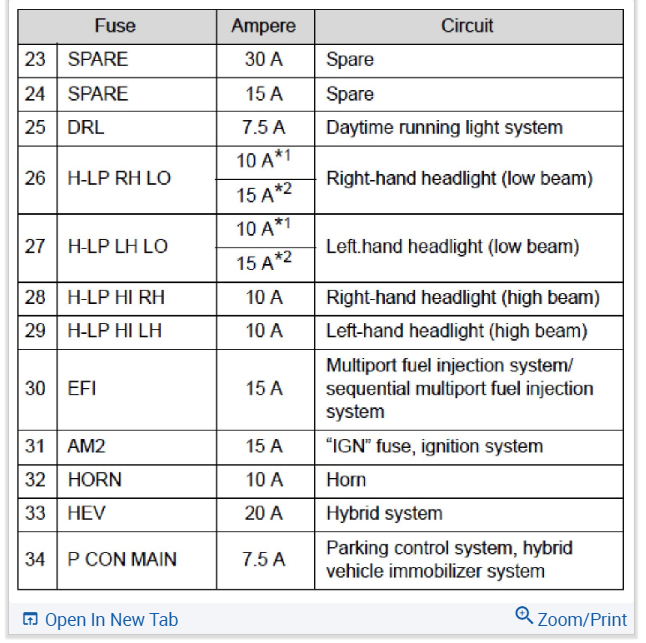

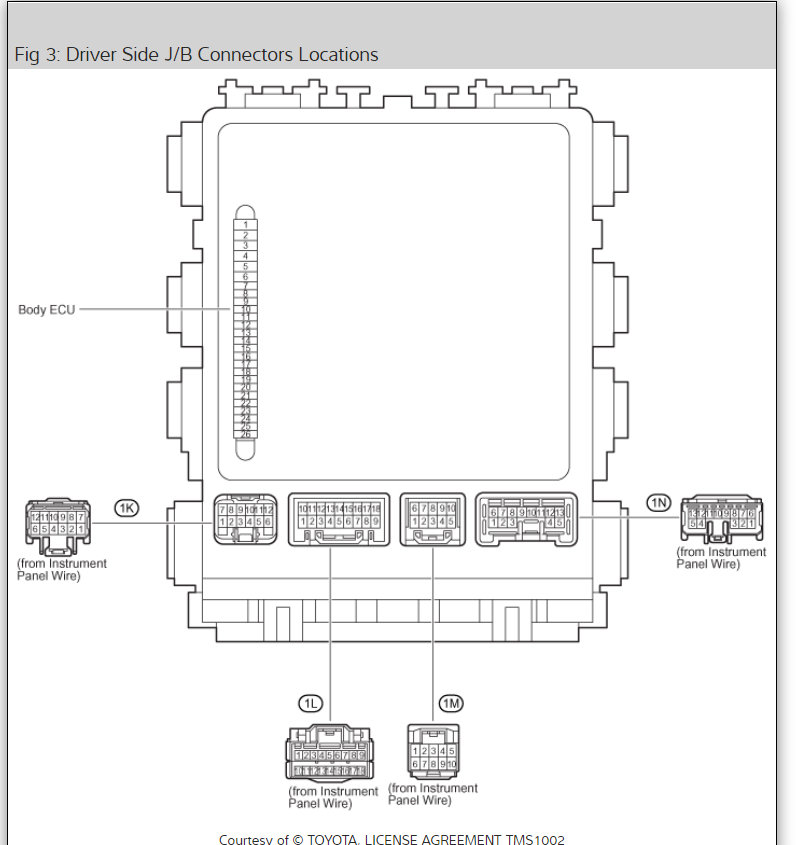

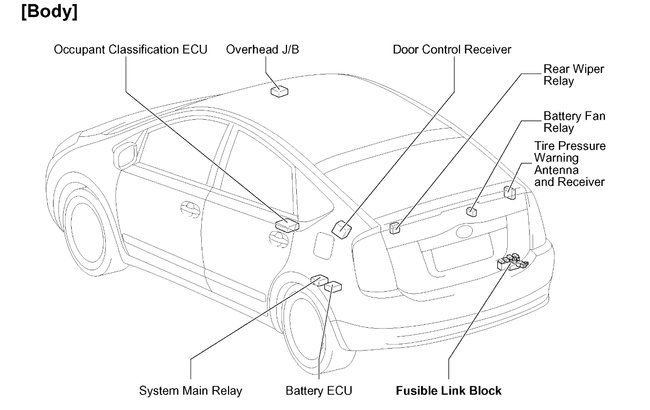

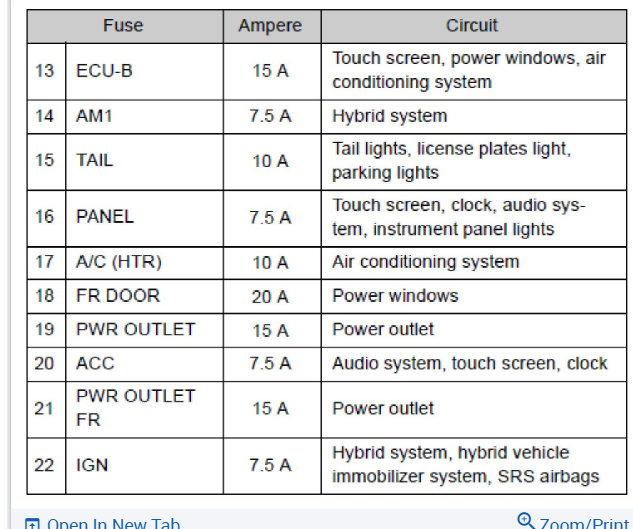

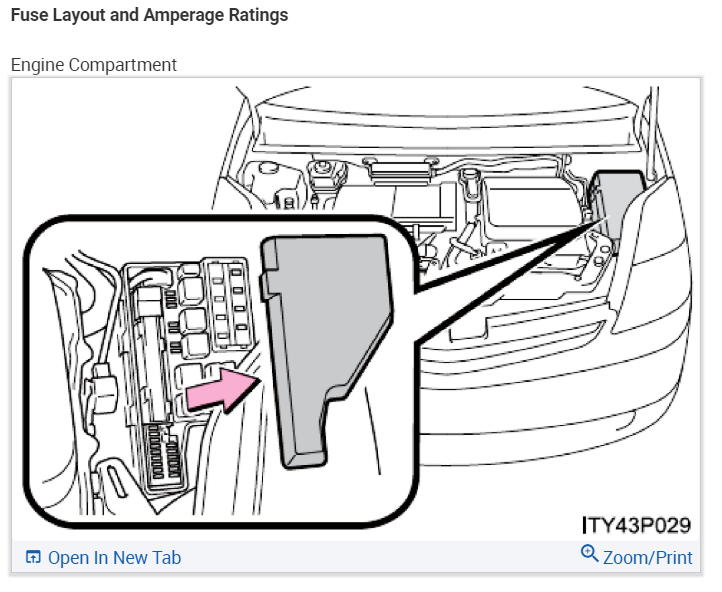

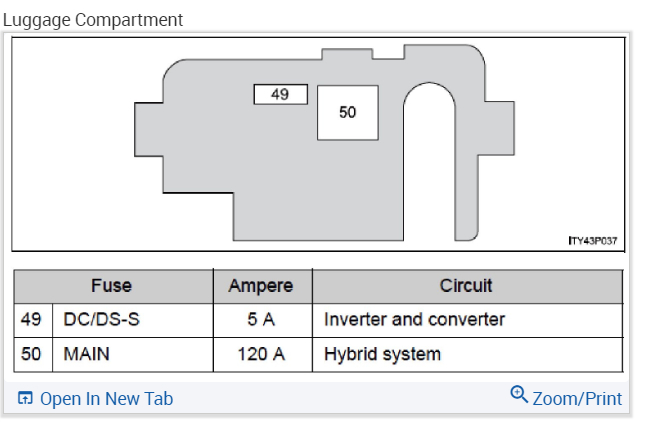

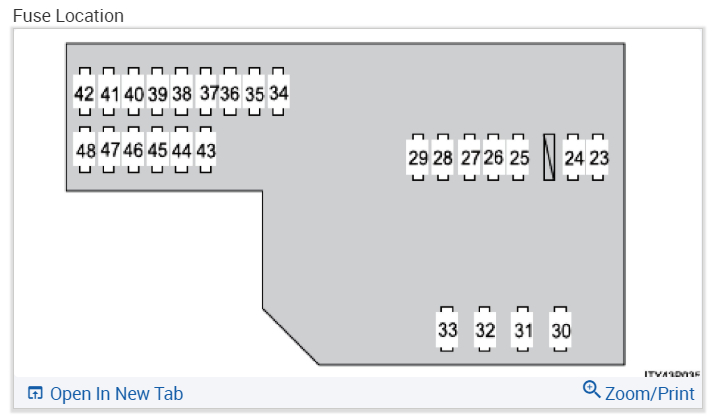

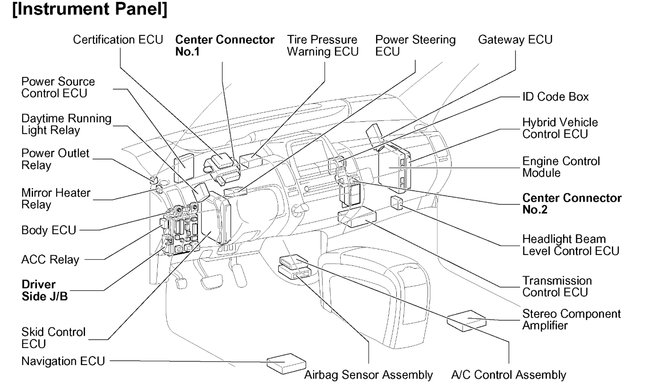

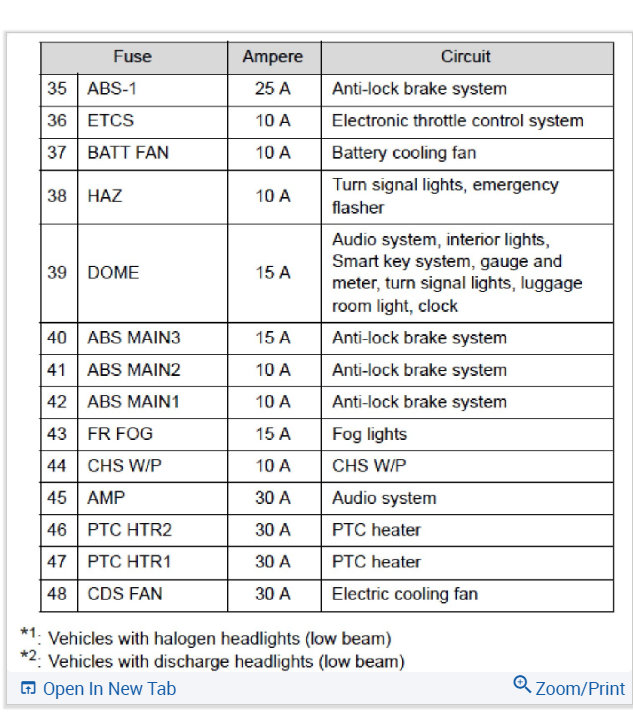

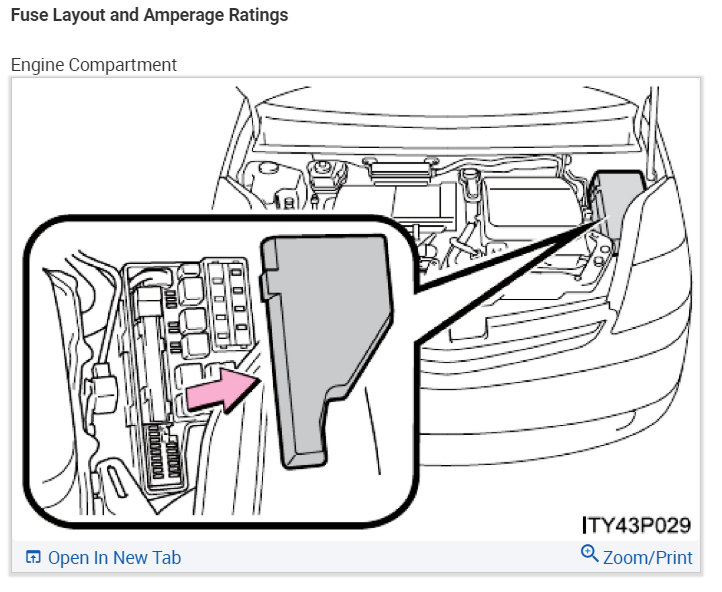

There are a bunch of diagrams so hang in there. Fuses first. Check out the diagrams (Below). Please let us know what happens.

Images (Click to enlarge)

Dec 21, 2010 at 3:44 PM

RCROCHET

MEMBER
1 POST

I had this problem they had to reprogram the car cost me $135.00 FYI

Feb 4, 2019 at 5:33 PM
